Power divider ZPD8-2M0-26.5G-2762
In Stock 2
DC~26.5GHz, 10W, 2way, 0°, SMA
$ 255.72
Delivery Time ： 1-3 Day(WorkDay)
Terms: Ex Work from Chengdu,China warehouse, minimum order amount US$200. Keeping registered and logged in, check discounts by adding to cart
MOQ : 1
Attention: The online trading belongs to commercial activities, the final transaction price might be lower than tag price, subject to automatically system calculating.
- Contact Us
- Cynthia
- cynthia@com-mw.com
sales@com-mw.com
+86 19938031308- 23 floor, No. 1 building, P Jiuxi Plaza, No.37, Jiancai Road, Chenghua Zone, Chengdu
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | DC | ~ | 26.5 | GHz |
| IL | 6.5 | 7 | dB | |
| Isolation | 9 | 10 | dB | |
| Input VSWR | 2 | 2.2 | ||
| Output VSWR | 2 | 2.5 | ||
| Amplitude balance | 0.5 | 1 | dB | |
| Phase balance | 5 | 8 | ° |
Other parameters
| Power | 10W Design assurance |
| way | 2-way |
| Phase | 0° |
| Impedance | 50Ω |
| Connector | SMA-K |
| Connector material | Stainless steel |
| Surface | Gold-plating |
| Work Temp. | -40~+70℃ Design assurance |
Port Definition
| Common port | C |
| Dispatch Port | 1、2 |
Typical test data
| Frequency(GHz) | S11 VSWR | S22 VSWR | S12 IL dB | S13 IL dB | S23 ISO dB |
| 0.01 | 1.01 | 1.65 | -6.01 | -5.98 | -7.48 |
| 1.94 | 1.09 | 1.62 | -6.02 | -5.97 | -12.04 |
| 3.87 | 1.27 | 1.51 | -6.09 | -6.04 | -11.95 |
| 5.79 | 1.47 | 1.48 | -6.19 | -6.09 | -12.41 |
| 7.72 | 1.72 | 1.37 | -6.26 | -6.05 | -12.69 |
| 9.65 | 2.15 | 1.28 | -6.54 | -6.28 | -13.57 |
| 11.58 | 1.99 | 1.32 | -6.57 | -6.4 | -14.78 |
| 13.51 | 1.74 | 1.65 | -6.46 | -6.32 | -14.3 |
| 15.43 | 1.63 | 1.66 | -6.21 | -6.02 | -13.81 |
| 17.36 | 1.81 | 1.3 | -6.25 | -6.02 | -13.34 |
| 19.29 | 1.4 | 1.43 | -6.41 | -6.16 | -13.46 |
| 21.22 | 1.14 | 1.95 | -6.32 | -6.11 | -12.13 |
| 23.14 | 1.53 | 1.56 | -6.13 | -5.93 | -10.4 |
| 25.07 | 2.15 | 1.13 | -6.95 | -6.66 | -10.87 |
| 27 | 1.41 | 1.7 | -6.47 | -6.06 | -10.58 |

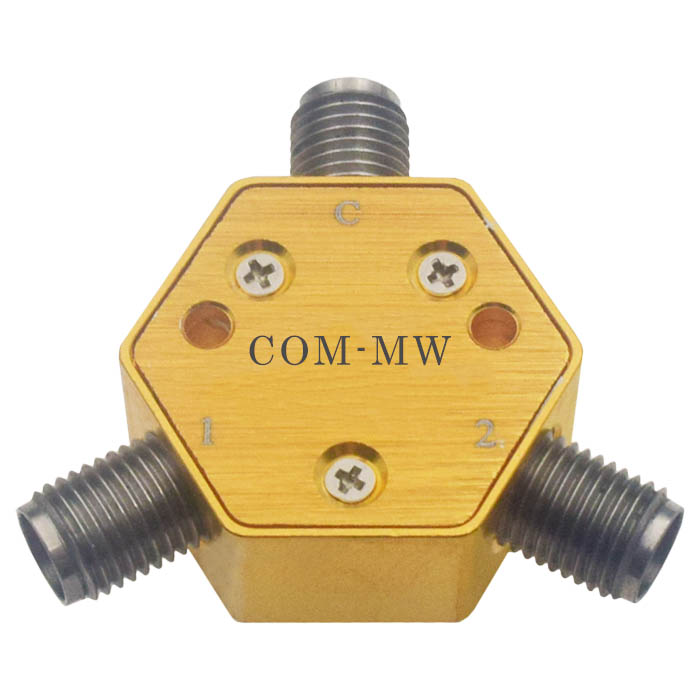

Reference picture

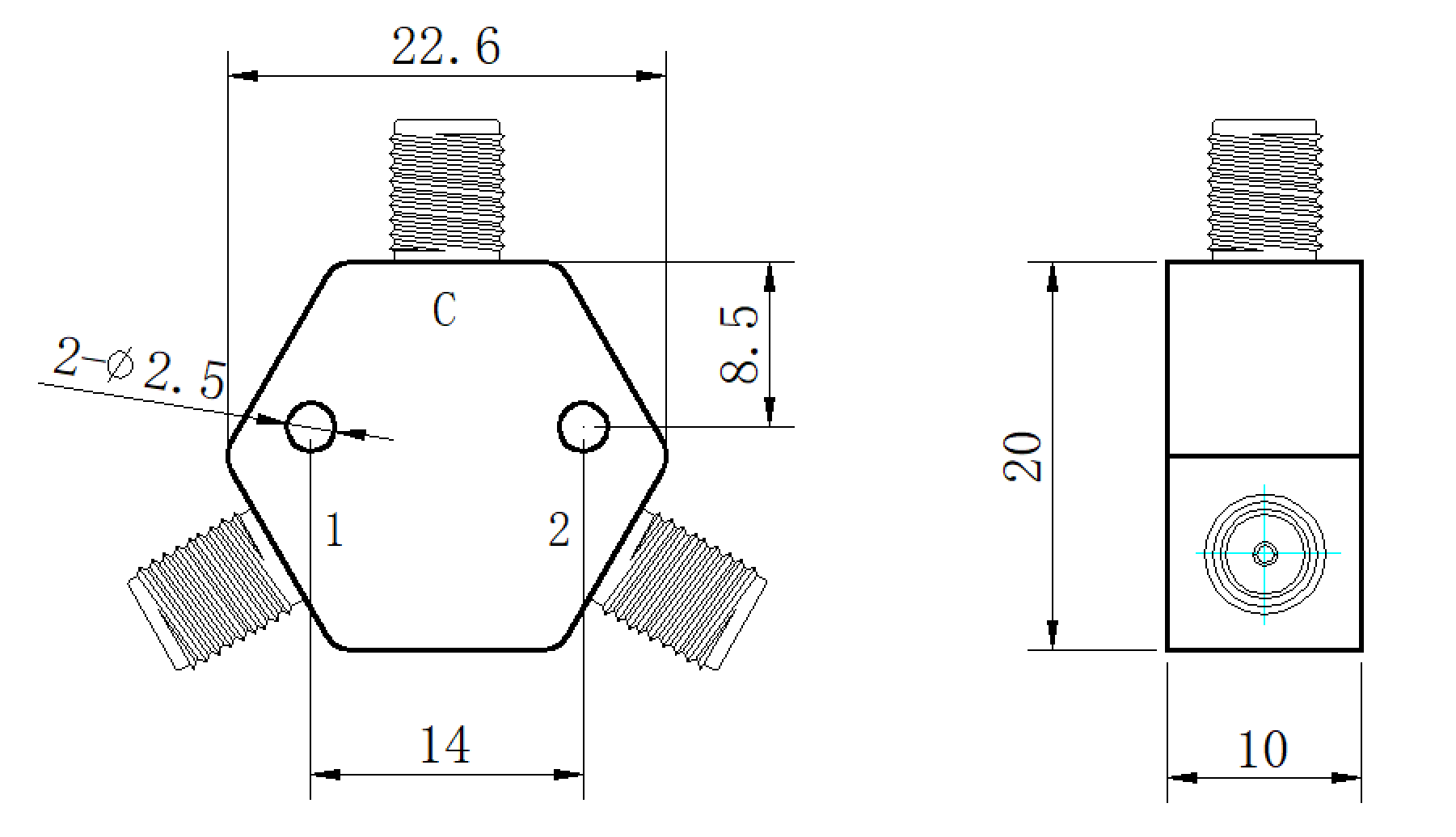

Configuration(mm)

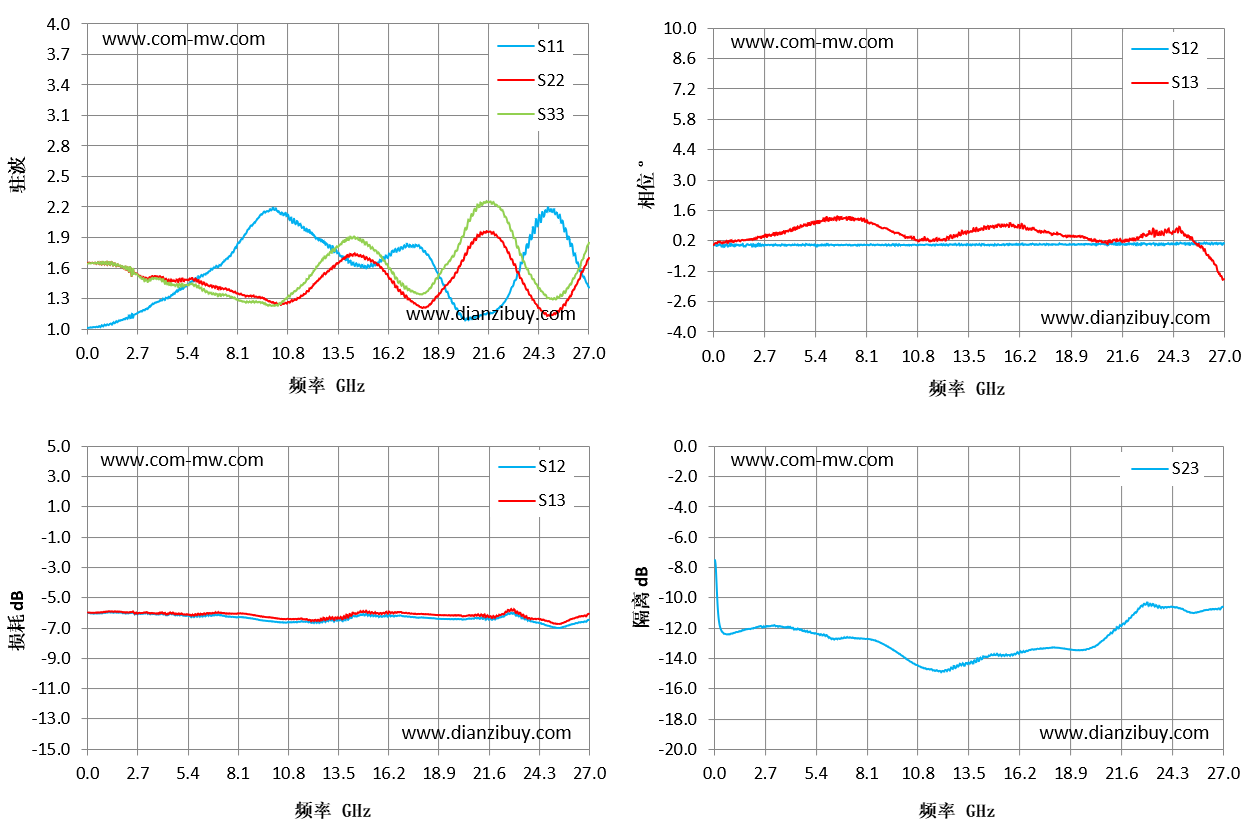

Typical test curve
Note
| 1 | Please do not wash the product in the cleaning solution.,Please do not wash the product in the cleaning solution. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
