Connector SMA-KKG
In Stock 174
FrequencyDC~26.5GHz, SMA-K & SMA-K, Stainless steel
$ 5.43
Delivery Time ： 1-3 Day(WorkDay)
Terms: Ex Work from Chengdu,China warehouse, minimum order amount US$200. Keeping registered and logged in, check discounts by adding to cart
MOQ : 1
Attention: The online trading belongs to commercial activities, the final transaction price might be lower than tag price, subject to automatically system calculating; The price is competitive, product fully tested and qualified, we will offer certificate of conformity, no test report.
- Contact Us
- Cynthia
- cynthia@com-mw.com
sales@com-mw.com
+86 19938031308- 23 floor, No. 1 building, P Jiuxi Plaza, No.37, Jiancai Road, Chenghua Zone, Chengdu
Product features
Low VSWR, high cost-effectiveness.
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | DC | ~ | 26.5 | GHz |
| IL | 0.2 | dB | ||
| VSWR | 1.15 |
Other parameters
| Impedance | 50Ω |
| Connector | SMA-K & SMA-K |
| Surface | Passivation of stainless steel |
| Product shell material | Stainless steel SUS303F |
| Inner conductor | Beryllium Copper Gold Plated |
| Spanning | PTFE |
| Work Temp. | -55~+125℃ Design assurance |
Typical test data
| F(GHz) | S21(L) | S22(V) |
| 0.01 | -0.01 | 1 |
| 1.51 | -0.02 | 1.01 |
| 3.01 | -0.03 | 1.04 |
| 4.51 | -0.03 | 1.03 |
| 6.01 | -0.05 | 1.02 |
| 7.51 | -0.06 | 1.05 |
| 9.01 | -0.07 | 1.05 |
| 10.51 | -0.08 | 1.07 |
| 12.01 | -0.08 | 1.1 |
| 13.51 | -0.08 | 1.08 |
| 15.01 | -0.07 | 1.06 |
| 16.51 | -0.08 | 1.09 |
| 18.01 | -0.09 | 1.13 |
| 19.51 | -0.09 | 1.1 |

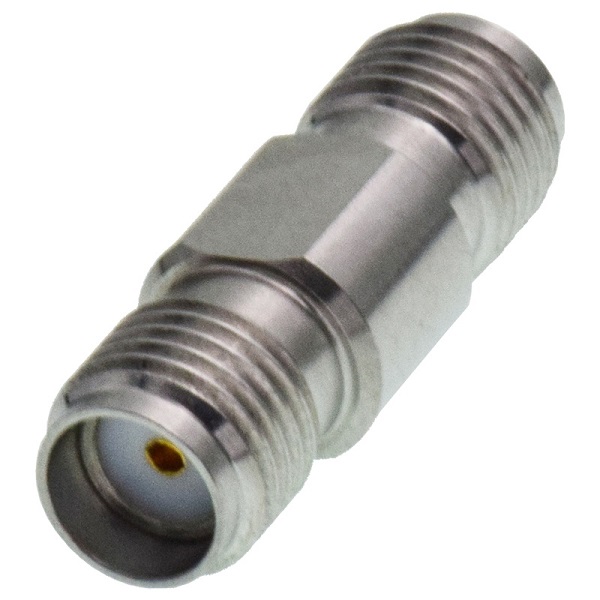

Reference picture

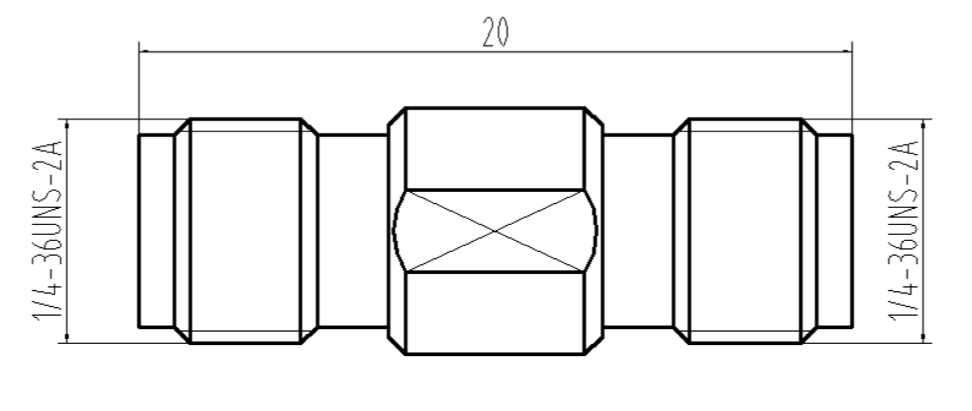

Configuration(mm)
Typical test curve
