Power amplifier DPA8-15-17G-2855

In Stock 0

15~17GHz, Gain25dB, P-1dB30dBm, SMA

Price ：$ 1400

Delivery Time ： 21 Day(WorkDay)

Terms: Ex Work from Chengdu,China warehouse, minimum order amount US$200. Keeping registered and logged in, check discounts by adding to cart

MOQ : 1

Attention: The online trading belongs to commercial activities, the final transaction price might be lower than tag price, subject to automatically system calculating.

Contact Us
Contact Person:Cynthia
Email:cynthia@com-mw.com
sales@com-mw.com
Mobile/WhatsApp:
+86 19938031308
Address:23 floor, No. 1 building, P Jiuxi Plaza, No.37, Jiancai Road, Chenghua Zone, Chengdu

tech specifications

Parameters	Min	Typical	Max	Units
Frequency	15	~	17	GHz
Gain	25			dB
Gain flatness		±2		dB
VSWR			2.5
P-1dB	30			dBm

Environmental

Connector	SMA-K
Connector material	Stainless steel
Impedance	50Ω
Surface	White
Working voltage	+12V
Working current	1000mA
Work Temp.	-40~+70℃ Design assurance
Quality Grade	Industrial grade

Typical test data

Frequency(GHz)	S11 VSWR	S21 gain	P-1 dBm	Psat dBm
15	1.84	27.36	33.4	34.5
15.14	1.86	27.48	33.7	34.6
15.29	1.93	27.83	33.5	35.1
15.43	1.91	27.31	33.6	34.6
15.57	1.9	27.82	33.5	34.5
15.71	1.84	28.09	33.4	34.8
15.86	1.82	27.9	33.3	34.6
16	1.76	27.78	33	34.9
16.14	1.76	27.93	33.7	34.8
16.29	1.77	28.13	33.1	34.4
16.43	1.83	27.89	33.4	34.5
16.57	1.84	27.67	32.9	34.7
16.71	1.87	27.39	32.8	34.6
16.86	1.8	26.88	32.1	34.6
17	1.74	27.13	31.2	34.5

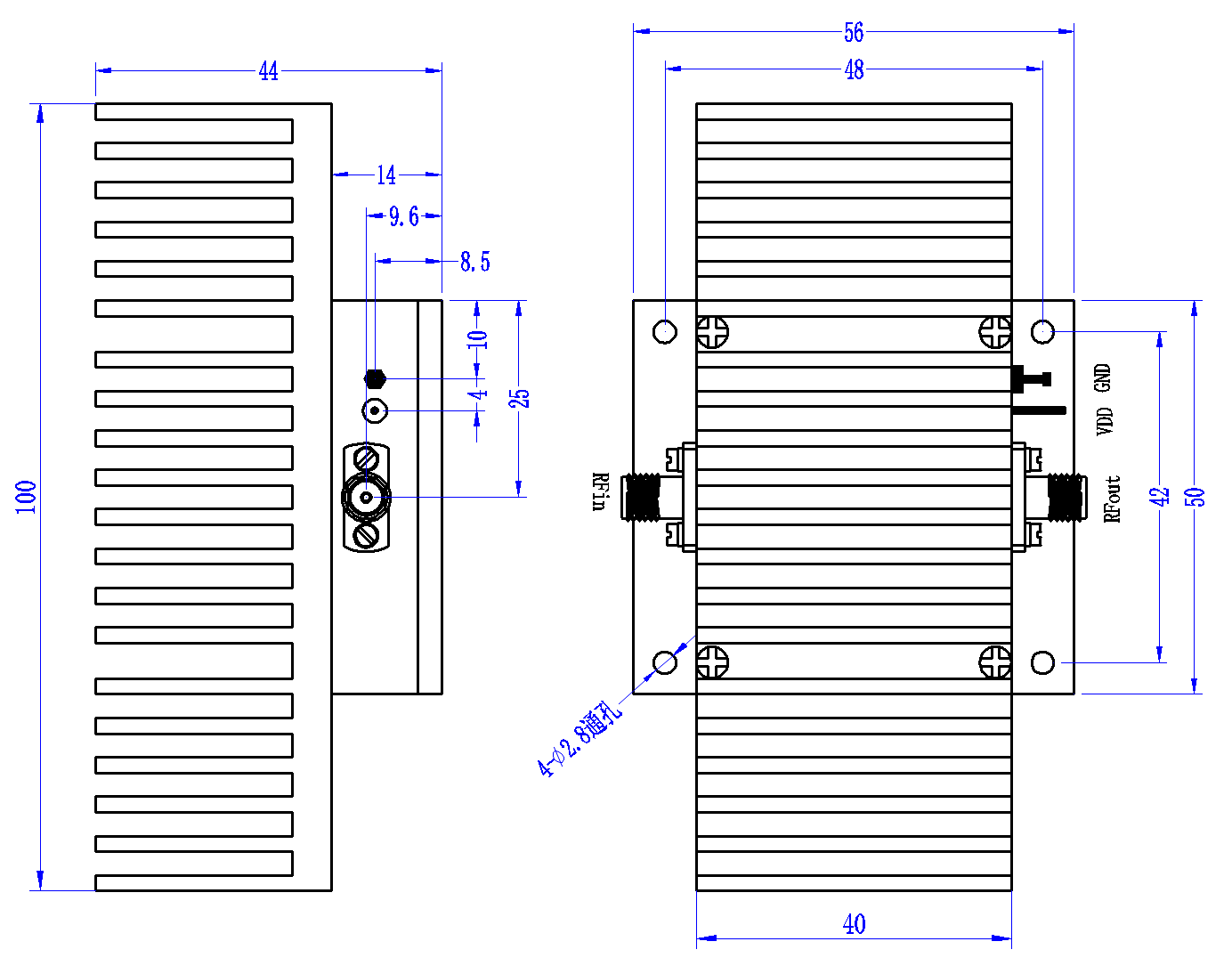

Reference picture

Configuration

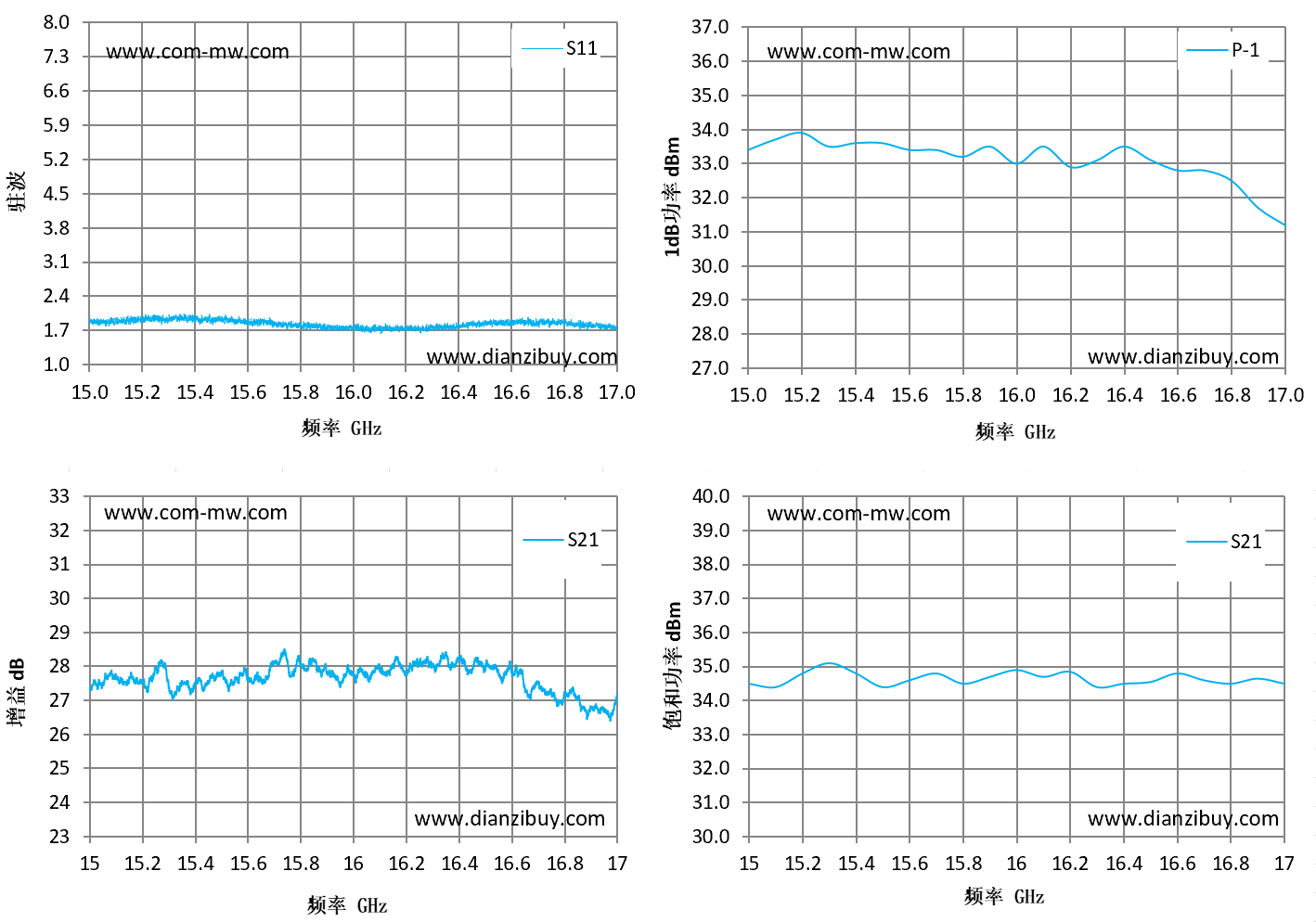

Typical test curve

Note

Store in an environment with a humidity of less than 25%, pay attention to dust and anti-static measures, and consider amplifier heat dissipation during installation.
