Hybrid B0015
In Stock 19
30~100MHz, 1W, 90°Power divider, SMD, /
$ 24.86
Delivery Time ： 1-3 Day(WorkDay)
Terms: Ex Work from Chengdu,China warehouse, minimum order amount US$200. Keeping registered and logged in, check discounts by adding to cart
MOQ : 1
Attention: The online trading belongs to commercial activities, the final transaction price might be lower than tag price, subject to automatically system calculating; The price is competitive, product fully tested and qualified, we will offer certificate of conformity, no test report.
- Contact Us
- Cynthia
- cynthia@com-mw.com
sales@com-mw.com
+86 19938031308- 23 floor, No. 1 building, P Jiuxi Plaza, No.37, Jiancai Road, Chenghua Zone, Chengdu
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 30 | ~ | 100 | MHz |
| IL | 0.45 | 1.1 | dB | |
| Isolation | 30 | dB | ||
| VSWR | 1.4 | 1.6 | ||
| Amplitude balance | 0.6 | dB | ||
| Phase balance | 4 | ° |
Other parameters
| Power | 1W |
| Phase | 90 ° power divider |
| Impedance | 50Ω |
| Connector | SMD |
| Work Temp. | -40~+85℃ Design assurance |
| Storage Temp. | -55~+100℃ Design assurance |
| Quality Grade | Industrial grade |
| Other | / |
Port Definition
| Input port | 1 |
| Output port | 7（0°） |
| Output port | 8（+90°） |
| GND | 2.3.4.5.6.9.10.11.12.13.14 |

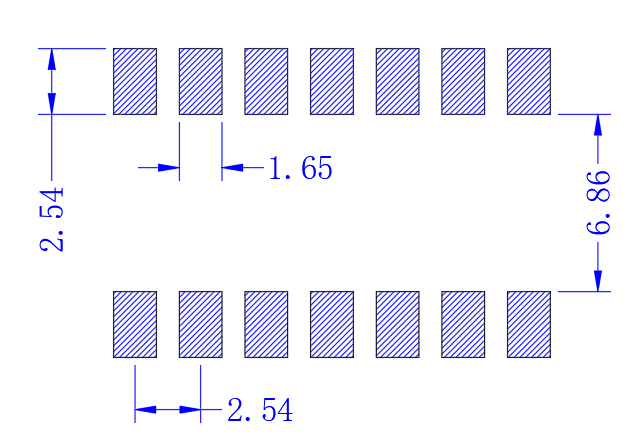

Suggested PCB Layout
Typical test data
| Frequency(MHz) | S11 VSWR | S22 VSWR | S12 IL dB | S12 Phase (°) | S13 Phase (°) | S23 ISO dB |
| 10 | 1.26 | 1.89 | -3.71 | -0.02 | -84.9 | -22.82 |
| 18 | 1.22 | 1.77 | -3.69 | -0.01 | -90.08 | -25.78 |
| 26 | 1.16 | 1.52 | -3.61 | -90 | -27.06 | |
| 34 | 1.13 | 1.29 | -3.55 | -0.01 | -89.97 | -27.59 |
| 49 | 1.11 | 1.03 | -3.53 | -0.01 | -90.47 | -27.96 |
| 57 | 1.12 | 1.1 | -3.61 | -0.02 | -90.68 | -28.12 |
| 65 | 1.15 | 1.19 | -3.63 | -0.03 | -90.72 | -28.29 |
| 73 | 1.18 | 1.26 | -3.68 | -90.49 | -28.47 | |
| 81 | 1.21 | 1.32 | -3.73 | -0.01 | -90.1 | -28.8 |
| 96 | 1.26 | 1.38 | -3.79 | 0.02 | -88.67 | -29.4 |
| 104 | 1.28 | 1.39 | -3.79 | -0.02 | -87.65 | -29.69 |
| 112 | 1.3 | 1.39 | -3.81 | -0.01 | -86.52 | -30.12 |
| 120 | 1.32 | 1.37 | -3.84 | 0.03 | -85.3 | -30.52 |

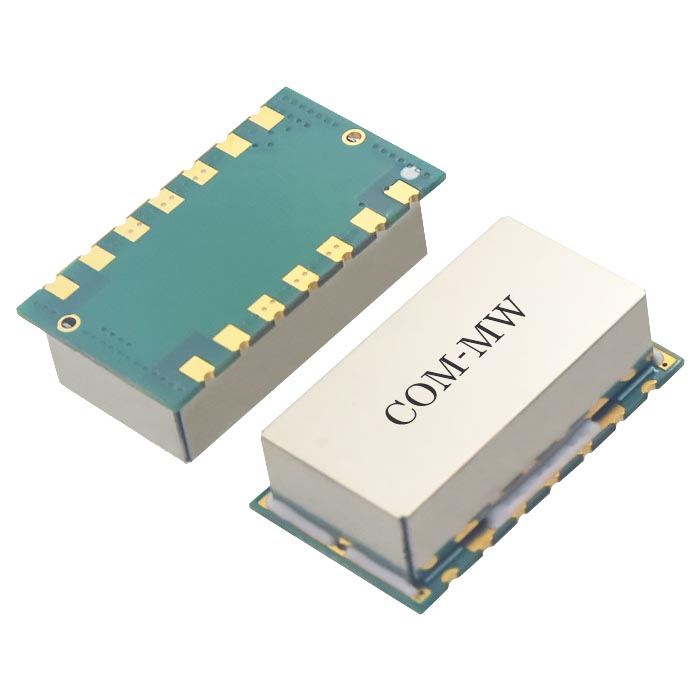

Reference picture

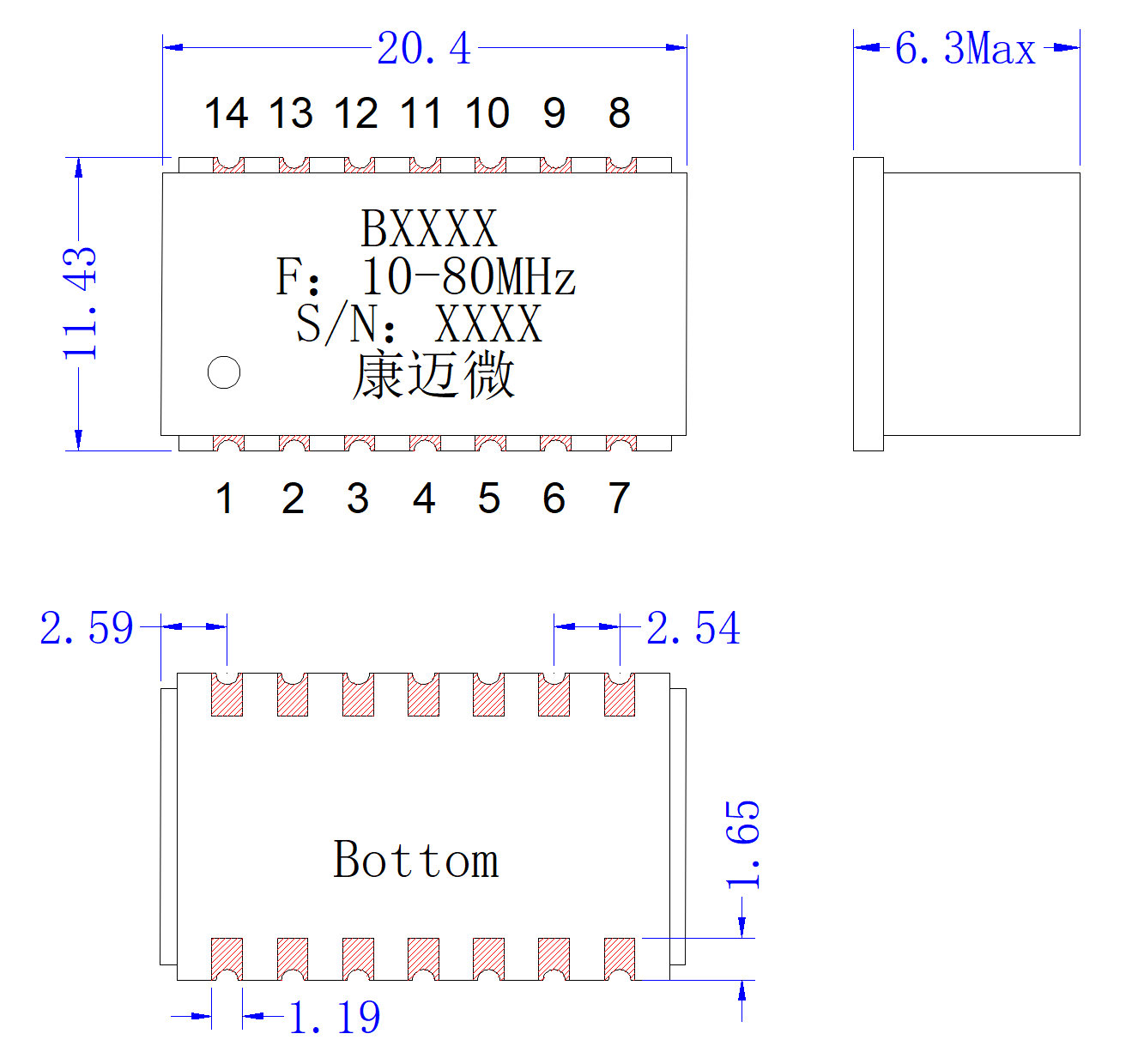

Configuration(mm)

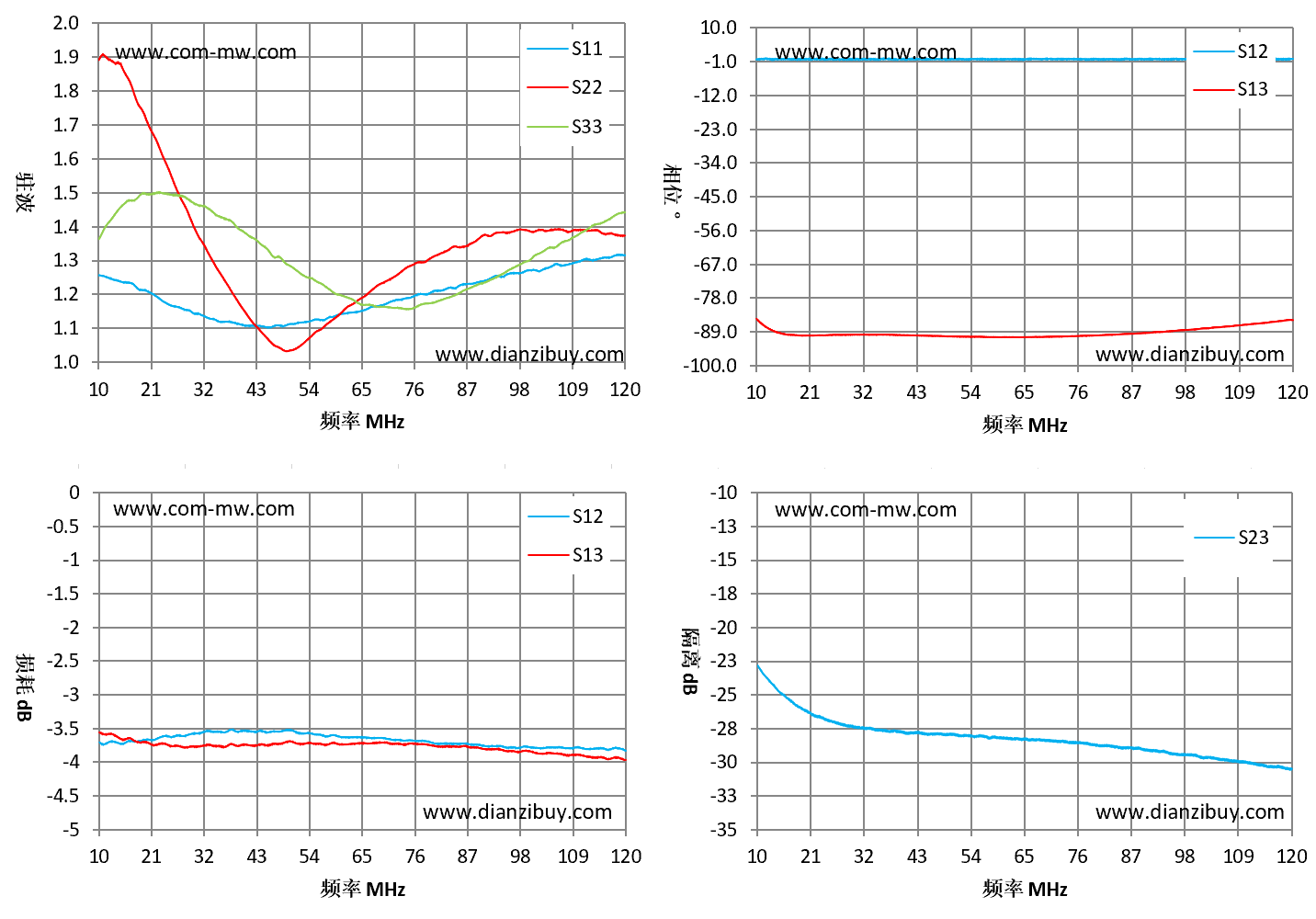

Typical test curve
Note
| 1 | Please do not wash the product in the cleaning solution.,Please do not wash the product in the cleaning solution. |
| 2 | The product supports 220 ℃ reflow soldering. |
