Hybrid B0349
In Stock 28
225~1000MHz, 75W, 90°Hybrid, SMD, Industrial grade, /
$ 138.58
Delivery Time ： 1-3 Day(WorkDay)
Terms: Ex Work from Chengdu,China warehouse, minimum order amount US$200. Keeping registered and logged in, check discounts by adding to cart
MOQ : 1
Attention: The online trading belongs to commercial activities, the final transaction price might be lower than tag price, subject to automatically system calculating; The price is competitive, product fully tested and qualified, we will offer certificate of conformity, no test report.
- Contact Us
- Cynthia
- cynthia@com-mw.com
sales@com-mw.com
+86 19938031308- 23 floor, No. 1 building, P Jiuxi Plaza, No.37, Jiancai Road, Chenghua Zone, Chengdu
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 225 | ~ | 1000 | MHz |
| IL | 0.7 | dB | ||
| Isolation | 17 | 19 | dB | |
| VSWR | 1.25 | |||
| Amplitude balance | ±0.7 | dB | ||
| Phase balance | ±5 | ° |
Other parameters
| Power | 75W |
| Phase | 90° Hybrid |
| Impedance | 50Ω |
| Connector | SMD |
| Work Temp. | -40~+85℃ Design assurance |
| Storage Temp. | -55~+100℃ Design assurance |
| Quality Grade | Industrial grade |
| Other | / |
Port Definition
| IN | 1 | 2 | 3 | 4 |
| ISO | 2 | 1 | 4 | 3 |
| 0° | 4 | 3 | 2 | 1 |
| -90° | 3 | 4 | 1 | 2 |

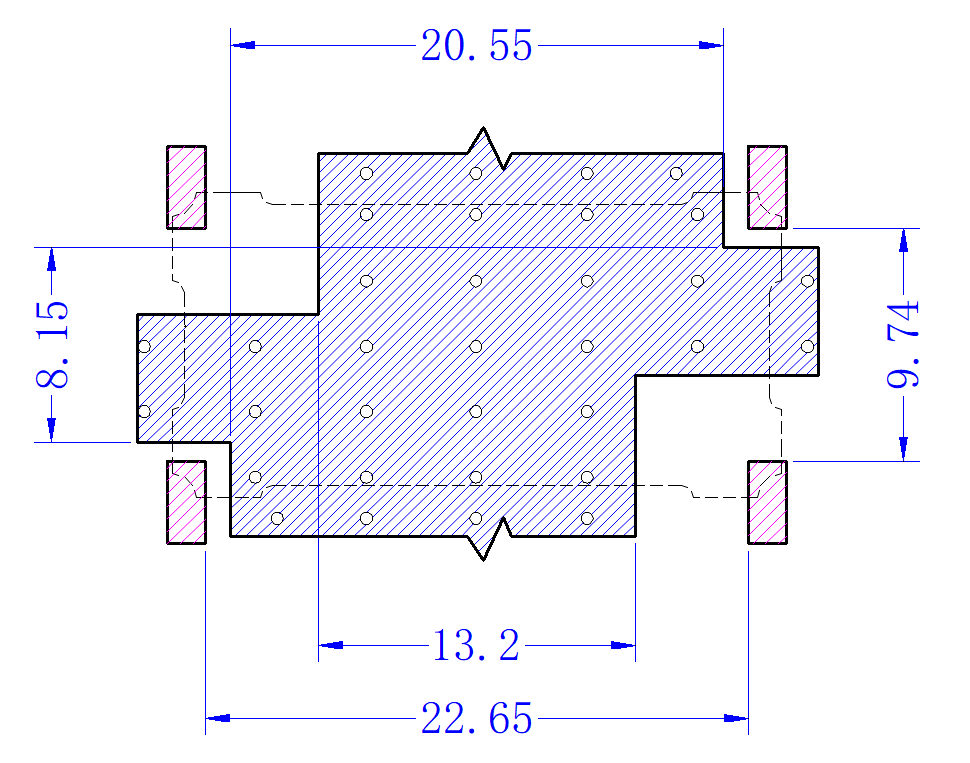

Suggested PCB Layout

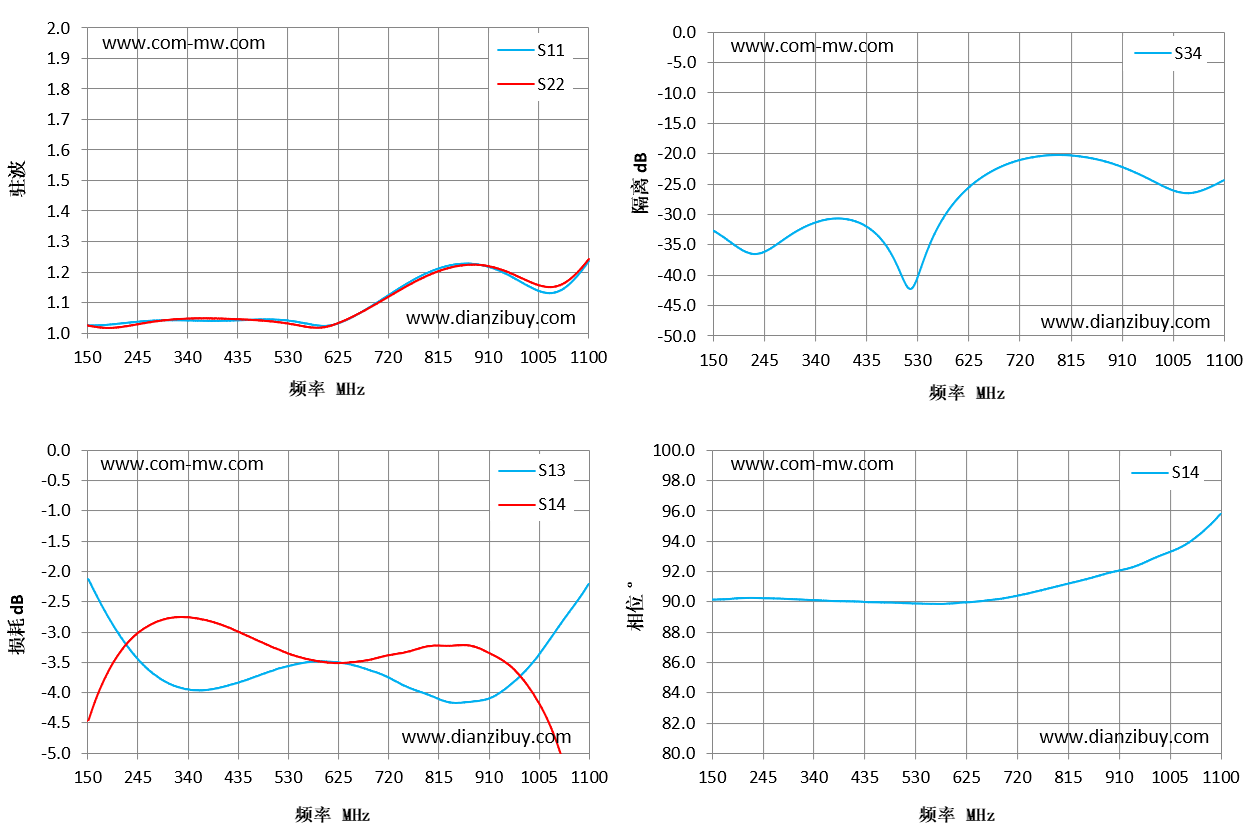

Typical test curve

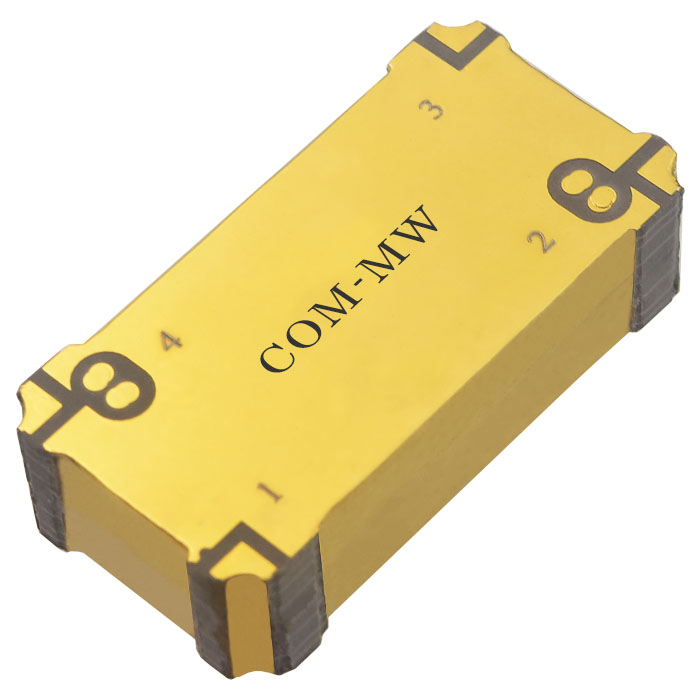

Reference picture

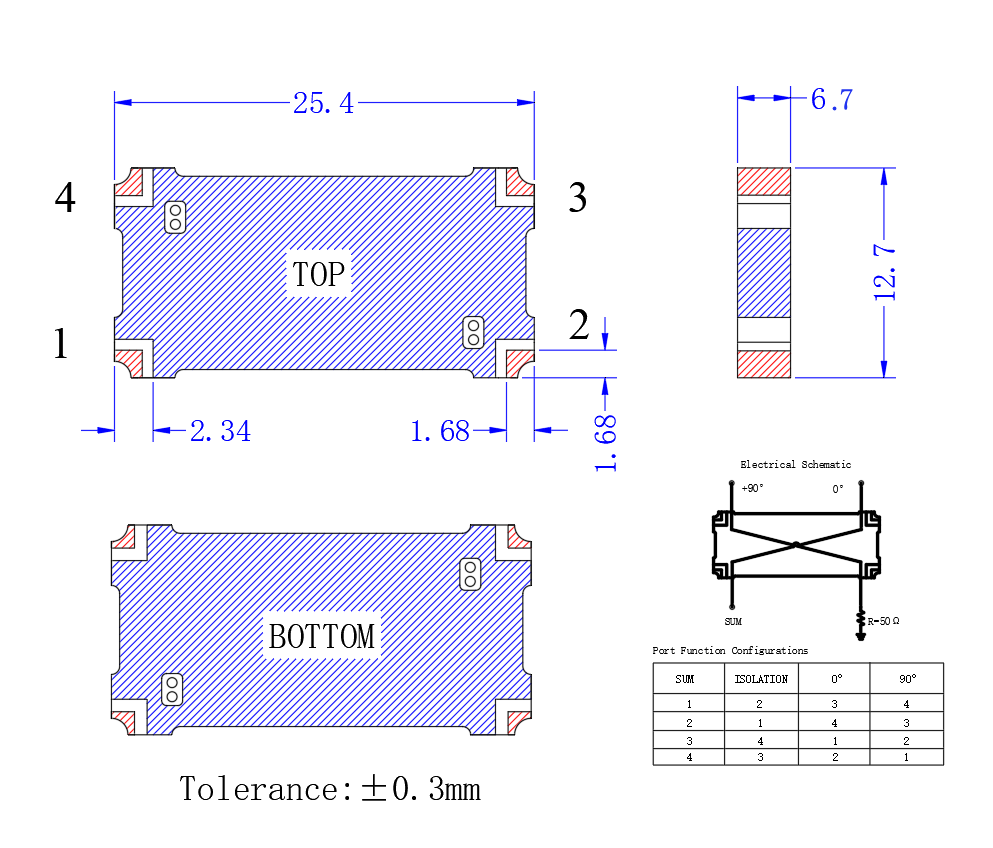

Configuration(mm)
Typical test data
| Frequency(MHz) | S11 VSWR | S13 IL dB | S14 IL(dB) | S34 ISO dB | S14 Phase (°) |
| 150 | 1.02 | -2.13 | -4.47 | -32.67 | 90.13 |
| 218 | 1.03 | -3.15 | -3.25 | -36.38 | 90.25 |
| 286 | 1.04 | -3.76 | -2.81 | -33.89 | 90.19 |
| 354 | 1.04 | -3.96 | -2.77 | -31 | 90.08 |
| 421 | 1.04 | -3.87 | -2.94 | -31.35 | 90.01 |
| 489 | 1.04 | -3.67 | -3.2 | -37.69 | 89.93 |
| 557 | 1.03 | -3.51 | -3.42 | -34.21 | 89.86 |
| 625 | 1.03 | -3.5 | -3.51 | -25.66 | 89.95 |
| 693 | 1.09 | -3.65 | -3.44 | -21.93 | 90.21 |
| 761 | 1.17 | -3.93 | -3.31 | -20.46 | 90.72 |
| 829 | 1.22 | -4.14 | -3.22 | -20.49 | 91.31 |
| 896 | 1.22 | -4.13 | -3.28 | -21.8 | 91.95 |
| 964 | 1.17 | -3.77 | -3.67 | -24.37 | 92.69 |
| 1032 | 1.13 | -3.05 | -4.65 | -26.54 | 93.73 |
| 1100 | 1.24 | -2.21 | -7.01 | -24.45 | 95.81 |
Note
| 1 | Please do not wash the product in the cleaning solution.,Please do not wash the product in the cleaning solution. |
| 2 | The product supports 260 ℃ reflow soldering. |
