Coupler ZDC8-30W21.7-33-1192
In Stock 1
21.7~33GHz, Coupling30dB, Waveguide, 300W
$ 355.72
Delivery Time ： 1-3 Day(WorkDay)
Terms: Ex Work from Chengdu,China warehouse, minimum order amount US$200. Keeping registered and logged in, check discounts by adding to cart
MOQ : 1
Attention: The online trading belongs to commercial activities, the final transaction price might be lower than tag price, subject to automatically system calculating.
- Contact Us
- Cynthia
- cynthia@com-mw.com
sales@com-mw.com
+86 19938031308- 23 floor, No. 1 building, P Jiuxi Plaza, No.37, Jiancai Road, Chenghua Zone, Chengdu
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 21.7 | ~ | 33 | GHz |
| IL | 0.2 | dB | ||
| Coupling | 28.5 | 30 | 31.5 | dB |
| Directivity | 18 | dB | ||
| Main line VSWR | 1.1 | |||
| Coupled line VSWR | 1.4 |
Other parameters
| Connector | Waveguide |
| Coupling port | 2.92-K |
| Waveguide port | BJ260 |
| Surface | Black baking paint |
| Power Capacity | 300W Design assurance |
| Shell Material | Copper |
| Operation Temp. | -40~+70℃ Design assurance |
| Quality Grade | Industrial grade |
| Other | / |
Port Definition
| Input port | IN（FBP260） | --- |
| Output port | OUT（FBP260） | --- |
| Coupling port | -30dB（2.92mm-K） | --- |
Typical test data
| Frequency(GHz) | S11 VSWR | S22 VSWR | S12 IL dB | S13 coupling | S23 ISO dB |
| 20 | 1.06 | 1.07 | -0.04 | -33.28 | -50.67 |
| 21 | 1.03 | 1.05 | -0.04 | -31.61 | -52.98 |
| 22 | 1.06 | 1.04 | -0.04 | -30.62 | -60.18 |
| 23 | 1.03 | 1.02 | -0.04 | -29.97 | -57.19 |
| 24 | 1.02 | 1.02 | -0.06 | -29.63 | -59.67 |
| 25 | 1.01 | 1.01 | -0.06 | -29.37 | -57.29 |
| 26 | 1.03 | 1.02 | -0.06 | -29.24 | -59.87 |
| 27 | 1.02 | 1.01 | -0.05 | -29.19 | -59.8 |
| 28 | 1.04 | 1.04 | -0.04 | -29.3 | -55.66 |
| 29 | 1.04 | 1.04 | -0.04 | -29.44 | -59.44 |
| 30 | 1.04 | 1.04 | -0.04 | -29.71 | -56.1 |
| 31 | 1.05 | 1.03 | -0.04 | -30.06 | -52.07 |
| 32 | 1.05 | 1.06 | -0.04 | -30.56 | -53.3 |
| 33 | 1.08 | 1.09 | 0.01 | -30.85 | -49.35 |
| 34 | 1.08 | 1.08 | -0.01 | -29.67 | -37.39 |

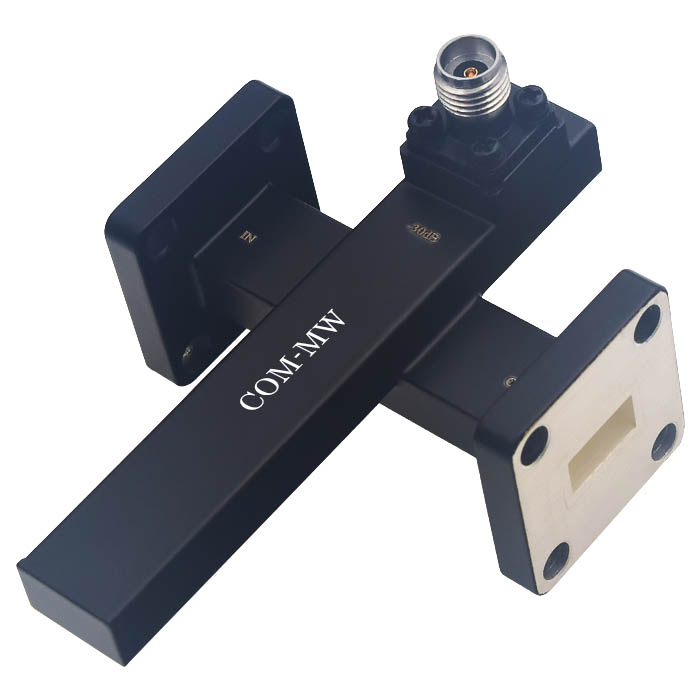

Reference picture

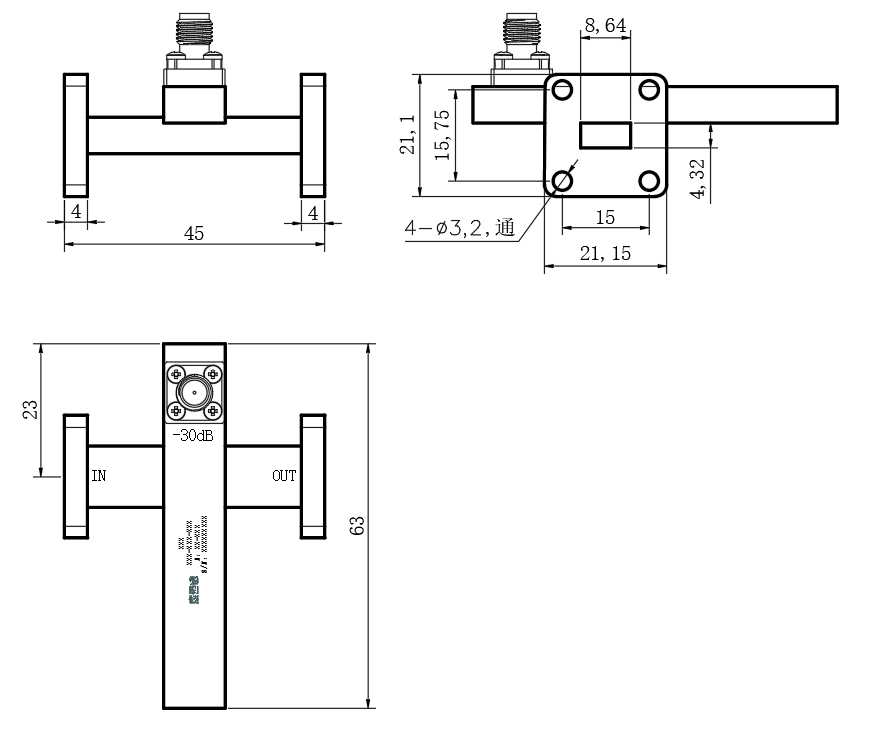

Configuration(mm)

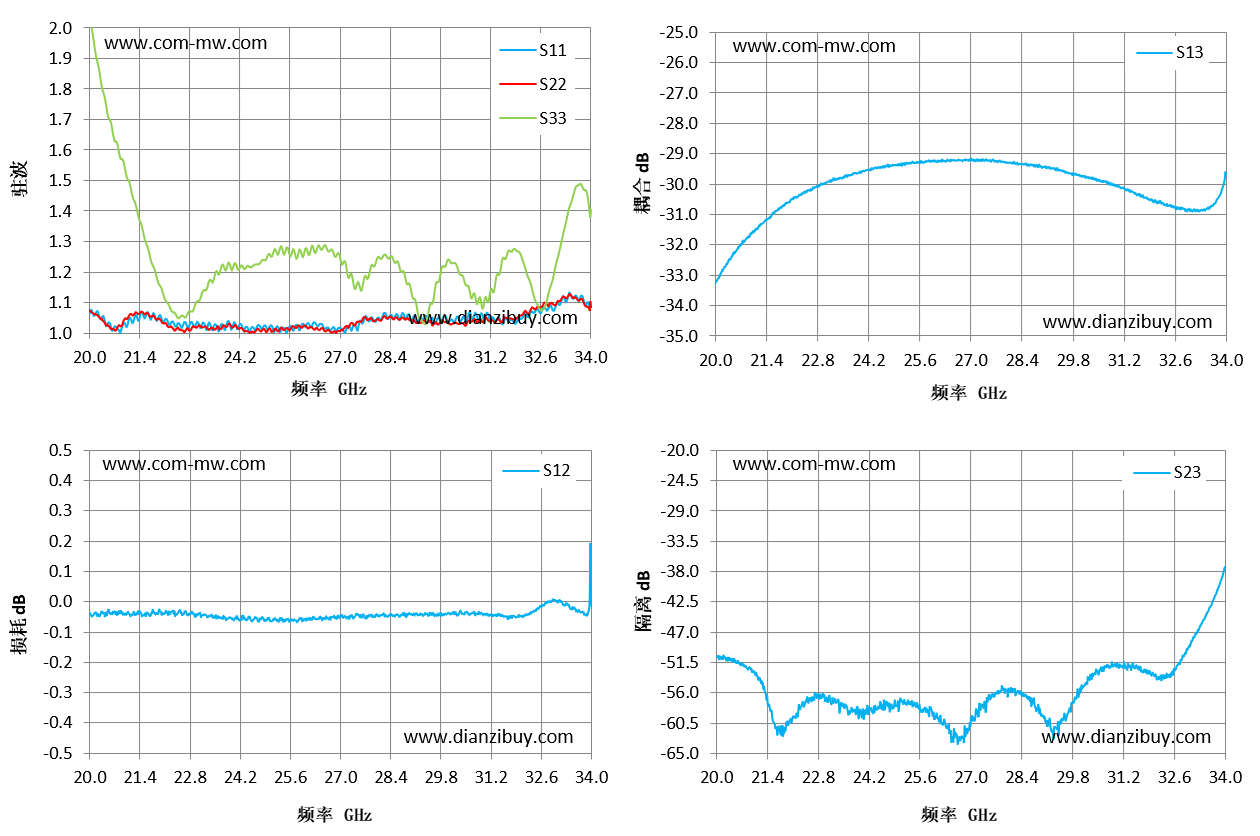

Typical test curve
Note
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
