Hybrid ZHC9-30-90-2061
In Stock 5
30~88MHz, 200W, 90°Hybrid, SMD
$ 77.15
Delivery Time ： 1-3 Day(WorkDay)
Terms: Ex Work from Chengdu,China warehouse, minimum order amount US$200. Keeping registered and logged in, check discounts by adding to cart
MOQ : 1
Attention: The online trading belongs to commercial activities, the final transaction price might be lower than tag price, subject to automatically system calculating; The price is competitive, product fully tested and qualified, we will offer certificate of conformity, no test report.
- Contact Us
- Cynthia
- cynthia@com-mw.com
sales@com-mw.com
+86 19938031308- 23 floor, No. 1 building, P Jiuxi Plaza, No.37, Jiancai Road, Chenghua Zone, Chengdu
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 30 | ~ | 88 | MHz |
| IL | 0.35 | dB | ||
| Isolation | 23 | dB | ||
| VSWR | 1.25 | |||
| Amplitude balance | ±1 | dB | ||
| Phase balance | ±2 | ° |
Other parameters
| Power Capacity | 200W Design assurance |
| Phase | 90° Hybrid |
| Impedance | 50Ω |
| Connector | SMD |
| Operation Temp. | -45~+85℃ Design assurance |
| Storage Temp. | -55~+125℃ Design assurance |
Port Definition
| IN | 1 | 2 | 3 | 4 |
| ISO | 2 | 1 | 4 | 3 |
| 0° | 4 | 3 | 2 | 1 |
| -90° | 3 | 4 | 1 | 2 |

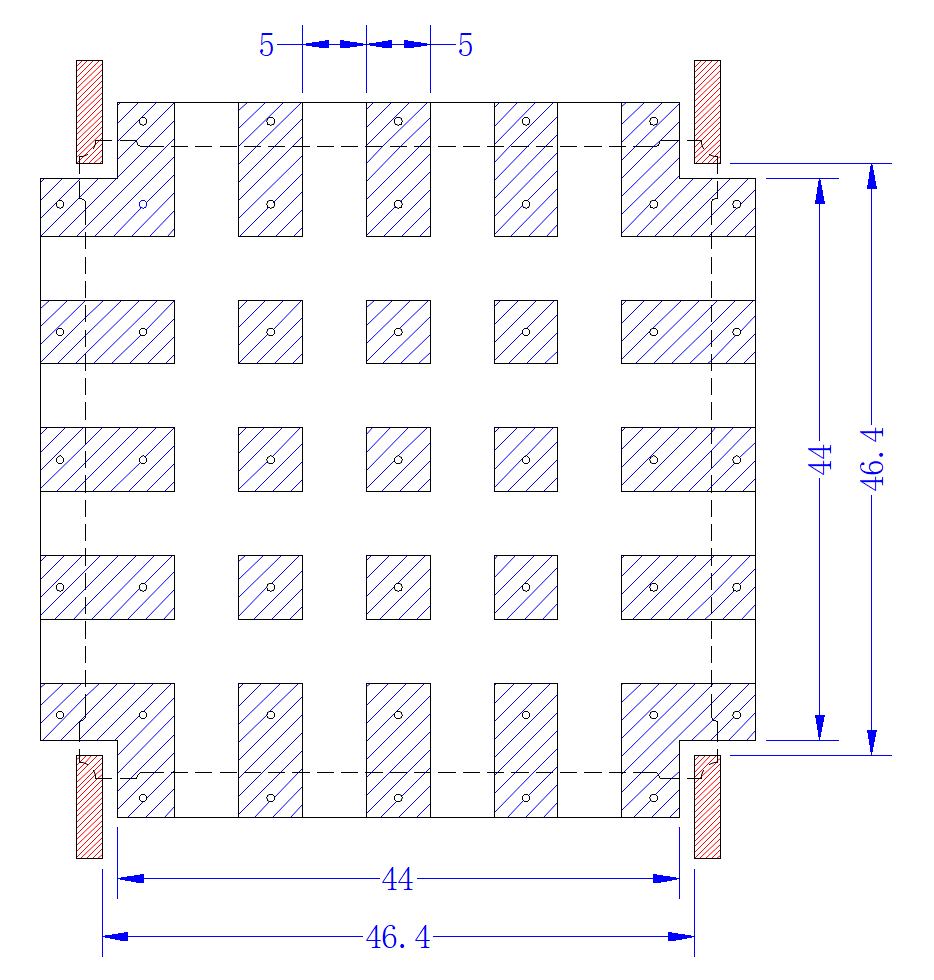

Suggested PCB Layout
Typical test data

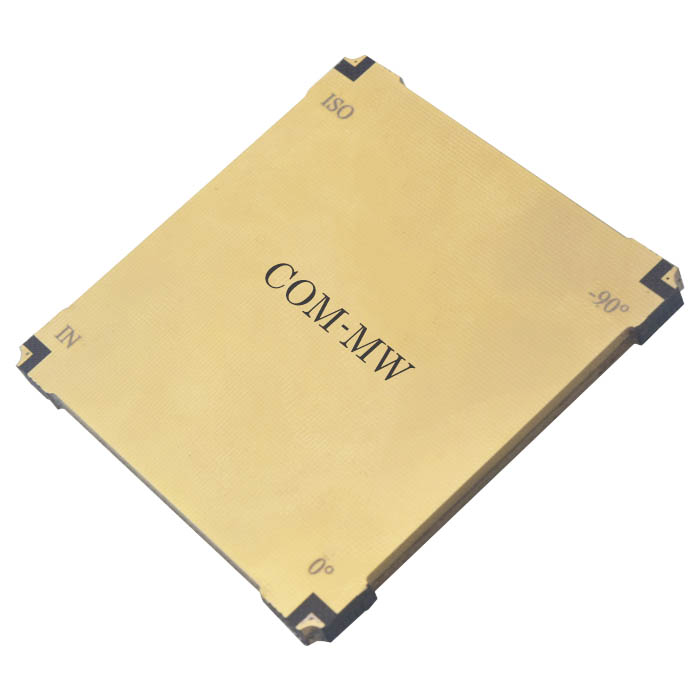

Reference picture

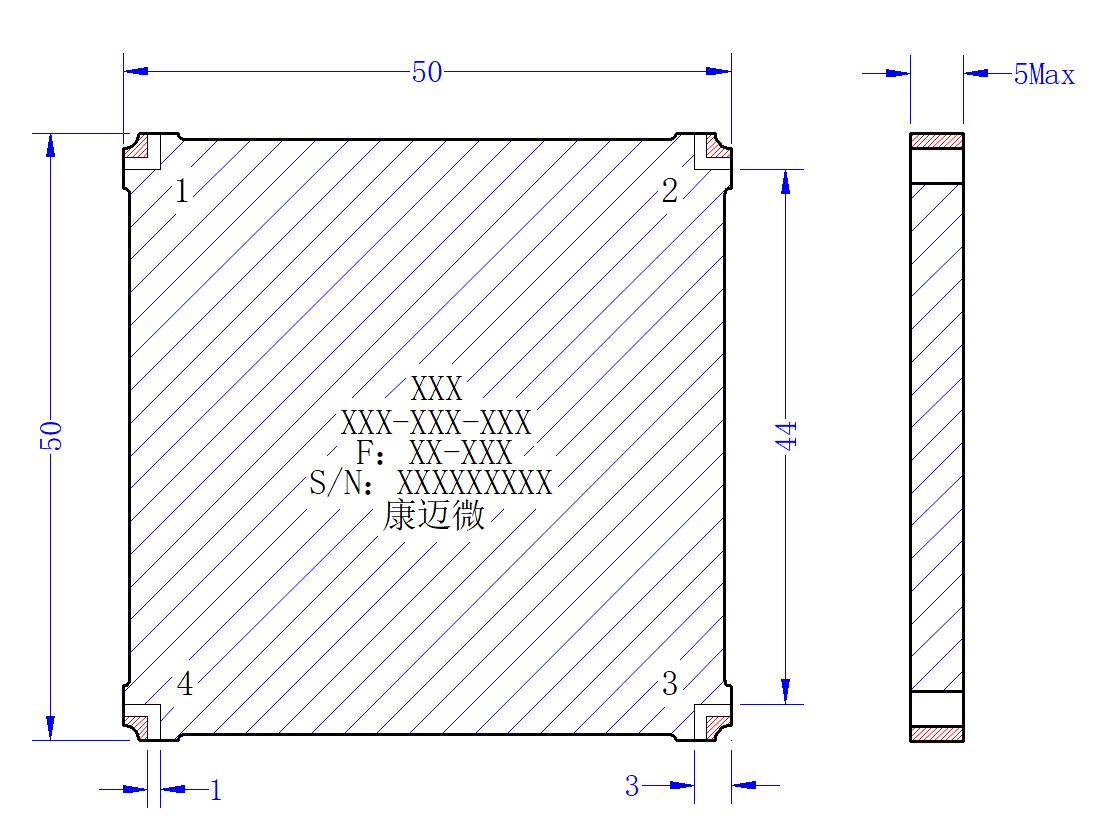

Configuration(mm)

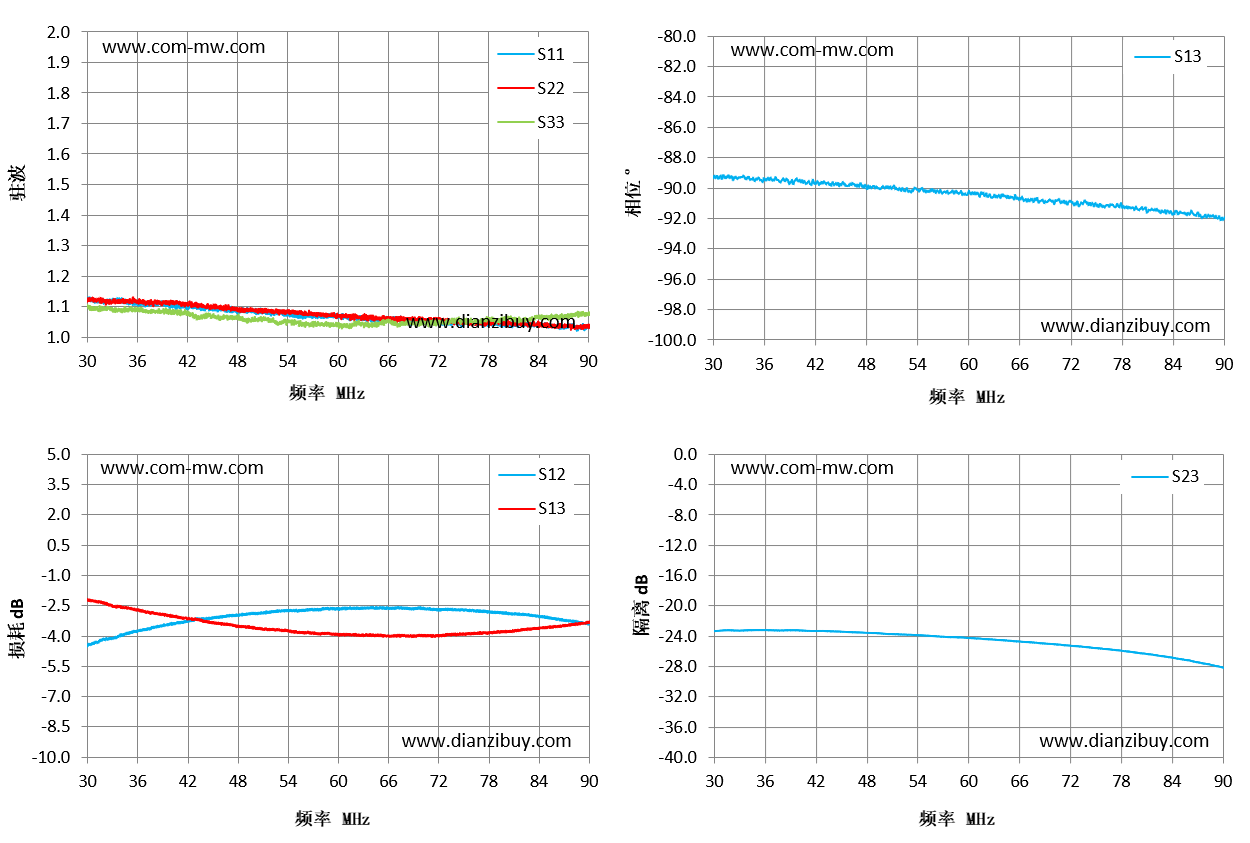

Typical test curve
| Frequency(MHz) | S11 VSWR | S33 VSWR | S12 IL dB | S13 IL dB | S13 Phase (°) | S23 ISO dB |
| 30 | 1.13 | 1.1 | -4.49 | -2.23 | -89.32 | -23.36 |
| 34 | 1.12 | 1.09 | -3.96 | -2.6 | -89.3 | -23.26 |
| 39 | 1.1 | 1.08 | -3.48 | -2.94 | -89.69 | -23.26 |
| 43 | 1.1 | 1.07 | -3.19 | -3.19 | -89.58 | -23.36 |
| 47 | 1.09 | 1.06 | -2.97 | -3.44 | -89.79 | -23.56 |
| 51 | 1.08 | 1.06 | -2.88 | -3.67 | -90.02 | -23.77 |
| 56 | 1.06 | 1.04 | -2.73 | -3.82 | -90.16 | -24.04 |
| 60 | 1.07 | 1.04 | -2.65 | -3.92 | -90.24 | -24.28 |
| 64 | 1.05 | 1.05 | -2.6 | -3.95 | -90.52 | -24.57 |
| 69 | 1.05 | 1.05 | -2.63 | -4.02 | -90.87 | -25.01 |
| 73 | 1.05 | 1.06 | -2.69 | -3.9 | -91.13 | -25.39 |
| 77 | 1.05 | 1.05 | -2.79 | -3.86 | -91.14 | -25.84 |
| 81 | 1.05 | 1.06 | -2.88 | -3.76 | -91.6 | -26.39 |
| 86 | 1.04 | 1.06 | -3.13 | -3.53 | -91.71 | -27.24 |
| 90 | 1.03 | 1.08 | -3.39 | -3.35 | -92.02 | -28.18 |
Note
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | The product supports 260 ℃ reflow soldering. |
