Load DR9-10000-2425-2475-2892
In Stock 1
Frequency2400~2500MHz, 10KW, Waveguide, FDP26, 水冷（水流量5-8L/min）
$ 985.72
Delivery Time ： 1-3 Day(WorkDay)
Terms: Ex Work from Chengdu,China warehouse, minimum order amount US$200. Keeping registered and logged in, check discounts by adding to cart
MOQ : 1
Attention: The online trading belongs to commercial activities, the final transaction price might be lower than tag price, subject to automatically system calculating.
- Contact Us
- Cynthia
- cynthia@com-mw.com
sales@com-mw.com
+86 19938031308- 23 floor, No. 1 building, P Jiuxi Plaza, No.37, Jiancai Road, Chenghua Zone, Chengdu
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 2400 | ~ | 2500 | MHz |
| VSWR | 1.15 | |||
| Coupling | 54 | 55 | 56 | dB |
Other parameters
| Power Capacity | 10KW设计保证 |
| Connector | Waveguide |
| Waveguide port | FDP26 |
| Surface | Black |
| Product shell material | Aluminum |
| Operation Temp. | -40~+70℃ Design assurance |
| Cooling method | 水冷（水流量5-8L/min） |
Note
When installing the load, it is necessary to consider sufficient heat dissipation space and not install it next to equipment with high heat output.

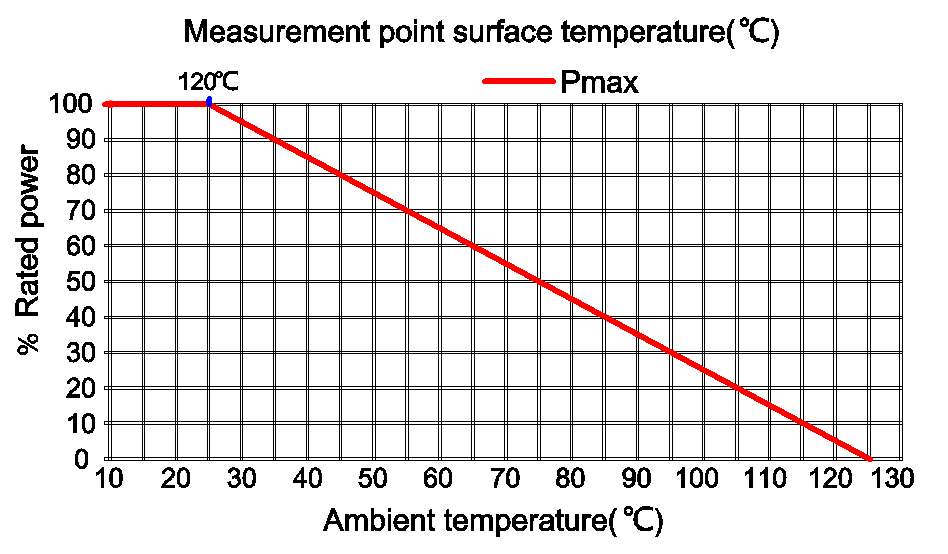

Power Derating Curve

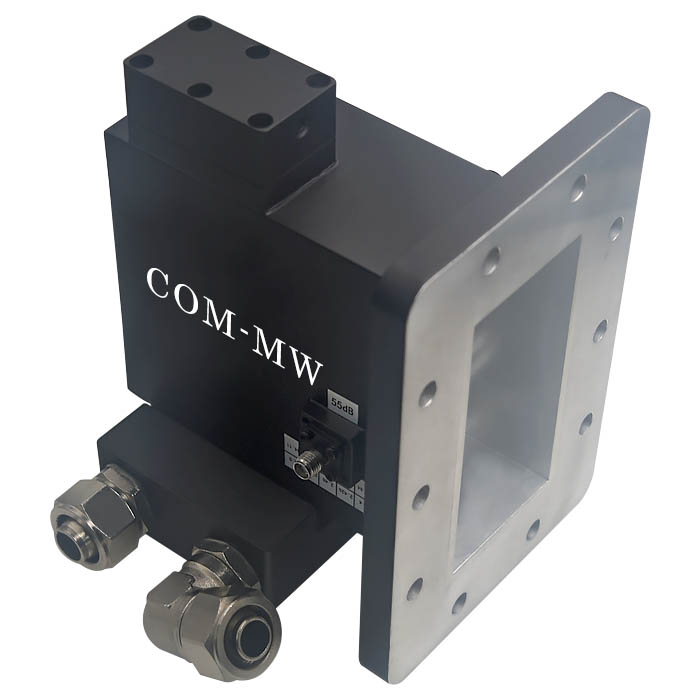

Reference picture

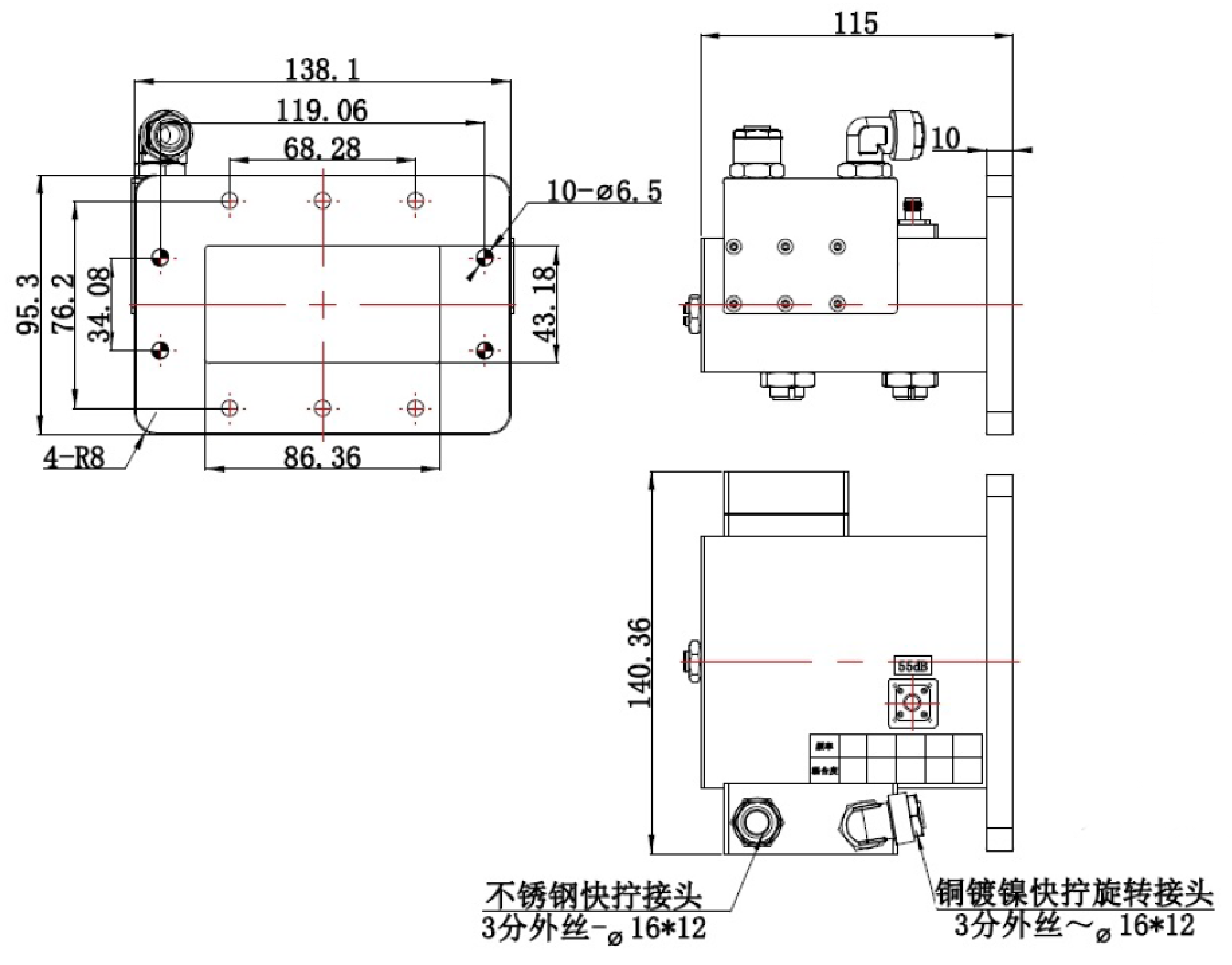

Configuration(mm)
