Phase shifter DPS8-6-18G-2920
In Stock 2
Frequency6~18GHz, 6 bits, SMA
$ 521.43
Delivery Time ： 1-3 Day(WorkDay)
Terms: Ex Work from Chengdu,China warehouse, minimum order amount US$200. Keeping registered and logged in, check discounts by adding to cart
MOQ : 1
Attention: The online trading belongs to commercial activities, the final transaction price might be lower than tag price, subject to automatically system calculating.
- Contact Us
- Cynthia
- cynthia@com-mw.com
sales@com-mw.com
+86 19938031308- 23 floor, No. 1 building, P Jiuxi Plaza, No.37, Jiancai Road, Chenghua Zone, Chengdu
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 6 | ~ | 18 | GHz |
| IL | 13 | 16 | dB | |
| VSWR | 1.6 | 2 | ||
| 移相精度RMS | 4 | 6 | ° | |
| 寄生调幅 | ±1 | ±1.5 | dB |
Other parameters
| Phase shift bits | 6 bits |
| Impedance | 50Ω |
| Connector | SMA-K detachable, Pin 0.38mm |
| Connector material | Stainless steel |
| Power | 20dBm Design assurance |
| Work Temp. | -40~+70℃ Design assurance |
| Storage Temp. | -55~+100℃ Design assurance |
| Voltage | -5V |
| Current | 20mA |
Truth table
| Phase shifting | P1 | P2 | P3 | P4 | P5 | P6 |
| 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| -5.625° | 1 | 0 | 0 | 0 | 0 | 0 |
| -11.25° | 0 | 1 | 0 | 0 | 0 | 0 |
| -22.5° | 0 | 0 | 1 | 0 | 0 | 0 |
| -45° | 0 | 0 | 0 | 1 | 0 | 0 |
| -90° | 0 | 0 | 0 | 0 | 1 | 0 |
| -180° | 0 | 0 | 0 | 0 | 0 | 1 |
| -354.375° | 1 | 1 | 1 | 1 | 1 | 1 |
Typical test data
| Frequency(GHz) | 5 | 7 | 9 | 11 | 13 | 15 | 17 | 19 |
| S11 | 2 | 1.1 | 1.3 | 1.2 | 1.2 | 1.1 | 1.4 | 1.4 |
| S22 | 3.1 | 1.2 | 1.3 | 1.5 | 1.2 | 1.3 | 1.2 | 1.4 |
| S21 | -11.4 | -9.2 | -10.3 | -11.2 | -11.9 | -12.8 | -13.9 | -15.5 |
| 移相精度RMS | 3 | 0.9 | 0.8 | 0.5 | 1.4 | 1.3 | 1.8 | 5.8 |
| ‘0° | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0.1 |
| ‘-5.625° | -8.3 | -6 | -5.4 | -5.3 | -5.2 | -4.4 | -4.7 | -4.4 |
| ‘-11.25° | -13.9 | -10.7 | -10.8 | -10.7 | -10.2 | -10.5 | -11 | -9.3 |
| ‘-22.5° | -22.8 | -22.6 | -21.6 | -22.1 | -22.5 | -22 | -21.4 | -20.2 |
| ‘-45° | -42.5 | -44.7 | -45.1 | -45.2 | -45.4 | -45.9 | -45.3 | -47.3 |
| ‘-90° | -83.3 | -92.2 | -91.3 | -89.8 | -87.6 | -87.6 | -90.2 | -98.5 |
| ‘-180° | -182 | -180 | -181 | -181 | -182 | -182 | -182 | -179 |
| ‘-354.375° | -355 | -355 | -354 | -354 | -354 | -351 | -354 | -359 |
Reference picture

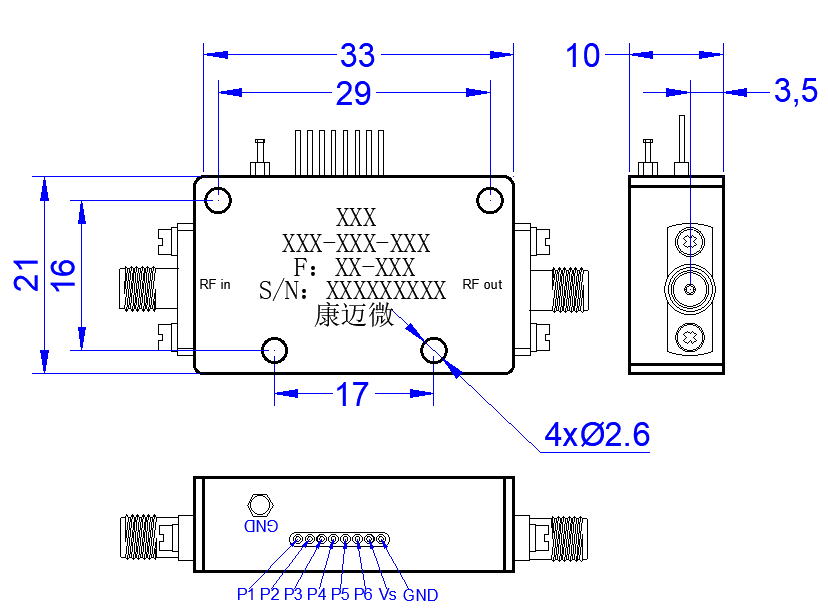

Configuration(mm)

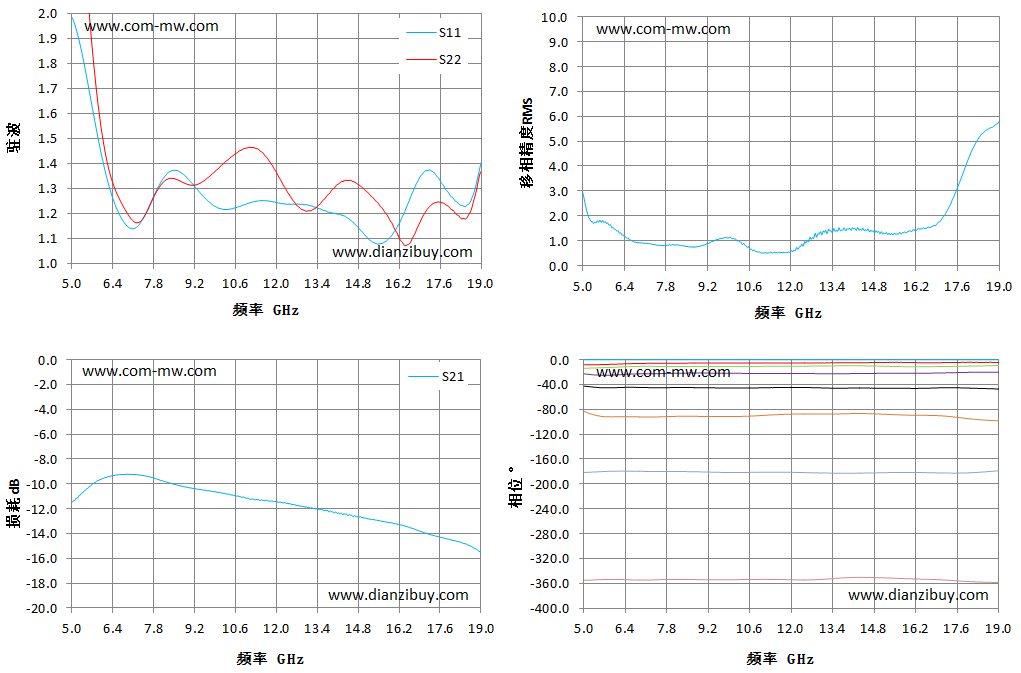

Typical test curve
Control voltage
| Low (0) | 0V | / |
| High (1) | +5V | / |
Note
| 1 | Please do not wash the product in the cleaning solution.,Please do not wash the product in the cleaning solution. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
