Diplexer OQZCB1-M0.7-3.15G-321
In Stock 1
Passband F10.7~1.05GHz, Passband F21.4~4.2GHz, N
$ 328.58
Delivery Time ： 1-3 Day(WorkDay)
Terms: Ex Work from Chengdu,China warehouse, minimum order amount US$200. Keeping registered and logged in, check discounts by adding to cart
MOQ : 1
Attention: The online trading belongs to commercial activities, the final transaction price might be lower than tag price, subject to automatically system calculating.
- Contact Us
- Cynthia
- cynthia@com-mw.com
sales@com-mw.com
+86 19938031308- 23 floor, No. 1 building, P Jiuxi Plaza, No.37, Jiancai Road, Chenghua Zone, Chengdu
Product features
Broadband, high-power.
Main specifications
| Parameters | Frequency | / | Min | Typical | Max | Units |
| Passband F1 | / | / | 0.7 | ~ | 1.05 | GHz |
| Passband F2 | / | / | 1.4 | ~ | 4.2 | GHz |
| band 1 IL | / | / | 1 | 1.5 | dB | |
| band 2 IL | / | / | 1 | 1.5 | dB | |
| Passband VSWR | / | / | 1.6 | |||
| Band 1 Rejection | 1.4-4.2 | GHz≥ | 60 | dB | ||
| band 2 Rejection | 0.7-1.05 | GHz≥ | 60 | dB |
Other parameters
| Connector | N -K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Black |
| Power Capacity | 20W Design assurance |
| Operation Temp. | -40~+85℃ Design assurance |
Typical test data
| Frequency(GHz) | S11 VSWR | S12 IL dB | S13 IL dB | S12 Delay nS | S13 Delay nS |
| 0.01 | 1.02 | -63.36 | -0.01 | - | 1.58 |
| 0.43 | 1.25 | -60.32 | -0.27 | - | 1.63 |
| 0.86 | 1.04 | -61.12 | -0.45 | - | 2.11 |
| 1.29 | 5.27 | -6.2 | -31.05 | - | - |
| 1.71 | 1.25 | -0.4 | -57.62 | 1.5 | - |
| 2.14 | 1.25 | -0.28 | -54.61 | 1.16 | - |
| 2.57 | 1.12 | -0.36 | -60.91 | 1.02 | - |
| 3 | 1.09 | -0.38 | -64.49 | 0.98 | - |
| 3.43 | 1.14 | -0.51 | -67.74 | 0.94 | - |
| 3.86 | 1.17 | -0.37 | -70.17 | 0.93 | - |
| 4.29 | 1.04 | -0.33 | -67.31 | 0.93 | - |
| 4.71 | 1.25 | -0.33 | -64.81 | 0.92 | - |
| 5.14 | 1.37 | -0.38 | -67.16 | 0.92 | - |
| 5.57 | 1.71 | -0.54 | -63.56 | 0.91 | - |
| 6 | 1.8 | -0.92 | -38.28 | 0.92 | - |

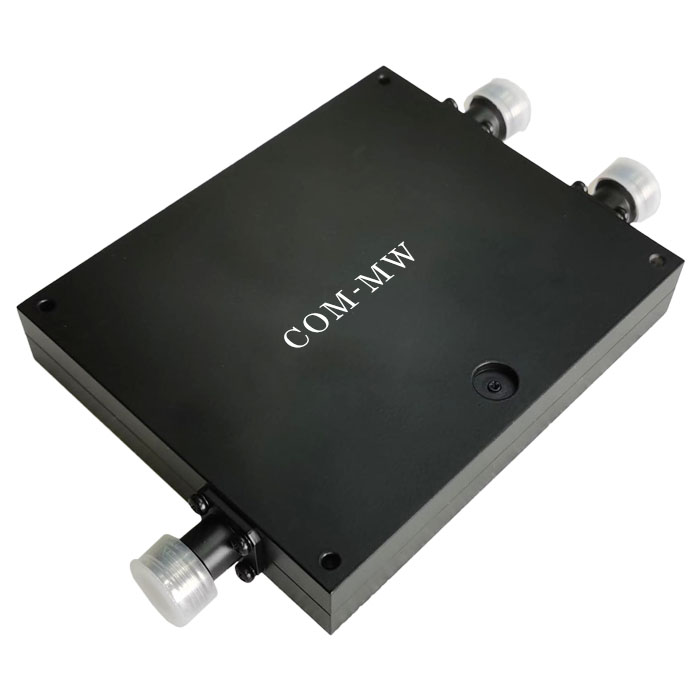

Reference picture

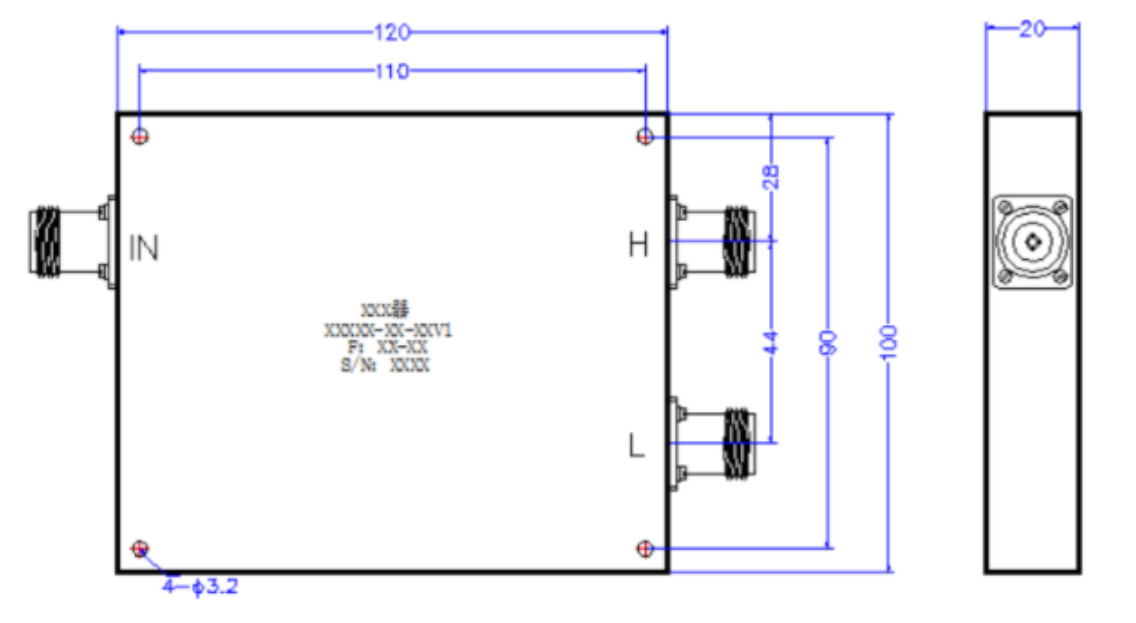

Configuration(mm)

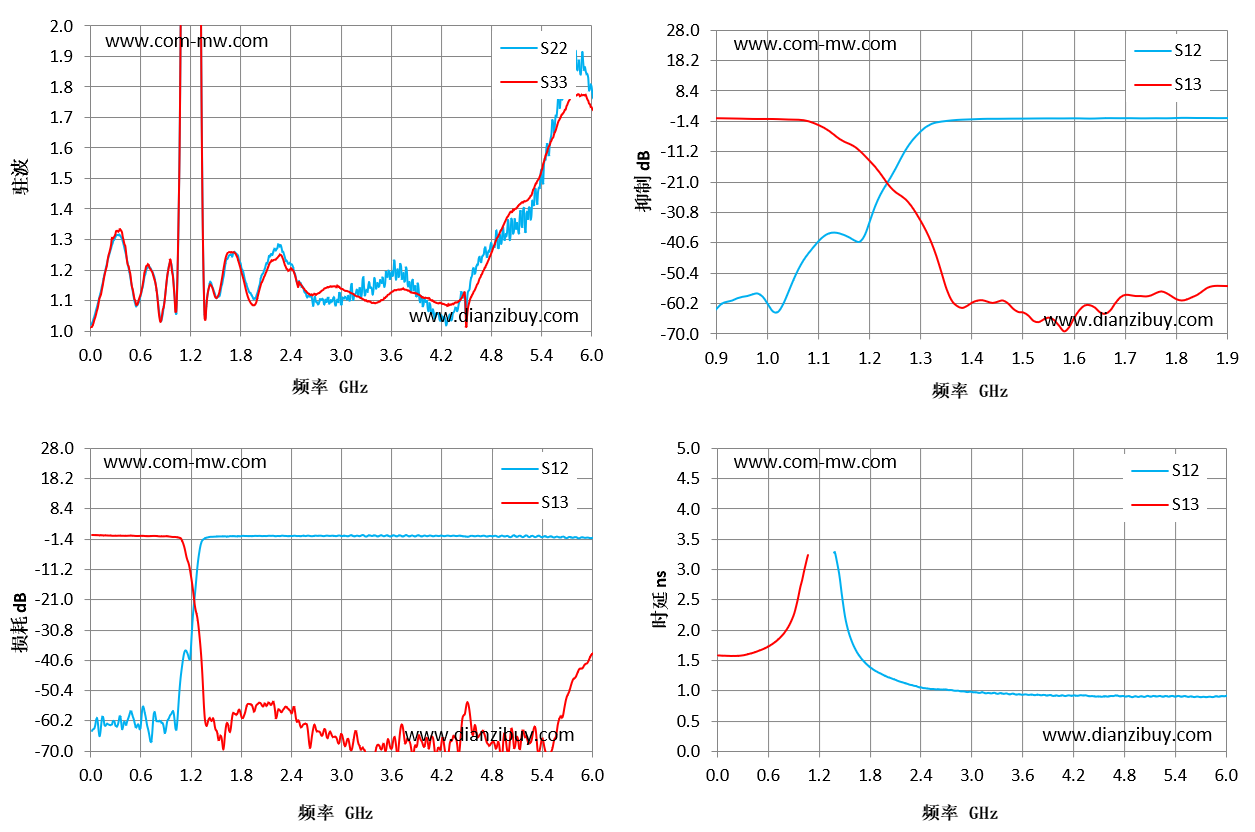

Typical test curve
Note
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 1 | If the temperature is higher than 125℃, consult with us before ordering. |
