Filter ZHPF1-M3-18G-124
In Stock 9
Passband3~18GHz, DC-2.7GHz≥40dB, SMA
$ 171.43
Delivery Time ： 1-3 Day(WorkDay)
Terms: Ex Work from Chengdu,China warehouse, minimum order amount US$200. Keeping registered and logged in, check discounts by adding to cart
MOQ : 1
Attention: The online trading belongs to commercial activities, the final transaction price might be lower than tag price, subject to automatically system calculating; The price is competitive, product fully tested and qualified, we will offer certificate of conformity, no test report.
- Contact Us
- Cynthia
- cynthia@com-mw.com
sales@com-mw.com
+86 19938031308- 23 floor, No. 1 building, P Jiuxi Plaza, No.37, Jiancai Road, Chenghua Zone, Chengdu
Product features
Broadband, high-power.
Main specifications
| Parameters | Frequency | / | Min | Typical | Max | Units |
| Passband | / | / | 3 | ~ | 18 | GHz |
| Passband IL | / | / | 2 | dB | ||
| Rejection | DC-2.7 | GHz≥ | 40 | dB | ||
| Passband VSWR | / | / | 1.8 |
Other parameters
| Connector | SMA-K |
| Impedance | 50Ω |
| Power | 20W Design assurance |
| Work Temp. | -40~+85℃ Design assurance |

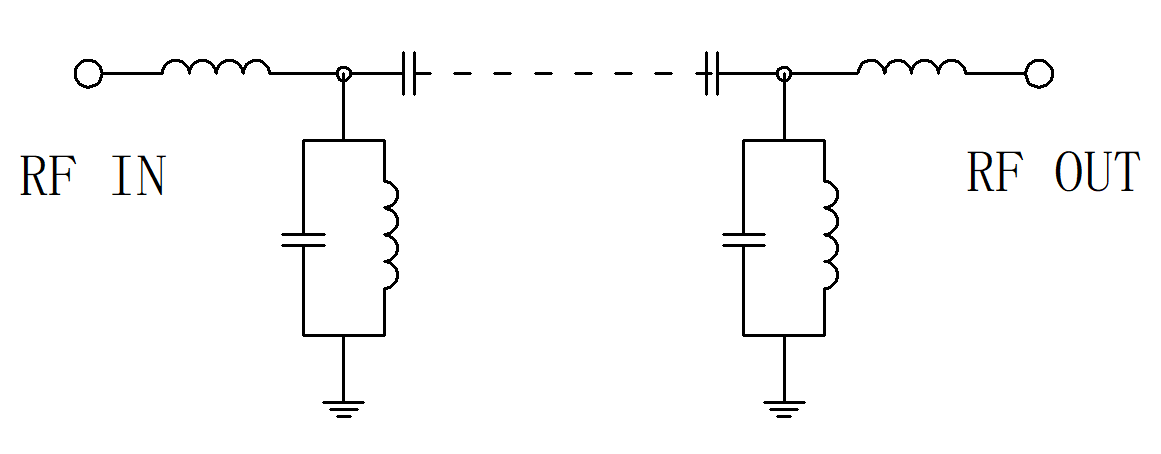

Functional diagram
Typical test data
| Frequency(GHz) | S11 VSWR | S22 VSWR | S21 loss dB | S12 Delay nS |
| 2.5 | 57.95 | 54.09 | -72.69 | 2.31 |
| 3.82 | 1.03 | 1.02 | -0.32 | 0.61 |
| 5.14 | 1.14 | 1.13 | -0.19 | 0.33 |
| 6.46 | 1.52 | 1.54 | -0.32 | 0.25 |
| 7.79 | 1.11 | 1.11 | -0.14 | 0.24 |
| 9.11 | 1.62 | 1.59 | -0.37 | 0.21 |
| 10.43 | 1.14 | 1.13 | -0.16 | 0.21 |
| 11.75 | 1.33 | 1.27 | -0.25 | 0.2 |
| 13.07 | 1.21 | 1.21 | -0.23 | 0.2 |
| 14.39 | 1.18 | 1.16 | -0.25 | 0.2 |
| 15.71 | 1.44 | 1.45 | -0.29 | 0.19 |
| 17.04 | 1.28 | 1.24 | -0.26 | 0.2 |
| 18.36 | 1.53 | 1.6 | -0.28 | 0.22 |
| 19.68 | 1.15 | 1.17 | -0.6 | 0.29 |
| 21 | 7.02 | 6.22 | -19.92 | -0.67 |

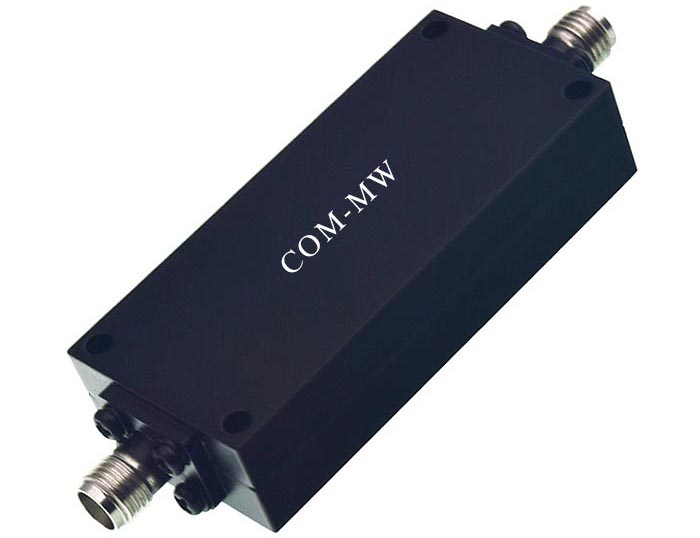

Reference picture

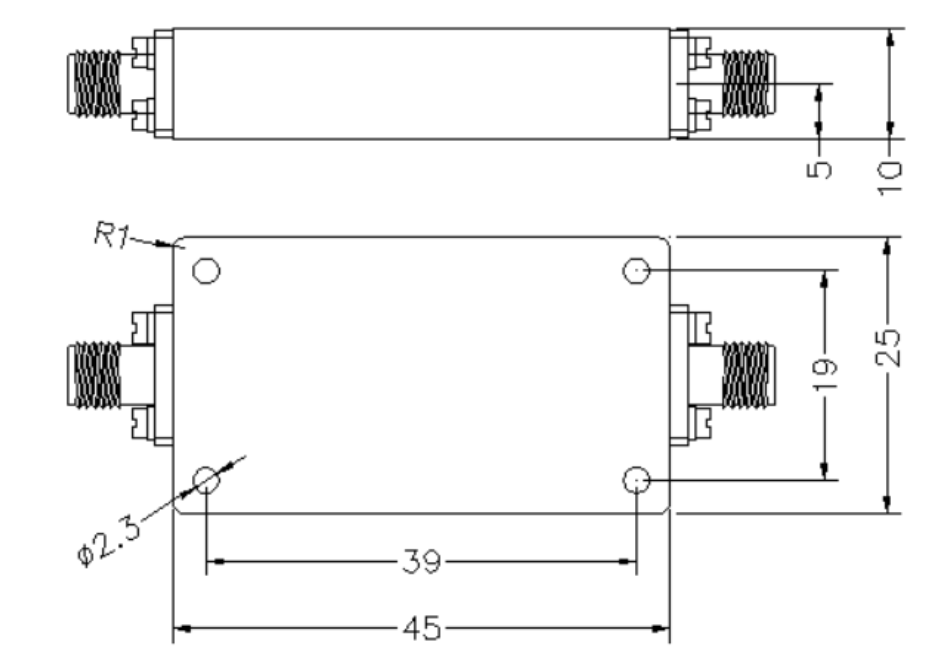

Configuration(mm)
Typical test curve
Note
| 1 | Please do not wash the product in the cleaning solution.,Please do not wash the product in the cleaning solution. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
