Component ZS8-C1.4-3G-2994
In Stock 1
1.4~3ghz, 500w, 3way, 0°, n
$ 500
Delivery Time ： 1-3 Day(WorkDay)
Terms: Ex Work from Chengdu,China warehouse, minimum order amount US$200. Keeping registered and logged in, check discounts by adding to cart
MOQ : 1
Attention: The online trading belongs to commercial activities, the final transaction price might be lower than tag price, subject to automatically system calculating.
- Contact Us
- Cynthia
- cynthia@com-mw.com
sales@com-mw.com
+86 19938031308- 23 floor, No. 1 building, P Jiuxi Plaza, No.37, Jiancai Road, Chenghua Zone, Chengdu
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 1.4 | ~ | 3 | ghz |
| IL | 0.5 | db | ||
| Isolation | 8 | db | ||
| Combined port VSWR | 1.35 | |||
| Branching port VSWR | Not have | |||
| Coupling port VSWR | 1.4 | |||
| Coupling | 48.5 | 50 | 51.5 | db |
| Directivity | 15 | db | ||
| Amplitude balance | ±0.25 | db | ||
| Phase balance | ±3 | ° |
Other parameters
| Power | 500W Design assurance |
| way | 3-way |
| Phase | 0° |
| Impedance | 50Ω |
| Connector | n-k |
| Surface | Conductive oxidation |
| Product shell material | Aluminium |
| Work Temp. | -40~+70℃ Design assurance |
| Quality Grade | Industrial grade |
Port Definition
| Common port | 0（n-k） |
| Dispatch Port | 1~3（n-k） |
| Forward coupling port | 4（sma-k） |
| Reverse coupling port | 5（sma-k） |

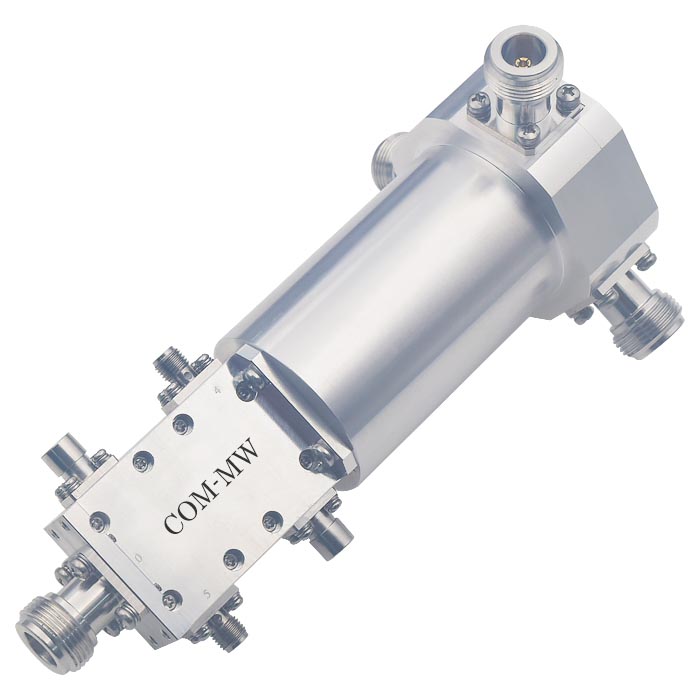

Reference picture

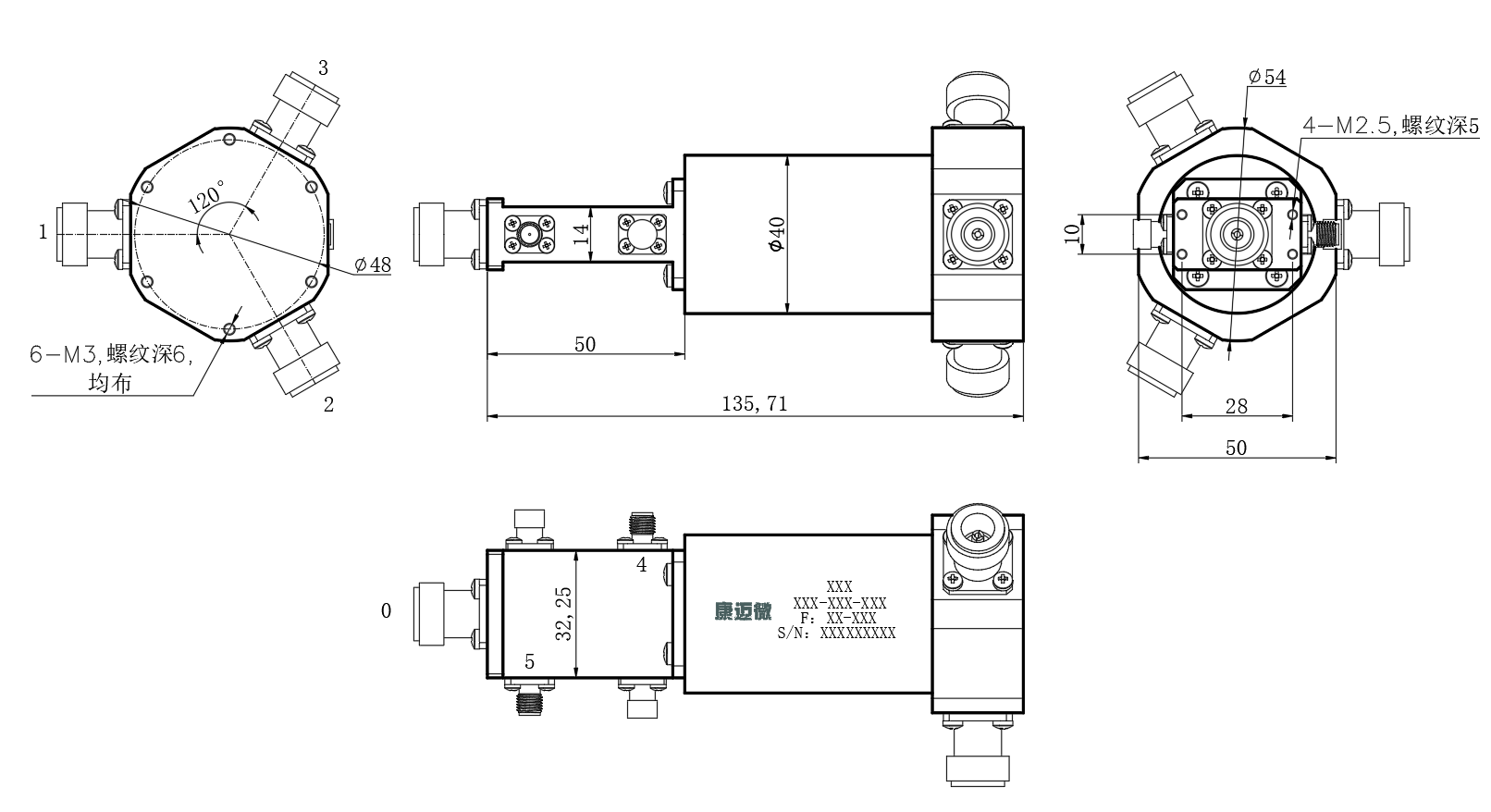

Configuration(mm)

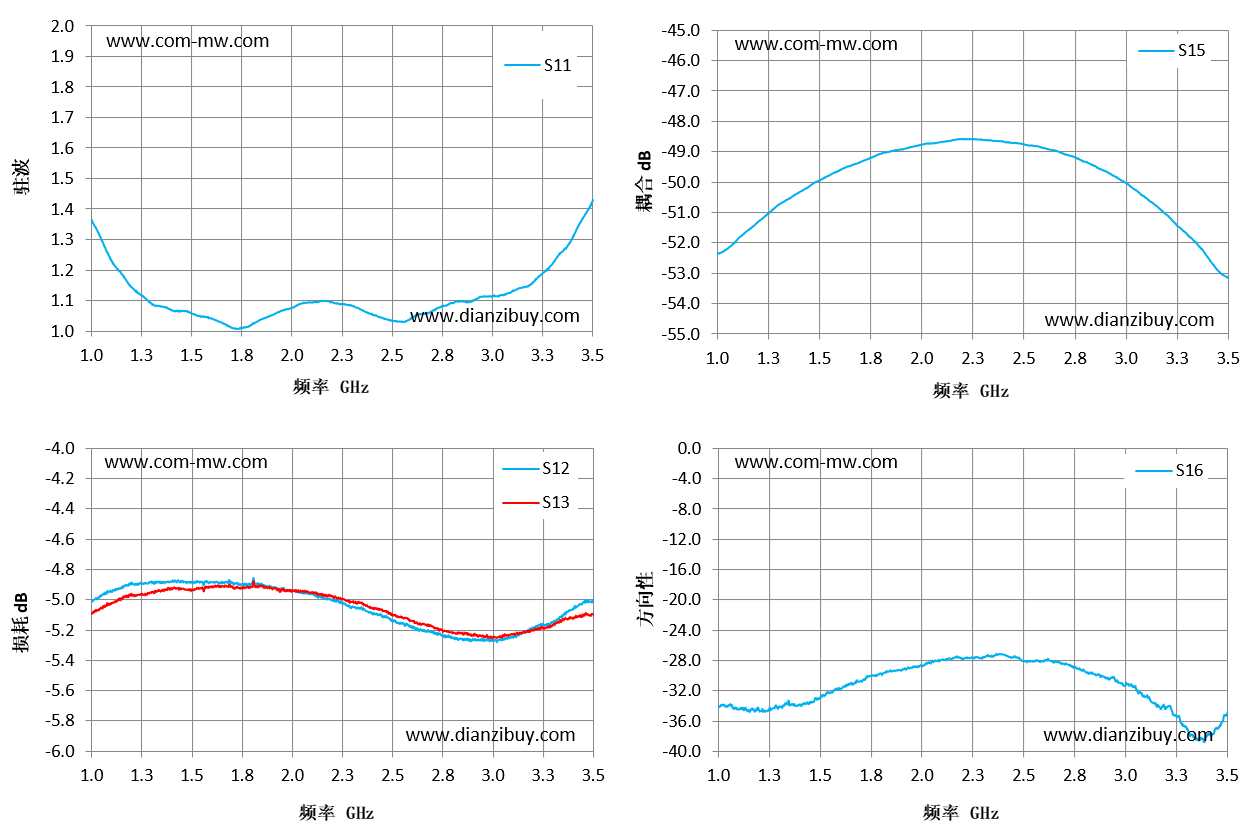

Typical test curve
Note
| 1 | Please do not wash the product in the cleaning solution.,Please do not wash the product in the cleaning solution. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
