Limiter DL8-18-40G-1623
In Stock 15
Frequency18~40GHz, Clipping level18dBm, Power1W, 2.92
$ 255.72
Delivery Time ： 1-3 Day(WorkDay)
Terms: Ex Work from Chengdu warehouse, minimum order amount US$200. The product is produced by COM-MW Technology Co.,Ltd and sold by Dianzibuy Inc.
MOQ : 1
Attention: The online trading belongs to commercial activities, the final transaction price might be lower than tag price, subject to automatically system calculating.
- Contact Us
- Cynthia
- cynthia@com-mw.com
sales@com-mw.com
+86 19938031308- 23 floor, No. 1 building, P Jiuxi Plaza, No.37, Jiancai Road, Chenghua Zone, Chengdu
Product features
Broadband, small volume.
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 18 | ~ | 40 | GHz |
| Clipping level | 18 | dBm | ||
| IL | 3 | dB | ||
| VSWR | 2 |
Other parameters
| Power | 1W |
| Impedance | 50Ω |
| Connector | 2.92-JK detachable, Pin 0.3mm |
| Connector material | Stainless steel |
| Surface | Gold-plating |
| Work Temp. | -40~+85℃ Design assurance |
Typical test data
| F(GHz) | S12 IL | S11 VSWR |
| 17 | -1 | 1.75 |
| 19 | -0.95 | 1.74 |
| 21 | -1.02 | 1.61 |
| 23 | -0.96 | 1.72 |
| 25 | -1.45 | 1.88 |
| 27 | -1.36 | 1.63 |
| 29 | -1.15 | 1.48 |
| 31 | -1.09 | 1.42 |
| 33 | -1.45 | 1.85 |
| 35 | -2.11 | 1.78 |
| 37 | -1.66 | 1.45 |
| 39 | -1.48 | 1.08 |
| 41 | -1.63 | 1.72 |

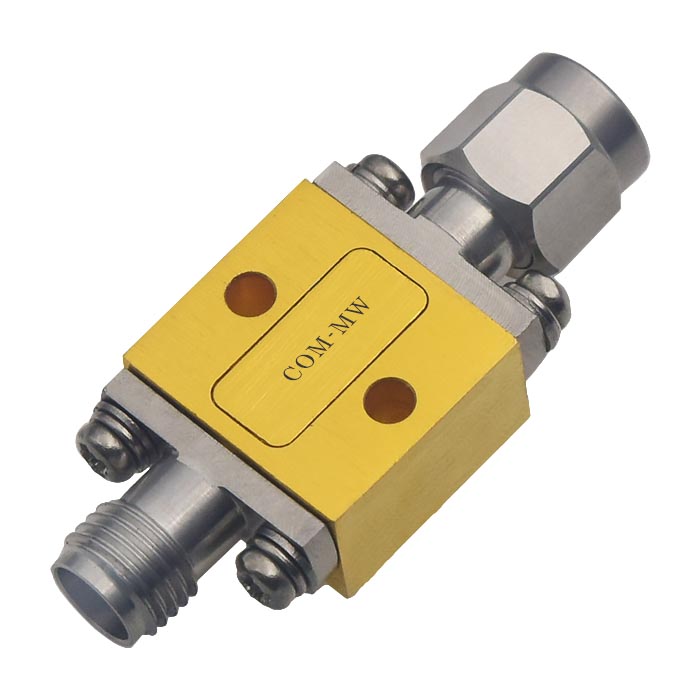

Reference picture

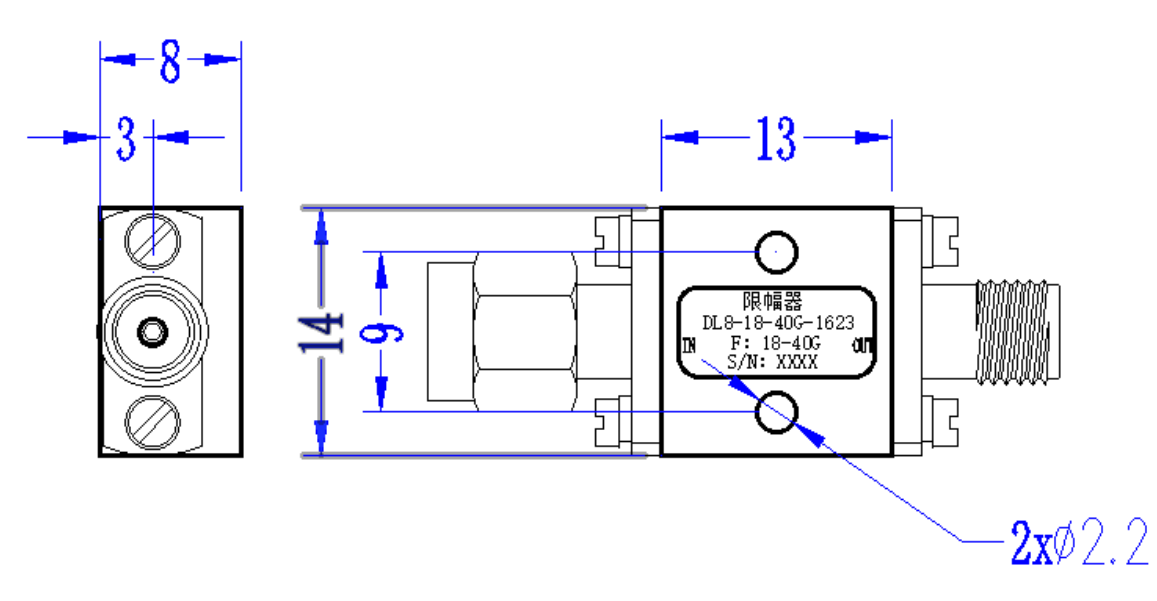

Configuration(mm)

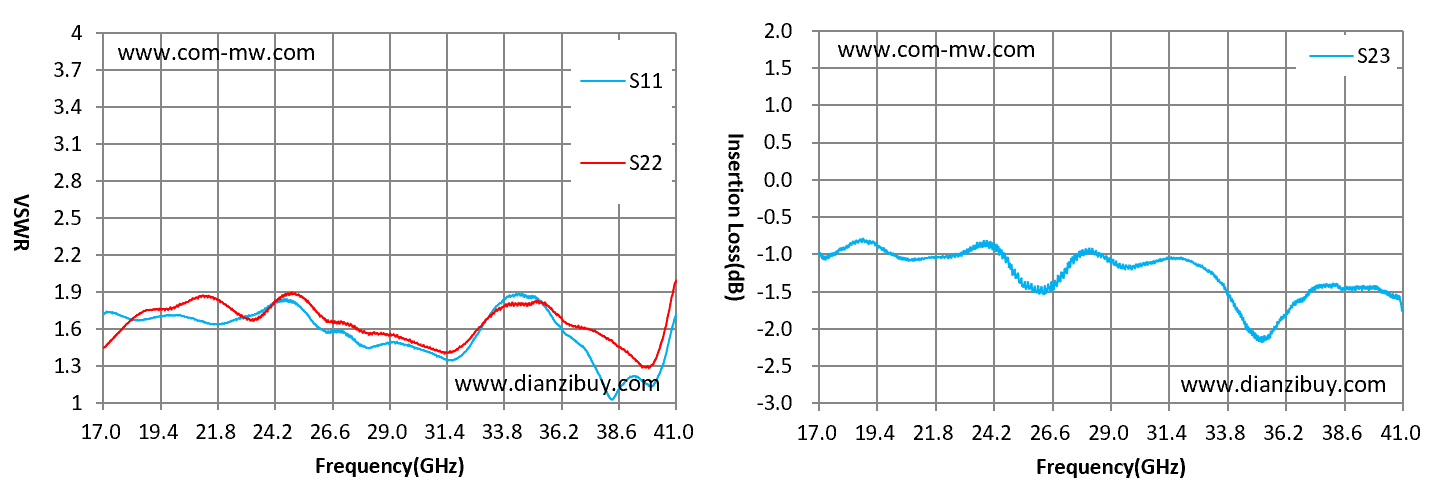

Typical test curve
Note
1, Pay attention to the direction of input and output, reverse connection may cause the product to burn out.
