Filter ZBF8-W3.91-0.57G-2337
In Stock 1
Passband3.625~4.2GHz, 3.55-3.6GHz≥32dB, 4.3GHz≥40dB, Waveguide
$ 385.72
Delivery Time ： 1-3 Day(WorkDay)
Terms: Ex Work from Chengdu warehouse, minimum order amount US$200. The product is produced by COM-MW Technology Co.,Ltd and sold by Dianzibuy Inc.
MOQ : 1
Attention: The online trading belongs to commercial activities, the final transaction price might be lower than tag price, subject to automatically system calculating.
- Contact Us
- Cynthia
- cynthia@com-mw.com
sales@com-mw.com
+86 19938031308- 23 floor, No. 1 building, P Jiuxi Plaza, No.37, Jiancai Road, Chenghua Zone, Chengdu
Product features
Low loss, high power, high rectangular coefficient.
Main specifications
| Parameters | Frequency | / | Min | Typical | Max | Units |
| Passband | / | / | 3.625 | ~ | 4.2 | GHz |
| Passband IL | / | / | 0.4 | 0.8 | dB | |
| Rejection | 3.55-3.6 | GHz≥ | 32 | 40 | dB | |
| Rejection | 4.3 | GHz≥ | 40 | 45 | dB | |
| Passband VSWR | / | / | 1.35 |
Other parameters
| Connector | Waveguide |
| Waveguide flange | CPR229g/CPR229f |
| Surface | Black baking paint |
| Power | 200W Design assurance |
| Product shell material | Aluminium |
| Work Temp. | -40~+70℃ Design assurance |
| Storage Temp. | -55~+85℃ Design assurance |
Port Definition
| I/O Port | CPR229g/CPR229f |
Typical test data
| Frequency(GHz) | S11 VSWR | S22 VSWR | S12 IL dB |
| 3.5 | 594.14 | 601.99 | -57.8 |
| 3.56 | 170.56 | 262.15 | -49.72 |
| 3.63 | 1.19 | 1.23 | -0.66 |
| 3.69 | 1.17 | 1.17 | -0.29 |
| 3.76 | 1.27 | 1.27 | -0.27 |
| 3.82 | 1.19 | 1.2 | -0.2 |
| 3.89 | 1.33 | 1.34 | -0.25 |
| 3.95 | 1.22 | 1.24 | -0.2 |
| 4.01 | 1.2 | 1.2 | -0.19 |
| 4.08 | 1.08 | 1.08 | -0.17 |
| 4.14 | 1.32 | 1.32 | -0.3 |
| 4.21 | 1.34 | 1.3 | -0.64 |
| 4.27 | 140.64 | 127.69 | -36.54 |
| 4.34 | 232.39 | 251.84 | -52.73 |
| 4.4 | 207.73 | 324.48 | -57.74 |

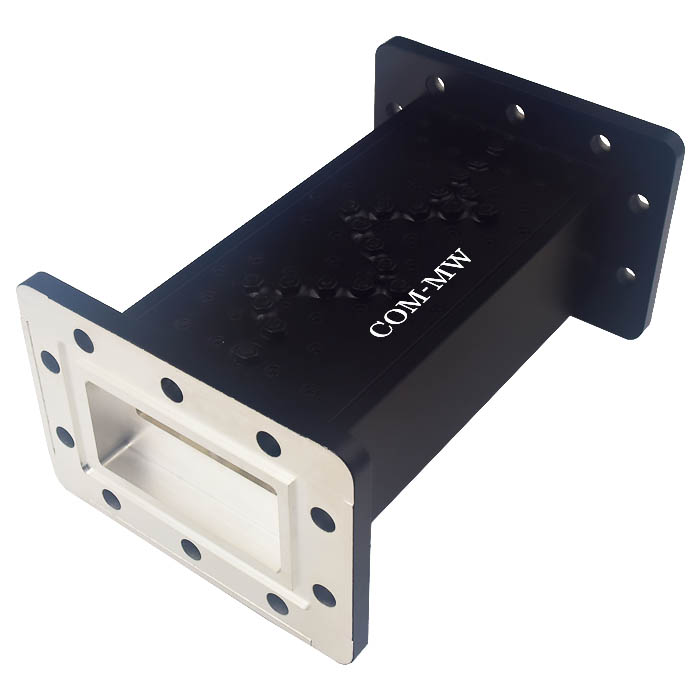

Reference picture

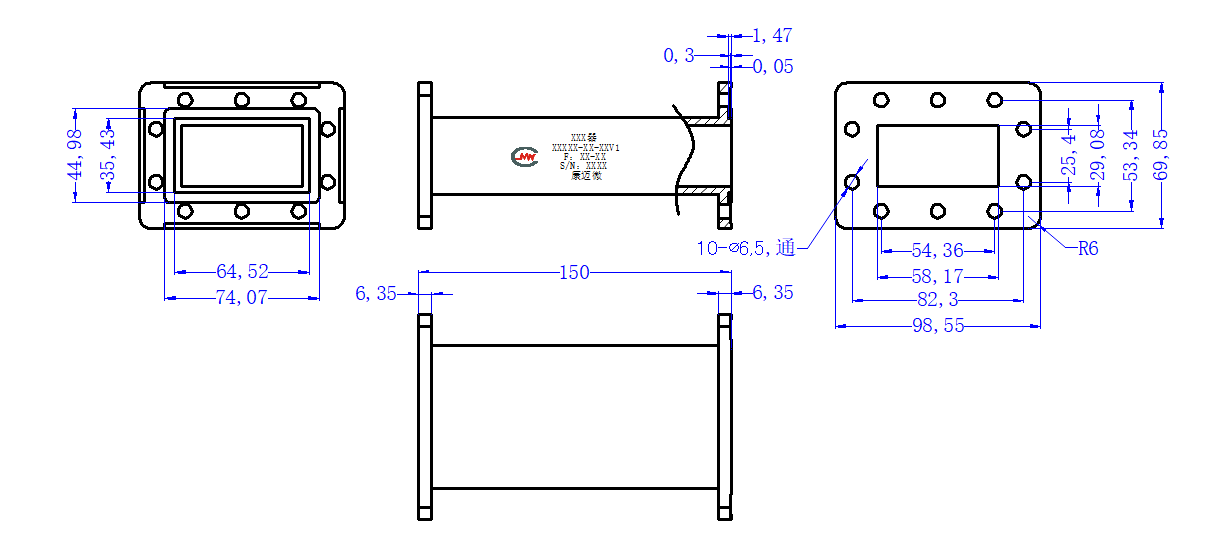

Configuration(mm)

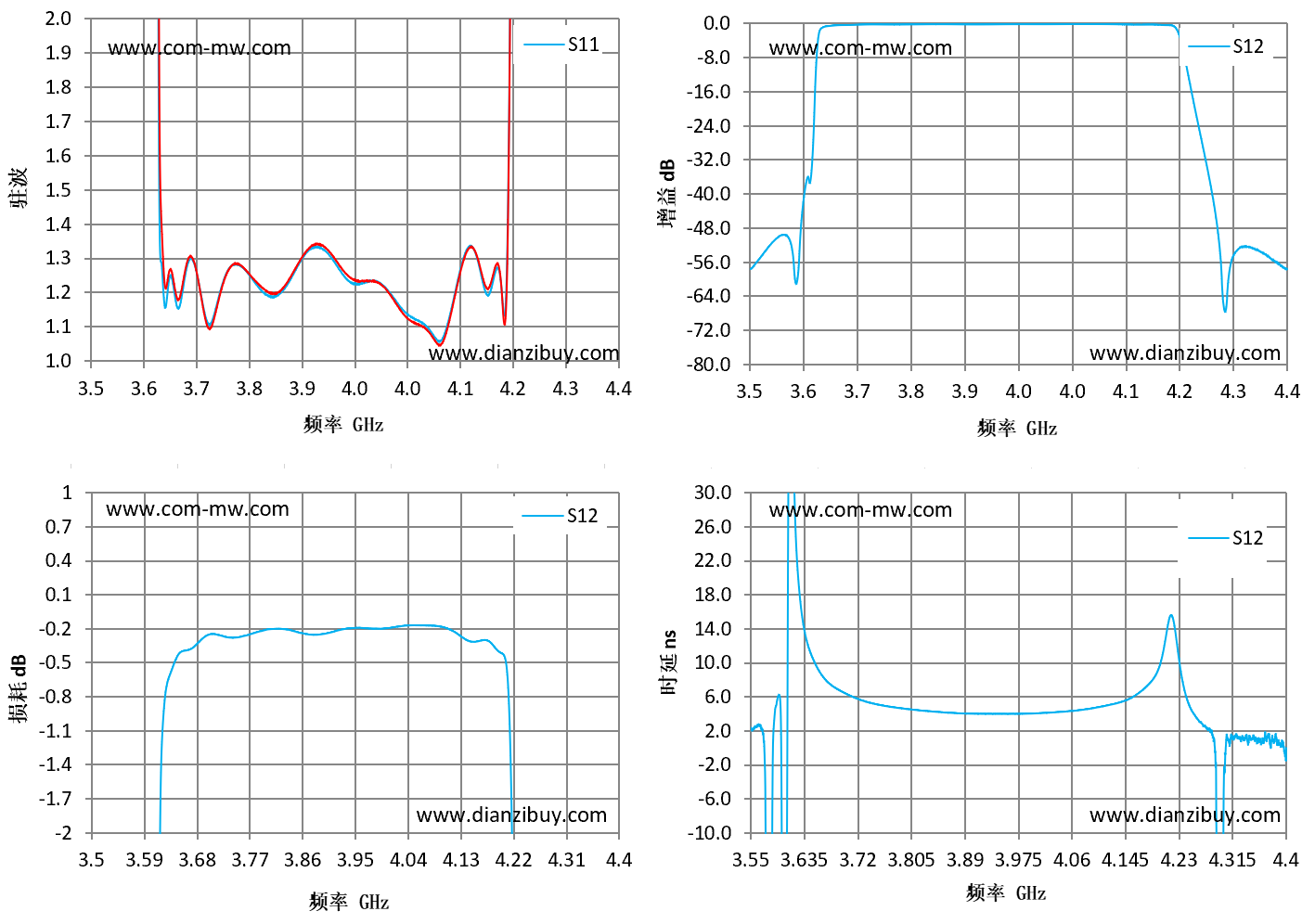

Typical test curve
Note
| 1 | Please do not wash the product in the cleaning solution.,Please do not wash the product in the cleaning solution. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
