Loop antenna ZHX7-0.009-200-1486
In Stock 2
Frequency0.009~200MHz, Linear polarization, N-K
$ 941.13
Delivery Time ： 1-3 Day(WorkDay)
Terms: Ex Work from Chengdu warehouse, minimum order amount US$200. The product is produced by COM-MW Technology Co.,Ltd and sold by Dianzibuy Inc.
MOQ : 1
Attention: The online trading belongs to commercial activities, the final transaction price might be lower than tag price, subject to automatically system calculating.
- Contact Us
- Cynthia
- cynthia@com-mw.com
sales@com-mw.com
+86 19938031308- 23 floor, No. 1 building, P Jiuxi Plaza, No.37, Jiancai Road, Chenghua Zone, Chengdu
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 0.009 | ~ | 200 | MHz |
| Gain | -60 | dBi | ||
| VSWR | 2.5 | |||
| Antenna factor | 30 | dB/m |
Other parameters
| Polarization | Linear polarization |
| Connector | N -K |
| Outline size | 455*315*60mm |
| Estimated weight | 800g |
| Surface | 黑色砂面 |
| Operation Temp. | -25~+45℃ Design assurance |

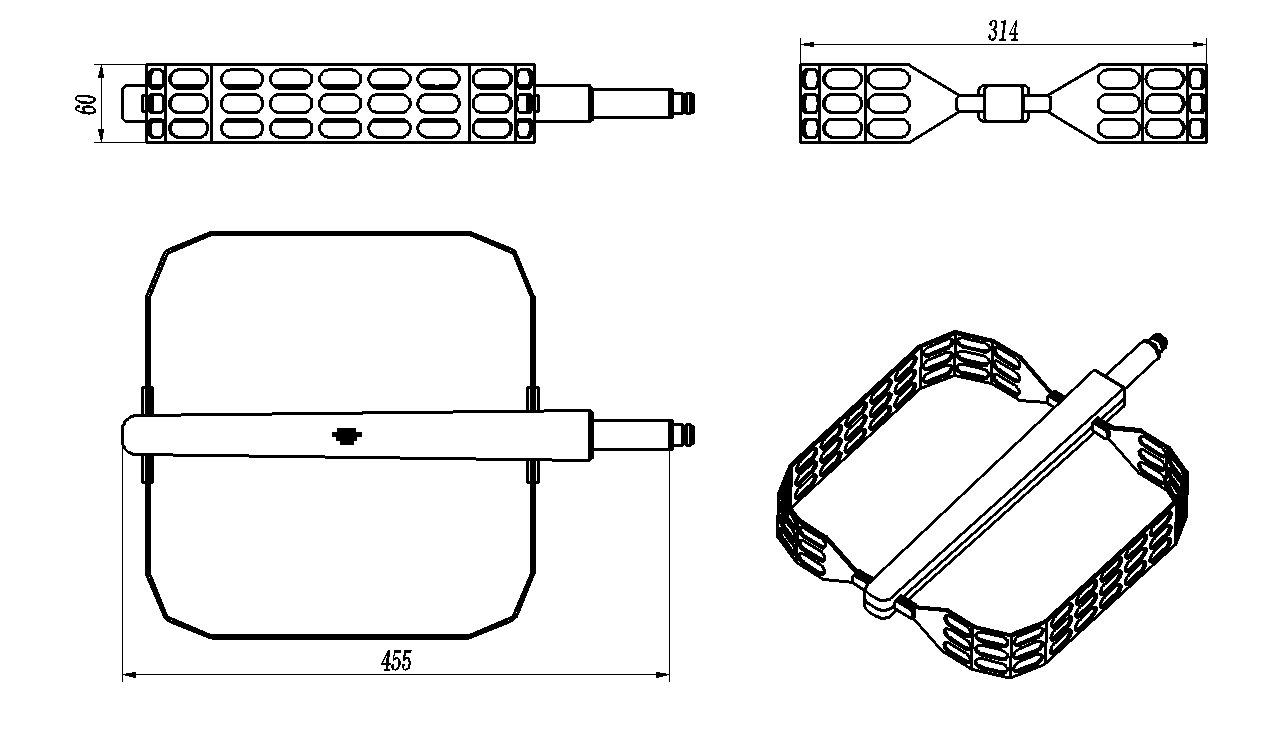

Configuration(mm)
Note
Avoid collisions during installation.
It is strictly prohibited to disassemble antenna accessories, as it may cause poor antenna performance.
The installation position of the antenna should be free of any obstacles.
Outdoor use should be equipped with lightning protection facilities.
May contain electronic components, please do not dispose of them randomly.

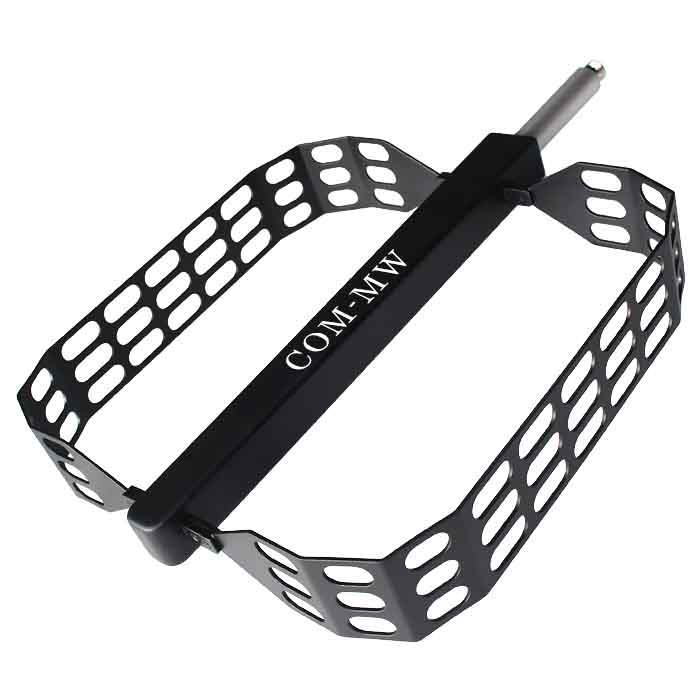

Reference picture

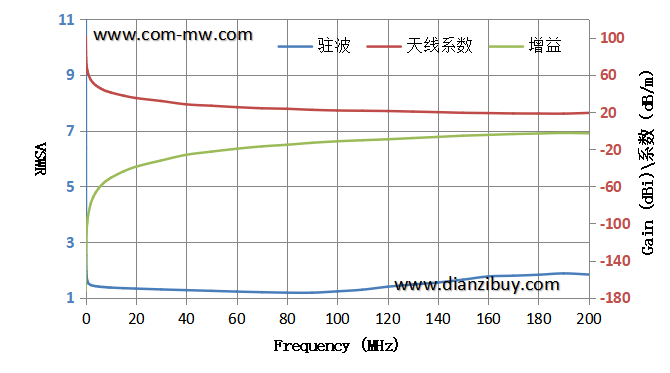

Typical test curve
