DF Antenna ZCX7-0.1-150-1527
In Stock 1
Frequency0.1~150MHz, Gain-8dBi, Vertical polarization, N-K
$ 3614.29
Delivery Time ： 1-3 Day(WorkDay)
Terms: Ex Work from Chengdu,China warehouse, minimum order amount US$200. Keeping registered and logged in, check discounts by adding to cart
MOQ : 1
Attention: The online trading belongs to commercial activities, the final transaction price might be lower than tag price, subject to automatically system calculating.
- Contact Us
- Cynthia
- cynthia@com-mw.com
sales@com-mw.com
+86 19938031308- 23 floor, No. 1 building, P Jiuxi Plaza, No.37, Jiancai Road, Chenghua Zone, Chengdu
Product features
Broadband direction finding array antenna.
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 0.1 | ~ | 150 | MHz |
| Gain | -8 | dBi | ||
| VSWR | 3.5 |
Other parameters
| Polarization | Vertical polarization |
| Power Capacity | 1W Design assurance |
| Connector | N-K |
| Outline size | 600*600*2000mm |
| Estimated weight | 4Kg |
| Surface | Green |
| Operation Temp. | -25~+55℃ Design assurance |
| Storage Temp. | -40~+75℃ Design assurance |

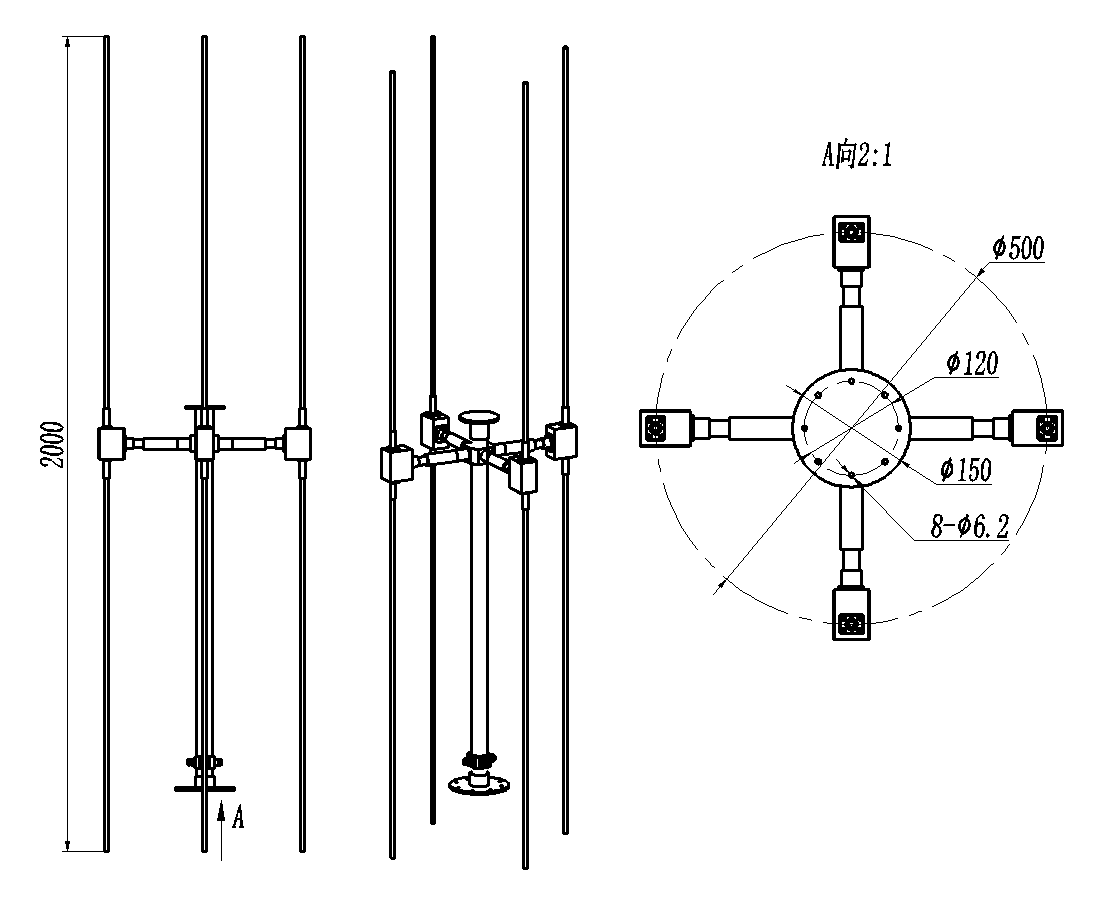

Configuration(mm)
Note
Avoid collisions during installation.
It is strictly prohibited to disassemble antenna accessories, as it may cause poor antenna performance.
The installation position of the antenna should be free of any obstacles.
Outdoor use should be equipped with lightning protection facilities.
May contain electronic components, please do not dispose of them randomly.

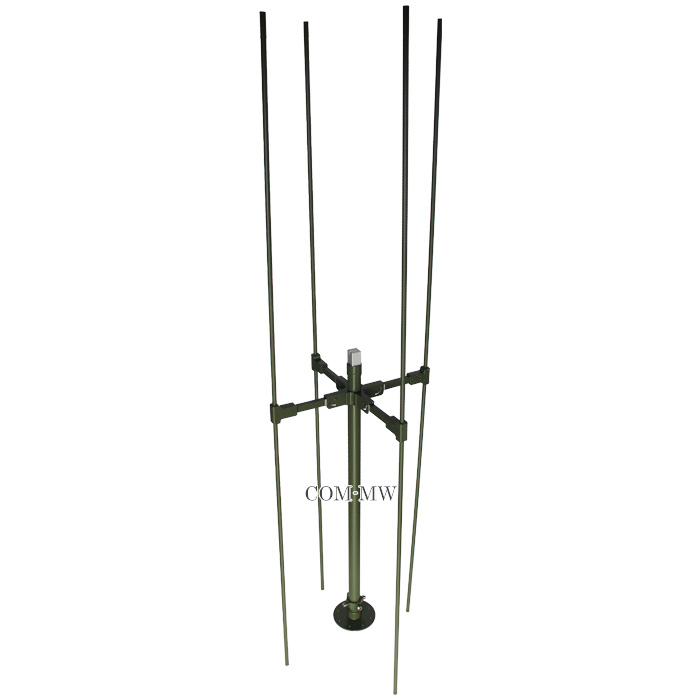

Reference picture

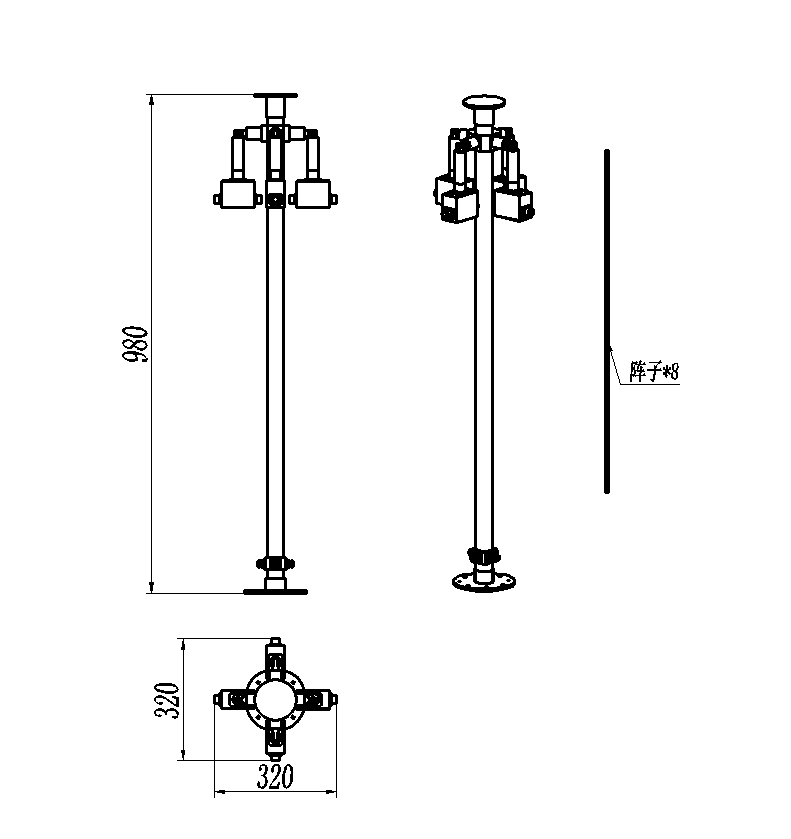

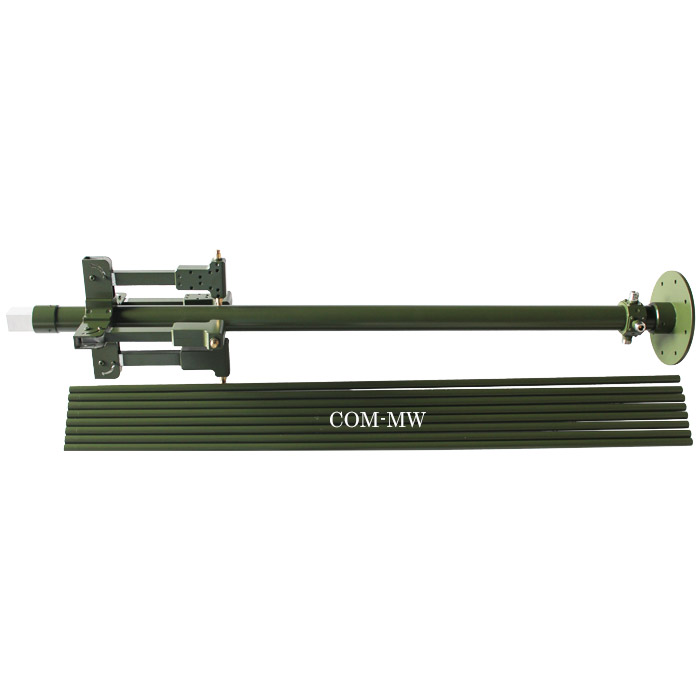

Reference folding chart
