Hybrid ZHC8-0.8-3G-2565
In Stock 81
0.8~3GHz, 150W, 90°Hybrid, SMD
$ 19
Delivery Time ： 1-3 Day(WorkDay)
Terms: Ex Work from Chengdu,China warehouse, minimum order amount US$200. Keeping registered and logged in, check discounts by adding to cart
MOQ : 1
Attention: The online trading belongs to commercial activities, the final transaction price might be lower than tag price, subject to automatically system calculating; The price is competitive, product fully tested and qualified, we will offer certificate of conformity, no test report.
- Contact Us
- Cynthia
- cynthia@com-mw.com
sales@com-mw.com
+86 19938031308- 23 floor, No. 1 building, P Jiuxi Plaza, No.37, Jiancai Road, Chenghua Zone, Chengdu
Product features
Broadband, high-power.
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 0.8 | ~ | 3 | GHz |
| IL | 0.5 | 0.7 | dB | |
| Isolation | 16 | 18 | dB | |
| VSWR | 1.4 | |||
| Amplitude balance | ±0.8 | dB | ||
| Phase balance | ±5 | ° |
Other parameters
| Power | 150W Design assurance |
| Phase | 90° Hybrid |
| Impedance | 50Ω |
| Connector | SMD |
| Surface | Immersion Gold |
| Work Temp. | -40~+85℃ Design assurance |
| Storage Temp. | -55~+125℃ Design assurance |
| Quality Grade | Industrial grade |
Port Definition
| IN | 1 | 2 | 3 | 4 |
| ISO | 4 | 3 | 2 | 1 |
| OUT1 | 2 (-90°) | 1（-90°） | 4（-90°） | 3（-90°） |
| OUT2 | 3（0°） | 4（0°） | 1（0°） | 2（0°） |
Typical test data
| Frequency(MHz) | S11 VSWR | S12 IL dB | S13 IL dB | S14 ISO dB | S12 Phase (°) | S13 Phase (°) |
| 100 | 1.01 | -0.14 | -17.7 | -40.69 | 0.02 | 89.69 |
| 379 | 1.04 | -1.11 | -7.16 | -30.24 | -0.01 | 89.53 |
| 657 | 1.07 | -2.5 | -4.02 | -32.48 | -0.01 | 89.55 |
| 936 | 1.06 | -3.65 | -2.91 | -37.96 | -0.03 | 89.49 |
| 1214 | 1.02 | -3.97 | -2.65 | -25.4 | -0.01 | 89.64 |
| 1493 | 1.09 | -3.81 | -2.87 | -22.14 | -0.01 | 90.22 |
| 1771 | 1.17 | -3.58 | -3.19 | -23.78 | -0.01 | 89.63 |
| 2050 | 1.19 | -3.5 | -3.31 | -27.19 | -0.02 | 88.61 |
| 2329 | 1.1 | -3.75 | -3.19 | -20.27 | 0.01 | 87.35 |
| 2607 | 1.02 | -4.07 | -3.12 | -17.82 | -0.04 | 87.29 |
| 2886 | 1.02 | -4.15 | -3.19 | -19.97 | -0.05 | 89.81 |
| 3164 | 1.13 | -3.9 | -3.63 | -23.66 | 0.12 | 94.38 |
| 3443 | 1.22 | -3.06 | -4.59 | -21.24 | -0.01 | 92.82 |
| 3721 | 1.16 | -1.79 | -7.92 | -14.23 | 0.02 | 92.95 |
| 4000 | 1.46 | -1.05 | -19.06 | -15.41 | 0.01 | 103.07 |

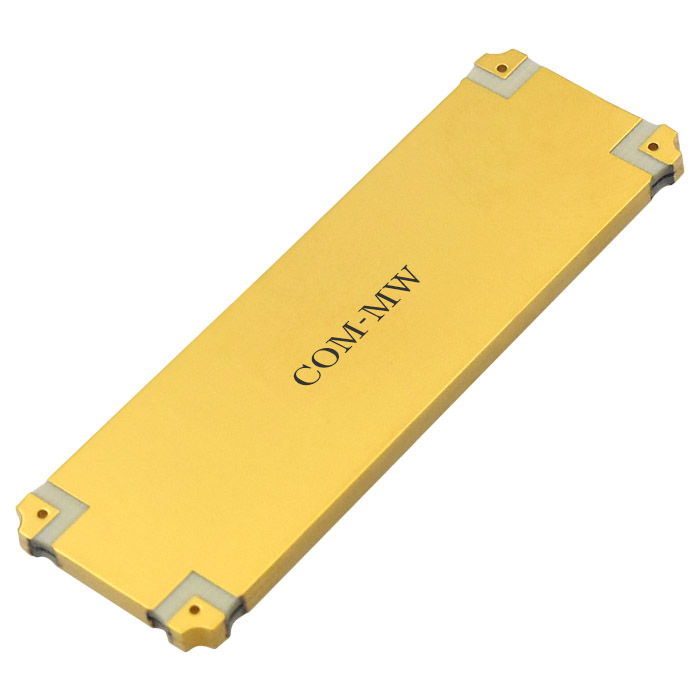

Reference picture

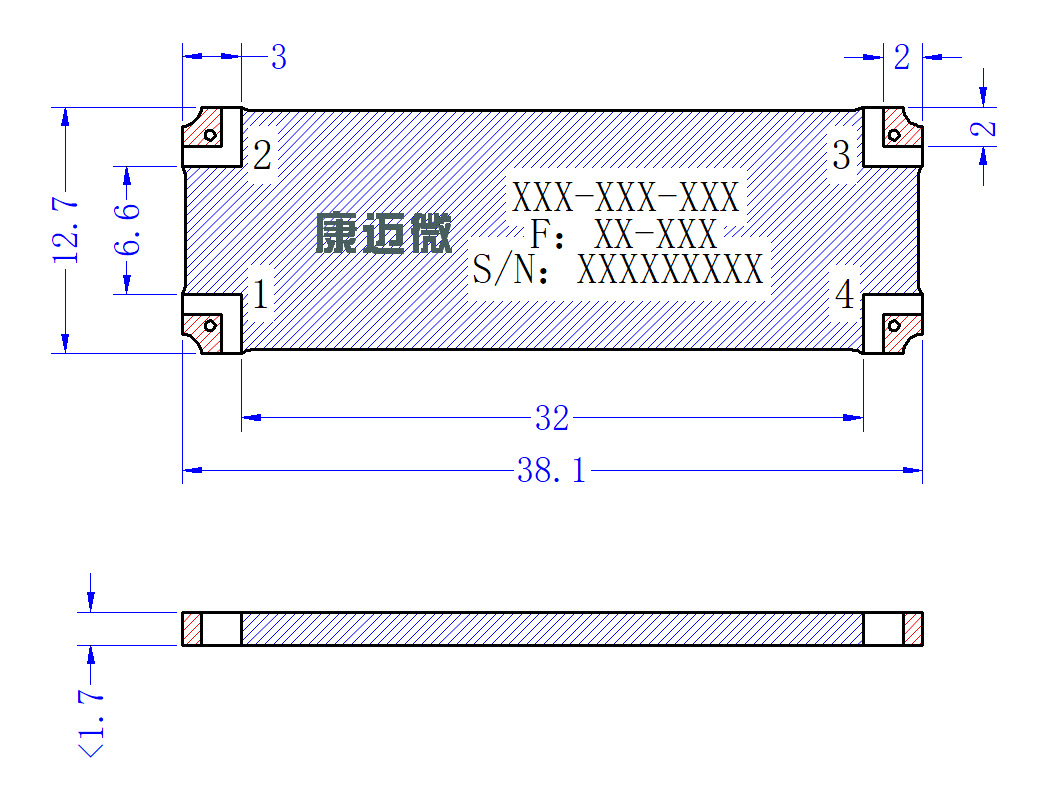

Configuration(mm)

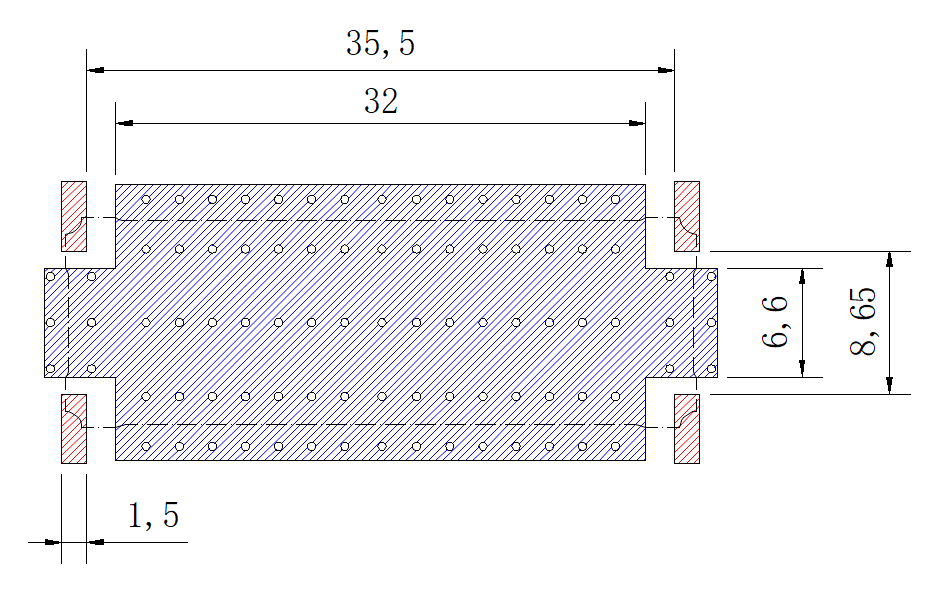

Suggested PCB Layout (mm)

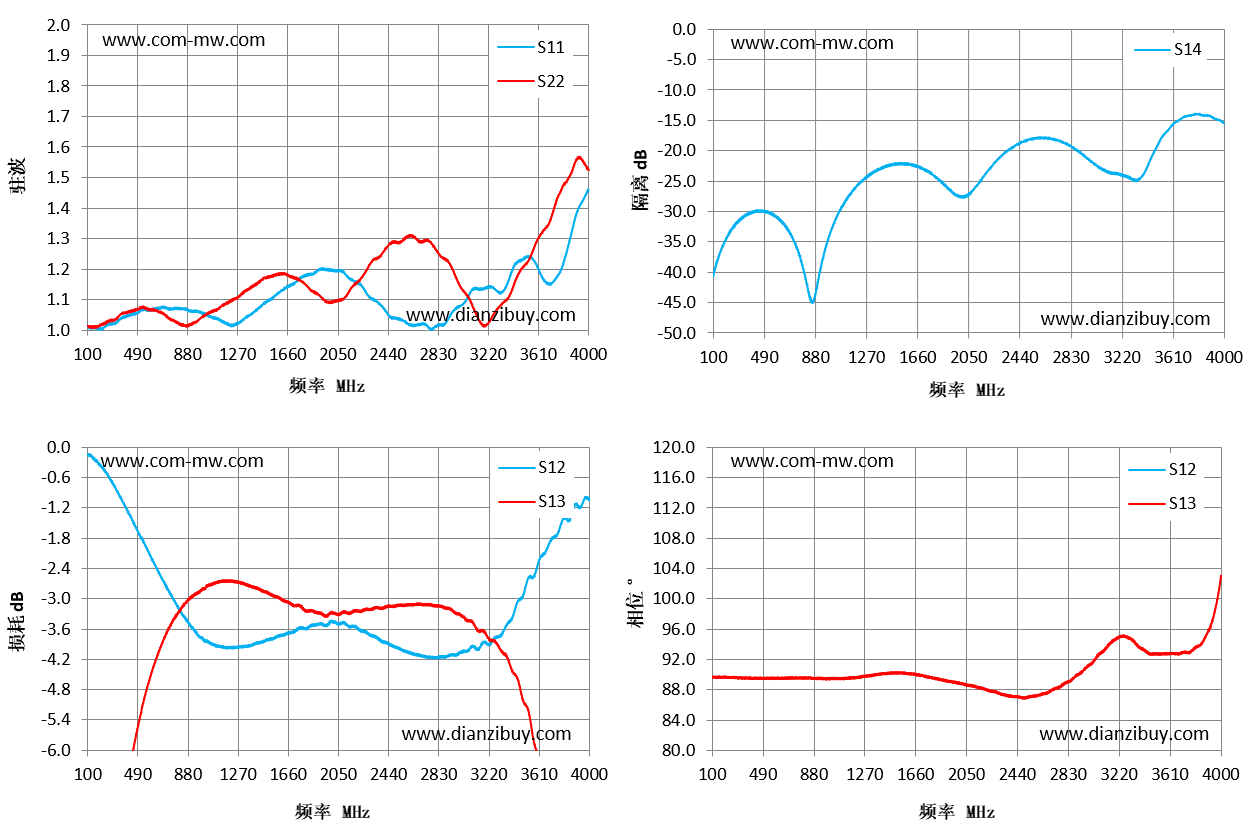

Typical test curve
Note
| 1 | Please do not wash the product in the cleaning solution.,Please do not wash the product in the cleaning solution. |
| 2 | The product supports 220 ℃ reflow soldering |
