Power divider S0137
In Stock 4
680~6000MHz, 5W, 2way, 0°, SMD, /
$ 49.43
Delivery Time ： 1-3 Day(WorkDay)
Terms: Ex Work from Chengdu,China warehouse, minimum order amount US$200. Keeping registered and logged in, check discounts by adding to cart
MOQ : 1
Attention: The online trading belongs to commercial activities, the final transaction price might be lower than tag price, subject to automatically system calculating; The price is competitive, product fully tested and qualified, we will offer certificate of conformity, no test report.
- Contact Us
- Cynthia
- cynthia@com-mw.com
sales@com-mw.com
+86 19938031308- 23 floor, No. 1 building, P Jiuxi Plaza, No.37, Jiancai Road, Chenghua Zone, Chengdu
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 680 | ~ | 6000 | MHz |
| IL | 1.5 | 2.5 | dB | |
| Isolation | 10 | 20 | dB | |
| Input VSWR | 1.6 | 2.0 | ||
| Output VSWR | 1.4 | 1.6 | ||
| Amplitude balance | 0.4 | 0.6 | dB | |
| Phase balance | 2 | 5.0 | ° |
Other parameters
| Power | 5W |
| way | 2-way |
| Phase | 0° |
| Impedance | 50Ω |
| Connector | SMD |
| Work Temp. | --40~+85℃设计保证 |
| Storage Temp. | --55~+100℃设计保证 |
| Other | / |
Port Definition
| Common port | 17 |
| Dispatch Port | 4，8 |
| GND | Other ports |

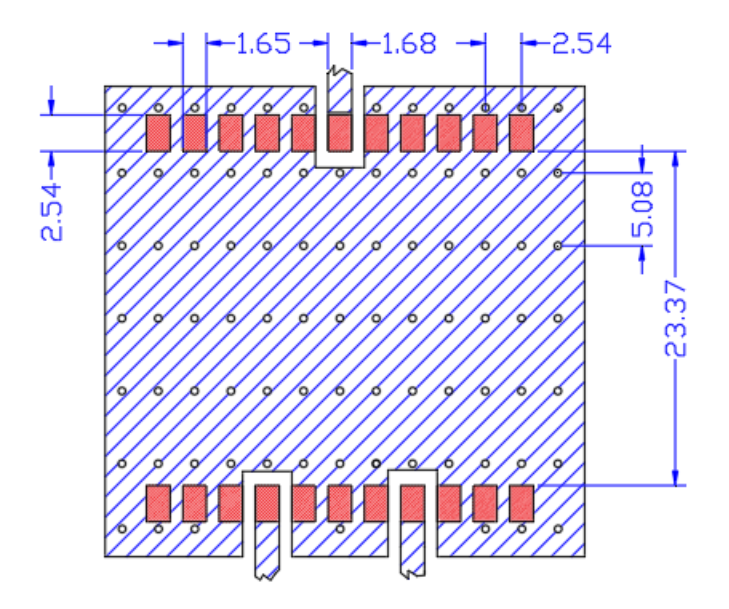

Suggested PCB Layout
Typical test data
| Frequency(MHz) | S11 VSWR | S33 VSWR | S12 IL dB | S13 Phase (°) | S23 ISO dB |
| 500 | 1.51 | 1.19 | -3.15 | -0.22 | -8.19 |
| 929 | 1.28 | 1.1 | -3.09 | -0.66 | -14.74 |
| 1357 | 1.05 | 1.1 | -3.06 | -0.35 | -24.3 |
| 1786 | 1.14 | 1.07 | -3.11 | -0.13 | -25.4 |
| 2643 | 1.06 | 1.14 | -3.21 | -1.44 | -20.59 |
| 3071 | 1.17 | 1.19 | -3.18 | -2.73 | -25.35 |
| 3500 | 1.18 | 1.14 | -3.2 | 0.54 | -43.22 |
| 3929 | 1.22 | 1.28 | -3.25 | 4.68 | -24.19 |
| 4357 | 1.13 | 1.33 | -3.34 | -5.07 | -21.91 |
| 4786 | 1.3 | 1.18 | -3.3 | -6.42 | -22.79 |
| 5214 | 1.08 | 1.39 | -3.26 | 3.72 | -19.11 |
| 5643 | 1.68 | 1.45 | -3.6 | -0.48 | -15.67 |
| 6071 | 1.12 | 1.35 | -3.86 | 1.6 | -19.2 |

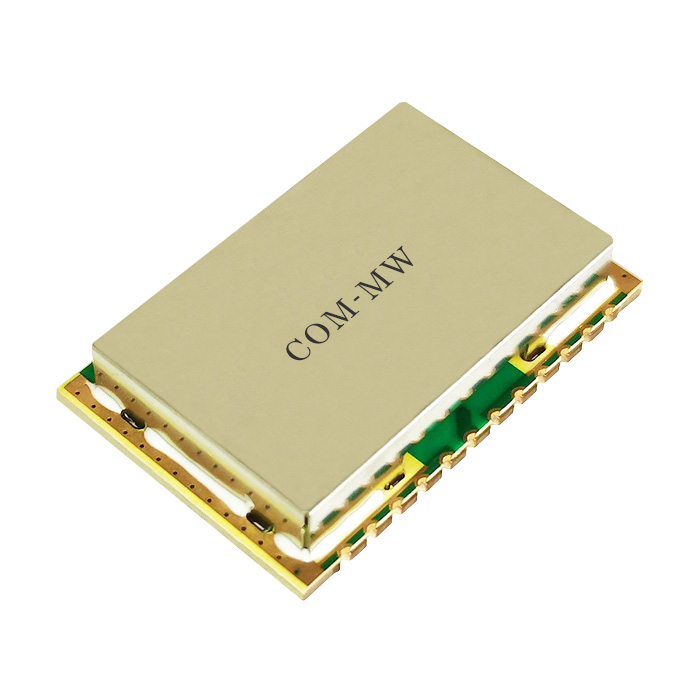

Reference picture

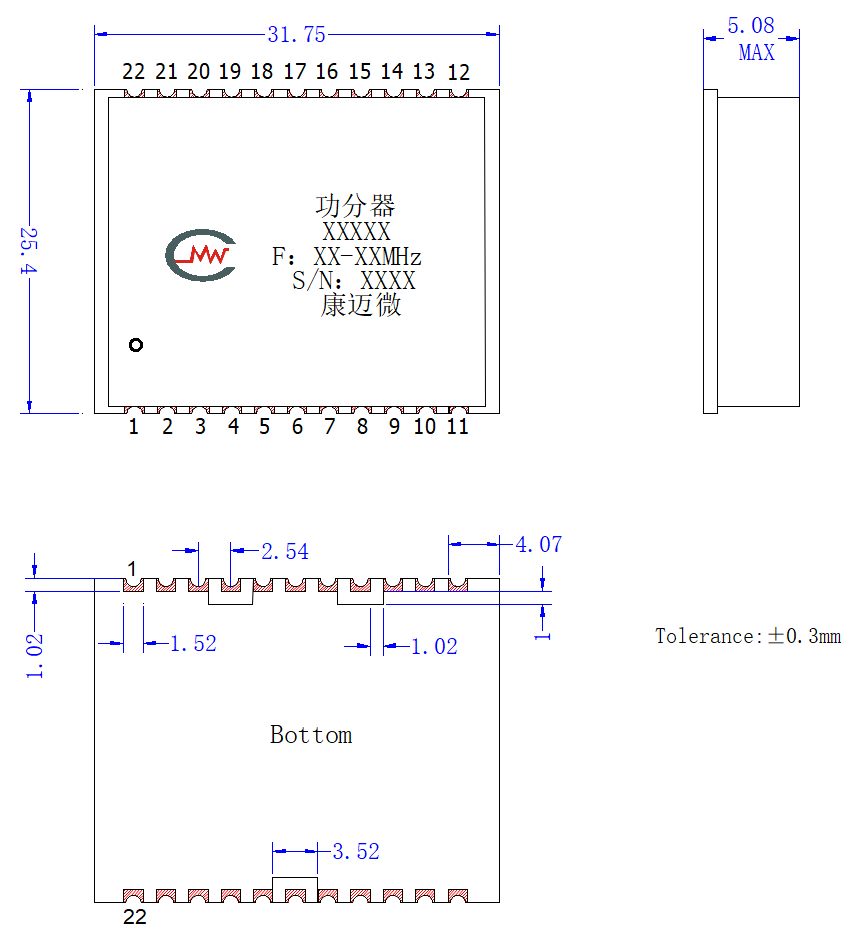

Configuration(mm)

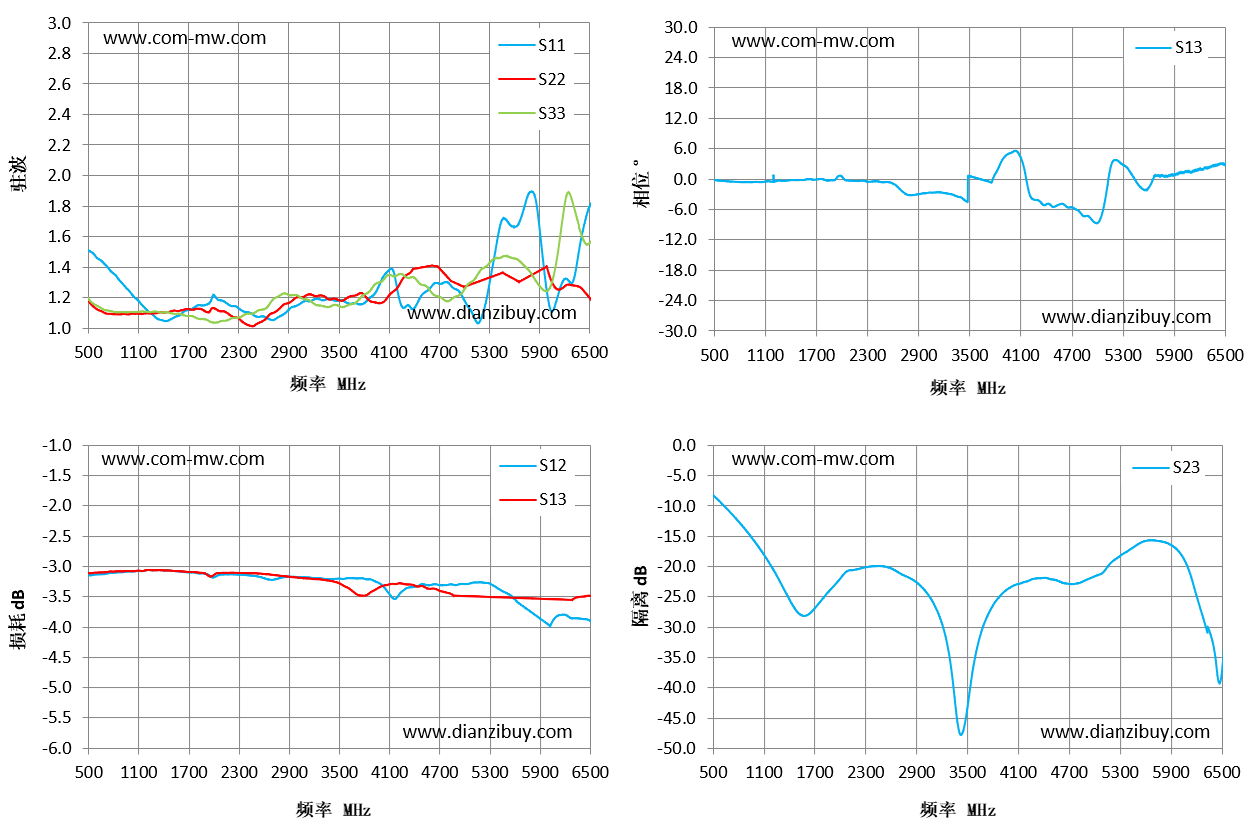

Typical test curve
Note
| 1 | Please do not wash the product in the cleaning solution.,Please do not wash the product in the cleaning solution. |
| 2 | The product supports 190 ℃ reflow soldering |
