Filter ZBF1-M6-3.2G-509
In Stock 2
Passband4.4~7.6GHz, DC-3GHz≥50dB, 8.5-12GHz≥50dB, SMD
$ 60
Delivery Time ： 1-3 Day(WorkDay)
Terms: Ex Work from Chengdu,China warehouse, minimum order amount US$200. Keeping registered and logged in, check discounts by adding to cart
MOQ : 1
Attention: The online trading belongs to commercial activities, the final transaction price might be lower than tag price, subject to automatically system calculating; The price is competitive, product fully tested and qualified, we will offer certificate of conformity, no test report.
- Contact Us
- Cynthia
- cynthia@com-mw.com
sales@com-mw.com
+86 19938031308- 23 floor, No. 1 building, P Jiuxi Plaza, No.37, Jiancai Road, Chenghua Zone, Chengdu
Main specifications
| Parameters | Frequency | / | Min | Typical | Max | Units |
| Passband | / | / | 4.4 | ~ | 7.6 | GHz |
| Passband IL | / | / | 5 | dB | ||
| Ripple | / | / | 2.5 | dB | ||
| Rejection | DC-3 | GHz≥ | 50 | dB | ||
| Rejection | 8.5-12 | GHz≥ | 50 | dB | ||
| Passband VSWR | / | / | 1.7 |
Other parameters
| Connector | SMD |
| Impedance | 50Ω |
| Power Capacity | 5W Design assurance |
| Operation Temp. | -40~+85℃ Design assurance |
| Storage Temp. | -55~+85℃ Design assurance |
| Quality Grade | Industrial grade |

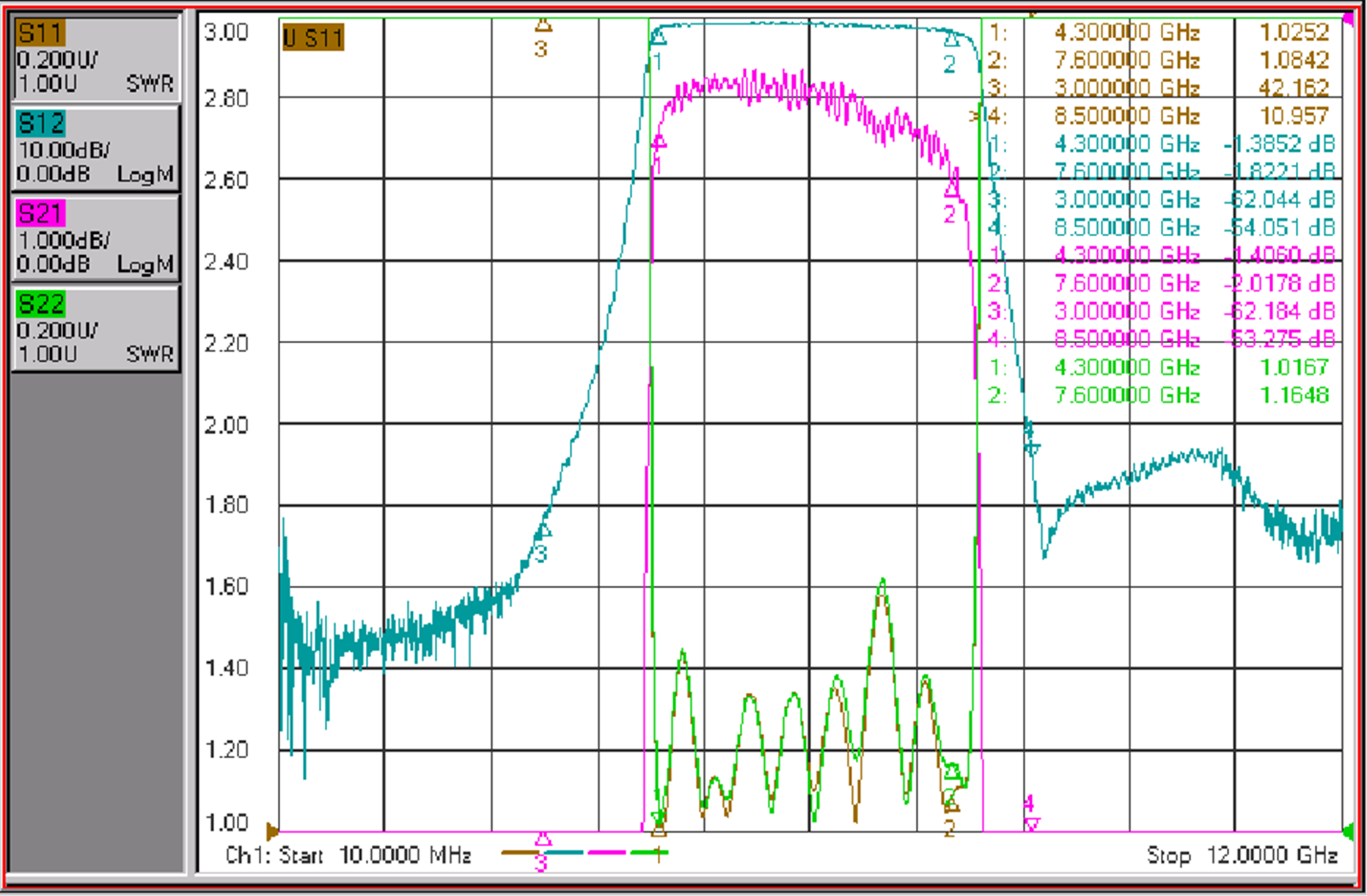

Typical test curve

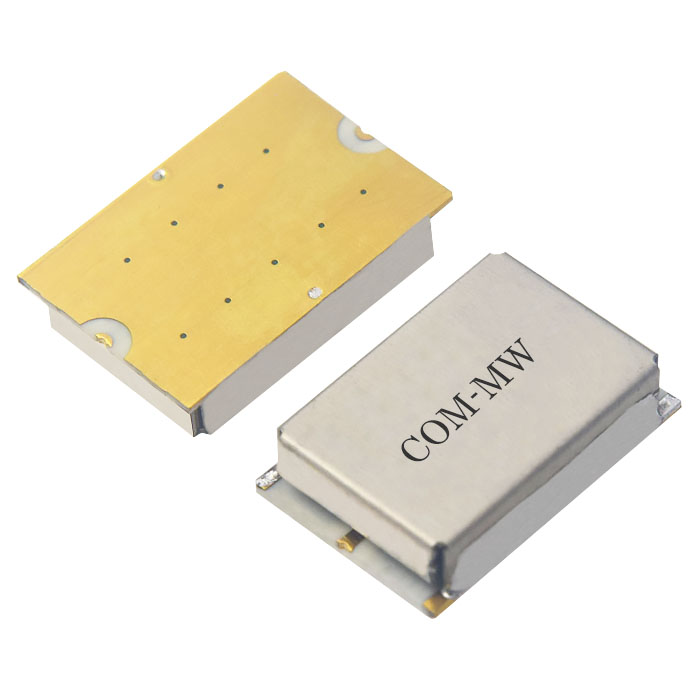

Reference picture

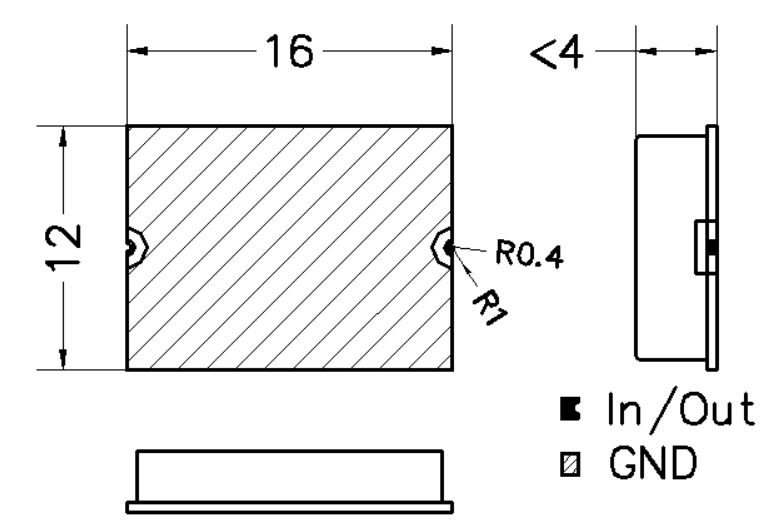

Configuration(mm)

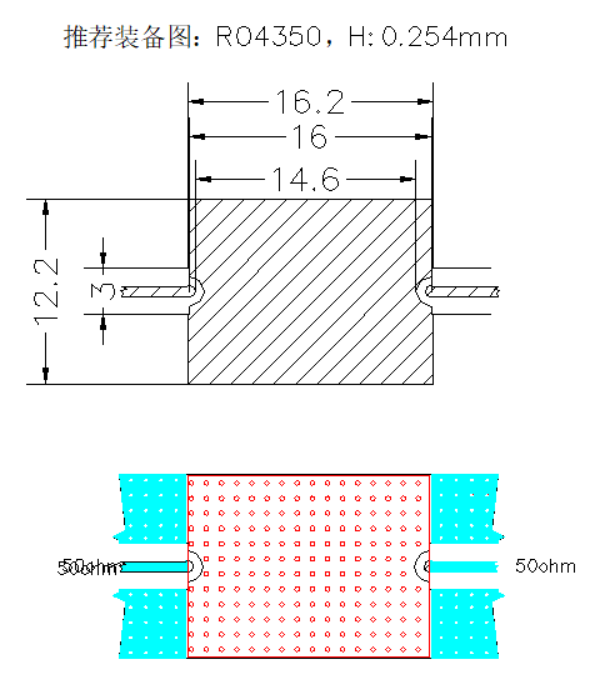

Suggested PCB Layout
Note
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | The product supports 260 ℃ reflow soldering. |
