Coupler ZDC8-30W32.9-50G-2389
In Stock 1
32.9~50GHz, Coupling30dB, Waveguide, 70W
$ 371.43
Delivery Time ： 1-3 Day(WorkDay)
Terms: Ex Work from Chengdu,China warehouse, minimum order amount US$200. Keeping registered and logged in, check discounts by adding to cart
MOQ : 1
Attention: The online trading belongs to commercial activities, the final transaction price might be lower than tag price, subject to automatically system calculating.
- Contact Us
- Cynthia
- cynthia@com-mw.com
sales@com-mw.com
+86 19938031308- 23 floor, No. 1 building, P Jiuxi Plaza, No.37, Jiancai Road, Chenghua Zone, Chengdu
Product features
Low loss, high power.
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 32.9 | ~ | 50 | GHz |
| IL | 0.5 | dB | ||
| Coupling | 28.5 | 30 | 31.5 | dB |
| Directivity | 18 | dB | ||
| Main line VSWR | 1.2 | |||
| Coupled line VSWR | 1.5 |
Other parameters
| Connector | Waveguide |
| Waveguide port | BJ400 |
| Surface | Gold-plating |
| Power Capacity | 70W Design assurance |
| Shell Material | Copper |
| Operation Temp. | -55~+85℃ Design assurance |
| Storage Temp. | -55~+85℃ Design assurance |
Port Definition
| Input port | IN | (FUGP400） |
| Output port | OUT | (FUPG400) |
| Coupling port | -30dB | (2.4mm-K） |
Typical test data
| Frequency(GHz) | S11 VSWR | S33 VSWR | S12 IL dB | S13 coupling | S23 Directivity |
| 32 | 1.01 | 1.23 | -0.14 | -31.45 | -28.9 |
| 33.29 | 1.03 | 1.23 | -0.13 | -30.75 | -31.02 |
| 34.57 | 1.02 | 1.14 | -0.13 | -30.2 | -25.26 |
| 35.86 | 1.02 | 1.22 | -0.13 | -29.83 | -32.13 |
| 37.14 | 1.01 | 1.21 | -0.14 | -29.57 | -28.68 |
| 38.43 | 1.02 | 1.12 | -0.17 | -29.39 | -27.34 |
| 39.71 | 1 | 1.27 | -0.16 | -29.32 | -31.61 |
| 41 | 1.01 | 1.23 | -0.13 | -29.3 | -44.18 |
| 42.29 | 1.03 | 1.28 | -0.11 | -29.34 | -32.82 |
| 43.57 | 1.02 | 1.26 | -0.13 | -29.53 | -26.63 |
| 44.86 | 1.05 | 1.16 | -0.13 | -29.74 | -24.61 |
| 46.14 | 1.05 | 1.32 | -0.12 | -30.08 | -27.55 |
| 47.43 | 1.03 | 1.23 | -0.12 | -30.44 | -24.94 |
| 48.71 | 1.04 | 1.16 | -0.11 | -30.9 | -35.81 |
| 50 | 1.07 | 1.13 | -0.09 | -31.43 | -29.45 |

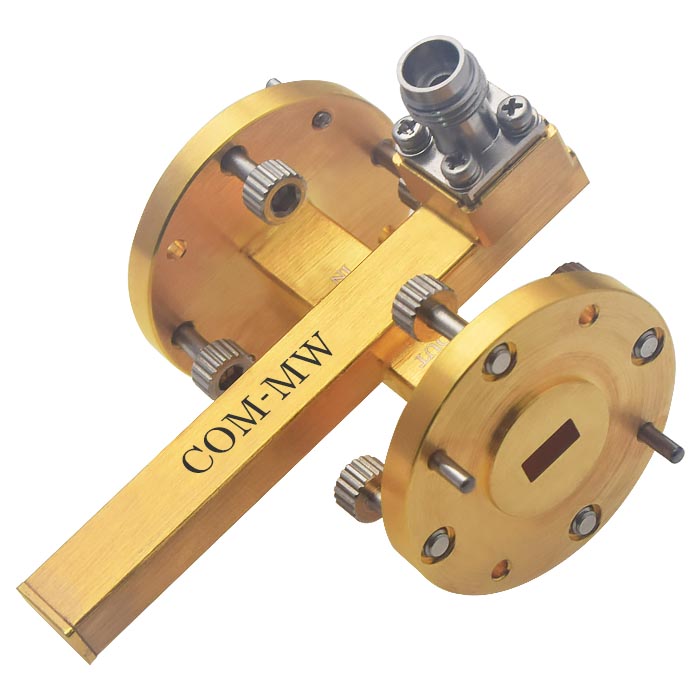

Reference picture

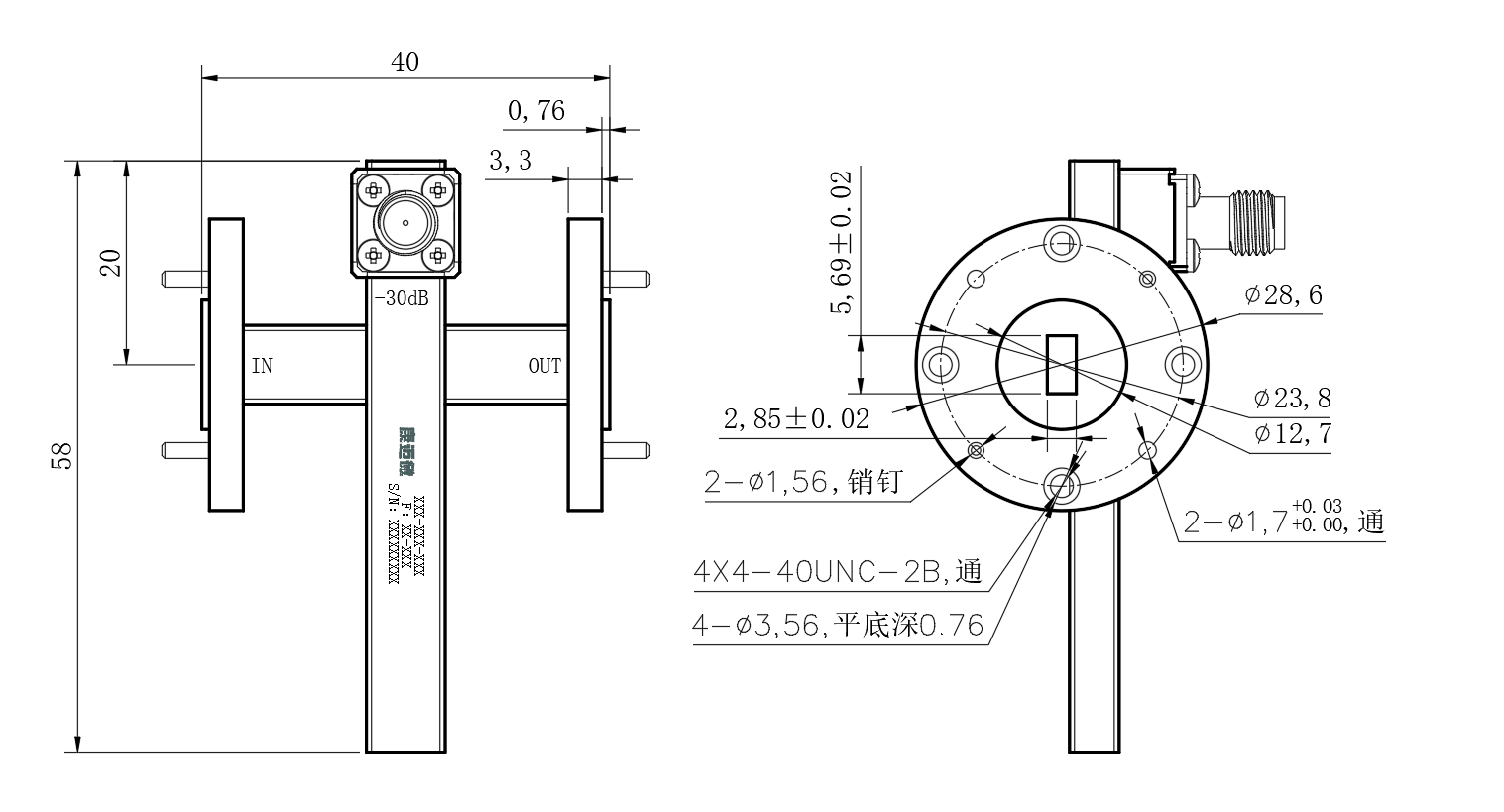

Configuration(mm)

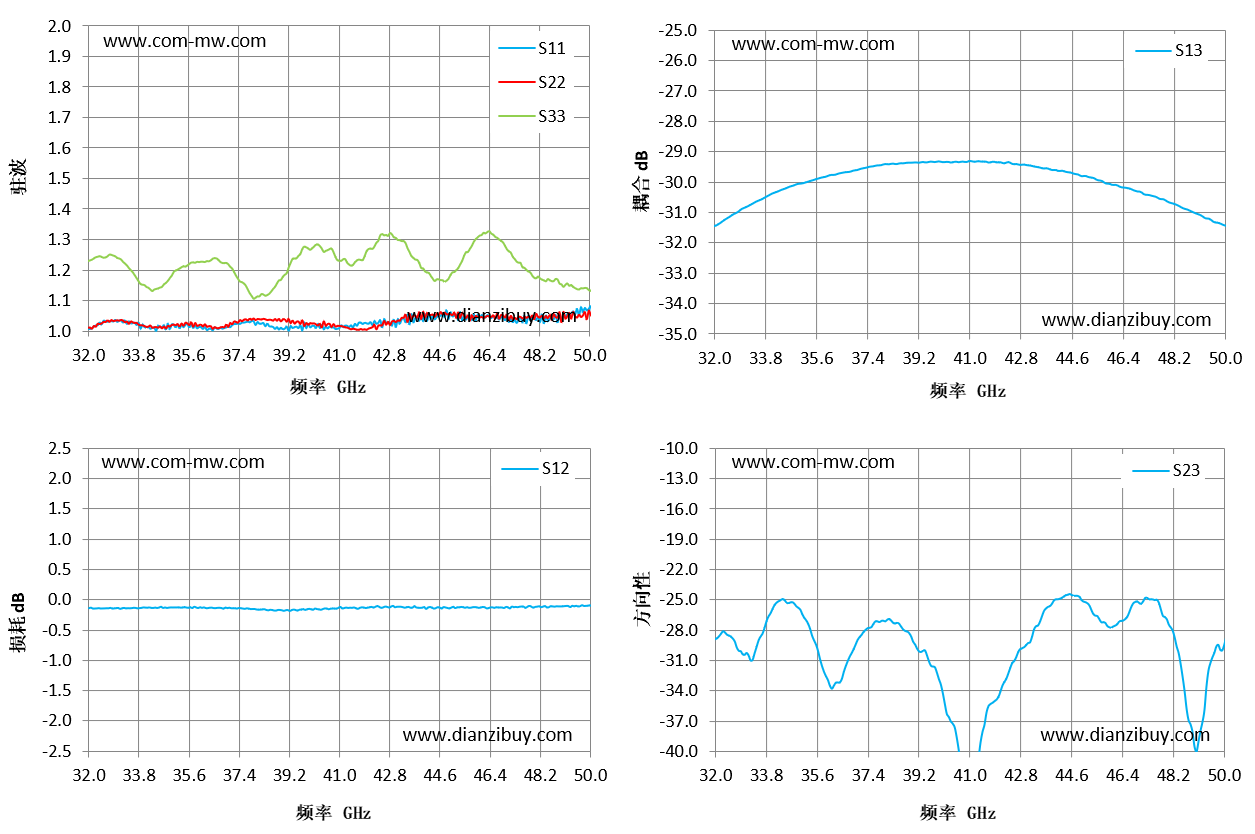

Typical test curve
Note
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
