Coupler ZDC9-30L20-3000-1952
In Stock 5
20~3000MHz, Coupling30dB, SMD, 20W
$ 122.86
Delivery Time ： 1-3 Day(WorkDay)
Terms: Ex Work from Chengdu warehouse, minimum order amount US$200. The product is produced by COM-MW Technology Co.,Ltd and sold by Dianzibuy Inc.
MOQ : 1
Attention: The online trading belongs to commercial activities, the final transaction price might be lower than tag price, subject to automatically system calculating; The price is competitive, product fully tested and qualified, we will offer certificate of conformity, no test report.
- Contact Us
- Cynthia
- cynthia@com-mw.com
sales@com-mw.com
+86 19938031308- 23 floor, No. 1 building, P Jiuxi Plaza, No.37, Jiancai Road, Chenghua Zone, Chengdu
Product features
Broadband, high-power.
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 20 | ~ | 3000 | MHz |
| IL | 0.8 | 1.3 | dB | |
| Coupling | 29 | 30 | 31 | dB |
| Directivity | 8 | dB | ||
| Main line VSWR | 1.5 | |||
| Coupled line VSWR | 1.5 |
Other parameters
| Connector | SMD |
| Impedance | 50Ω |
| Power Capacity | 20W@1GHz; 10W@3GHz |
| Operation Temp. | -40~+85℃ Design assurance |
Port Definition
| Input port | 1 | --- |
| Output port | 7 | --- |
| Coupling port | 3 | --- |
| Isolated Port | 5 (connected to a 50 ohm load) | Size: 0402 |
| GND | 2，4，6，8 | --- |
Typical test data
| Frequency(MHz) | S11 VSWR | S22 VSWR | S14 coupling | S13 ISO dB | S12 IL dB |
| 20 | 1.06 | 1.04 | -30.73 | -56.96 | -0.49 |
| 233 | 1.07 | 1.04 | -30.56 | -54.38 | -0.51 |
| 446 | 1.06 | 1.04 | -30.33 | -51.8 | -0.52 |
| 659 | 1.05 | 1.03 | -30.04 | -49.28 | -0.54 |
| 871 | 1.04 | 1.04 | -29.69 | -47.24 | -0.57 |
| 1084 | 1.04 | 1.06 | -29.35 | -45.58 | -0.6 |
| 1297 | 1.06 | 1.09 | -29.2 | -44.01 | -0.66 |
| 1510 | 1.09 | 1.13 | -29.1 | -42.85 | -0.71 |
| 1723 | 1.13 | 1.17 | -29.23 | -41.56 | -0.78 |
| 1936 | 1.18 | 1.22 | -29.64 | -40.43 | -0.84 |
| 2149 | 1.23 | 1.28 | -30.17 | -39.8 | -0.87 |
| 2361 | 1.29 | 1.33 | -30.67 | -39.22 | -0.9 |
| 2574 | 1.34 | 1.38 | -30.97 | -38.93 | -0.94 |
| 2787 | 1.38 | 1.42 | -31.01 | -38.64 | -0.96 |
| 3000 | 1.41 | 1.44 | -30.73 | -38.52 | -1.04 |

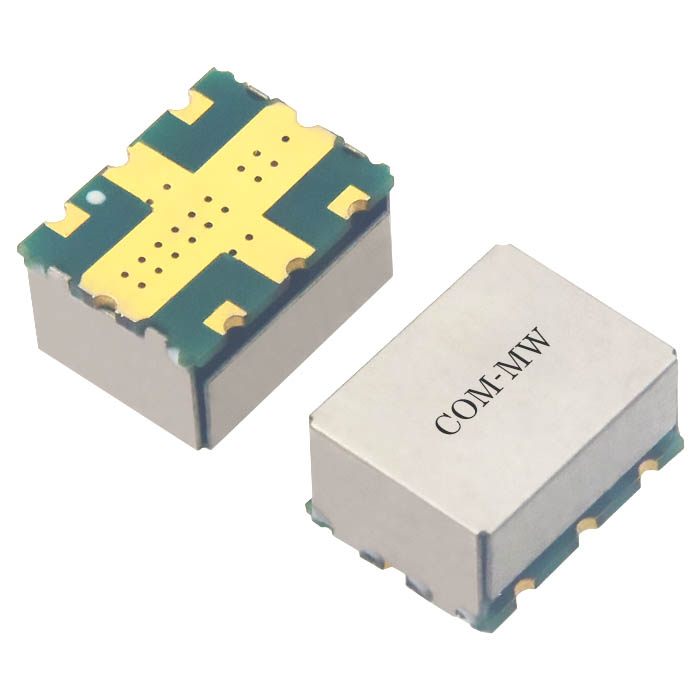

Reference picture

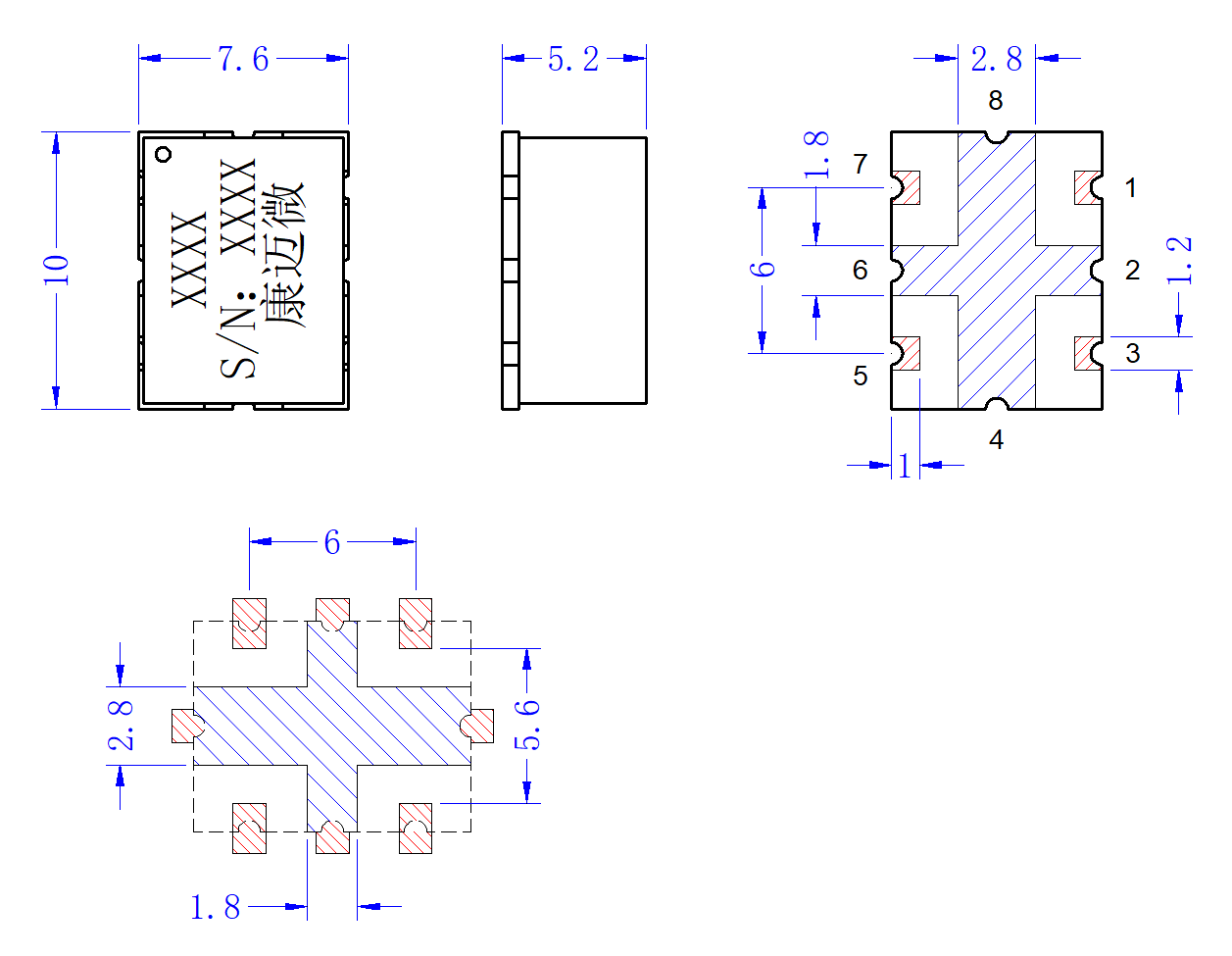

Configuration(mm)

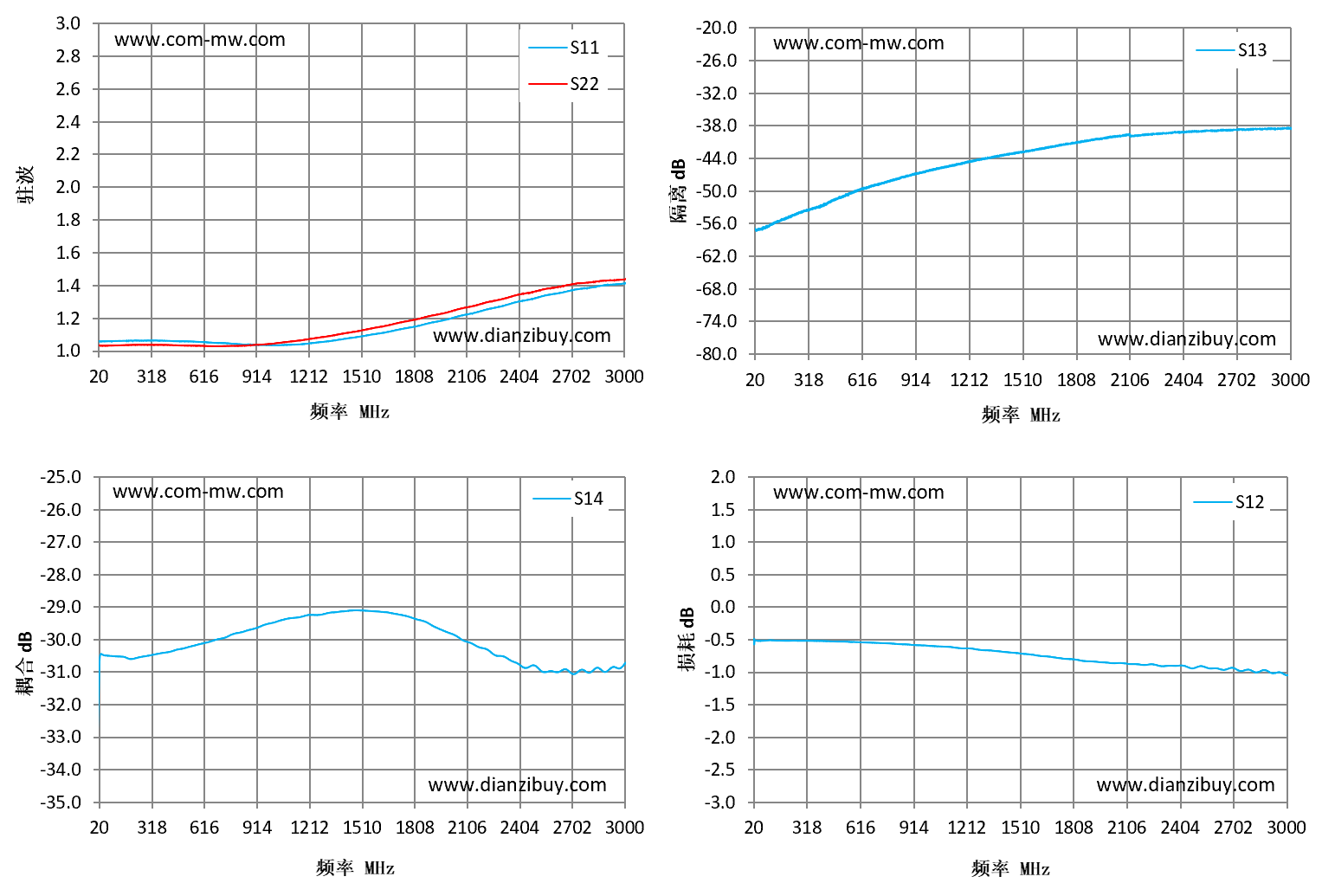

Typical test curve
Note
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | The product supports 190 ℃ reflow soldering |
| 3 | Cannot be used as a dual directional coupler. |
