Coaxial Cable DCA9-SM3000SM5.2-1332
In Stock 2
DC~26.5GHz, Stable amplitude and phase, 3000mm, SMA-J, SMA-J
$ 116.43
Delivery Time ： 1-3 Day(WorkDay)
Terms: Ex Work from Chengdu,China warehouse, minimum order amount US$200. Keeping registered and logged in, check discounts by adding to cart
MOQ : 1
Attention: The online trading belongs to commercial activities, the final transaction price might be lower than tag price, subject to automatically system calculating; The price is competitive, product fully tested and qualified, we will offer certificate of conformity, no test report.
- Contact Us
- Cynthia
- cynthia@com-mw.com
sales@com-mw.com
+86 19938031308- 23 floor, No. 1 building, P Jiuxi Plaza, No.37, Jiancai Road, Chenghua Zone, Chengdu
Product features
High cost performance stable amplitude and phase cable components.
Main specifications
| Items | Frequency (G) | Min | Type | Max | Units |
| Frequency | DC | ~ | 26.5 | GHz | |
| IL | DC-6 | 1.86 | 2.31 | dB | |
| IL | 6-12 | 3.02 | 3.73 | dB | |
| IL | 12-18 | 3.81 | 4.20 | dB | |
| IL | 18-26.5 | 4.25 | 4.49 | dB | |
| VSWR | DC-6 | 1.04 | 1.35 | ||
| VSWR | 6-12 | 1.07 | 1.35 | ||
| VSWR | 12-18 | 1.11 | 1.35 | ||
| VSWR | 18-26.5 | 1.20 | 1.38 |
Other parameters
| Cable category | Stable amplitude and phase cable |
| Length | 3000mm |
| Connector 1 | SMA-J Stainless steel |
| Connector 2 | SMA-J Stainless steel |
| Impedance | 50Ω |
| Operation Temp. | -40~+65℃ Design assurance |
| Storage Temp. | -40~+65℃ Design assurance |
Configuration

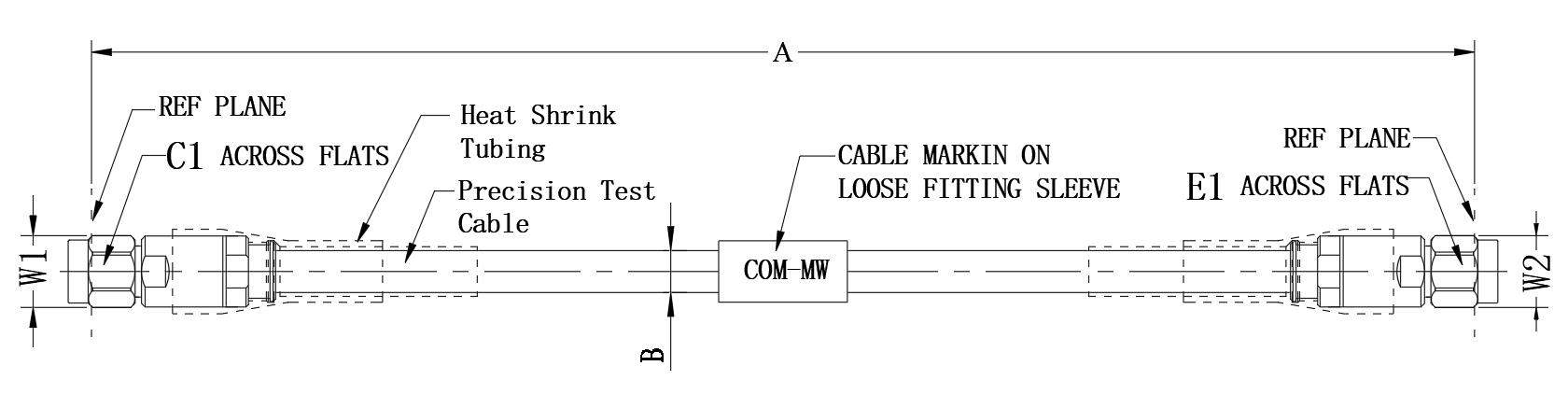

Overall dimensions (mm)
| A | 3000 | mm | C1 | 8.0 | mm |
| B | 5.2 | mm | E1 | 8.0 | mm |
| T | 70 | mm | W1 | 8.9 | mm |
| W2 | 8.9 | mm |

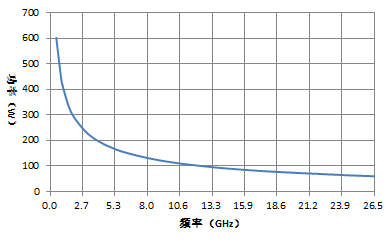

Type power curve

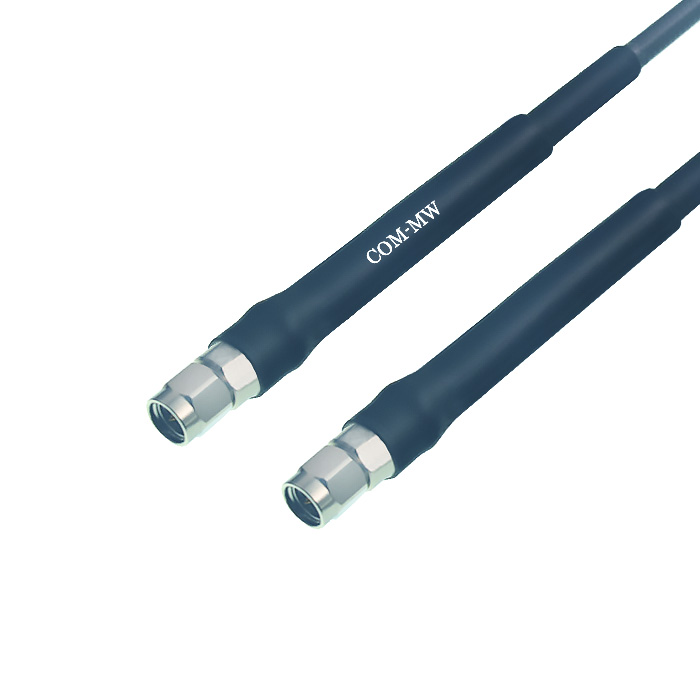

Reference picture
Typical test data
| F (MHz) | IL (dB) | Input VSWR | Output VSWR |
| 100 | 0.02 | 1.02 | 1.01 |
| 1000 | 1.01 | 1.03 | 1.02 |
| 2500 | 1.38 | 1.04 | 1.03 |
| 4000 | 1.86 | 1.04 | 1.05 |
| 5000 | 2.04 | 1.05 | 1.06 |
| 6000 | 2.31 | 1.05 | 1.06 |
| 7000 | 2.62 | 1.05 | 1.07 |
| 8000 | 2.91 | 1.07 | 1.08 |
| 9000 | 3.02 | 1.09 | 1.08 |
| 10000 | 3.26 | 1.09 | 1.10 |
| 12000 | 3.73 | 1.12 | 1.11 |
| 15000 | 3.96 | 1.11 | 1.13 |
| 18000 | 4.20 | 1.13 | 1.15 |
| 20000 | 4.29 | 1.18 | 1.16 |
| 26500 | 4.49 | 1.20 | 1.19 |

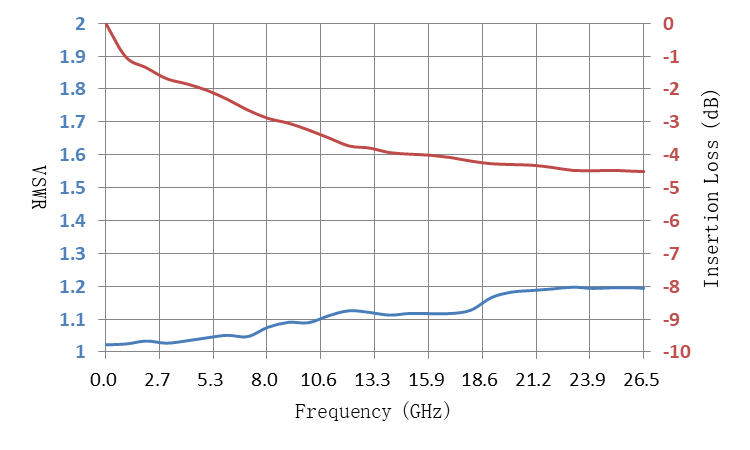

Typical test curve

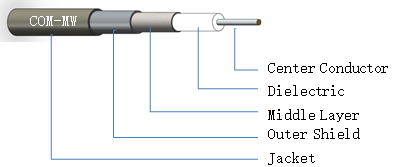

Cable structure diagram
Note
| 1 | Suggested installation radius greater than 36mm |
