Hybrid ZHC9-600-6000-1539
In Stock 10
600~6000MHz, 50W, 90°Hybrid, SMA
$ 111.43
Delivery Time ： 1-3 Day(WorkDay)
Terms: Ex Work from Chengdu,China warehouse, minimum order amount US$200. Keeping registered and logged in, check discounts by adding to cart
MOQ : 1
Attention: The online trading belongs to commercial activities, the final transaction price might be lower than tag price, subject to automatically system calculating; The price is competitive, product fully tested and qualified, we will offer certificate of conformity, no test report.
- Contact Us
- Cynthia
- cynthia@com-mw.com
sales@com-mw.com
+86 19938031308- 23 floor, No. 1 building, P Jiuxi Plaza, No.37, Jiancai Road, Chenghua Zone, Chengdu
Product features
Broadband, high-power.
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 600 | ~ | 6000 | MHz |
| IL | 1.1 | dB | ||
| Isolation | 18 | dB | ||
| VSWR | 1.3 | |||
| Amplitude balance | ±0.7 | dB | ||
| Phase balance | ±6 | ° |
Other parameters
| Power Capacity | 50W Design assurance |
| Phase | 90° Hybrid |
| Impedance | 50Ω |
| Connector | SMA-K |
| Connector material | Stainless steel |
| Product shell material | Aluminium |
| Operation Temp. | -40~+85℃ Design assurance |
Typical test data
| Frequency(MHz) | S11 VSWR | S12 IL dB | S13 IL dB | S13 Phase (°) | S14 ISO dB |
| 500 | 1.01 | -2.84 | -3.38 | 90.19 | -36.42 |
| 929 | 1.02 | -3.48 | -2.9 | 90.62 | -39.76 |
| 1357 | 1.04 | -2.89 | -3.68 | 90.54 | -30.6 |
| 1786 | 1.04 | -3.34 | -3.3 | 90.7 | -34.35 |
| 2214 | 1.04 | -3.51 | -3.23 | 91.19 | -34.28 |
| 2643 | 1.04 | -3.02 | -3.85 | 91.35 | -30.65 |
| 3071 | 1.04 | -3.27 | -3.62 | 91.23 | -37.64 |
| 3500 | 1.01 | -3.79 | -3.17 | 91.16 | -39.49 |
| 3929 | 1.01 | -3.41 | -3.61 | 91.25 | -30.05 |
| 4357 | 1.06 | -3.26 | -3.78 | 91.31 | -27.78 |
| 4786 | 1.09 | -3.9 | -3.2 | 91.55 | -27.99 |
| 5214 | 1.11 | -3.81 | -3.44 | 91.27 | -27.39 |
| 5643 | 1.08 | -3.44 | -4.05 | 90.96 | -25.87 |
| 6071 | 1.04 | -3.78 | -3.7 | 91.42 | -28.18 |
| 6500 | 1.03 | -2.76 | -5.19 | 92.12 | -33.92 |

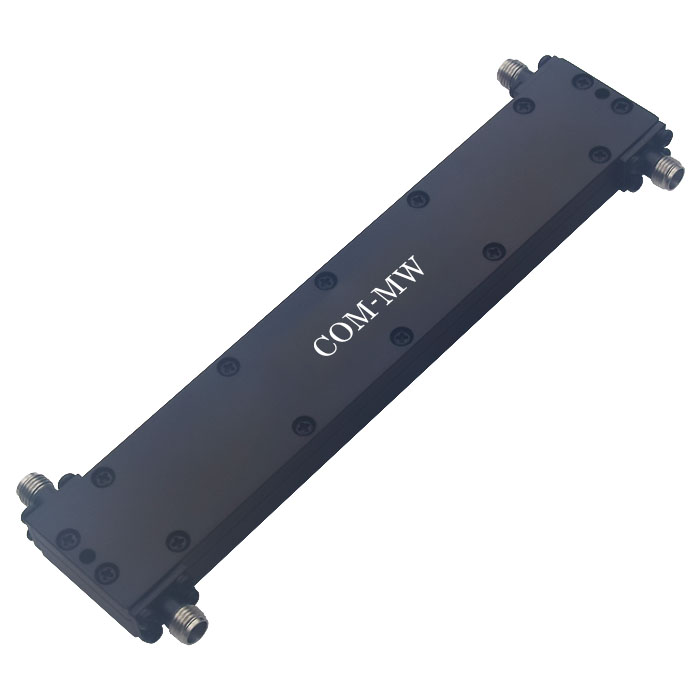

Reference picture

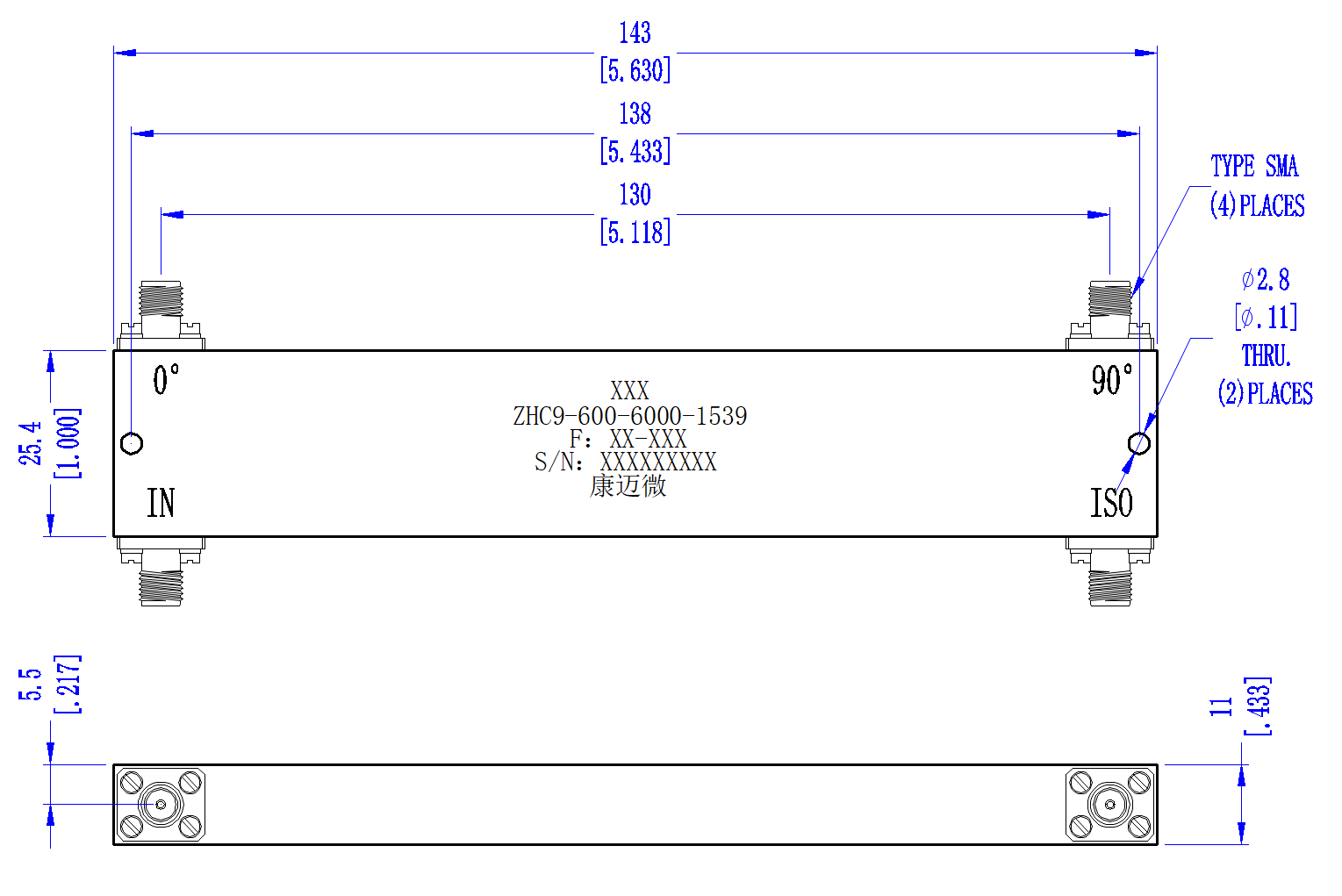

Configuration(mm)

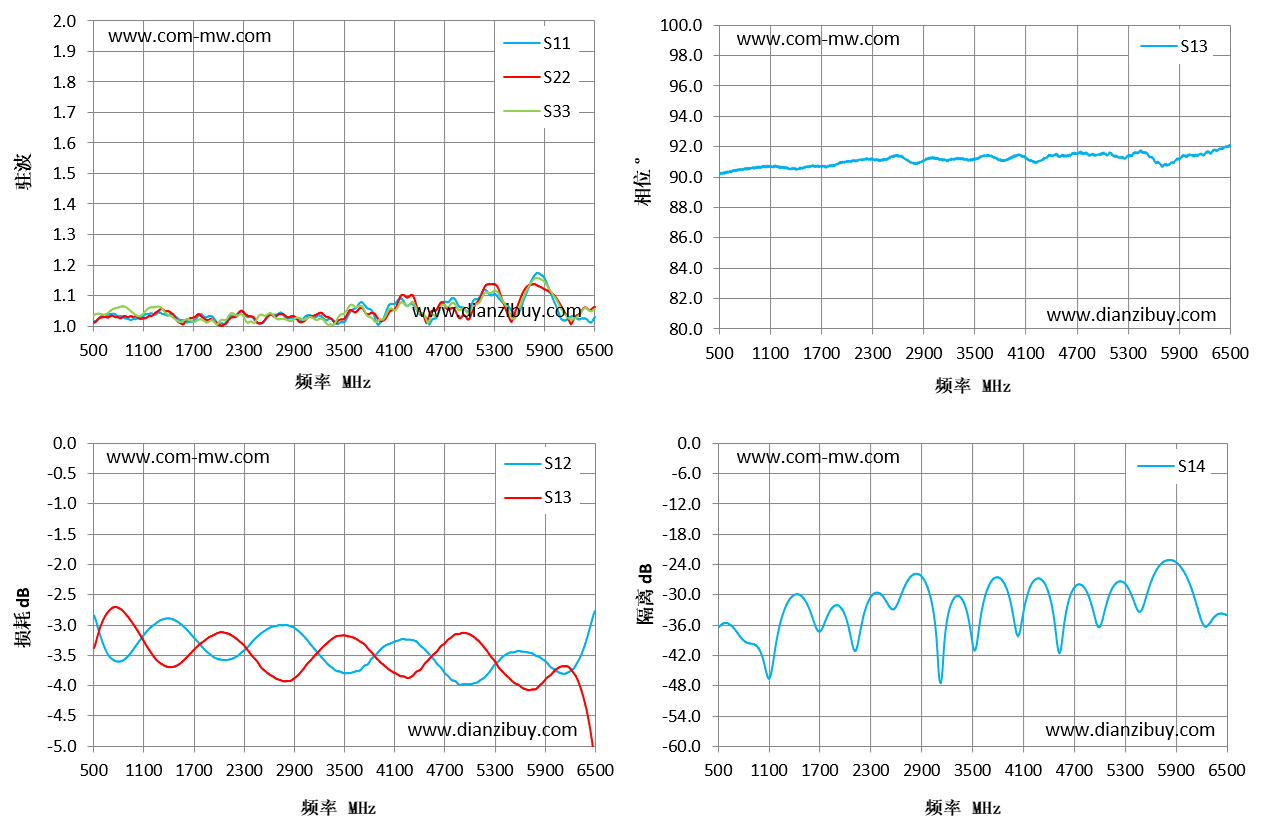

Typical test curve
Note
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
