Attenuator DA9-155-0-18000-1215
FrequencyDC~18GHz, Attenuation15dB, Power Capacity5W, Impedance50Ω, N-JK
- Contact Us
- Cynthia
- cynthia@com-mw.com
sales@com-mw.com
+86 19938031308- 23 floor, No. 1 building, P Jiuxi Plaza, No.37, Jiancai Road, Chenghua Zone, Chengdu
Product features
Broadband, small volume.
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | DC | ~ | 18 | GHz |
| Attenuation | 14.2 | 15 | 15.8 | dB |
| VSWR | 1.35 |
Other parameters
| Power Capacity | 5W Design assurance |
| Impedance | 50Ω |
| Connector | N -JK |
| Connector material | Stainless steel |
| Operation Temp. | -40~+85℃ Design assurance |
Note
1. When installing attenuators, it is necessary to consider sufficient heat dissipation space and avoid installing them next to equipment with high heat output, otherwise the power capacity will decrease;
2. Small power attenuators do not have input and output directions, nor do they indicate directions. When high-power attenuators have input and output port markings, they must be connected to the equipment in the specified direction, otherwise the attenuator may burn out.

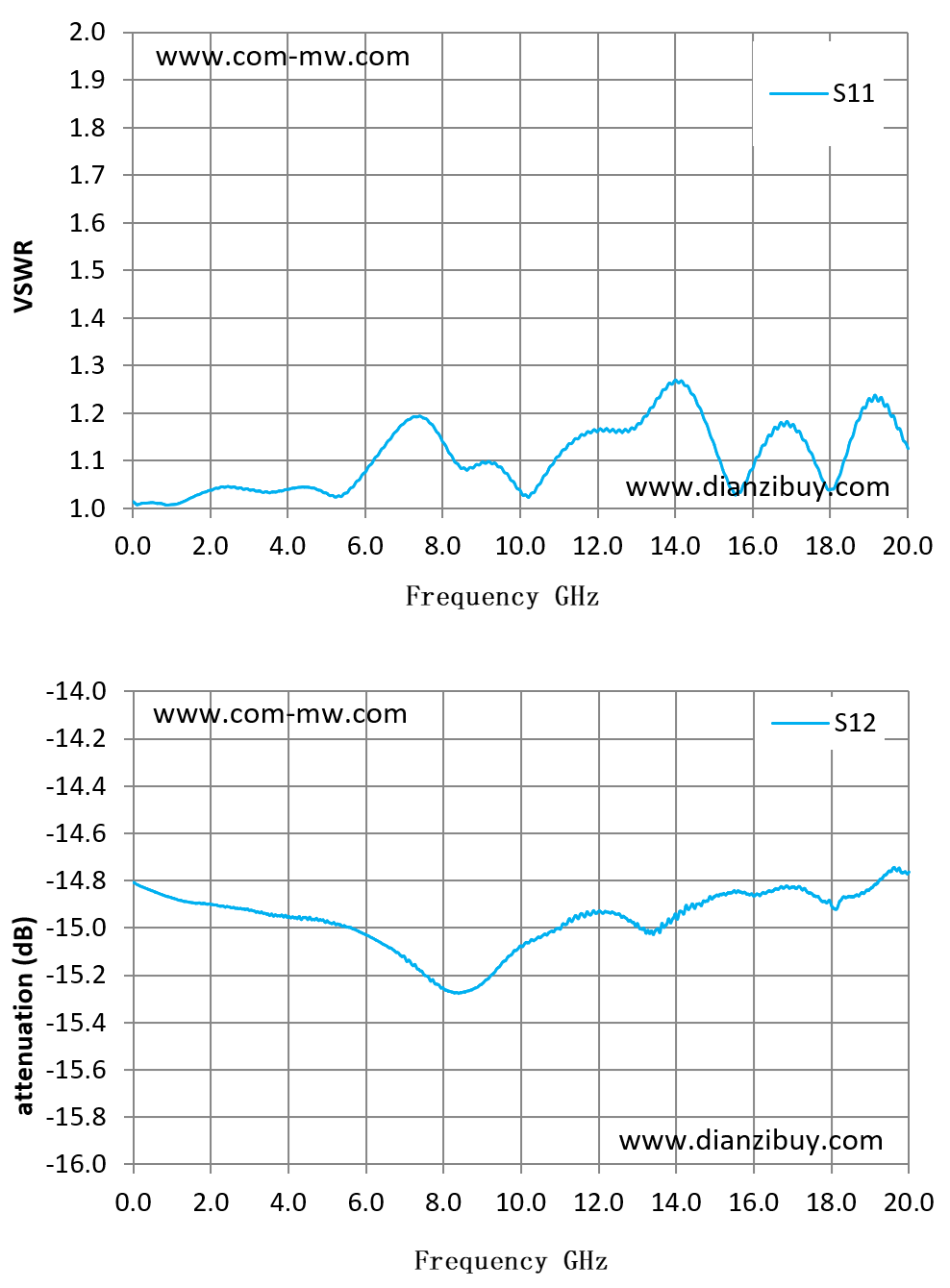

Typical test curve

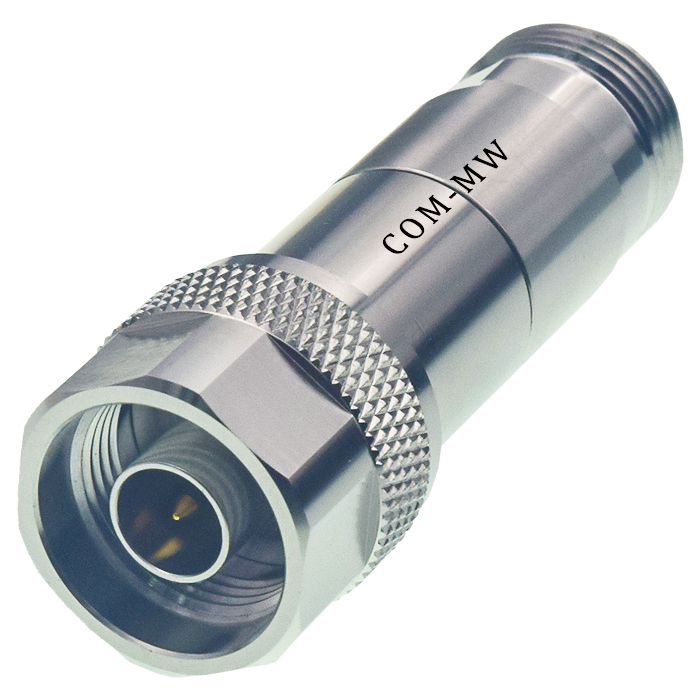

Reference picture

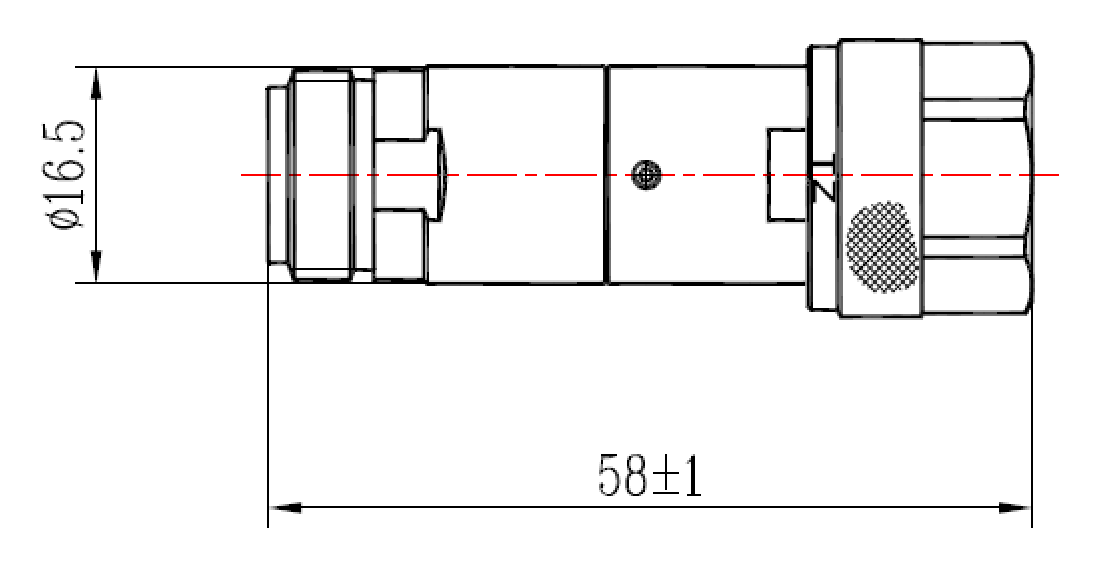

Configuration(mm)
Typical test data
| Frequency GHz | S11 VSWR | S12 attenuation dB |
| 0.01 | 1.01 | -14.81 |
| 1.43 | 1.02 | -14.89 |
| 2.86 | 1.04 | -14.92 |
| 4.29 | 1.04 | -14.95 |
| 5.71 | 1.05 | -15.01 |
| 7.14 | 1.19 | -15.14 |
| 8.57 | 1.08 | -15.27 |
| 10 | 1.04 | -15.08 |
| 11.43 | 1.15 | -14.95 |
| 12.86 | 1.17 | -14.98 |
| 14.29 | 1.26 | -14.92 |
| 15.71 | 1.04 | -14.85 |
| 17.14 | 1.16 | -14.83 |
| 18.57 | 1.15 | -14.87 |
| 20 | 1.13 | -14.76 |
