Coupler ZDC9-20C1-40G-1661
In Stock 6
Frequency1000~40000MHz, Coupling20dB, Connector2.92
$ 408.58
Delivery Time ： 1-3 Day(WorkDay)
Terms: Ex Work from Chengdu,China warehouse, minimum order amount US$200. Keeping registered and logged in, check discounts by adding to cart
MOQ : 1
Attention: The online trading belongs to commercial activities, the final transaction price might be lower than tag price, subject to automatically system calculating.
- Contact Us
- Cynthia
- cynthia@com-mw.com
sales@com-mw.com
+86 19938031308- 23 floor, No. 1 building, P Jiuxi Plaza, No.37, Jiancai Road, Chenghua Zone, Chengdu
Tech specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 1000 | ~ | 40000 | MHz |
| IL | 2.2 | dB | ||
| Coupling | 19 | 20 | 21 | dB |
| Coupling Sensitivity | ±2 | dB | ||
| Directivity | 10 | dB | ||
| VSWR | 1.6 |
Other parameters
| Connector | 2.92-K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Black |
| Power Capacity | 20W |
| Operation Temp. | -30~+70℃ Design assurance |
Typical test data
| Frequency(GHz) | S11 VSWR | S22 VSWR | S12 IL dB | S13 coupling | S23 ISO dB |
| 0.9 | 1.05 | 1.04 | -0.32 | -22.39 | -55.37 |
| 4.05 | 1.08 | 1.08 | -0.49 | -20.53 | -43.07 |
| 7.2 | 1.07 | 1.06 | -0.85 | -20.73 | -40.48 |
| 10.35 | 1.09 | 1.07 | -0.9 | -20.66 | -37.84 |
| 13.5 | 1.08 | 1.06 | -0.94 | -20.76 | -36.08 |
| 16.65 | 1.08 | 1.09 | -1 | -20.84 | -37.18 |
| 19.8 | 1.11 | 1.11 | -1.05 | -21.07 | -31.84 |
| 22.95 | 1.12 | 1.08 | -1.17 | -21.03 | -36.61 |
| 26.1 | 1.18 | 1.17 | -1.33 | -21.41 | -32.62 |
| 29.25 | 1.13 | 1.17 | -1.41 | -21.44 | -34.64 |
| 32.4 | 1.16 | 1.19 | -1.54 | -21.36 | -34.4 |
| 35.55 | 1.19 | 1.22 | -1.64 | -21.07 | -35.64 |
| 38.7 | 1.13 | 1.12 | -1.79 | -20.96 | -30.02 |
| 41.85 | 1.13 | 1.11 | -1.89 | -21.7 | -28.65 |
| 45 | 1.17 | 1.19 | -2.07 | -21.2 | -29.83 |

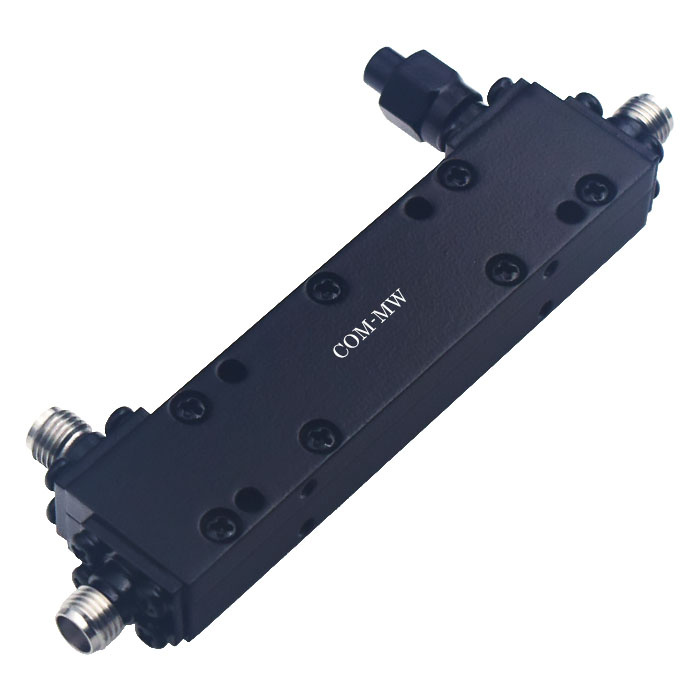

Reference picture
Configuration(mm)

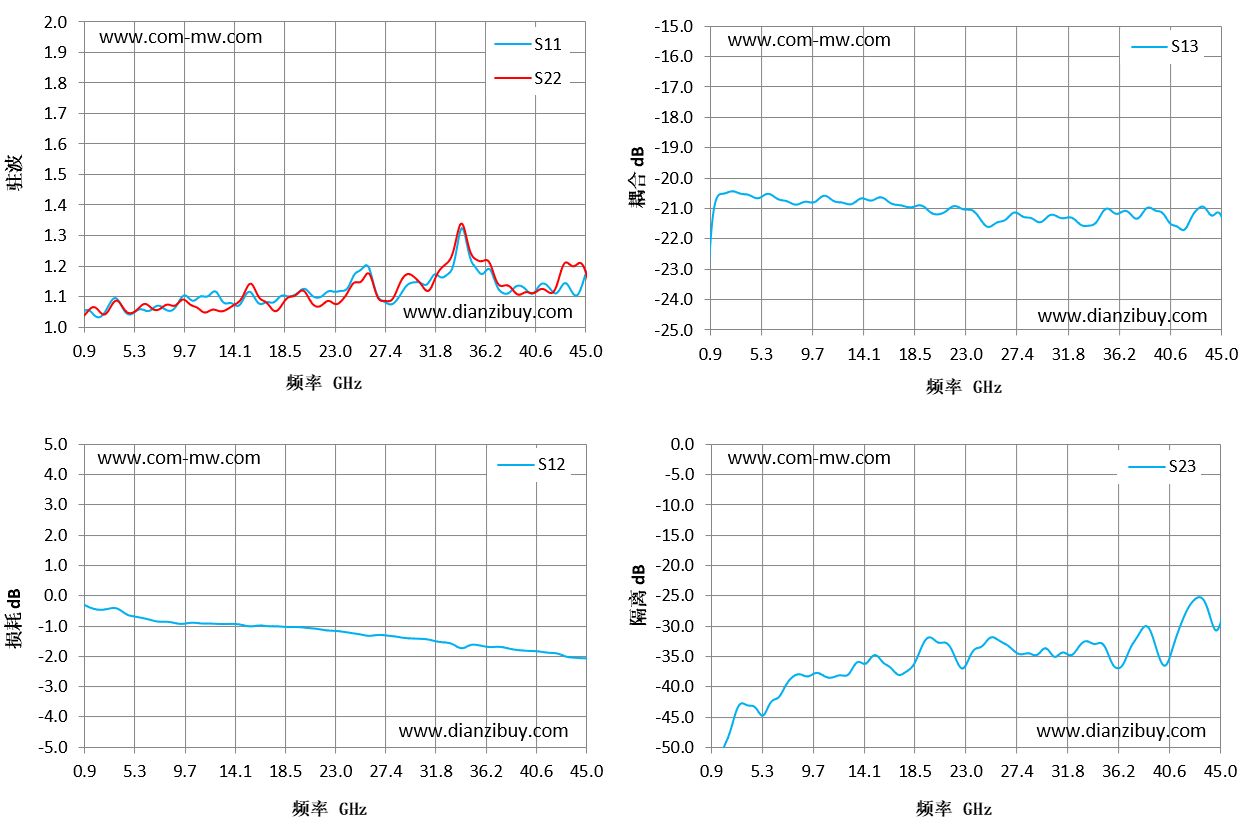

Typical test curve
Other parameters
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
