Power divider S0167
In Stock 1457
5~2700MHz, 1W, 2way, 0°, SMD, /
$ 2.79
Delivery Time ： 1-3 Day(WorkDay)
Terms: Ex Work from Chengdu,China warehouse, minimum order amount US$200. Keeping registered and logged in, check discounts by adding to cart
MOQ : 1
Attention: The online trading belongs to commercial activities, the final transaction price might be lower than tag price, subject to automatically system calculating; The price is competitive, product fully tested and qualified, we will offer certificate of conformity, no test report.
- Contact Us
- Cynthia
- cynthia@com-mw.com
sales@com-mw.com
+86 19938031308- 23 floor, No. 1 building, P Jiuxi Plaza, No.37, Jiancai Road, Chenghua Zone, Chengdu
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 5 | ~ | 2700 | MHz |
| IL | 1.4 | 2 | dB | |
| Isolation | 10 | 12 | dB | |
| Input VSWR | 2 | 2.2 | ||
| Output VSWR | 2.2 | 2.5 | ||
| Amplitude balance | 0.9 | 1.3 | dB | |
| Phase balance | 5 | 10 | ° |
Other parameters
| Power Capacity | 1W |
| X-Way | 2-way |
| Phase | 0° |
| Impedance | 50Ω |
| Connector | SMD |
| Operation Temp. | -40~+85℃ Design assurance |
| Storage Temp. | -55~+100℃ Design assurance |
| Quality Grade | Industrial grade |
| Other | / |
Port Definition
| Common port | 2，5，6 |
| Dispatch Port | 3，4 |
| GND | 1 |

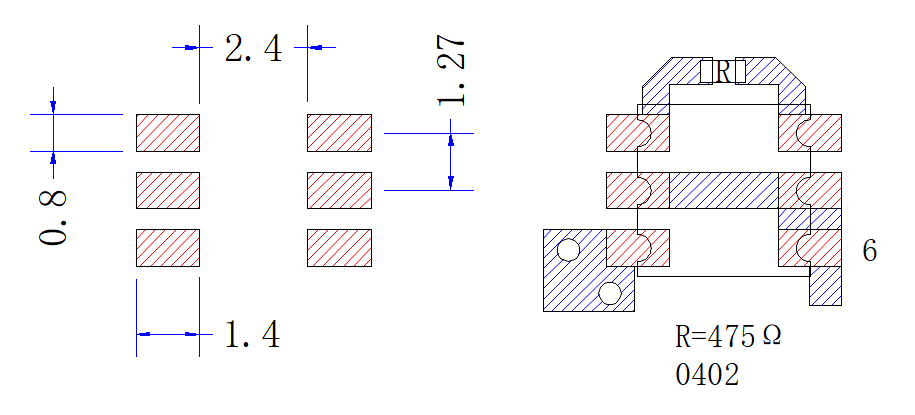

Suggested PCB Layout

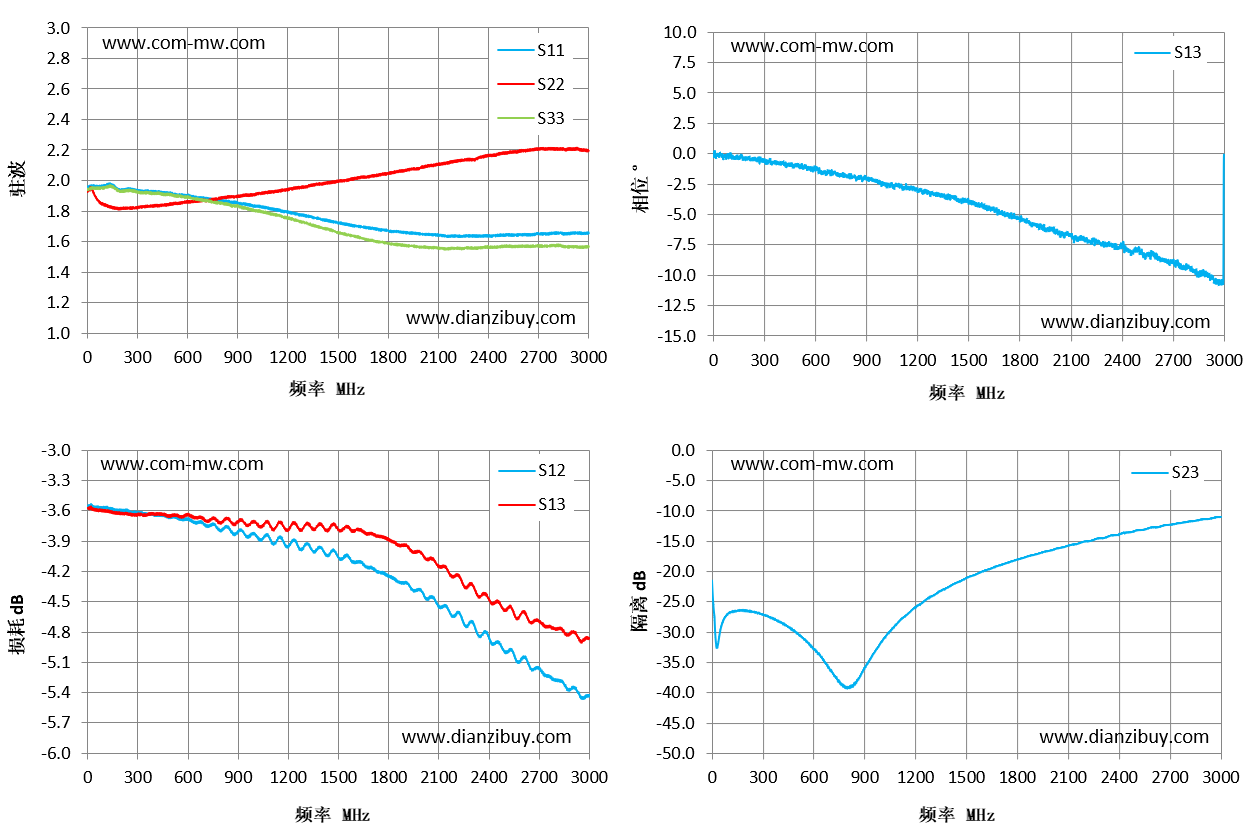

Typical test curve

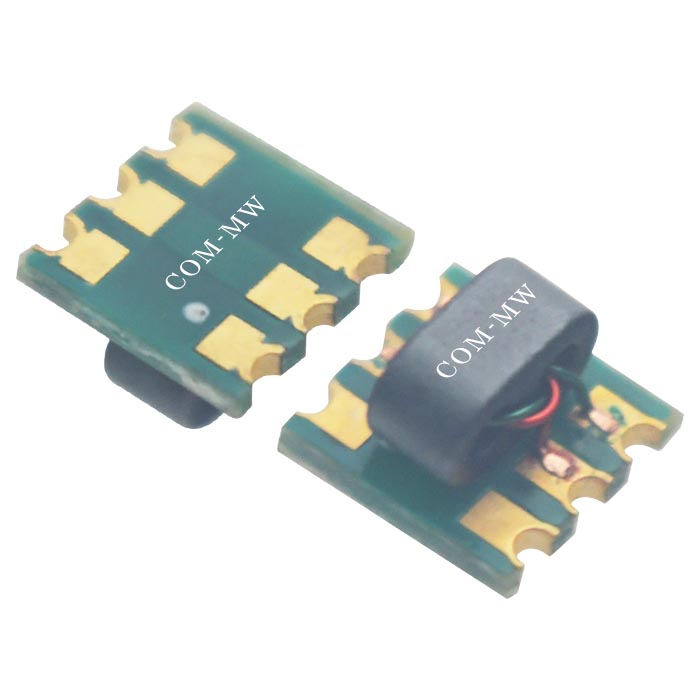

Reference picture

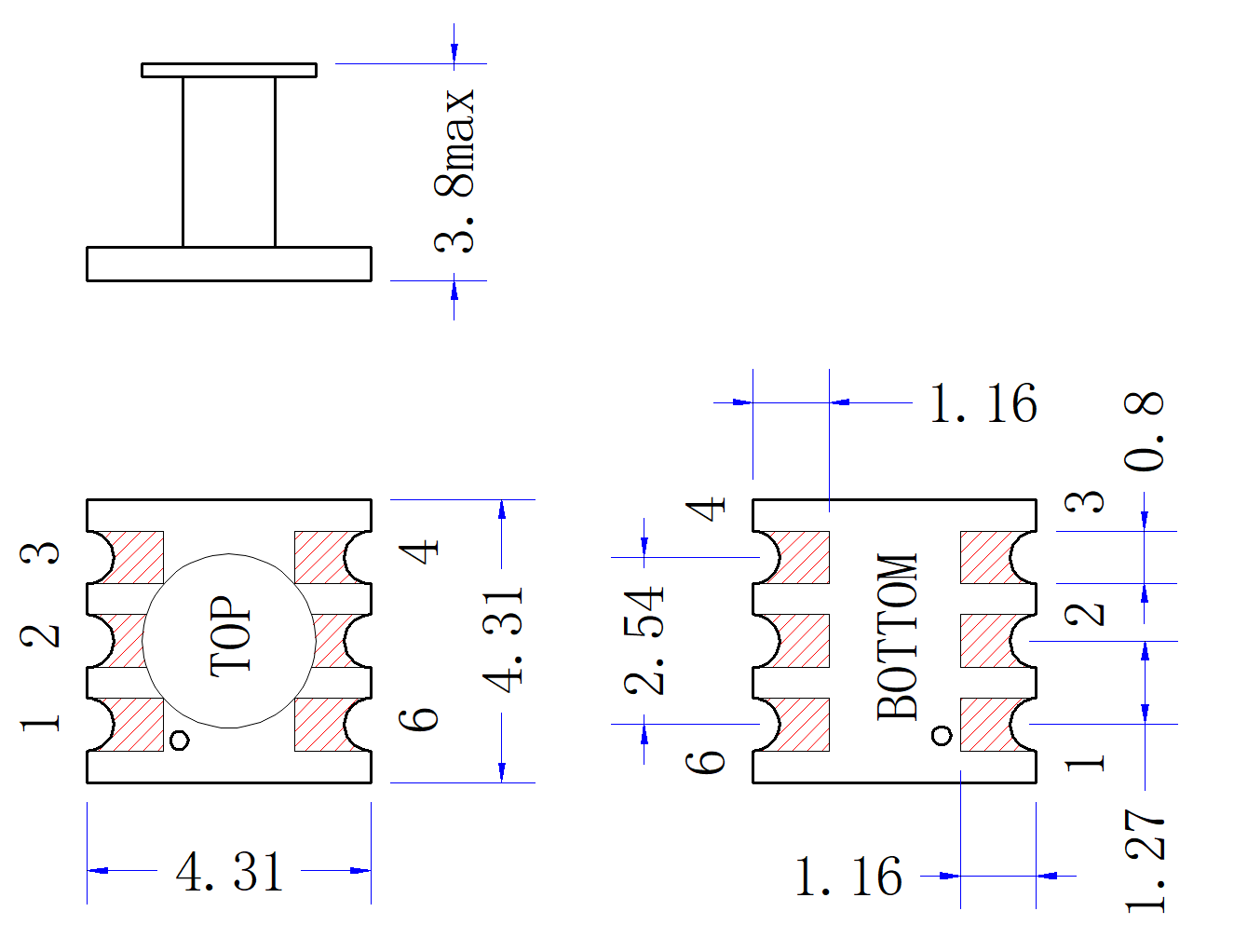

Configuration(mm)

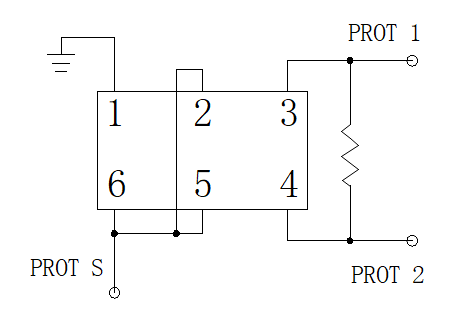

Functional diagram
Typical test data
| Frequency(MHz) | S11 VSWR | S33 VSWR | S12 IL dB | S13 IL dB | S13 Phase (°) | S23 ISO dB |
| 0.01 | 1.96 | 1.94 | -3.55 | -3.57 | -0.07 | -21.46 |
| 214 | 1.94 | 1.93 | -3.6 | -3.63 | -0.23 | -26.5 |
| 429 | 1.92 | 1.92 | -3.64 | -3.63 | -0.91 | -28.76 |
| 643 | 1.89 | 1.88 | -3.71 | -3.67 | -1.62 | -34.07 |
| 857 | 1.86 | 1.84 | -3.8 | -3.71 | -1.83 | -38.05 |
| 1071 | 1.82 | 1.79 | -3.84 | -3.71 | -2.55 | -29.21 |
| 1286 | 1.77 | 1.73 | -3.97 | -3.78 | -3.13 | -24.2 |
| 1500 | 1.72 | 1.66 | -4.06 | -3.79 | -3.84 | -21.06 |
| 1714 | 1.68 | 1.6 | -4.18 | -3.84 | -5.03 | -18.79 |
| 1929 | 1.66 | 1.57 | -4.35 | -3.98 | -6.07 | -16.98 |
| 2143 | 1.64 | 1.55 | -4.54 | -4.16 | -7.1 | -15.46 |
| 2357 | 1.64 | 1.56 | -4.83 | -4.44 | -7.68 | -13.98 |
| 2571 | 1.64 | 1.57 | -5.1 | -4.67 | -8.45 | -12.84 |
| 2786 | 1.65 | 1.57 | -5.27 | -4.77 | -9.21 | -11.84 |
| 3000 | 1.66 | 1.57 | -5.43 | -4.86 | -0.03 | -10.94 |
Note
| 2 | The product supports 260 ℃ reflow soldering. |
