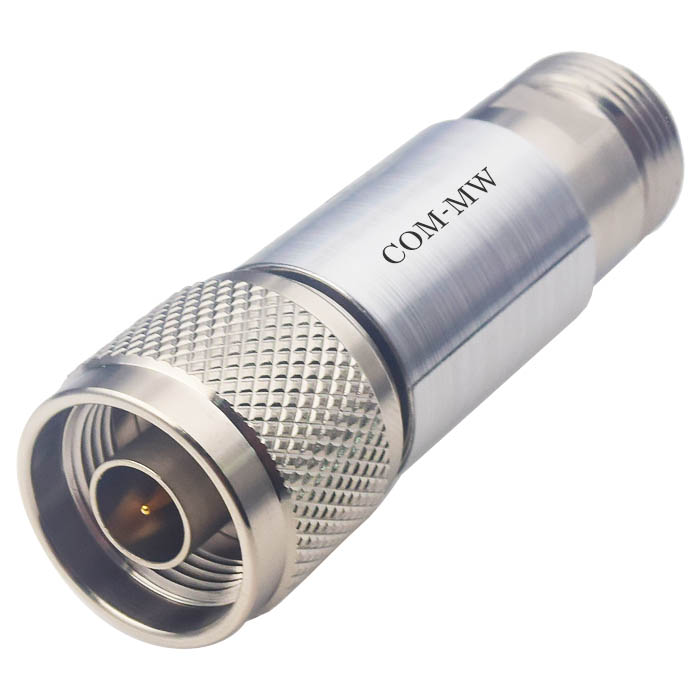

DC Block DDB9-0.1-18G-2091
In Stock 15
Frequency100~18000MHz, IL1dB, Impedance50Ω, N-JK
$ 30.86
Delivery Time ： 1-3 Day(WorkDay)
Terms: Ex Work from Chengdu warehouse, minimum order amount US$200. The product is produced by COM-MW Technology Co.,Ltd and sold by Dianzibuy Inc.
MOQ : 1
Attention: The online trading belongs to commercial activities, the final transaction price might be lower than tag price, subject to automatically system calculating; The price is competitive, product fully tested and qualified, we will offer certificate of conformity, no test report.
- Contact Us
- Cynthia
- cynthia@com-mw.com
sales@com-mw.com
+86 19938031308- 23 floor, No. 1 building, P Jiuxi Plaza, No.37, Jiancai Road, Chenghua Zone, Chengdu
Product features
Broadband, low loss.
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 100 | ~ | 18000 | MHz |
| IL | 1 | dB | ||
| VSWR | 1.45 | |||
| Maximum voltage | 100 | V |
Other parameters
| Power | 2W |
| Impedance | 50Ω |
| Connector | N -JK |
| Connector material | Shell copper |
| Weight | 70g |
| Product shell material | Aluminium |
| Work Temp. | -40~+85℃ Design assurance |
Typical test data
| Frequency(MHz) | S11 VSWR | S22 VSWR | S12 Loss dB |
| 0.01 | 1.34 | 1.34 | -0.24 |
| 1 | 1.03 | 1.02 | -0.27 |
| 3 | 1.03 | 1.02 | -0.34 |
| 4 | 1.02 | 1.04 | -0.38 |
| 6 | 1.07 | 1.02 | -0.35 |
| 7 | 1.21 | 1.17 | -0.4 |
| 9 | 1.12 | 1.07 | -0.43 |
| 10 | 1.16 | 1.13 | -0.43 |
| 11 | 1.11 | 1.16 | -0.45 |
| 13 | 1.16 | 1.15 | -0.42 |
| 14 | 1.09 | 1.17 | -0.48 |
| 16 | 1.11 | 1.1 | -0.49 |
| 17 | 1.09 | 1.03 | -0.49 |
| 19 | 1.13 | 1.22 | -0.51 |
| 20 | 1.18 | 1.13 | -0.52 |
Reference picture

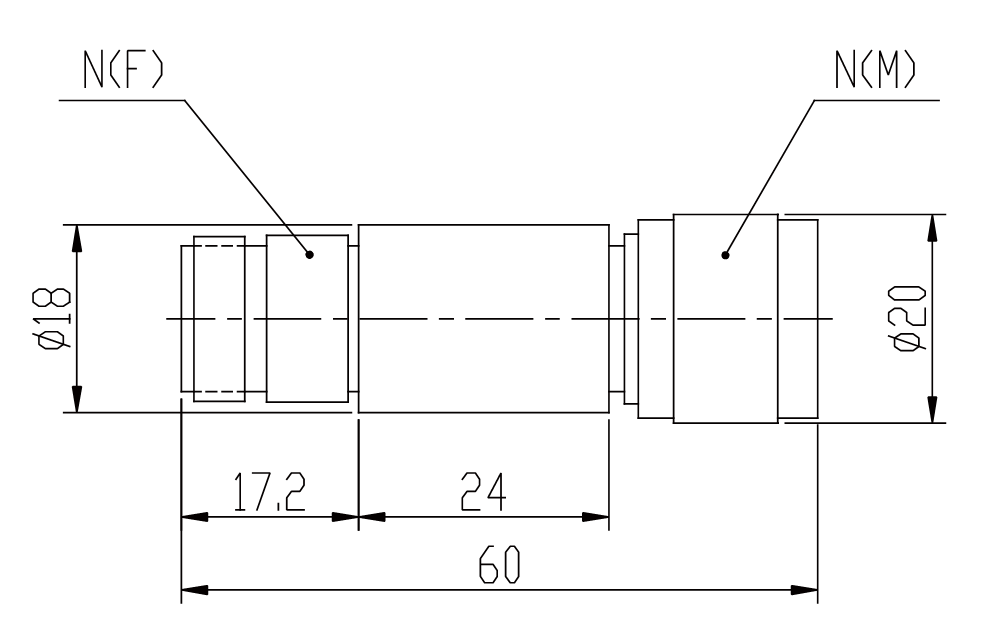

Configuration(mm)

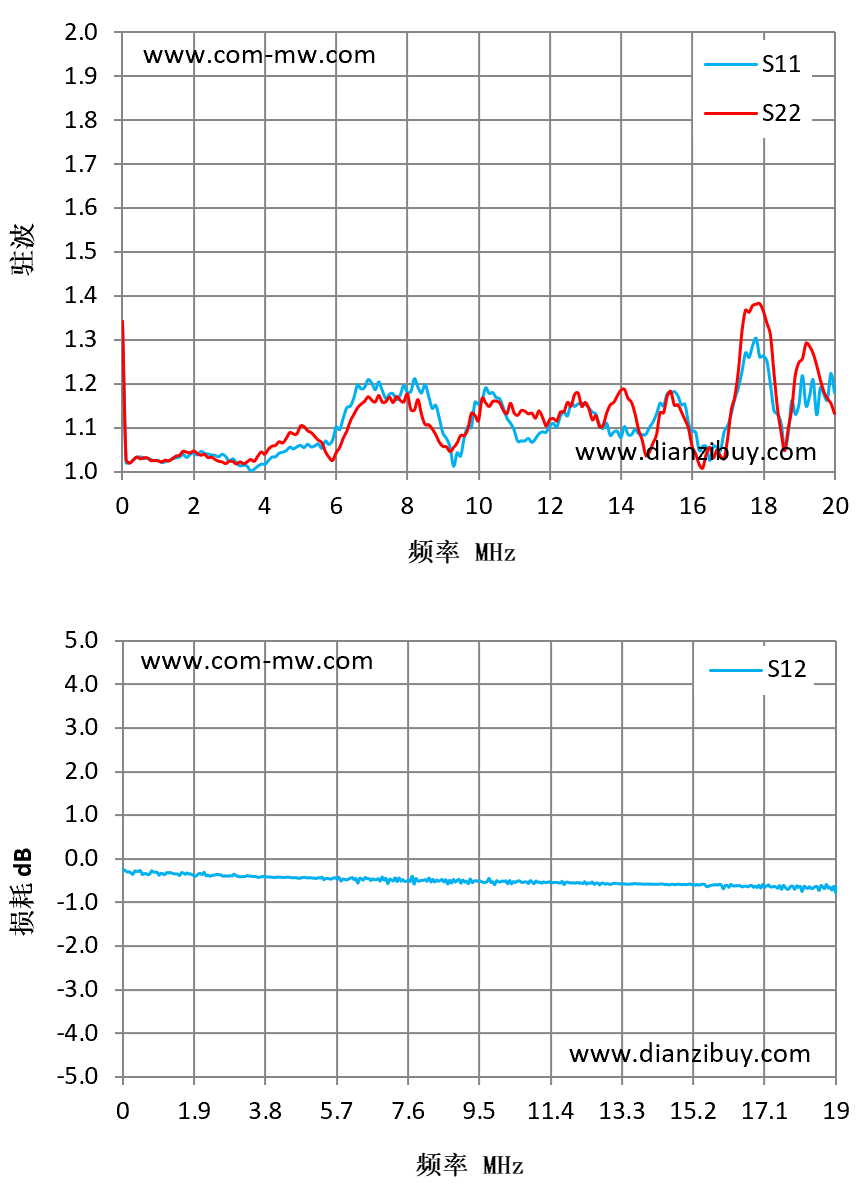

Typical test curve
