Biconical antenna ZSZ7-30-300-1186
In Stock 1
Frequency0.03~0.3GHz, Gain-18~3dBi, Linear polarization, N-K
$ 2011.43
Delivery Time ： 1-3 Day(WorkDay)
Terms: Ex Work from Chengdu,China warehouse, minimum order amount US$200. Keeping registered and logged in, check discounts by adding to cart
MOQ : 1
Attention: The online trading belongs to commercial activities, the final transaction price might be lower than tag price, subject to automatically system calculating.
- Contact Us
- Cynthia
- cynthia@com-mw.com
sales@com-mw.com
+86 19938031308- 23 floor, No. 1 building, P Jiuxi Plaza, No.37, Jiancai Road, Chenghua Zone, Chengdu
Product features
The conical antenna belongs to the ultra wideband omnidirectional antenna, which has the characteristics of light weight and easy installation and installation.
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 0.03 | ~ | 0.3 | GHz |
| Gain | -18 | ~ | 3 | dBi |
| VSWR | 2.5 |
Other parameters
| Polarization | Linear polarization |
| Power | 20W Design assurance |
| Connector | N-K |
| Outline size | 1229*448*695mm |
| Estimated weight | 2.6Kg |
| Surface | Grey |
| Work Temp. | -25~+45℃ Design assurance |
| Storage Temp. | -45~+75℃ Design assurance |

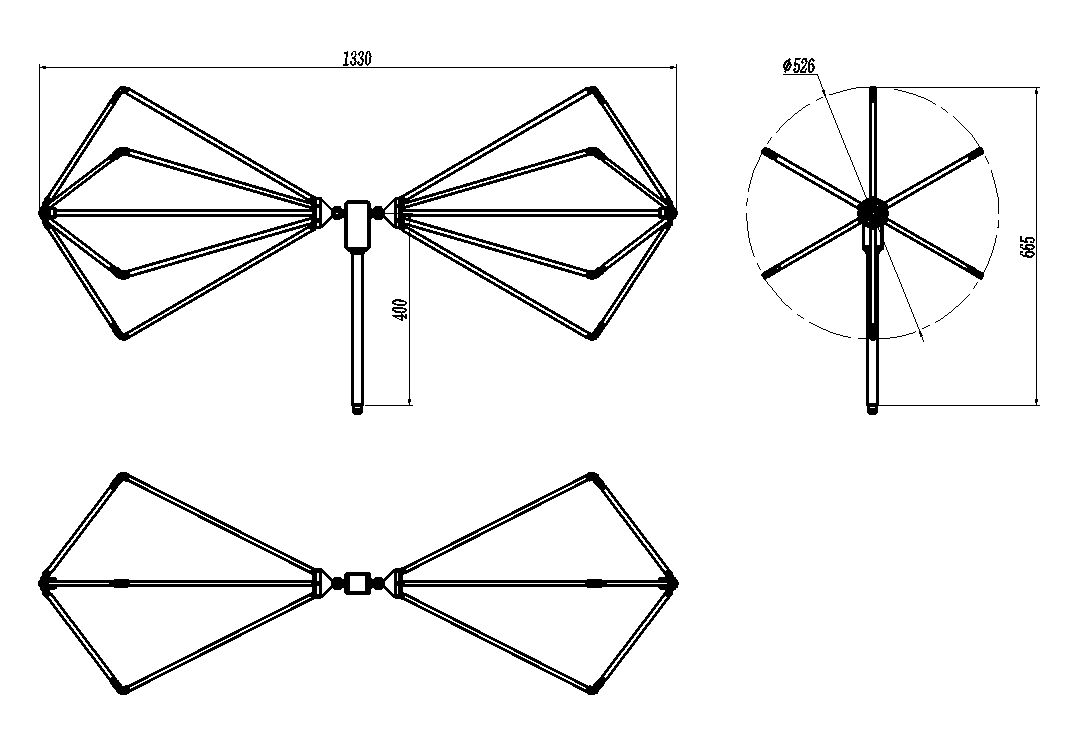

Configuration(mm)
Note
It is strictly prohibited to disassemble antenna accessories, as it may lead to poor antenna performance; There are no obstacles around the installation of the antenna.

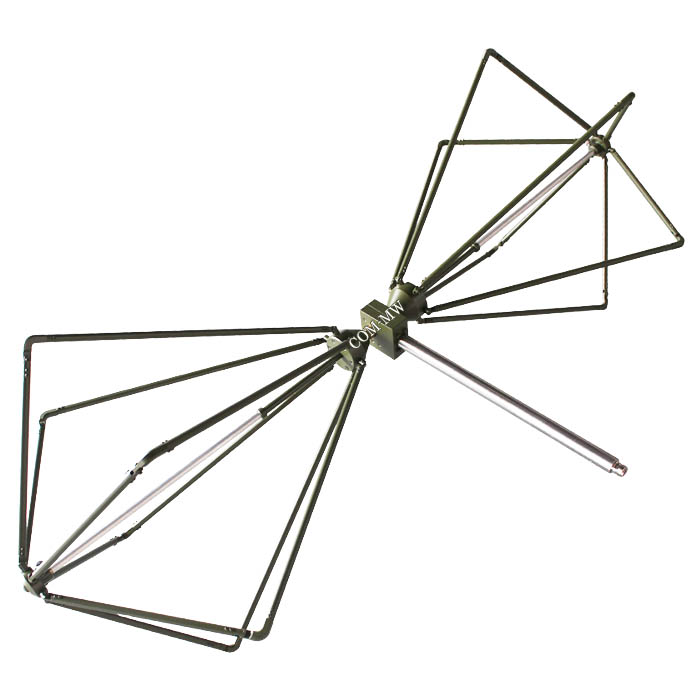

Reference picture

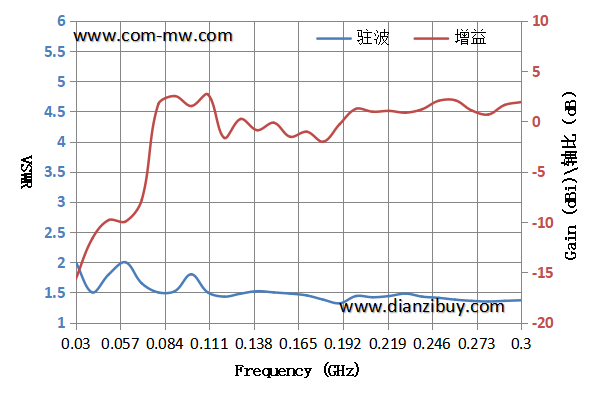

Typical test curve

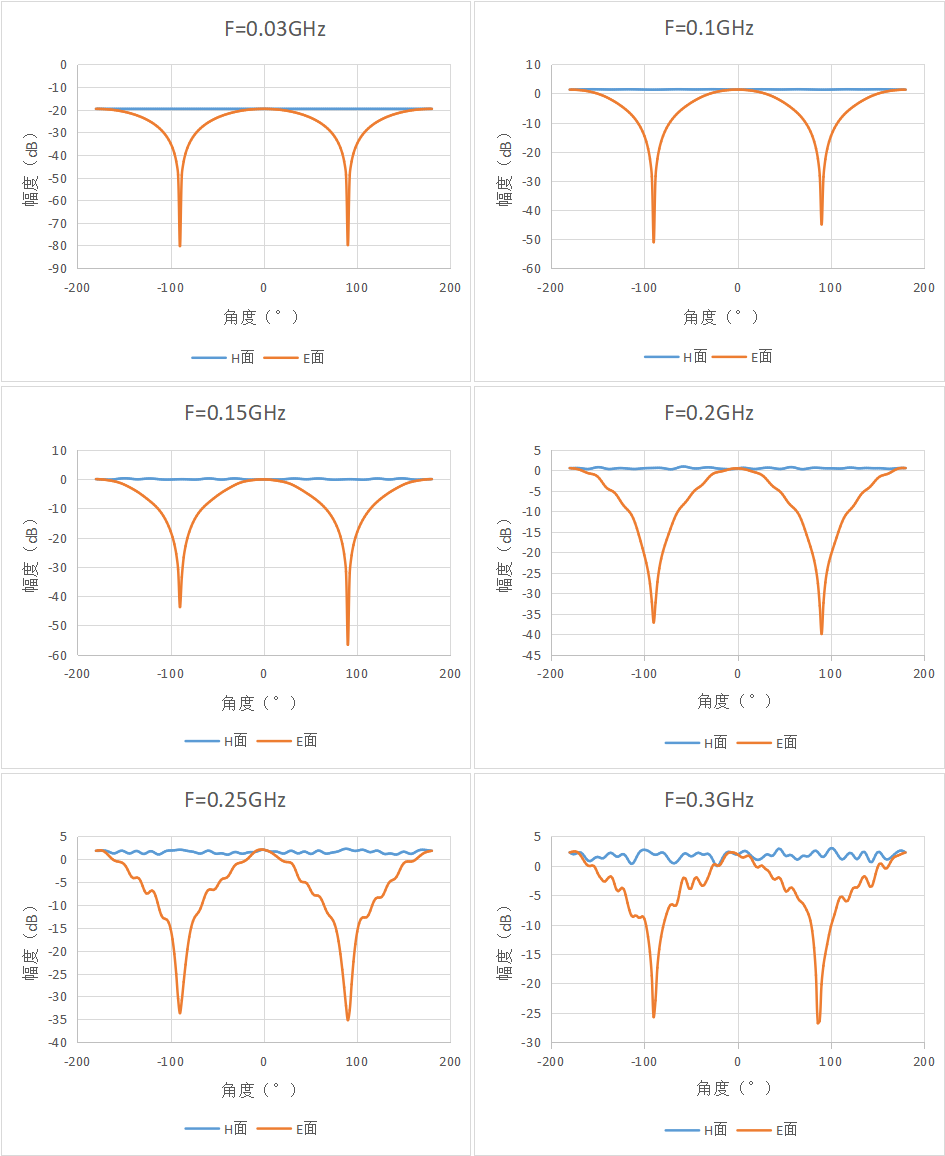

Typical antenna pattern
