LNA DLNA9-0.009-3000-1166
In Stock 3
0.009~3000MHz, Gain40dB, Noise figure2.5dB, P-1dB10dBm, SMA
$ 428.43
Delivery Time ： 1-3 Day(WorkDay)
Terms: Ex Work from Chengdu,China warehouse, minimum order amount US$200. Keeping registered and logged in, check discounts by adding to cart
MOQ : 1
Attention: The online trading belongs to commercial activities, the final transaction price might be lower than tag price, subject to automatically system calculating.
- Contact Us
- Cynthia
- cynthia@com-mw.com
sales@com-mw.com
+86 19938031308- 23 floor, No. 1 building, P Jiuxi Plaza, No.37, Jiancai Road, Chenghua Zone, Chengdu
Product features
Broadband, low loss.
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 0.009 | ~ | 3000 | MHz |
| Gain | 40 | dB | ||
| Gain flatness | 3 | 4 | dB | |
| Noise figure | 2.5 | 3 | dB | |
| VSWR | 2 | 2.5 | ||
| P-1dB | 10 | dBm |
Other parameters
| Connector | SMA-K detachable, Pin 0.38mm |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | White |
| Working voltage | +12V |
| Working current | 300mA |
| Operation Temp. | -40~+70℃ Design assurance |
Typical test data
| F(MHz) | P-1(dBm) | NF(dB） | S11 VSWR | S22 VSWR | Gain(dB) |
| 0.025 | 17 | / | 1.29 | 1.54 | 43.4 |
| 400 | 17.9 | 0.88 | 1.49 | 1.48 | 44.1 |
| 800 | 18 | 0.66 | 1.63 | 1.43 | 43.6 |
| 1200 | 18.1 | 0.85 | 1.89 | 1.32 | 43.8 |
| 1600 | 17.5 | 1.24 | 2.12 | 1.12 | 44.4 |
| 2000 | 17.1 | 0.84 | 2.25 | 1.53 | 43.8 |
| 2400 | 16.5 | 0.99 | 2.08 | 2.04 | 43.3 |
| 2800 | 16.2 | 1.25 | 1.87 | 2.23 | 43.3 |
| 3200 | 15.8 | 1.34 | 2.43 | 2.25 | 42.7 |
| 3600 | 14.5 | 1.01 | 3.59 | 2.36 | 41.9 |
| 4000 | 13.7 | 1.06 | 5.02 | 1.89 | 42.6 |

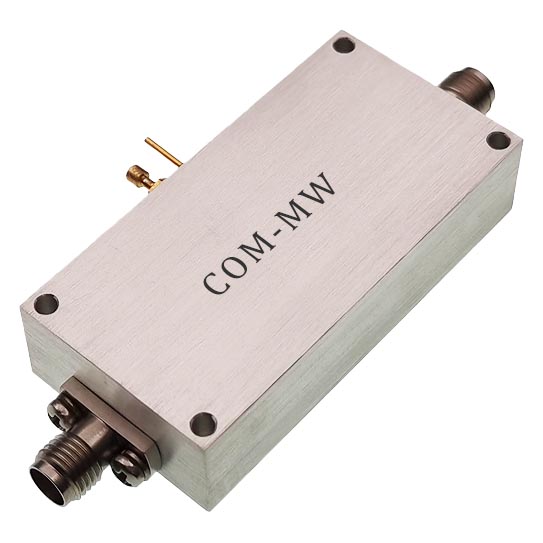

Reference picture

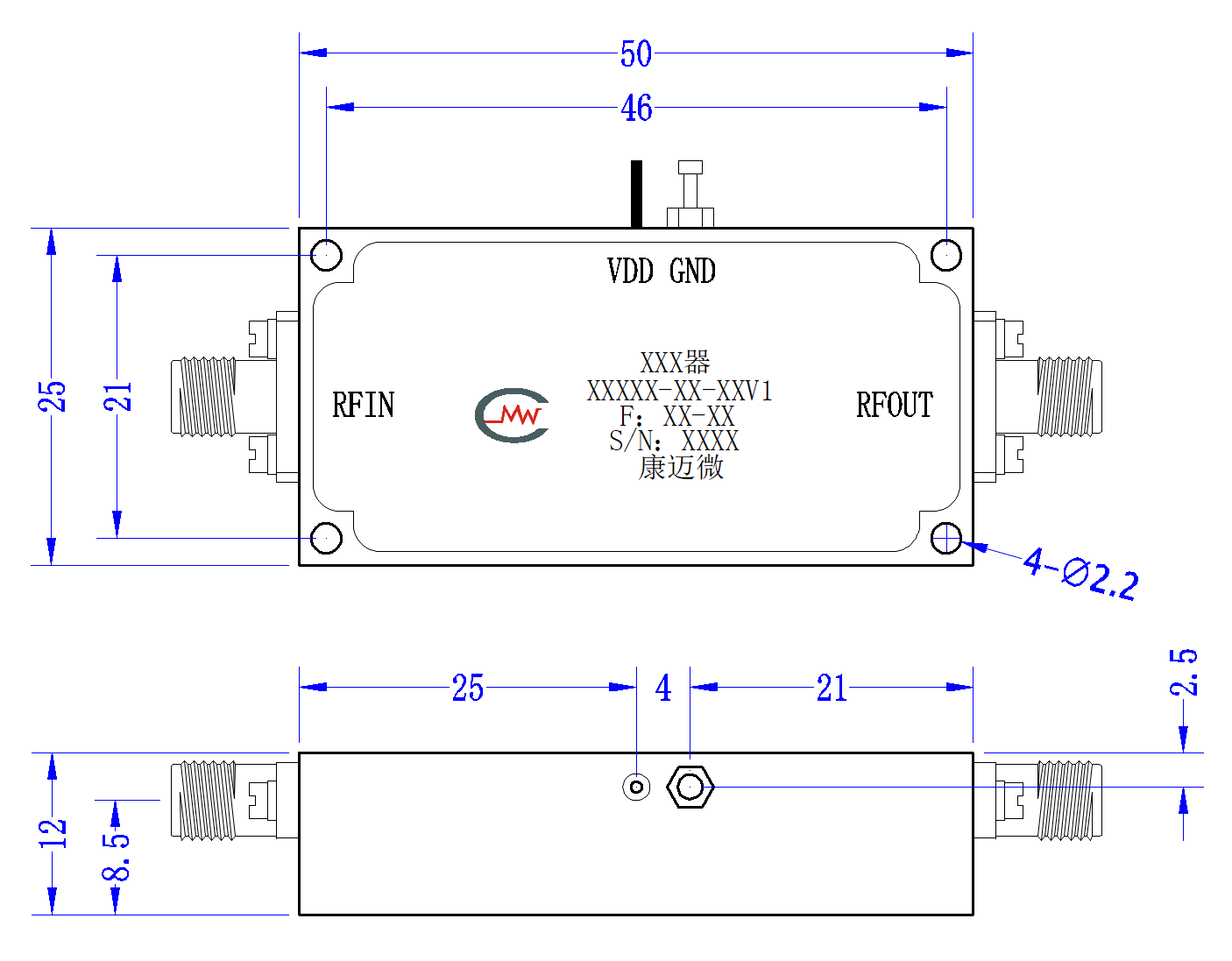

Configuration(mm)
Typical test curve
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
