Mixer DM8-5-1800-2702
In Stock 14
RF Frequency5~1800MHz, IL13dB, SMA, /
$ 140
Delivery Time ： 1-3 Day(WorkDay)
Terms: Ex Work from Chengdu,China warehouse, minimum order amount US$200. Keeping registered and logged in, check discounts by adding to cart
MOQ : 1
Attention: The online trading belongs to commercial activities, the final transaction price might be lower than tag price, subject to automatically system calculating; The price is competitive, product fully tested and qualified, we will offer certificate of conformity, no test report.
- Contact Us
- Cynthia
- cynthia@com-mw.com
sales@com-mw.com
+86 19938031308- 23 floor, No. 1 building, P Jiuxi Plaza, No.37, Jiancai Road, Chenghua Zone, Chengdu
Main specifications
| Parameters | Min | Typical | Max | Units |
| RF Frequency | 5 | ~ | 1800 | MHz |
| LO Frequency | 5 | ~ | 1800 | MHz |
| IF Frequency | 5 | ~ | 1500 | MHz |
| IL | 13 | dB | ||
| LO-RF ISO | 20 | dB | ||
| LO-IF ISO | 20 | dB | ||
| RF-IF ISO | 20 | dB |
Other parameters
| LO power | 13dBm Design assurance |
| Impedance | 50Ω |
| Connector | SMA-K detachable, Pin 0.38mm |
| Connector material | Stainless steel |
| Surface | Nickel plating |
| Operation Temp. | -40~+70℃ Design assurance |
| Other | / |

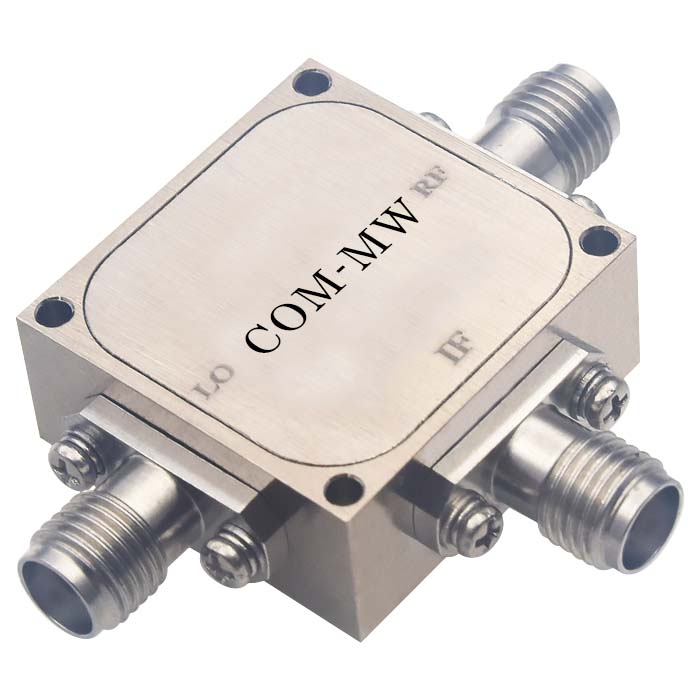

Reference picture

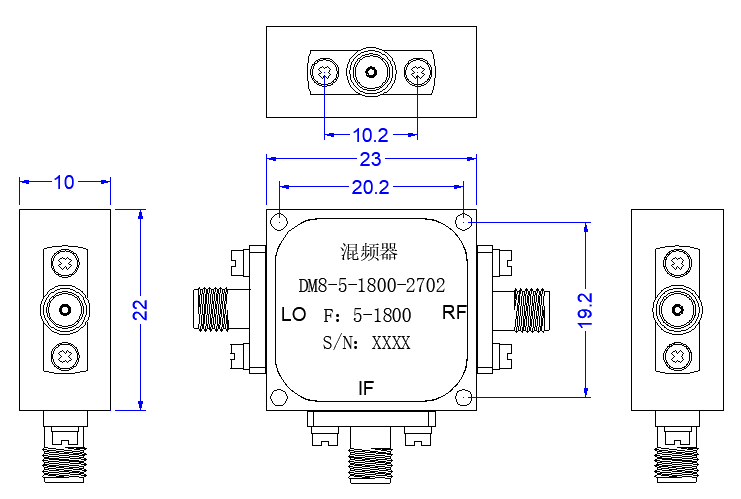

Configuration(mm)

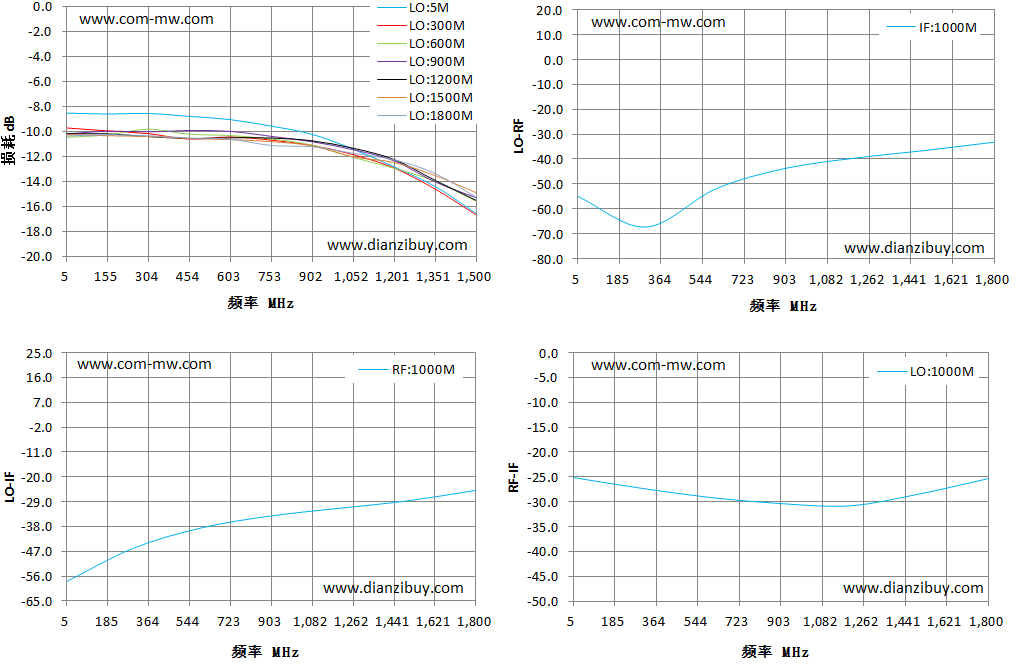

Typical test curve
Note
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
