Coupler ZDC8-50MC80-1000-2564
In Stock 1
80~1000MHz, Coupling50dB, L29, 2000W
$ 1557.15
Delivery Time ： 1-3 Day(WorkDay)
Terms: Ex Work from Chengdu warehouse, minimum order amount US$200. The product is produced by COM-MW Technology Co.,Ltd and sold by Dianzibuy Inc.
MOQ : 1
Attention: The online trading belongs to commercial activities, the final transaction price might be lower than tag price, subject to automatically system calculating.
- Contact Us
- Cynthia
- cynthia@com-mw.com
sales@com-mw.com
+86 19938031308- 23 floor, No. 1 building, P Jiuxi Plaza, No.37, Jiancai Road, Chenghua Zone, Chengdu
Product features
Broadband, high-power.
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 80 | ~ | 1000 | MHz |
| IL | 0.5 | dB | ||
| Coupling | 46 | 50 | 54 | dB |
| Directivity | 15 | dB | ||
| Main line VSWR | 1.3 | |||
| Coupled line VSWR | 1.6 |
Other parameters
| Connector | L29-JK |
| Impedance | 50Ω |
| Surface | Conductive oxidation |
| Power Capacity | 2000W Design assurance |
| Operation Temp. | -40~+70℃ Design assurance |
Port Definition
| Input port | IN（L29-J） | OUT（L29-K） |
| Output port | OUT（L29-K） | IN（L29-J） |
| Coupling port | -50dB (forward) (SMA-F) | -50dB (Reverse) (SMA-F) |
Typical test data
| Frequency(GHz) | S22 VSWR | S12 IL dB | S13 coupling | S23 Directivity |
| 0.07 | 1.02 | -0.07 | -53.92 | -31.02 |
| 0.14 | 1.02 | 0.01 | -48.94 | -31.02 |
| 0.22 | 1.02 | -0.12 | -47.05 | -28.86 |
| 0.29 | 1.03 | -0.11 | -47.08 | -27.21 |
| 0.36 | 1.07 | -0.13 | -48.54 | -25.72 |
| 0.44 | 1.09 | -0.11 | -50.35 | -24.86 |
| 0.51 | 1.09 | -0.13 | -49.77 | -27.61 |
| 0.59 | 1.08 | -0.13 | -47.65 | -35.07 |
| 0.66 | 1.07 | -0.18 | -46.53 | -43.14 |
| 0.73 | 1.06 | -0.16 | -46.46 | -33.9 |
| 0.81 | 1.07 | -0.18 | -47.42 | -29.51 |
| 0.88 | 1.06 | -0.18 | -48.81 | -25.96 |
| 0.95 | 1.06 | -0.19 | -50.64 | -23.88 |
| 1.03 | 1.08 | -0.19 | -53.4 | -22.24 |
| 1.1 | 1.12 | -0.21 | -55.85 |

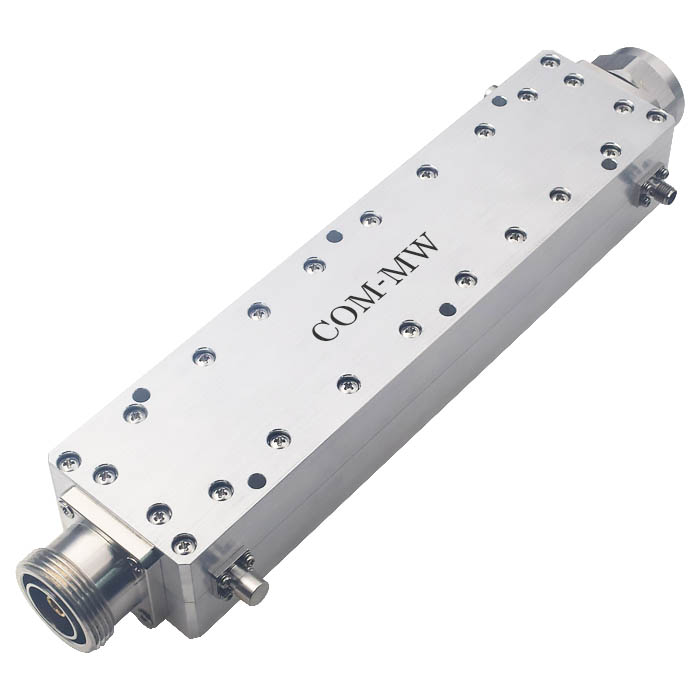

Reference picture

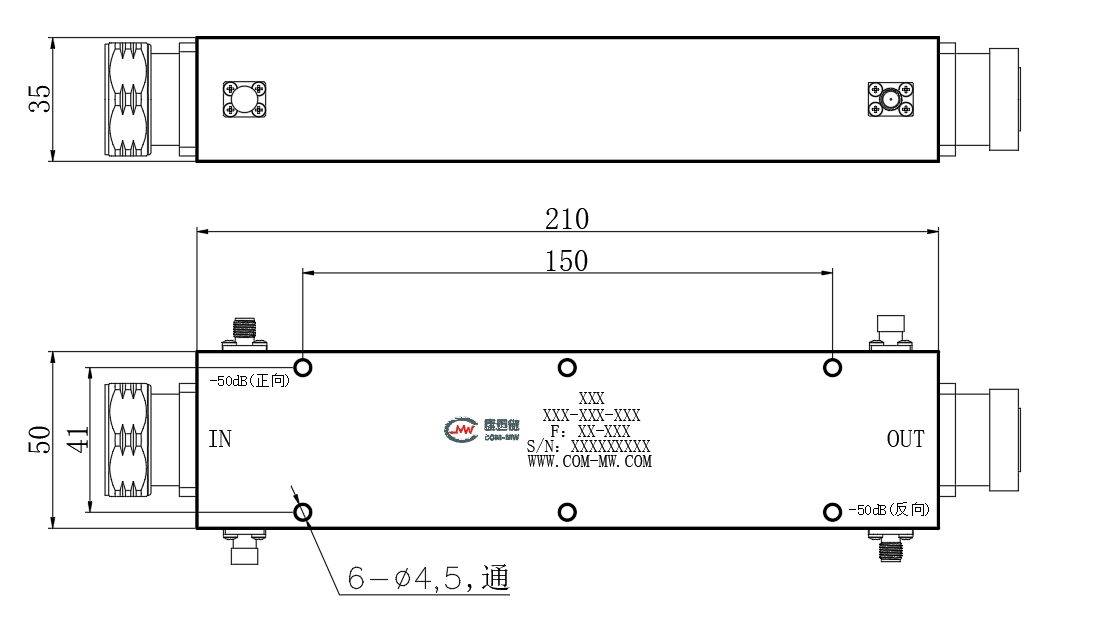

Configuration(mm)

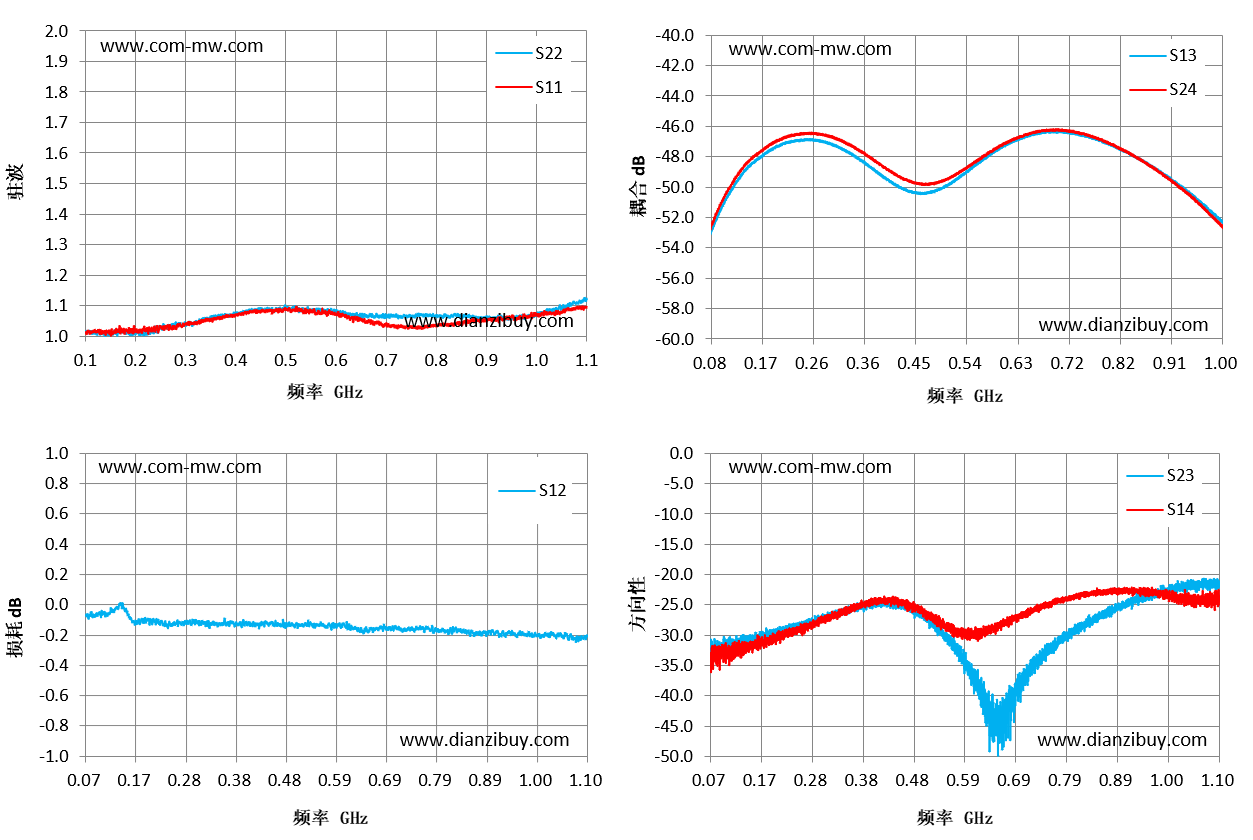

Typical test curve
Note
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
