Combiner ZHPC8-1.8-2.2-63
In Stock 0
1800~2200MHz, 600W, 6way, L29, Series feed synthesizer
$ 260
Delivery Time ： 10 Day(WorkDay)
Terms: Ex Work from Chengdu,China warehouse, minimum order amount US$200. Keeping registered and logged in, check discounts by adding to cart
MOQ : 1
Attention: The online trading belongs to commercial activities, the final transaction price might be lower than tag price, subject to automatically system calculating.
- Contact Us
- Cynthia
- cynthia@com-mw.com
sales@com-mw.com
+86 19938031308- 23 floor, No. 1 building, P Jiuxi Plaza, No.37, Jiancai Road, Chenghua Zone, Chengdu
Product features
High power, low loss, and high synthesis efficiency.
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 1800 | ~ | 2200 | MHz |
| IL | 0.5 | dB | ||
| Isolation | 20 | dB | ||
| Input VSWR | 1.3 | |||
| Output VSWR | 1.3 | |||
| Amplitude balance | 0.5 | dB | ||
| Coupling | 32 | 34 | dB | |
| Directivity | 12 | dB |
Other parameters
| Power | 600W |
| way | 6-Way (theoretical loss 7.8dB) |
| Phase | Paired use of two |
| Impedance | 50Ω |
| Connector | L29-K, “1-6、C1、C2”: SMA-K |
| Surface | Conductive oxidation |
| Product shell material | Aluminium |
| Work Temp. | -30~+85℃ Design assurance |
| Other | Series feed synthesizer |
Port Definition
| Common port | 0 |
| Dispatch Port | 1-6 |
| Coupling port | C1、C2 |

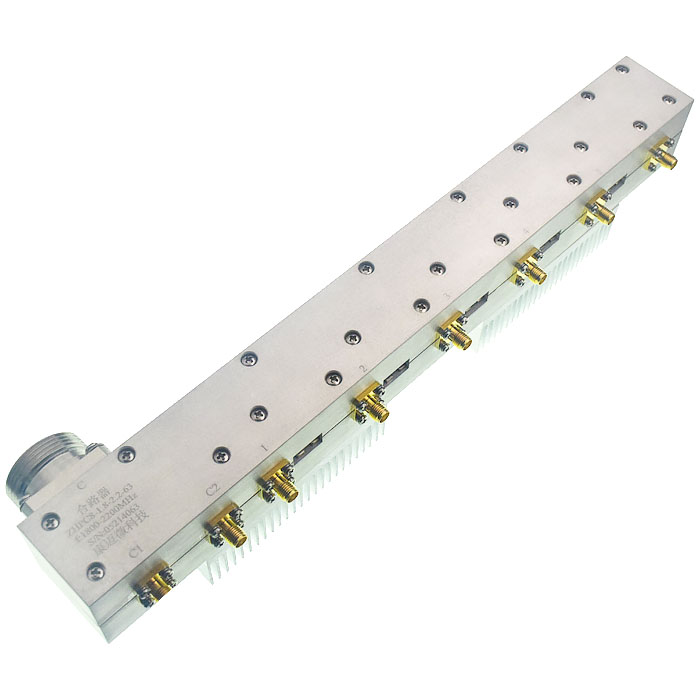

Reference picture

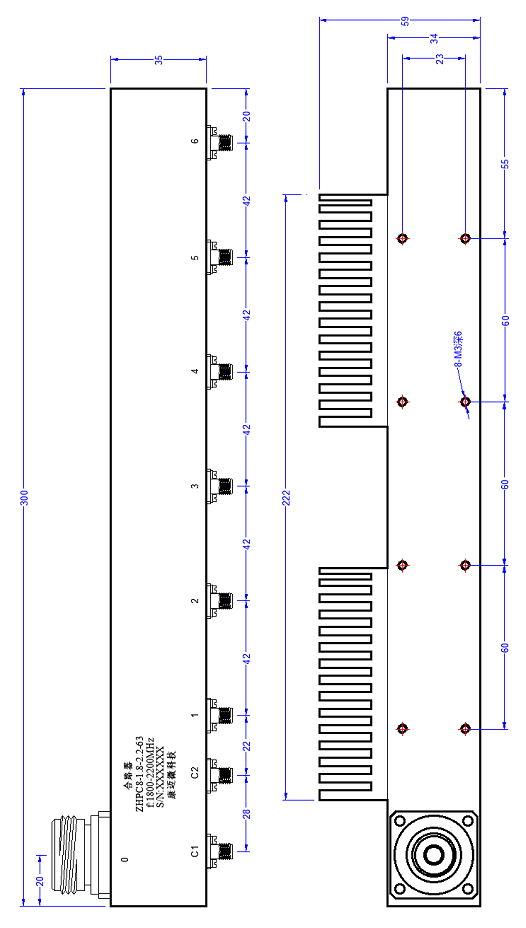

Configuration(mm)
Note
| 1 | Please do not wash the product in the cleaning solution.,Please do not wash the product in the cleaning solution. |
