Load DR9-1000-0-8G-2282
In Stock 1
FrequencyDC~8GHz, 1000W, 50Ω, N-K
$ 2100
Delivery Time ： 1-3 Day(WorkDay)
Terms: Ex Work from Chengdu,China warehouse, minimum order amount US$200. Keeping registered and logged in, check discounts by adding to cart
MOQ : 1
Attention: The online trading belongs to commercial activities, the final transaction price might be lower than tag price, subject to automatically system calculating.
- Contact Us
- Cynthia
- cynthia@com-mw.com
sales@com-mw.com
+86 19938031308- 23 floor, No. 1 building, P Jiuxi Plaza, No.37, Jiancai Road, Chenghua Zone, Chengdu
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | DC | ~ | 8 | GHz |
| VSWR | 1.3 | 1.65 |
Other parameters
| Power | 1000W design guarantee @ 1GHz; If it is greater than 1GHz, please derate it for use. |
| Impedance | 50Ω |
| Connector | N -K |
| Surface | Black |
| Product shell material | Aluminum |
| Work Temp. | -40~+85℃ Design assurance |
| Other | With fan cooling |
Note
When installing the load, it is necessary to consider sufficient heat dissipation space and not install it next to equipment with high heat output.
Typical test data
| No. | Frequency MHz | S11 VSWR |
| 1 | 0.01 | 1.03 |
| 2 | 643 | 1.02 |
| 3 | 1286 | 1.11 |
| 4 | 1929 | 1.12 |
| 5 | 2571 | 1.1 |
| 6 | 3214 | 1.16 |
| 7 | 3857 | 1.2 |
| 8 | 4500 | 1.17 |
| 9 | 5143 | 1.34 |
| 10 | 5786 | 1.17 |
| 11 | 6429 | 1.33 |
| 12 | 7071 | 1.37 |
| 13 | 7714 | 1.28 |
| 14 | 8357 | 1.5 |
| 15 | 9000 | 1.59 |

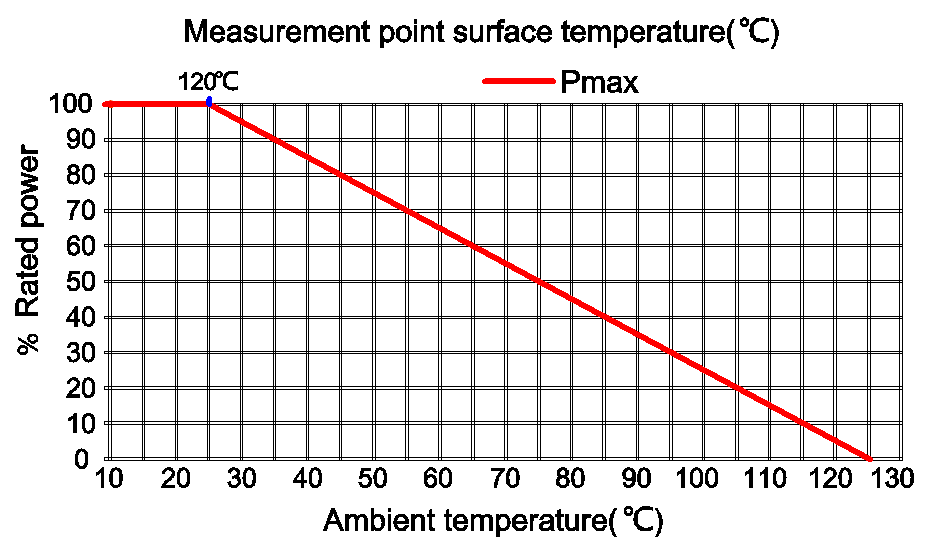

Power Derating Curve

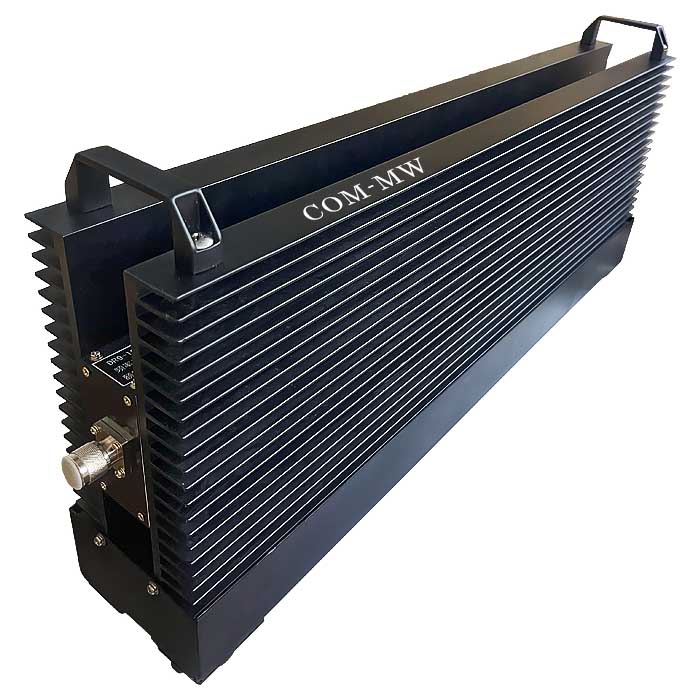

Reference picture

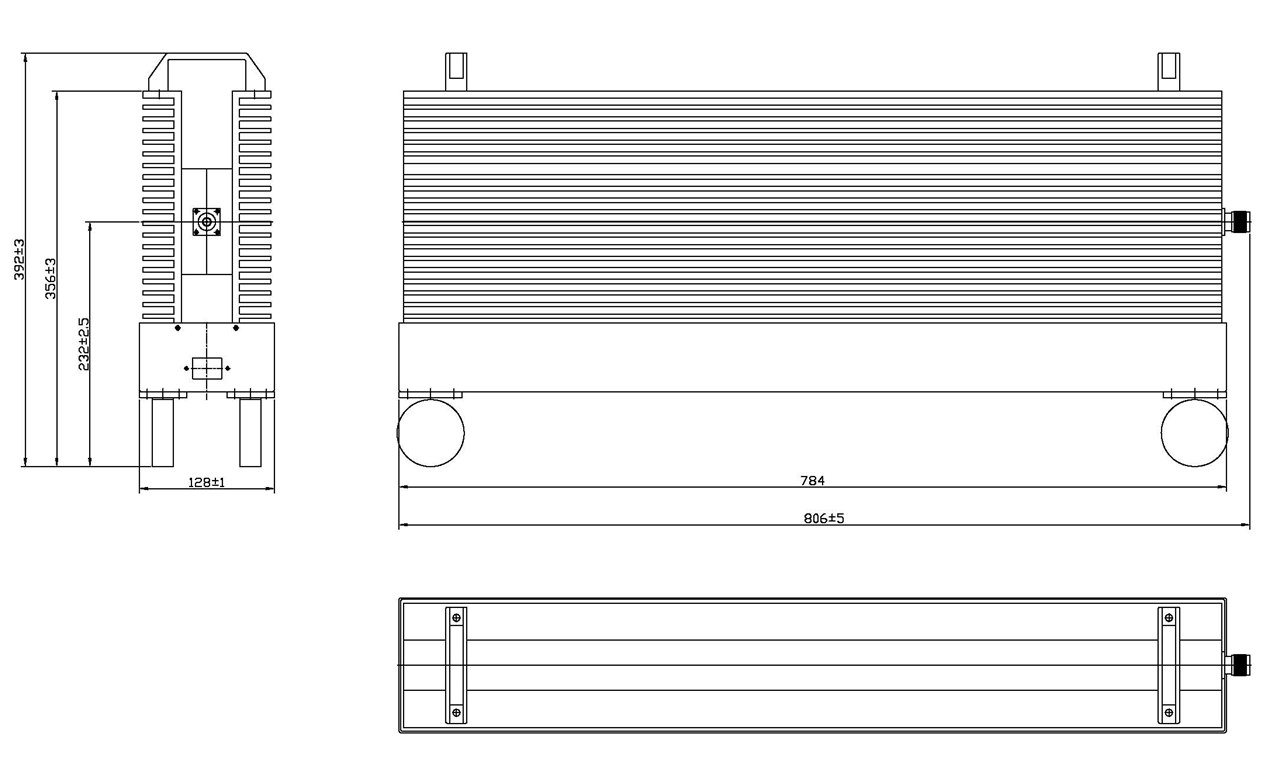

Configuration(mm)

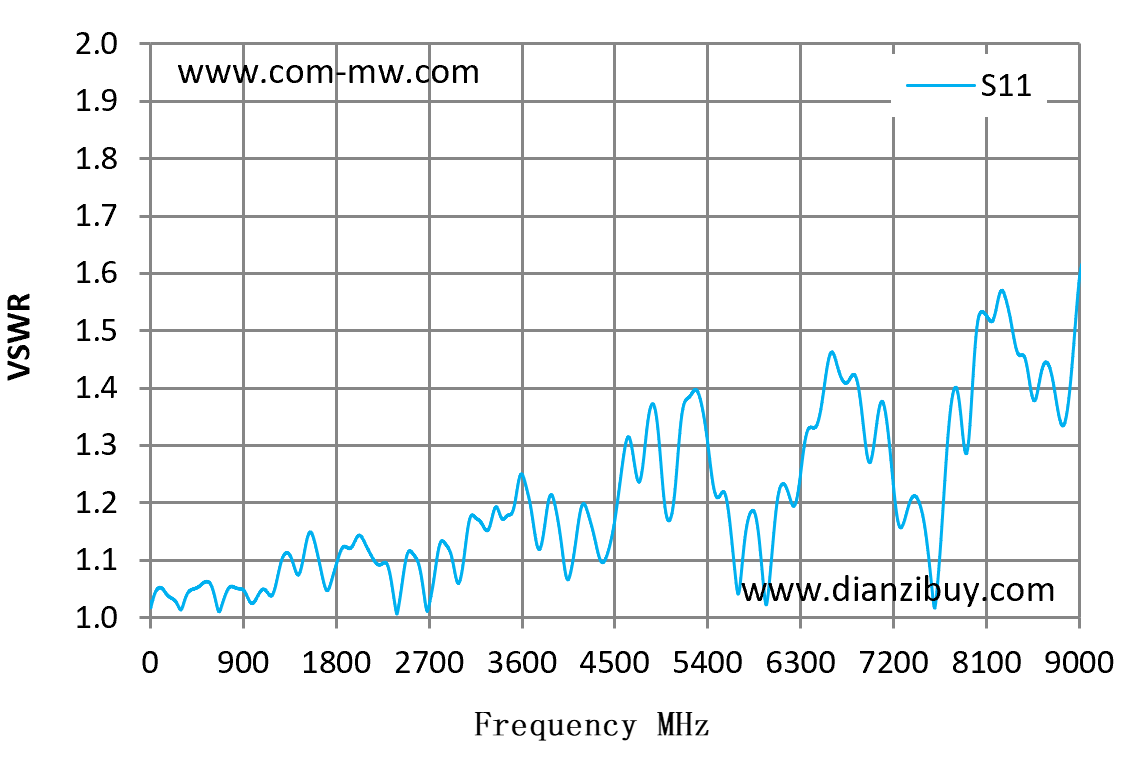

Typical test curve
