Highpass filter HF006
In Stock 91
highpass F200~3000MHz, DC-65MHz≥40dB, 65-85MHz≥20dB, SMD, /
$ 19.72
Delivery Time ： 1-3 Day(WorkDay)
Terms: Ex Work from Chengdu,China warehouse, minimum order amount US$200. Keeping registered and logged in, check discounts by adding to cart
MOQ : 1
Attention: The online trading belongs to commercial activities, the final transaction price might be lower than tag price, subject to automatically system calculating; The price is competitive, product fully tested and qualified, we will offer certificate of conformity, no test report.
- Contact Us
- Cynthia
- cynthia@com-mw.com
sales@com-mw.com
+86 19938031308- 23 floor, No. 1 building, P Jiuxi Plaza, No.37, Jiancai Road, Chenghua Zone, Chengdu
Product features
Broadband, small volume.
Main specifications
| Parameters | Frequency | / | Min | Typical | Max | Units |
| highpass F | / | / | 200 | ~ | 3000 | MHz |
| Passband IL | / | / | 1.0 | dB | ||
| Passband VSWR | / | / | 1.2 | |||
| Rejection | DC-65 | MHz≥ | 40 | dB | ||
| Rejection | 65-85 | MHz≥ | 20 | dB |
Other parameters
| Connector | SMD |
| Impedance | 50Ω |
| Power | 0.5W Design assurance |
| Work Temp. | -40~+85℃ Design assurance |
| Storage Temp. | -55~+100℃ Design assurance |
| Quality Grade | Industrial grade |
| Other | / |
Port Definition
| I/O Port | 2、6 |
| GND | 1，3，4，5，7，8 |

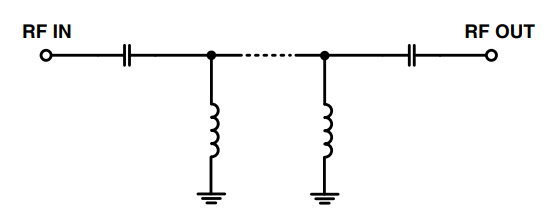

Functional diagram
Typical test data
| Frequency(MHz) | S11 VSWR | S12 Loss dB | S22 VSWR |
| 85 | 47.2 | -32.2 | 38.9 |
| 214 | 1.42 | -1.55 | 1.37 |
| 429 | 1.1 | -0.28 | 1.08 |
| 643 | 1.1 | -0.21 | 1.1 |
| 857 | 1.07 | -0.21 | 1.08 |
| 1071 | 1.05 | -0.21 | 1.06 |
| 1286 | 1.03 | -0.21 | 1.06 |
| 1500 | 1.04 | -0.24 | 1.06 |
| 1714 | 1.04 | -0.27 | 1.06 |
| 1929 | 1.04 | -0.3 | 1.05 |
| 2143 | 1.04 | -0.34 | 1.04 |
| 2357 | 1.05 | -0.38 | 1.05 |
| 2571 | 1.05 | -0.53 | 1.06 |
| 2786 | 1.1 | -0.65 | 1.06 |
| 3000 | 1.12 | -0.72 | 1.06 |

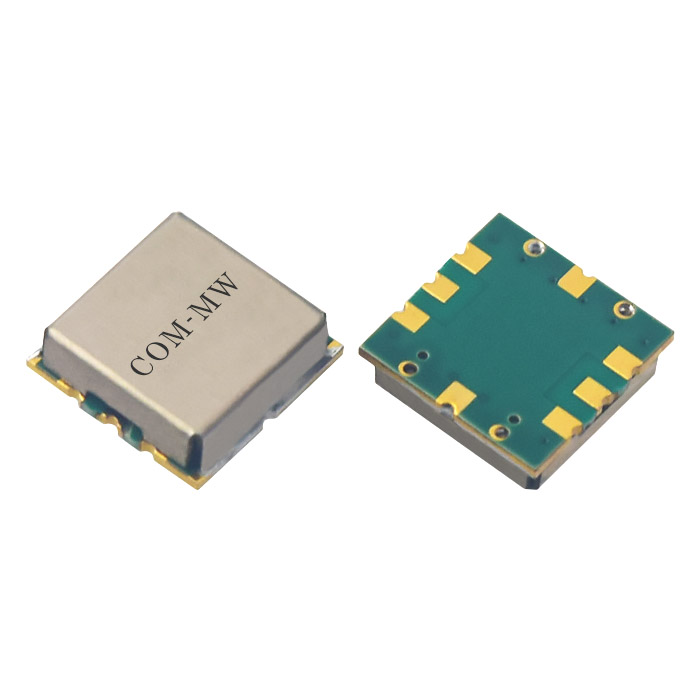

Reference picture

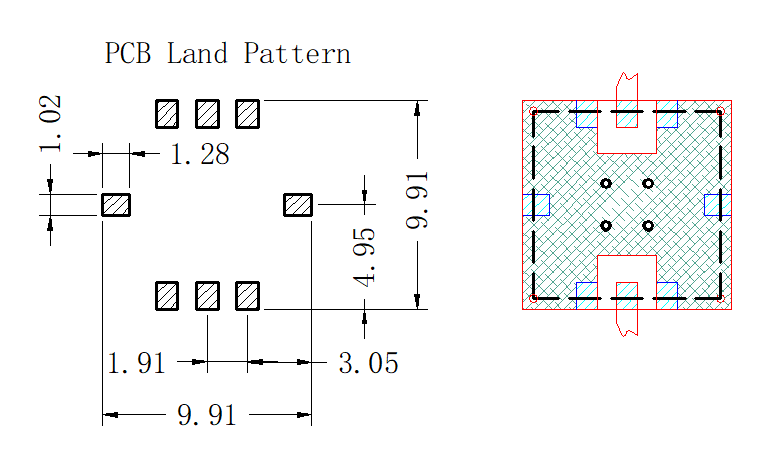

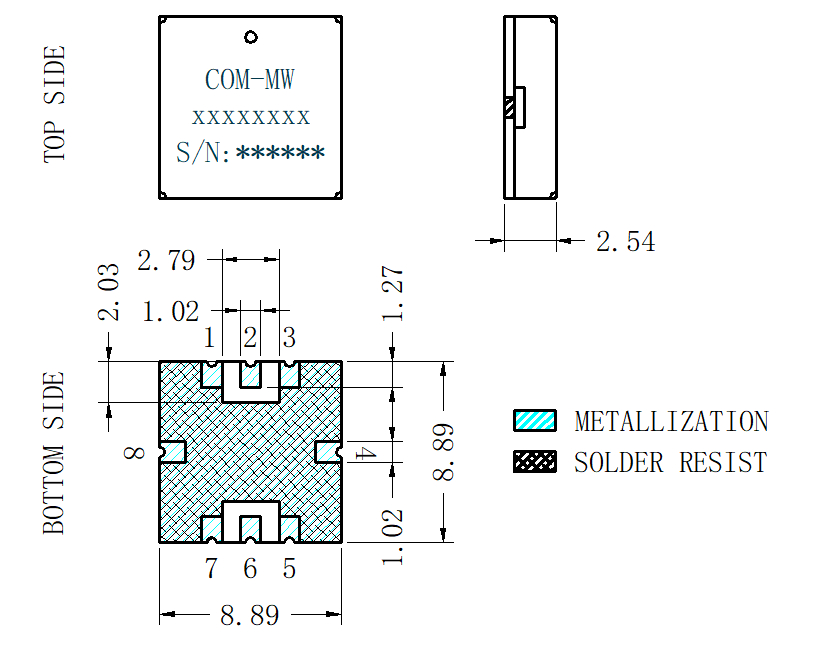

Configuration(mm)

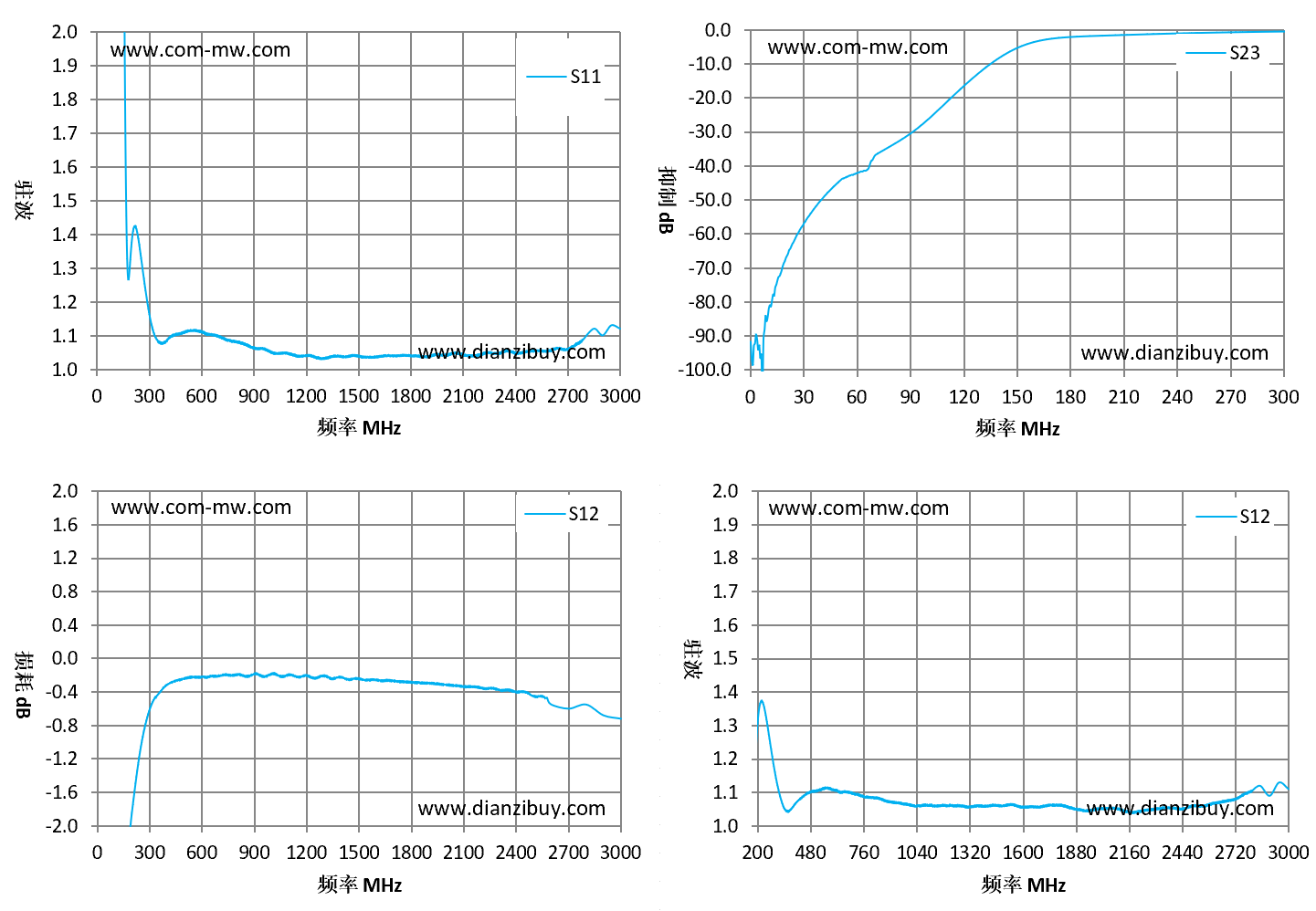

Typical test curve
Note
| 1 | Please do not wash the product in the cleaning solution.,Please do not wash the product in the cleaning solution. |
| 2 | The product supports 190 ℃ reflow soldering |
