Disk cone antenna ZPZ7-350-1500-052
Frequency350~1500MHz, Gain0dBi, Vertical polarization, SMA-K
- Contact Us
- Cynthia
- cynthia@com-mw.com
sales@com-mw.com
+86 19938031308- 23 floor, No. 1 building, P Jiuxi Plaza, No.37, Jiancai Road, Chenghua Zone, Chengdu
Product features
The conical antenna belongs to the ultra wideband omnidirectional antenna, which has the characteristics of light weight and easy installation and installation.
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 350 | ~ | 1500 | MHz |
| Gain | 0 | dBi | ||
| VSWR | 3 |
Other parameters
| Polarization | Vertical polarization |
| Power | 50W Design assurance |
| Connector | SMA-K |
| Outline size | 173*180*180mm |
| Estimated weight | 1Kg |
| Surface | Grey |
| Work Temp. | -25~+55℃ Design assurance |
| Storage Temp. | -40~+60℃ Design assurance |

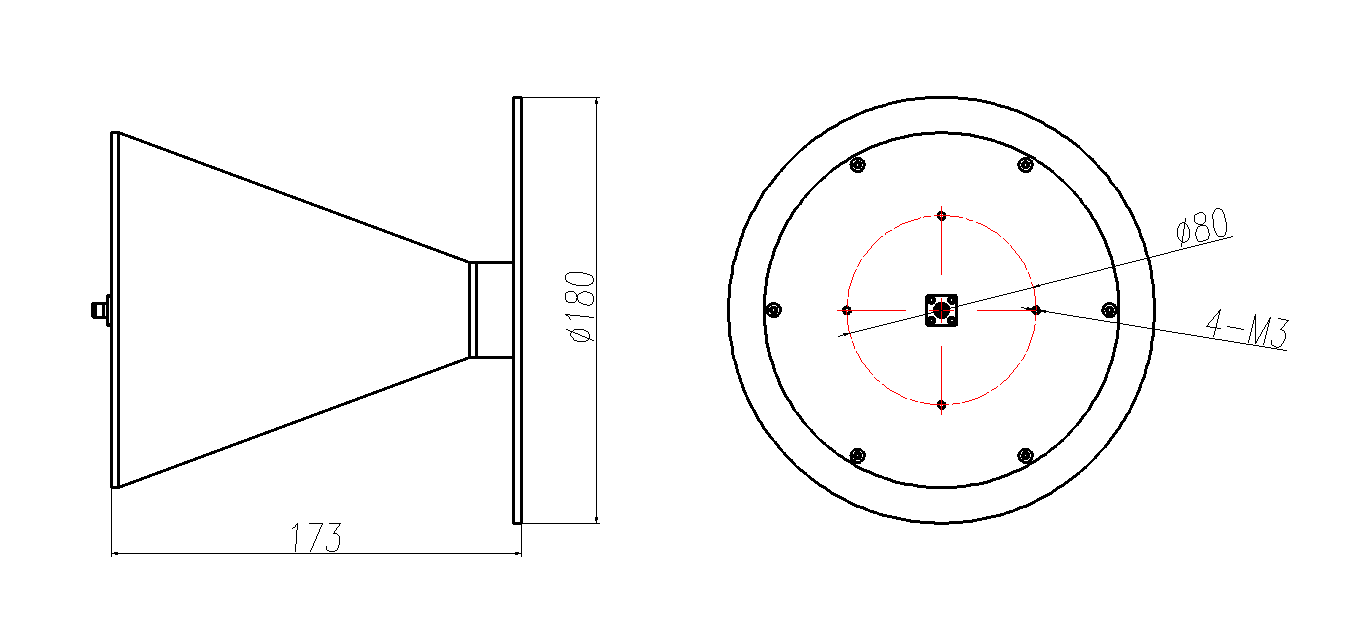

Configuration(mm)
Note
Avoid collisions during installation.
It is strictly prohibited to disassemble antenna accessories, as it may cause poor antenna performance.
The installation position of the antenna should be free of any obstacles.
Outdoor use should be equipped with lightning protection facilities.
May contain electronic components, please do not dispose of them randomly.

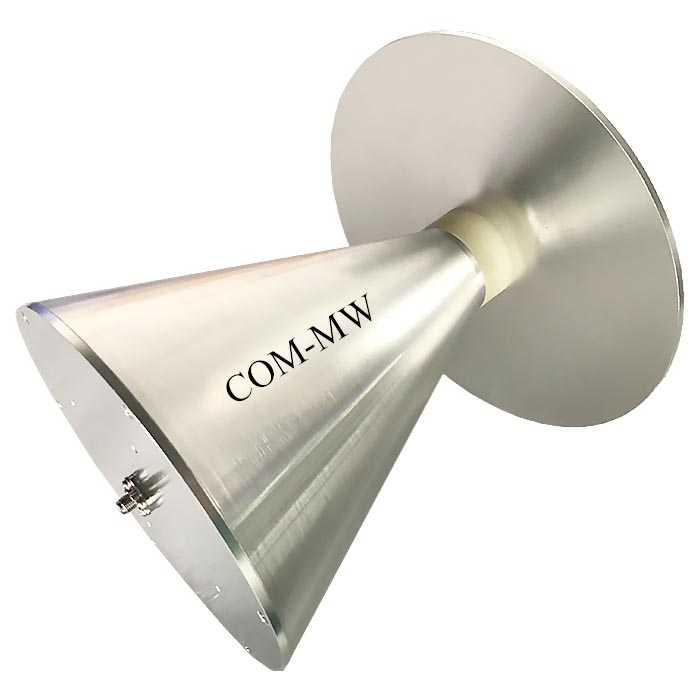

Reference picture
