SMD Filter CA0293
Bandwidth7.1-7.9GHz, Rejection40@DC-6.3GHz, 40@8.7-18.5GHz
- Contact Us
- Cynthia
- cynthia@com-mw.com
sales@com-mw.com
+86 19938031308- 23 floor, No. 1 building, P Jiuxi Plaza, No.37, Jiancai Road, Chenghua Zone, Chengdu
Characteristics and Application
Low temperature drift, high power.
Small size, easy to integrate.
Technical parameters superior to LTCC filters.
Applied in fields such as radar, electronic countermeasures, and mobile communication.
Tech specifications
| Items | Parameters | Units |
| Center Frequency | 7.5 | GHz |
| Bandwidth | 7.1-7.9 | GHz |
| Center loss | 2.2 | dB |
| Ripple | 1.0 | dB |
| VSWR | 1.7:1 | |
| Group delay ripple | 1.0 | ns |
| Rejection | 40@DC-6.3GHz | dBc |
| Rejection | 40@8.7-18.5GHz | dBc |
Other requirement (Design assurance)
| power | 5W CW |
| Operation Temp. | -55~+85℃ |
| Storage Temp. | -55~+85℃ |

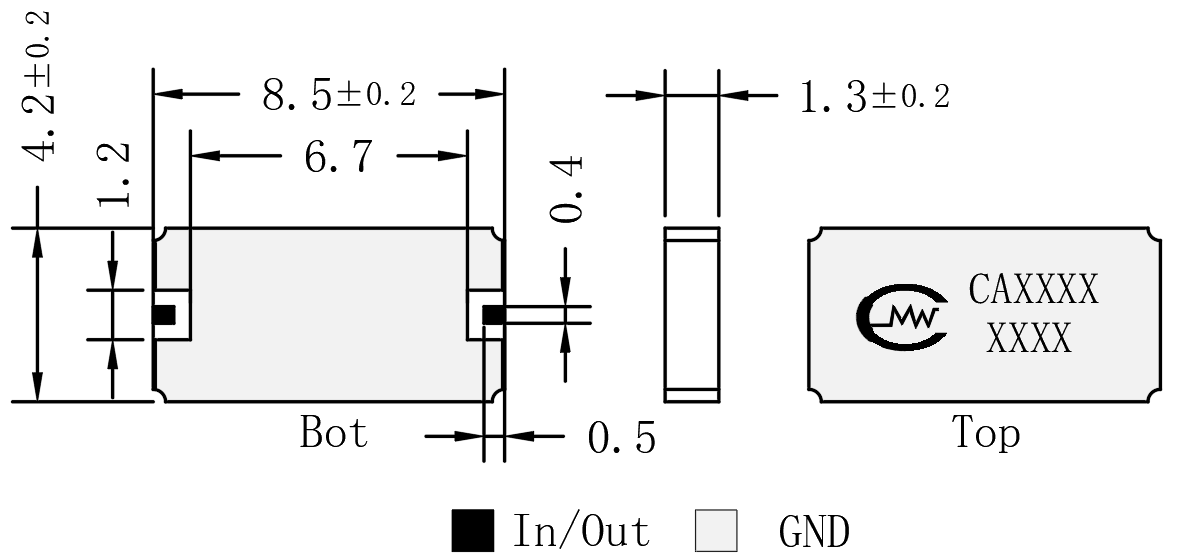

Configuration

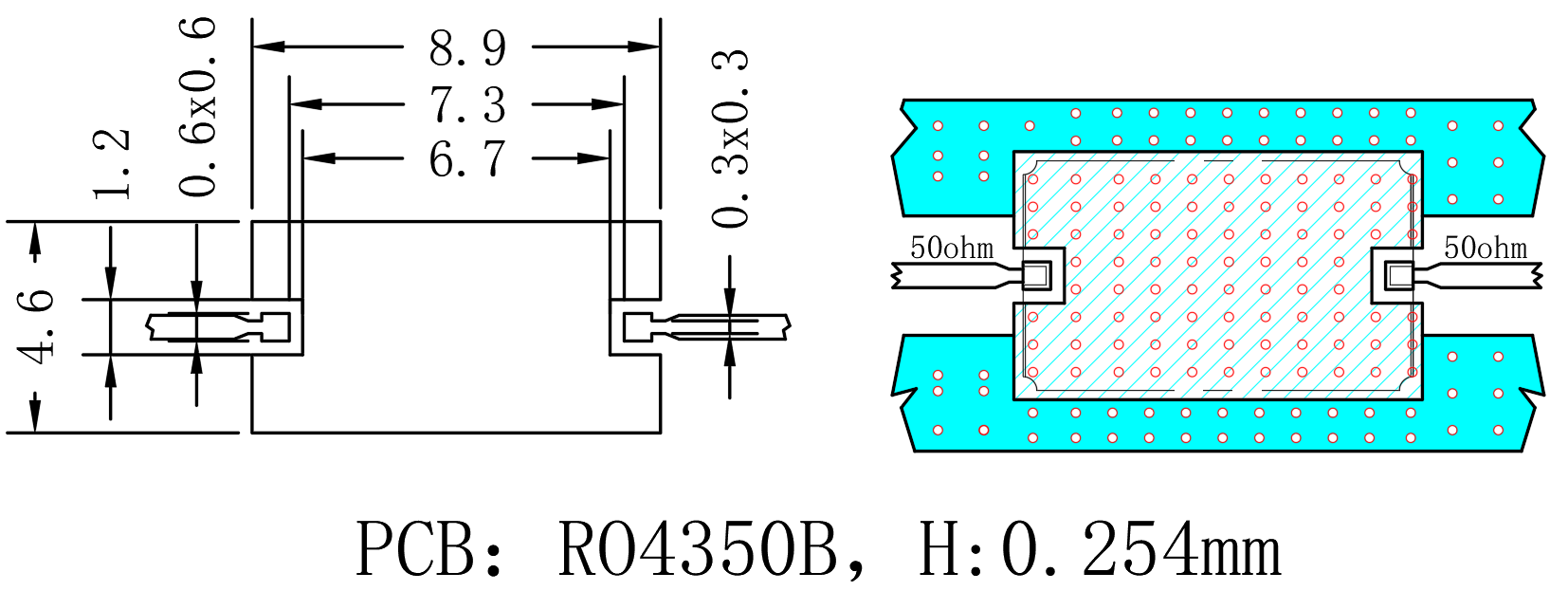

Suggested PCB Layout
Note
1: Suggest using separate chambers with interchangeable ports, with a distance of 1.0mm from the side wall on one side and a distance of 2.0mm from the top cover on the surface. Supports reflow soldering at 260 ℃;
2: Grounding is very important, only good grounding can maximize the performance of the filter;
3: During the cleaning process, the filter should not be immersed in the cleaning solution for a long time;
4: Filling absorbing material above the filter can achieve better harmonic suppression.

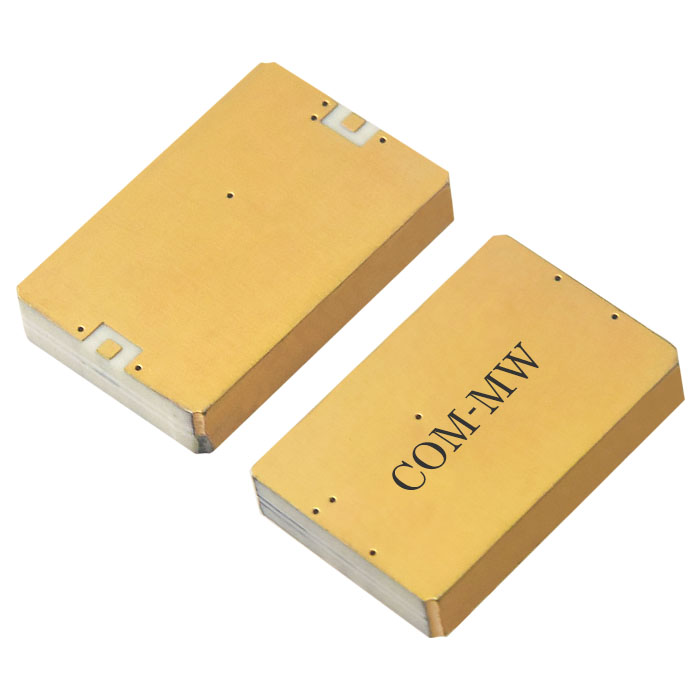

Reference picture

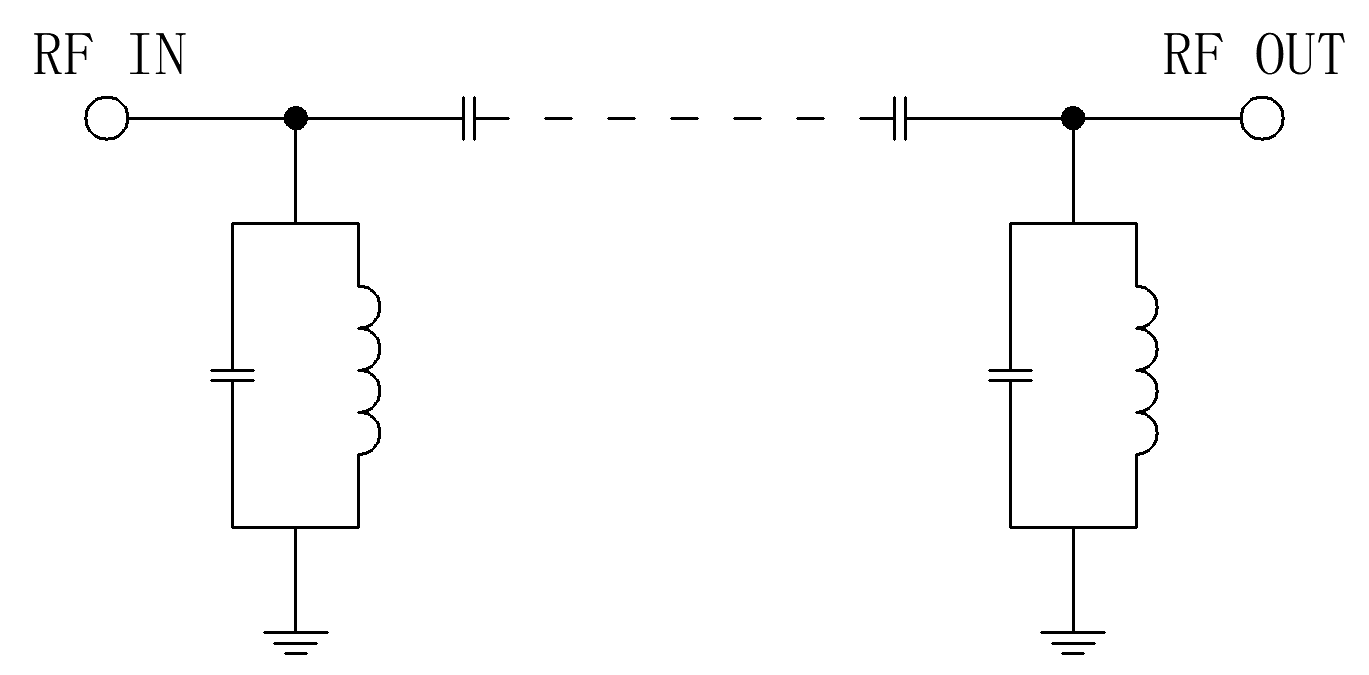

Schematic diagram

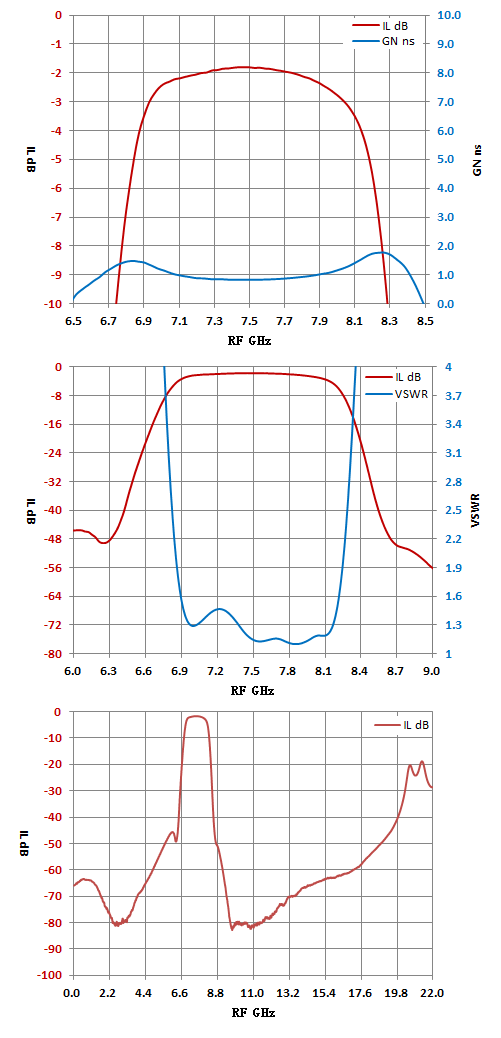

Typical test curve
