Power divider ZPD8-2M40-70G-2975
In Stock 12
40~70GHz, 5W, 2way, 0°, 1.85
$ 327.15
Delivery Time ： 1-3 Day(WorkDay)
Terms: Ex Work from Chengdu warehouse, minimum order amount US$200. The product is produced by COM-MW Technology Co.,Ltd and sold by Dianzibuy Inc.
MOQ : 1
Attention: The online trading belongs to commercial activities, the final transaction price might be lower than tag price, subject to automatically system calculating.
- Contact Us
- Cynthia
- cynthia@com-mw.com
sales@com-mw.com
+86 19938031308- 23 floor, No. 1 building, P Jiuxi Plaza, No.37, Jiancai Road, Chenghua Zone, Chengdu
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 40 | ~ | 70 | GHz |
| IL | 1.2 | dB | ||
| Isolation | 16 | dB | ||
| Input VSWR | 1.5 | |||
| Output VSWR | 1.5 | |||
| Amplitude balance | 0.5 | dB | ||
| Phase balance | 5 | ° |
Other parameters
| Power | 5W Design assurance |
| way | 2-way |
| Phase | 0° |
| Impedance | 50Ω |
| Connector | 1.85-K |
| Connector material | Stainless steel |
| Surface | Conductive oxidation |
| Product shell material | Aluminium |
| Work Temp. | -40~+70℃ Design assurance |
| Quality Grade | Industrial grade |
Port Definition
| Common port | 0 |
| Dispatch Port | 1，2 |
Typical test data
| Frequency(GHz) | S11 VSWR | S12 IL dB | S13 IL dB | S12 Phase (°) | S23 ISO dB |
| 20 | 1.5 | -3.6 | -3.63 | 0.17 | -27.11 |
| 23.57 | 1.38 | -3.4 | -3.51 | 0.06 | -48.45 |
| 27.14 | 1.12 | -3.37 | -3.4 | -0.06 | -25.1 |
| 30.71 | 1.19 | -3.52 | -3.42 | 0.28 | -27.29 |
| 34.29 | 1.19 | -3.38 | -3.43 | 0.23 | -22.31 |
| 37.86 | 1.09 | -3.44 | -3.45 | 0.26 | -19.38 |
| 41.43 | 1.07 | -3.39 | -3.32 | -0.05 | -19.43 |
| 45 | 1.24 | -3.39 | -3.51 | -0.44 | -18.04 |
| 48.57 | 1.42 | -3.28 | -3.36 | -0.97 | -21.79 |
| 52.14 | 1.07 | -3.33 | -3.37 | -0.8 | -22.49 |
| 55.71 | 1.17 | -3.44 | -3.59 | -0.69 | -22.04 |
| 59.29 | 1.17 | -3.41 | -3.63 | -1.22 | -19.82 |
| 62.86 | 1.24 | -3.75 | -3.77 | -1.15 | -18.68 |
| 66.43 | 1.3 | -3.61 | -3.55 | -1.21 | -23.63 |
| 70 | 1.34 | -3.52 | -3.76 | -2.4 | -16.61 |

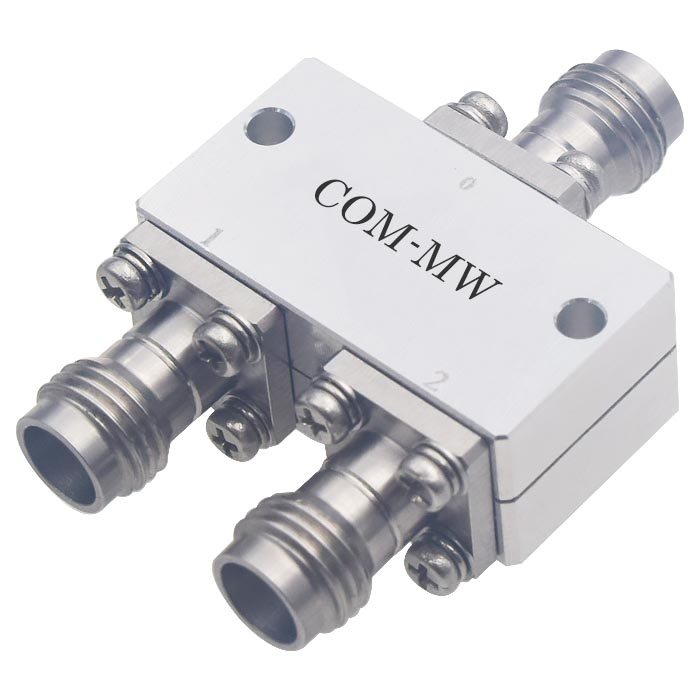

Reference picture

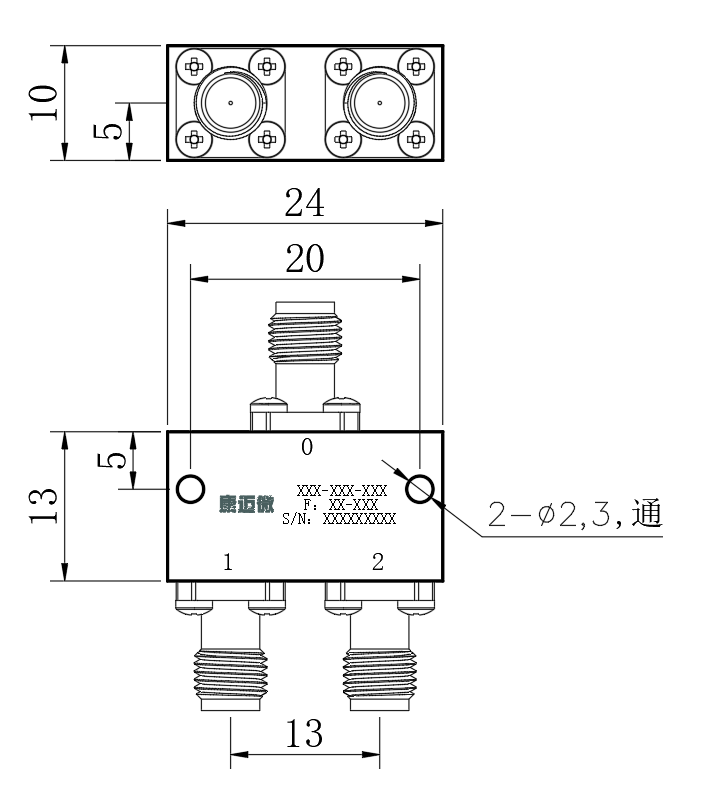

Configuration(mm)

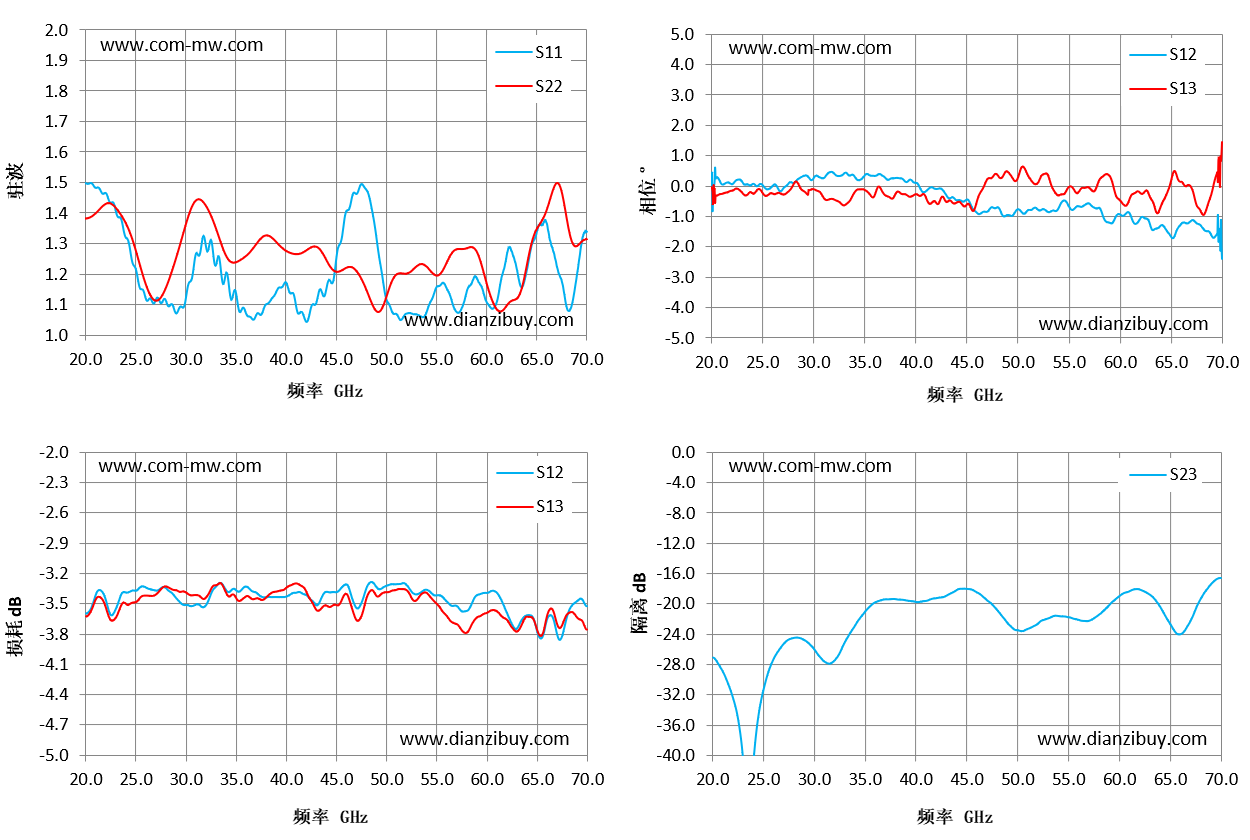

Typical test curve
Note
| 1 | Please do not wash the product in the cleaning solution.,Please do not wash the product in the cleaning solution. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
