Switch 1K32426T
In Stock 5
DC~26.5GHz, SP3T, Mechanical reflective switch, 15ms, 2.92
$ 522.72
Delivery Time ： 1-3 Day(WorkDay)
Terms: Ex Work from Chengdu,China warehouse, minimum order amount US$200. Keeping registered and logged in, check discounts by adding to cart
MOQ : 1
Attention: The online trading belongs to commercial activities, the final transaction price might be lower than tag price, subject to automatically system calculating.
- Contact Us
- Cynthia
- cynthia@com-mw.com
sales@com-mw.com
+86 19938031308- 23 floor, No. 1 building, P Jiuxi Plaza, No.37, Jiancai Road, Chenghua Zone, Chengdu
Tech specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | DC | ~ | 26.5 | GHz |
| IL | 0.7 | dB | ||
| Isolation | 70 | dB | ||
| VSWR | 1.4 |
Other parameters
| Switch way | SP3T TTL Control |
| Switching characteristic | Mechanical reflective switch |
| Switch time | 15ms |
| Connector | 2.92-K |
| Impedance | 50Ω |
| Power | 30W@6GHz；15W@18GHz；10W@26.5GHz |
| Working voltage | +24V |
| Working current | 160mA |
| Work Temp. | -40~+85℃ Design assurance |
| Other | Control port: D-Sub9 Male |

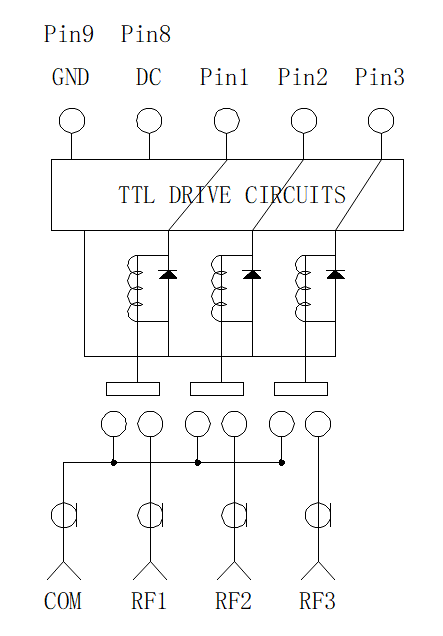

Control circuit diagram
Port Definition
| Common port | COM |
| Branching port | 1，2，3 |
Typical test data
| Frequency(GHz) | S00 VSWR | S11 VSWR | S01 IL dB | S12 ISO dB | S03 Phase (°) |
| 0.1 | 1.01 | 1.01 | -0.01 | -70.72 | |
| 6 | 1.17 | 1.13 | -0.11 | -80.07 | -0.15 |
| 9 | 1.08 | 1.06 | -0.08 | -84.87 | -0.22 |
| 12 | 1.09 | 1.09 | -0.11 | -82.33 | -0.29 |
| 18 | 1.13 | 1.16 | -0.21 | -78.68 | -0.54 |
| 25 | 1.48 | 1.33 | -0.34 | -79.42 | -0.71 |
| 28 | 1.48 | 1.41 | -0.46 | -74.9 | -1.25 |
| 34 | 2.17 | 1.92 | -0.55 | -75.5 | -3.1 |
| 40 | 1.53 | 1.58 | -0.64 | -72.82 | -4.09 |

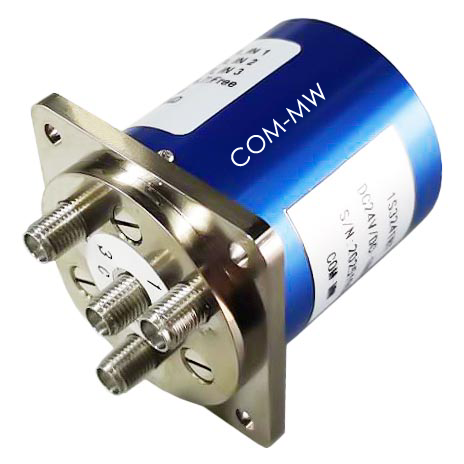

Reference picture

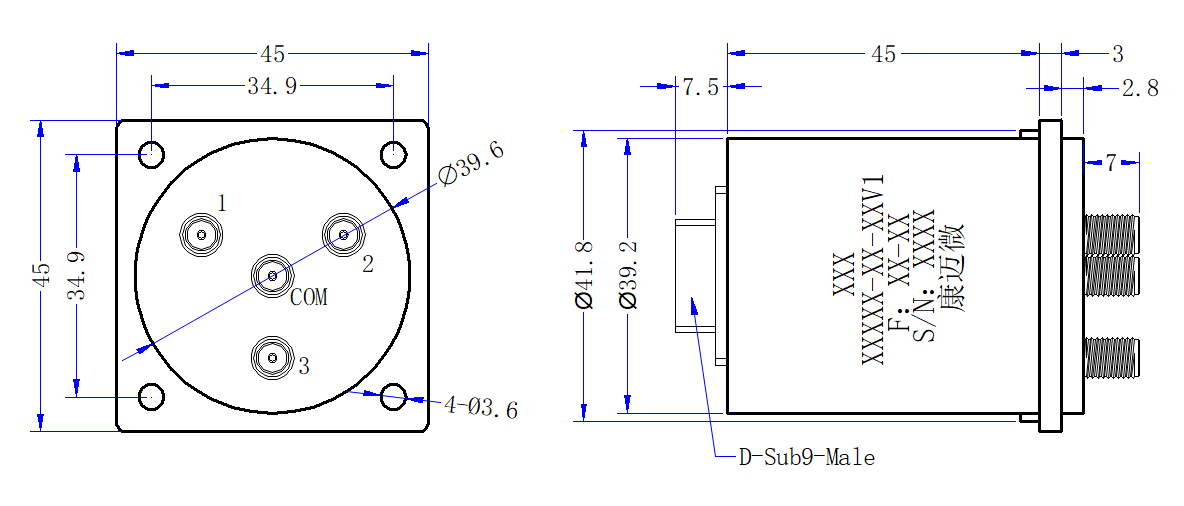

Configuration(mm)

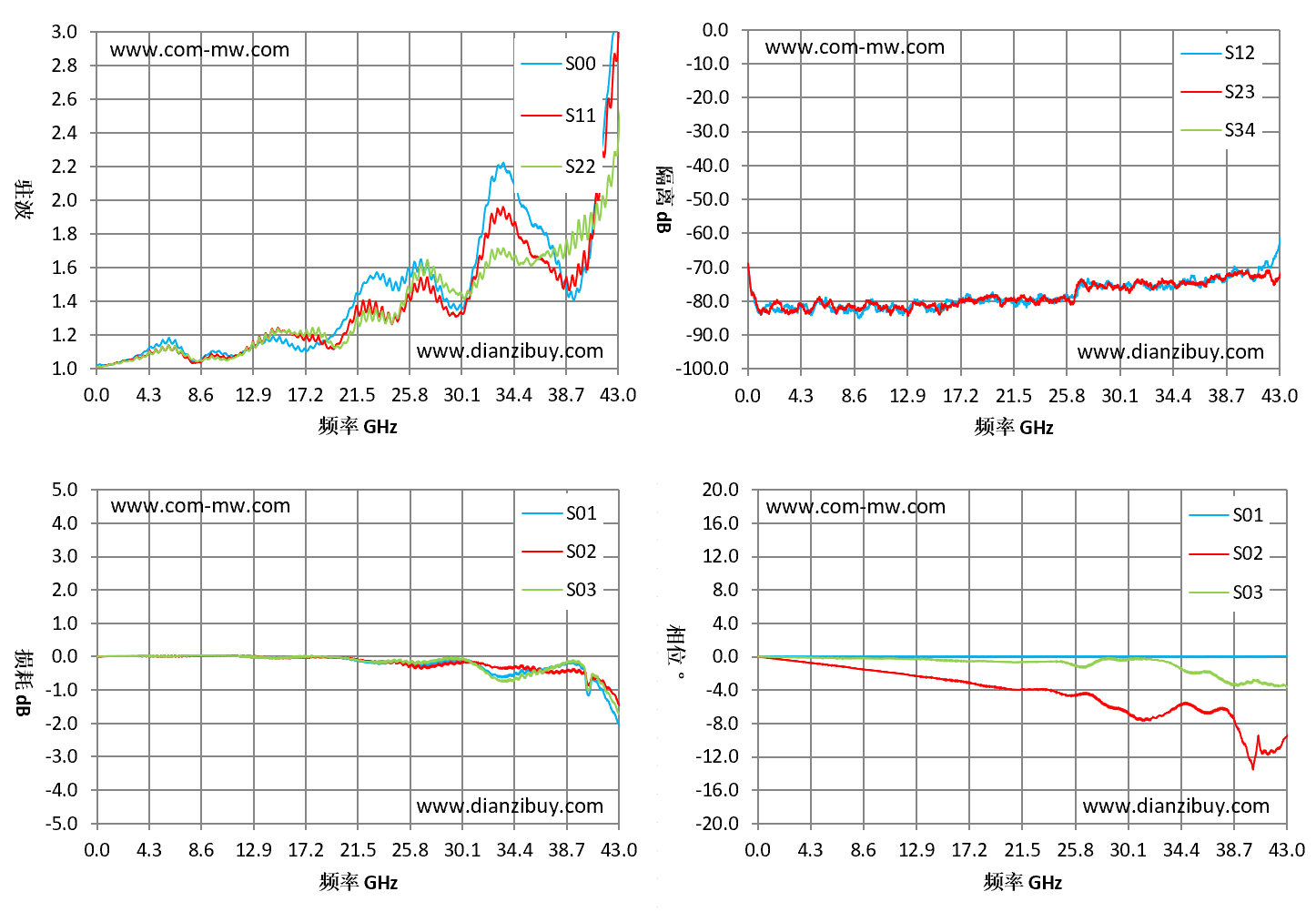

Typical test curve
Note
| 1 | Please do not wash the product in the cleaning solution.,Please do not wash the product in the cleaning solution. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
