Power divider ZPD8-2M18-40G-2090
In Stock 29
18~40GHz, 15W, 2way, Phase0°, 2.92
$ 122.86
Delivery Time ： 1-3 Day(WorkDay)
Terms: Ex Work from Chengdu warehouse, minimum order amount US$200. The product is produced by COM-MW Technology Co.,Ltd and sold by Dianzibuy Inc.
MOQ : 1
Attention: The online trading belongs to commercial activities, the final transaction price might be lower than tag price, subject to automatically system calculating; The price is competitive, product fully tested and qualified, we will offer certificate of conformity, no test report.
- Contact Us
- Cynthia
- cynthia@com-mw.com
sales@com-mw.com
+86 19938031308- 23 floor, No. 1 building, P Jiuxi Plaza, No.37, Jiancai Road, Chenghua Zone, Chengdu
Product features
Broadband, high-power.
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 18 | ~ | 40 | GHz |
| IL | 1 | dB | ||
| Isolation | 15 | 18 | dB | |
| Input VSWR | 1.5 | 1.6 | ||
| Output VSWR | 1.5 | 1.6 | ||
| Amplitude balance | 0.6 | dB | ||
| Phase balance | 6 | ° |
Other parameters
| Power Capacity | 15W |
| X-Way | 2-way |
| Phase | 0° |
| Impedance | 50Ω |
| Connector | 2.92-K |
| Connector material | Stainless steel |
| Surface | White |
| Product shell material | Aluminium |
| Operation Temp. | -30~+70℃ Design assurance |
| Other | Excluding allocation loss 3dB |
Port Definition
| Common port | 0 |
| Dispatch Port | 1,2 |
Typical test data
| Frequency(GHz) | S11 VSWR | S12 IL dB | S21BPhase (°) | S23 ISO dB |
| 17 | 1.11 | -3.22 | 0.28 | -36 |
| 18.71 | 1.19 | -3.27 | 0.31 | -29.08 |
| 20.43 | 1.22 | -3.29 | 0.29 | -29.32 |
| 22.14 | 1.23 | -3.28 | 0.28 | -24.5 |
| 23.86 | 1.2 | -3.27 | 0.95 | -23.13 |
| 25.57 | 1.12 | -3.2 | 0.21 | -31.07 |
| 27.29 | 1.23 | -3.49 | 0.54 | -28.87 |
| 29 | 1.34 | -3.43 | 1.02 | -23.52 |
| 30.71 | 1.26 | -3.47 | 0.96 | -25.02 |
| 32.43 | 1.31 | -3.47 | 1.02 | -24.47 |
| 34.14 | 1.38 | -3.53 | 0.56 | -21.11 |
| 35.86 | 1.21 | -3.66 | 0.15 | -20.5 |
| 37.57 | 1.07 | -3.55 | 0.48 | -22.94 |
| 39.29 | 1.22 | -3.36 | 0.63 | -34.31 |
| 41 | 1.35 | -3.45 | 1.04 | -26.02 |

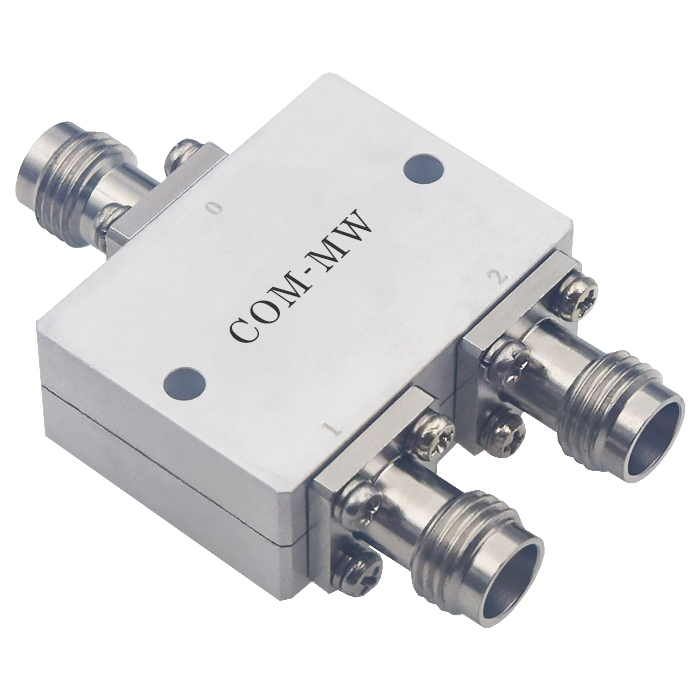

Reference picture

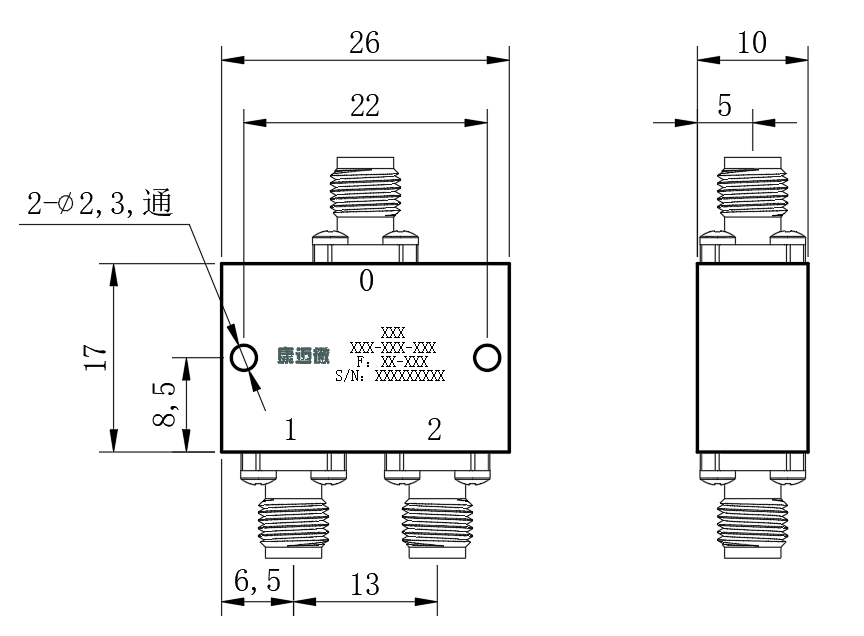

Configuration(mm)

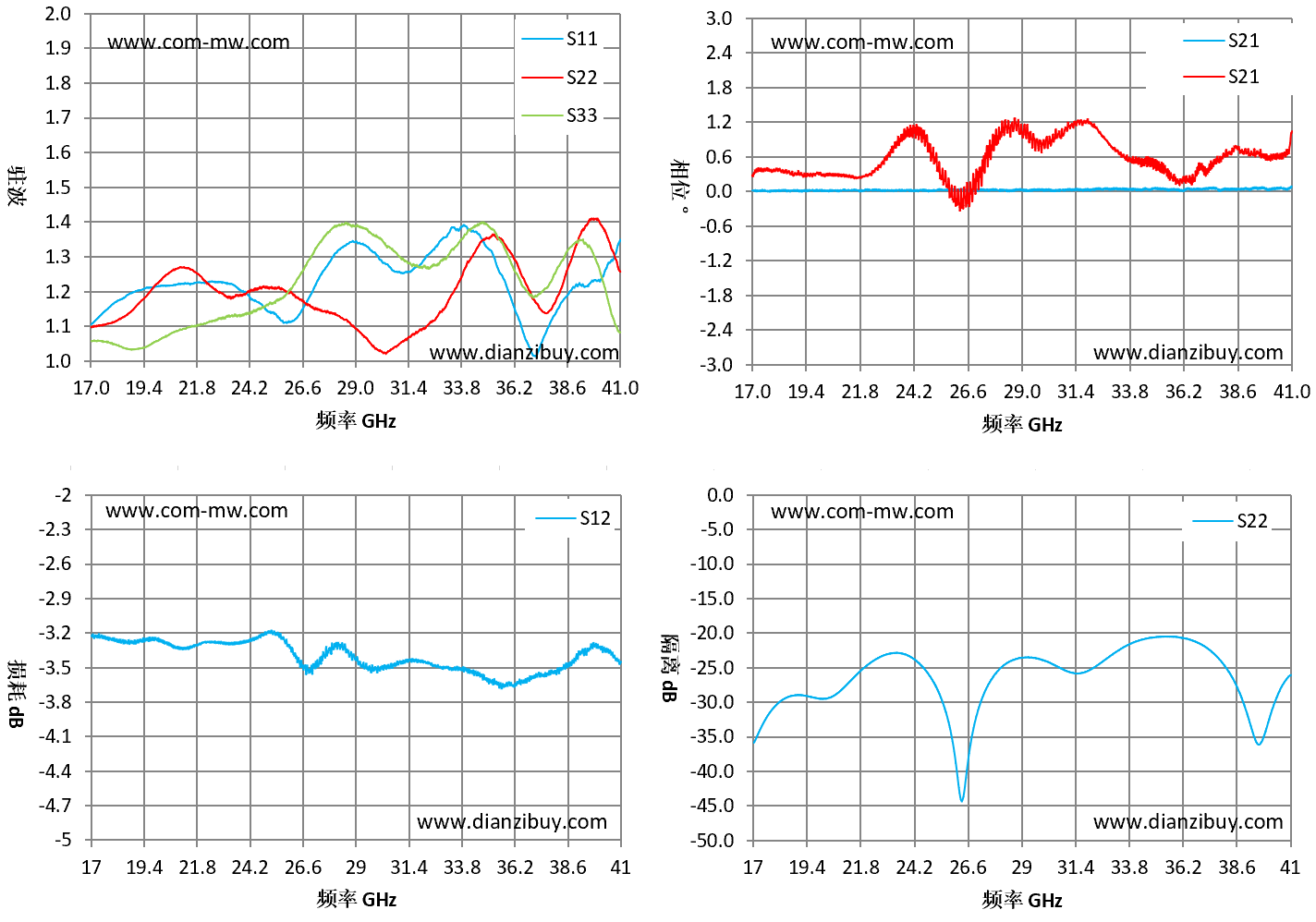

Typical test curve
Note
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
