LNA DLNA8-0.1-18G-2223
In Stock 11
100~18000MHz, Gain24dB, Noise figure3.2dB, P-1dB22dBm, SMA
$ 1357.15
Delivery Time ： 1-3 Day(WorkDay)
Terms: Ex Work from Chengdu,China warehouse, minimum order amount US$200. Keeping registered and logged in, check discounts by adding to cart
MOQ : 1
Attention: The online trading belongs to commercial activities, the final transaction price might be lower than tag price, subject to automatically system calculating.
- Contact Us
- Cynthia
- cynthia@com-mw.com
sales@com-mw.com
+86 19938031308- 23 floor, No. 1 building, P Jiuxi Plaza, No.37, Jiancai Road, Chenghua Zone, Chengdu
Product features
Broadband, low noise.
Main specifications
| Parameters | Min | Typical | Max | Units | |
| Frequency | 100 | ~ | 18000 | MHz | |
| Gain | 20 | 24 | dB | ||
| Gain flatness | ±1.6 | ±2.0 | dB | ||
| Noise figure | 3.2 | 4.5 | dB | 4.5@＜900MHz | |
| Input VSWR | 2.3 | 2.5 | |||
| Output VSWR | 2.0 | 2.3 | |||
| P-1dB | 20 | 22 | dBm |
Other parameters
| Connector | SMA-K detachable, Pin 0.38mm |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Gold-plating |
| Working voltage | +15V（13~18V） |
| Working current | 360mA（TYP:280mA） |
| Operation Temp. | -40~+75℃ Design assurance |
| Other | Compliant with Rohs, If the amplifier is connected to the antenna, electrostatic protection or isolation measures should be taken. |
| Max input power | +13dBm |
| Max voltage input | +20V |
Typical test data
| Frequency(GHz) | S11 VSWR | S22 VSWR | S21 gain | S21 Noise | S21 P-1dB |
| 0.1 | 2.36 | 1.71 | 29.12 | 3.57 | 24.1 |
| 1.45 | 1.27 | 1.23 | 29.21 | 2.18 | 24.5 |
| 2.8 | 1.13 | 1.25 | 28.19 | 2.12 | 24.7 |
| 4.15 | 1.21 | 1.23 | 27.65 | 1.98 | 24.6 |
| 5.5 | 1.74 | 1.11 | 26.31 | 2.12 | 24.5 |
| 6.85 | 1.42 | 1.15 | 27.16 | 2.13 | 25 |
| 8.2 | 1.24 | 1.23 | 27.13 | 2.08 | 24.5 |
| 9.55 | 1.6 | 1.29 | 26.41 | 2.05 | 24 |
| 10.9 | 1.4 | 1.25 | 26.76 | 2.17 | 23.8 |
| 12.25 | 1.29 | 1.27 | 27.19 | 2.18 | 23.5 |
| 13.6 | 1.89 | 1.34 | 27.27 | 2.19 | 23.2 |
| 14.95 | 1.12 | 1.31 | 26.38 | 2.27 | 23 |
| 16.3 | 1.84 | 1.26 | 27 | 2.42 | 23.2 |
| 17.65 | 1.42 | 1.03 | 27.23 | 2.52 | 22.9 |
| 19 | 1.7 | 1.04 | 26.94 | 2.71 | 23 |

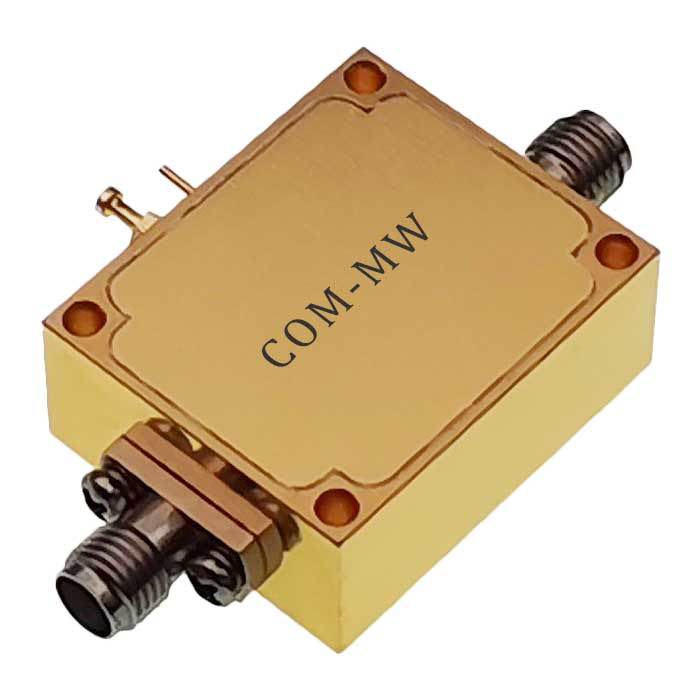

Reference picture

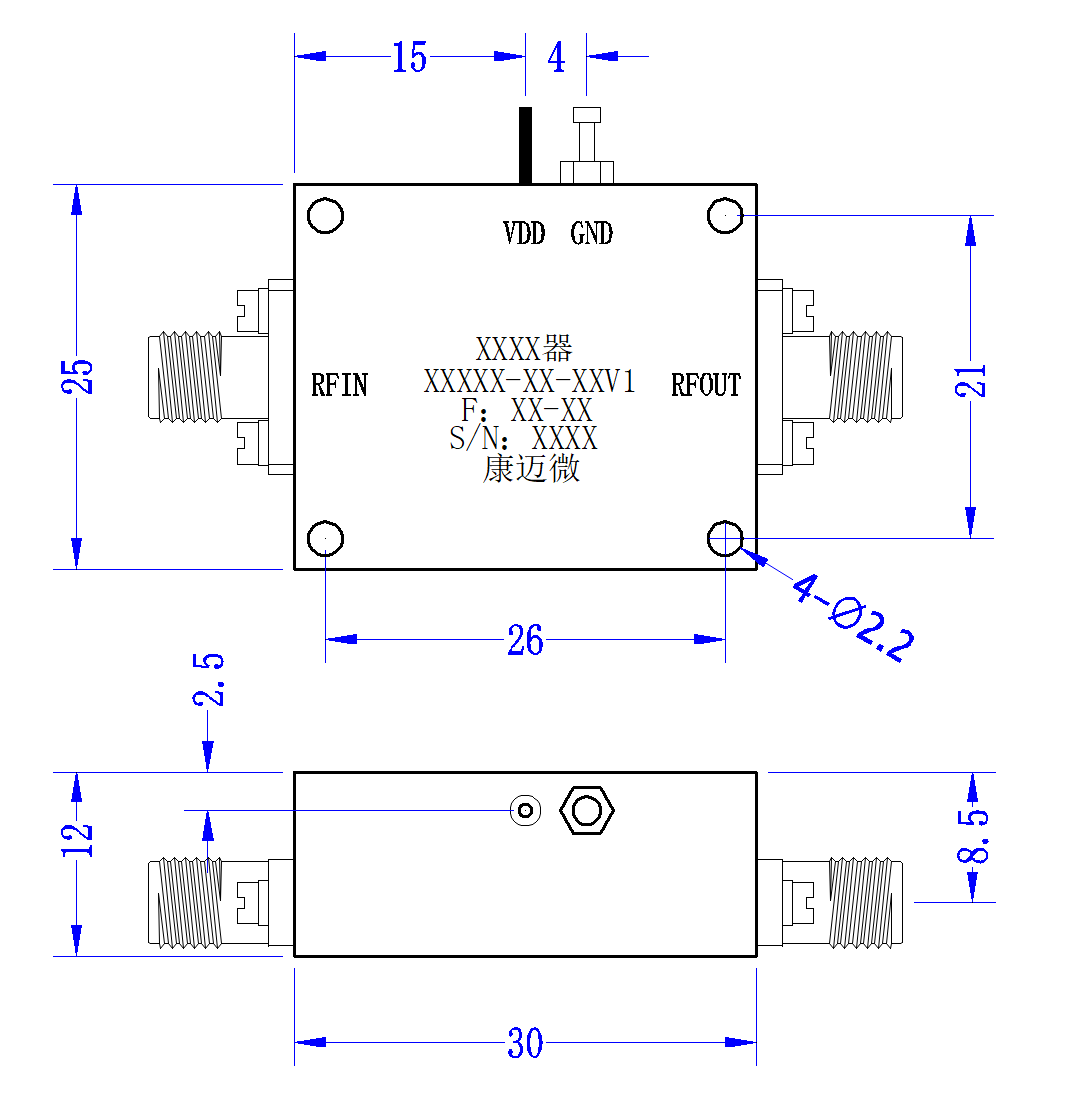

Configuration(mm)

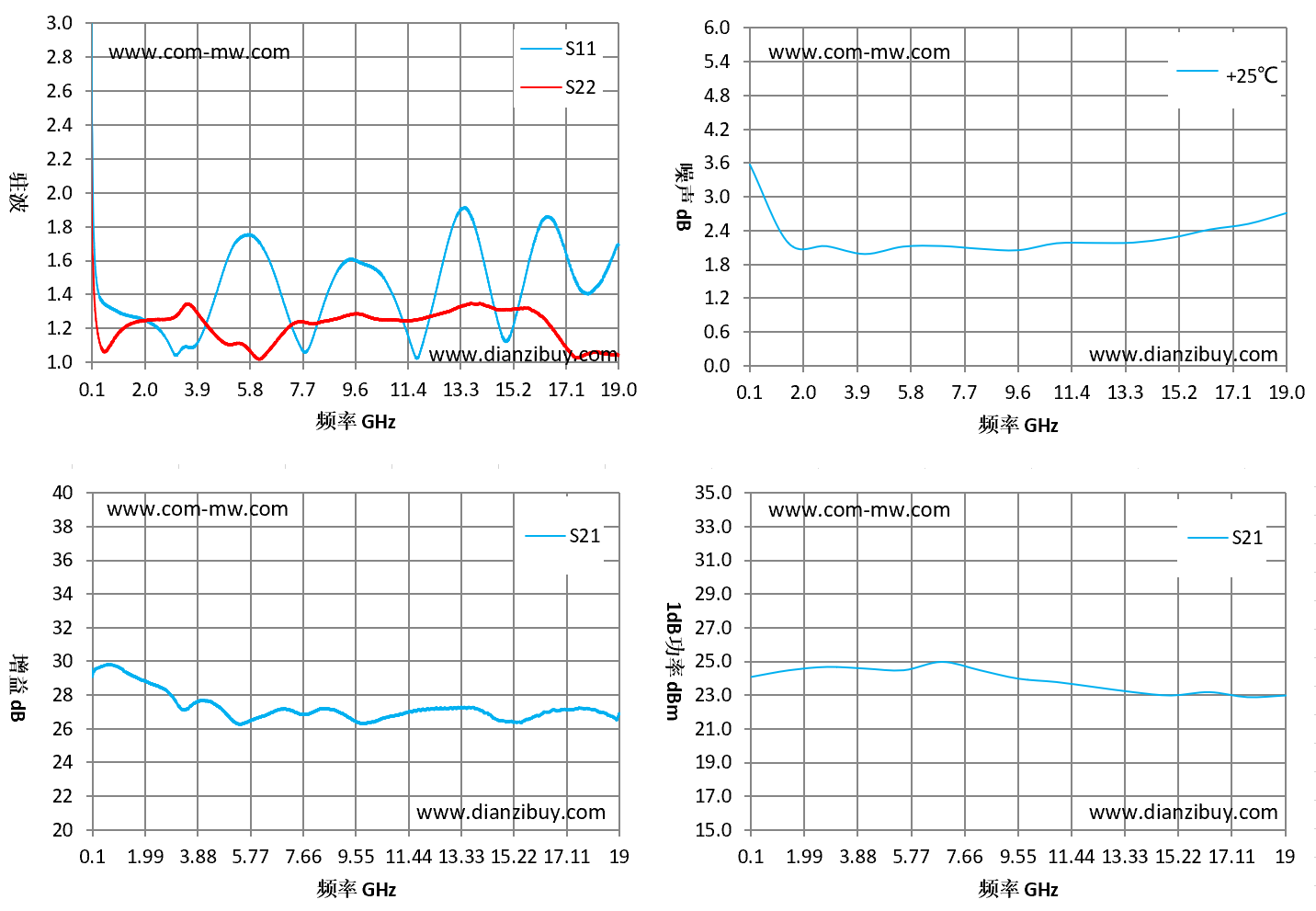

Typical test curve
Note
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
