Coupler C0060
In Stock 92
5~1000MHz, Coupling10.3dB, SMD, 1W, /
$ 4.49
Delivery Time ： 1-3 Day(WorkDay)
Terms: Ex Work from Chengdu warehouse, minimum order amount US$200. The product is produced by COM-MW Technology Co.,Ltd and sold by Dianzibuy Inc.
MOQ : 1
Attention: The online trading belongs to commercial activities, the final transaction price might be lower than tag price, subject to automatically system calculating; The price is competitive, product fully tested and qualified, we will offer certificate of conformity, no test report.
- Contact Us
- Cynthia
- cynthia@com-mw.com
sales@com-mw.com
+86 19938031308- 23 floor, No. 1 building, P Jiuxi Plaza, No.37, Jiancai Road, Chenghua Zone, Chengdu
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 5 | ~ | 1000 | MHz |
| IL | 1.5 | 2 | dB | |
| Coupling | 9.8 | 10.3 | 10.8 | dB |
| Directivity | 10 | 16 | dB | |
| Main line VSWR | 1.3 | |||
| Coupled line VSWR | 1.3 |
Other parameters
| Connector | SMD |
| Impedance | 50Ω |
| Power Capacity | 1W |
| Operation Temp. | -40~+85℃ Design assurance |
| Storage Temp. | -55~+100℃ Design assurance |
| Quality Grade | Industrial grade |
| Other | / |
Port Definition
| Input port | 3 |
| Output port | 4 |
| Coupling port | 1 |
| GND | 2 |

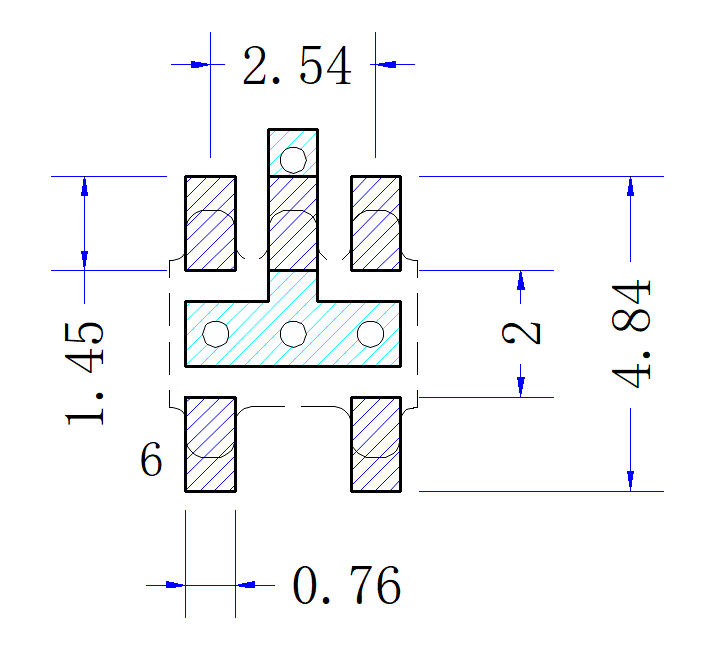

Suggested PCB Layout

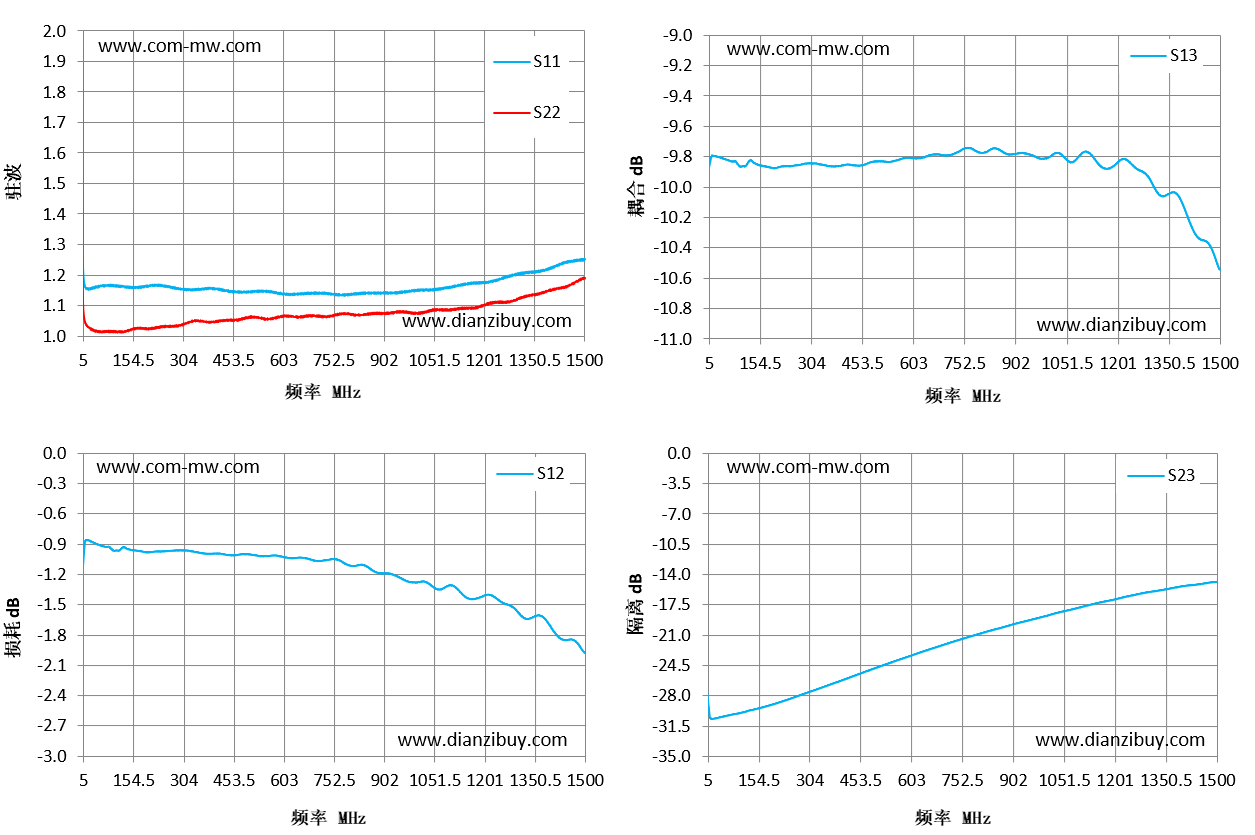

Typical test curve

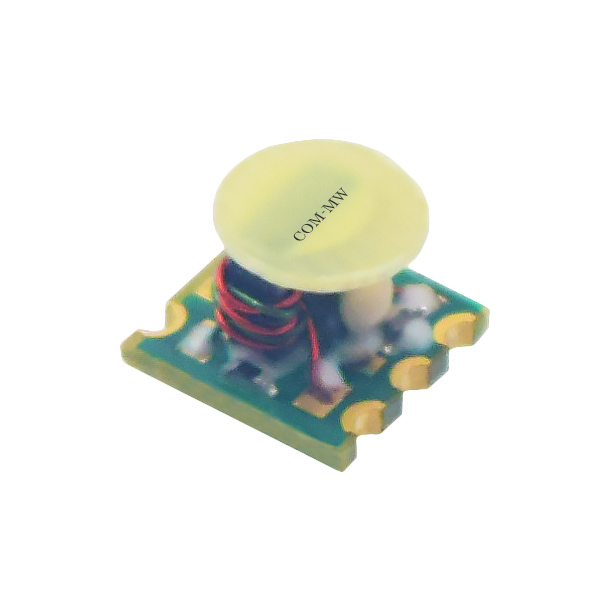

Reference picture

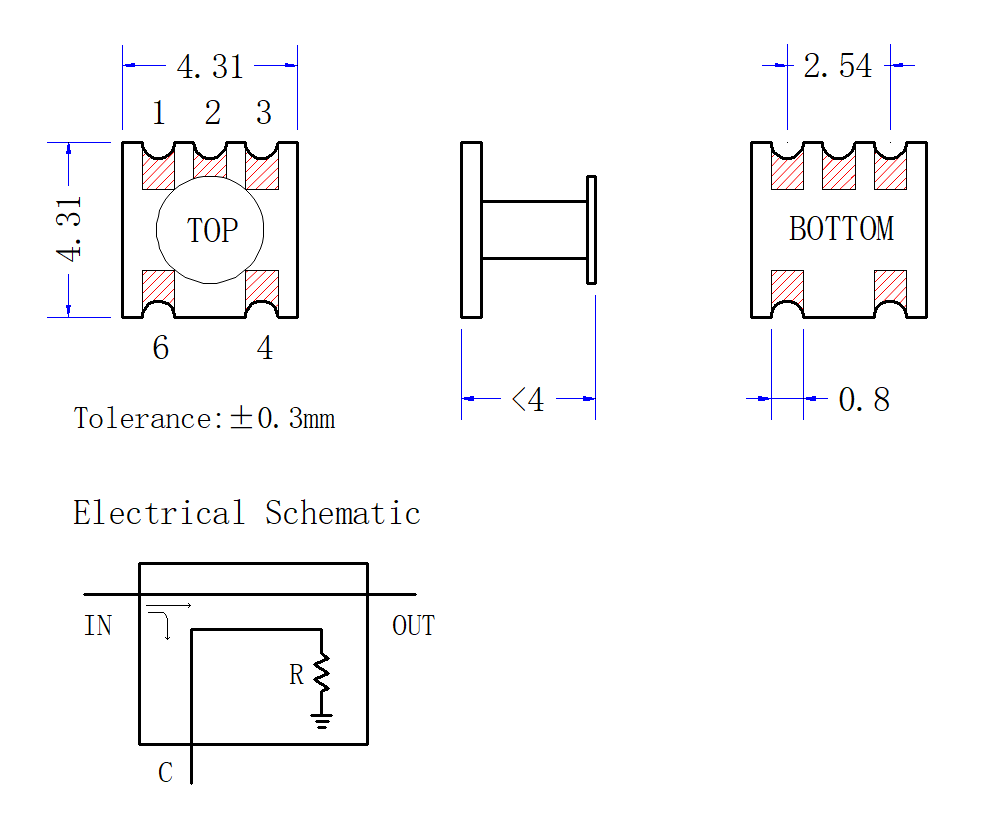

Configuration(mm)
Typical test data
| Frequency(MHz) | S11 VSWR | S22 VSWR | S12 IL dB | S13 coupling | S23 ISO dB |
| 5 | 1.19 | 1.08 | -1.04 | -9.85 | -29.16 |
| 112 | 1.16 | 1.01 | -0.96 | -9.86 | -29.84 |
| 219 | 1.17 | 1.03 | -0.97 | -9.86 | -28.67 |
| 325 | 1.15 | 1.05 | -0.97 | -9.85 | -27.22 |
| 432 | 1.15 | 1.05 | -1 | -9.86 | -25.71 |
| 539 | 1.15 | 1.06 | -1.02 | -9.83 | -24.19 |
| 646 | 1.14 | 1.06 | -1.03 | -9.79 | -22.75 |
| 753 | 1.14 | 1.07 | -1.04 | -9.74 | -21.42 |
| 859 | 1.14 | 1.07 | -1.14 | -9.76 | -20.22 |
| 966 | 1.15 | 1.08 | -1.26 | -9.81 | -19.11 |
| 1073 | 1.16 | 1.09 | -1.34 | -9.83 | -18.05 |
| 1180 | 1.17 | 1.09 | -1.44 | -9.87 | -17.05 |
| 1286 | 1.2 | 1.12 | -1.53 | -9.92 | -16.13 |
| 1393 | 1.22 | 1.15 | -1.69 | -10.12 | -15.41 |
| 1500 | 1.25 | 1.19 | -1.98 | -10.54 | -14.87 |
Note
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | The product supports 260 ℃ reflow soldering. |
