Power divider ZPD8-2M18-50G-1997
In Stock 19
18~50GHz, 10W, 2way, Phase0°, 2.4
$ 198.58
Delivery Time ： 1-3 Day(WorkDay)
Terms: Ex Work from Chengdu,China warehouse, minimum order amount US$200. Keeping registered and logged in, check discounts by adding to cart
MOQ : 1
Attention: The online trading belongs to commercial activities, the final transaction price might be lower than tag price, subject to automatically system calculating; The price is competitive, product fully tested and qualified, we will offer certificate of conformity, no test report.
- Contact Us
- Cynthia
- cynthia@com-mw.com
sales@com-mw.com
+86 19938031308- 23 floor, No. 1 building, P Jiuxi Plaza, No.37, Jiancai Road, Chenghua Zone, Chengdu
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 18 | ~ | 50 | GHz |
| IL | 1 | dB | ||
| Isolation | 13 | dB | ||
| Input VSWR | 1.5 | 1.6 | ||
| Output VSWR | 1.5 | 1.7 | ||
| Amplitude balance | 0.6 | dB | ||
| Phase balance | 10 | ° |
Other parameters
| Power Capacity | 10W |
| X-Way | 2-way |
| Phase | 0° |
| Impedance | 50Ω |
| Connector | 2.4-K |
| Connector material | Stainless steel |
| Product shell material | Aluminium |
| Operation Temp. | -40~+85℃ Design assurance |
| Quality Grade | Industrial grade |
Port Definition
| Common port | 0 |
| Dispatch Port | 1，2 |
Typical test data
| Frequency(GHz) | S11 VSWR | S22 VSWR | S12 IL dB | S13 Phase (°) | S23 ISO dB |
| 18 | 1.28 | 1.15 | -3.16 | -0.83 | -27.15 |
| 20.29 | 1.28 | 1.09 | -3.19 | -0.75 | -18.95 |
| 22.57 | 1.2 | 1.15 | -3.13 | -0.43 | -17.58 |
| 24.86 | 1.46 | 1.26 | -3.38 | -1.03 | -21.72 |
| 27.14 | 1.36 | 1.2 | -3.23 | -1.32 | -23.25 |
| 29.43 | 1.08 | 1.16 | -3.15 | -1.27 | -26.96 |
| 31.71 | 1.19 | 1.14 | -3.2 | -0.93 | -24.18 |
| 34 | 1.21 | 1.03 | -3.26 | -1.01 | -19.51 |
| 36.29 | 1.24 | 1.09 | -3.27 | -1.3 | -17.8 |
| 38.57 | 1.38 | 1.14 | -3.33 | -1.18 | -17.77 |
| 40.86 | 1.4 | 1.33 | -3.33 | -1.17 | -25.35 |
| 43.14 | 1.17 | 1.1 | -3.26 | -0.78 | -23.27 |
| 45.43 | 1.45 | 1.24 | -3.41 | -0.47 | -18.04 |
| 47.71 | 1.4 | 1.16 | -3.7 | -2.13 | -16.31 |
| 50 | 1.32 | 1.32 | -3.39 | -0.9 | -15.12 |

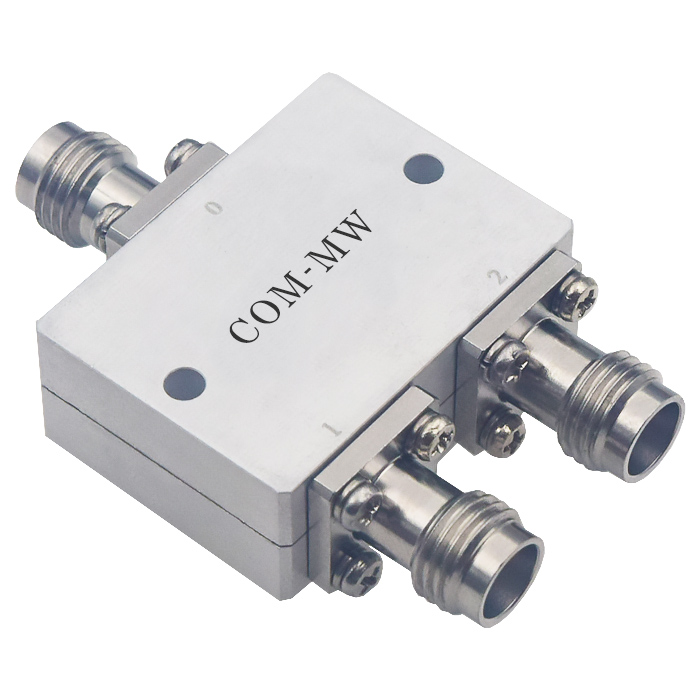

Reference picture

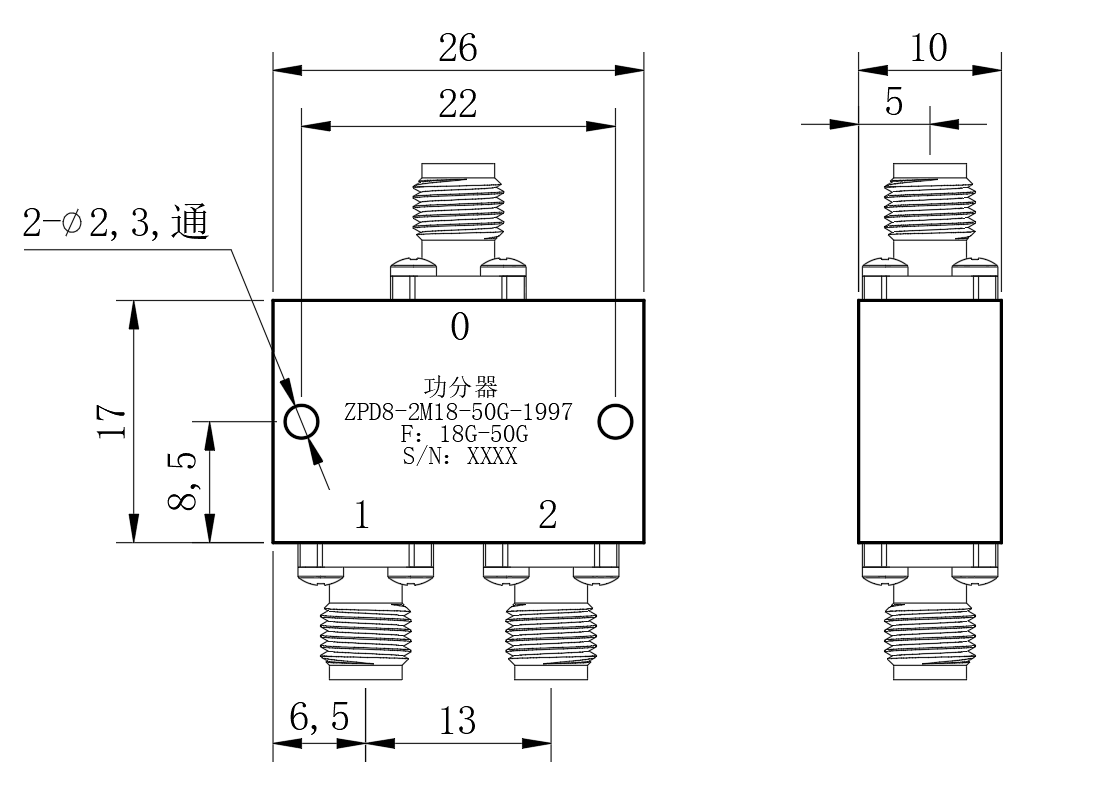

Configuration(mm)

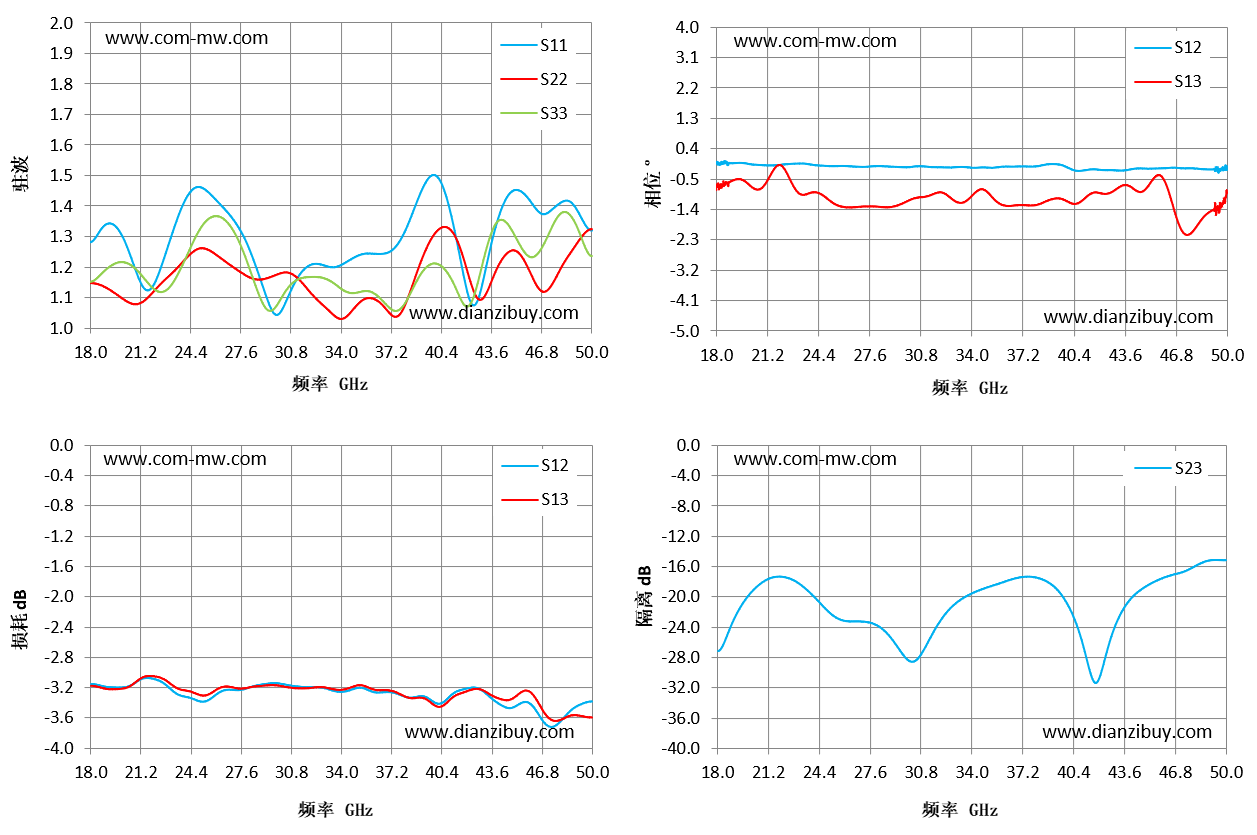

Typical test curve
Note
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
