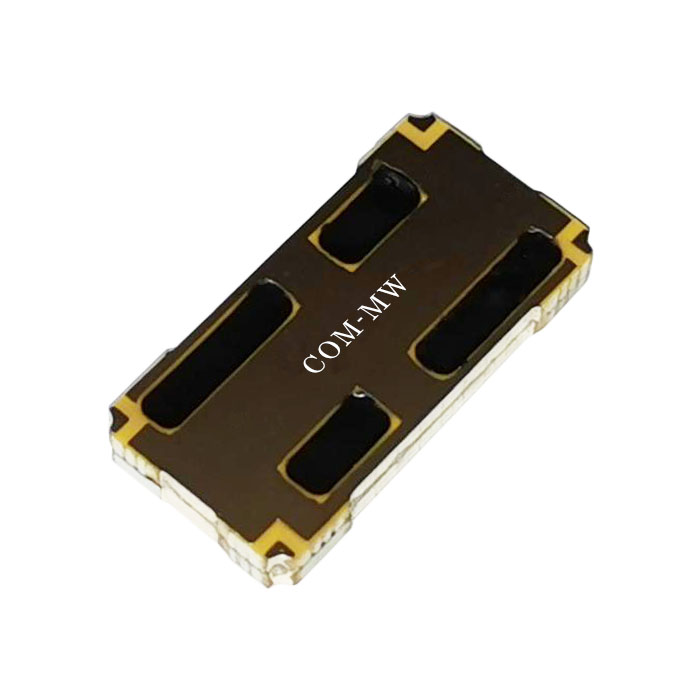

Coupler ZDC9-33M500-2500-1379
In Stock 45
500~2500MHz, Coupling33dB, SMD, 150W, /
$ 55
Delivery Time ： 1-3 Day(WorkDay)
Terms: Ex Work from Chengdu,China warehouse, minimum order amount US$200. Keeping registered and logged in, check discounts by adding to cart
MOQ : 1
Attention: The online trading belongs to commercial activities, the final transaction price might be lower than tag price, subject to automatically system calculating; The price is competitive, product fully tested and qualified, we will offer certificate of conformity, no test report.
- Contact Us
- Cynthia
- cynthia@com-mw.com
sales@com-mw.com
+86 19938031308- 23 floor, No. 1 building, P Jiuxi Plaza, No.37, Jiancai Road, Chenghua Zone, Chengdu
Product features
Broadband, high directionality, high power.
Tech specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 500 | ~ | 2500 | MHz |
| IL | 0.25 | dB | ||
| Coupling | 31.5 | 33 | 34.5 | dB |
| Directivity | 20 | dB | ||
| VSWR | 1.25 | 1.35 |
Other parameters
| Connector | SMD |
| Impedance | 50Ω |
| Power Capacity | 150W |
| Operation Temp. | -55~+85℃ Design assurance |
| Storage Temp. | -55~+85℃ Design assurance |
| Quality Grade | Industrial grade |
| Other | / |
Port Definition
| Input port | 1&2 |
| Output port | 2&1 |
| Coupling port | 3&4 |
| Isolated Port | 4&3 |

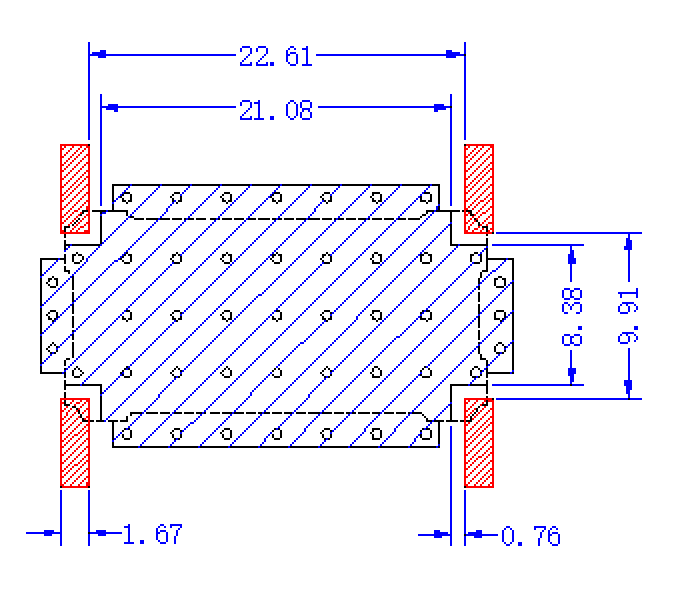

Suggested PCB Layout
Typical test data
| F(MHz) | S12 IL | S23 ISO | S11 VSWR | S33 VSWR | S13 C |
| 500 | -0.06 | -66.9 | 1.07 | 1.15 | -32.8 |
| 800 | -0.09 | -60.3 | 1.08 | 1.2 | -32.4 |
| 1000 | -0.11 | -56.1 | 1.05 | 1.21 | -32.7 |
| 1200 | -0.18 | -53.3 | 1.03 | 1.14 | -32.9 |
| 1400 | -0.14 | -53.5 | 1.04 | 1.27 | -32.8 |
| 1600 | -0.19 | -52.8 | 1.07 | 1.29 | -32.3 |
| 1900 | -0.25 | -53 | 1.15 | 1.21 | -31.5 |
| 2200 | -0.28 | -52.7 | 1.17 | 1.22 | -31.5 |
| 2500 | -0.31 | -59.9 | 1.09 | 1.28 | -32.2 |
Reference picture

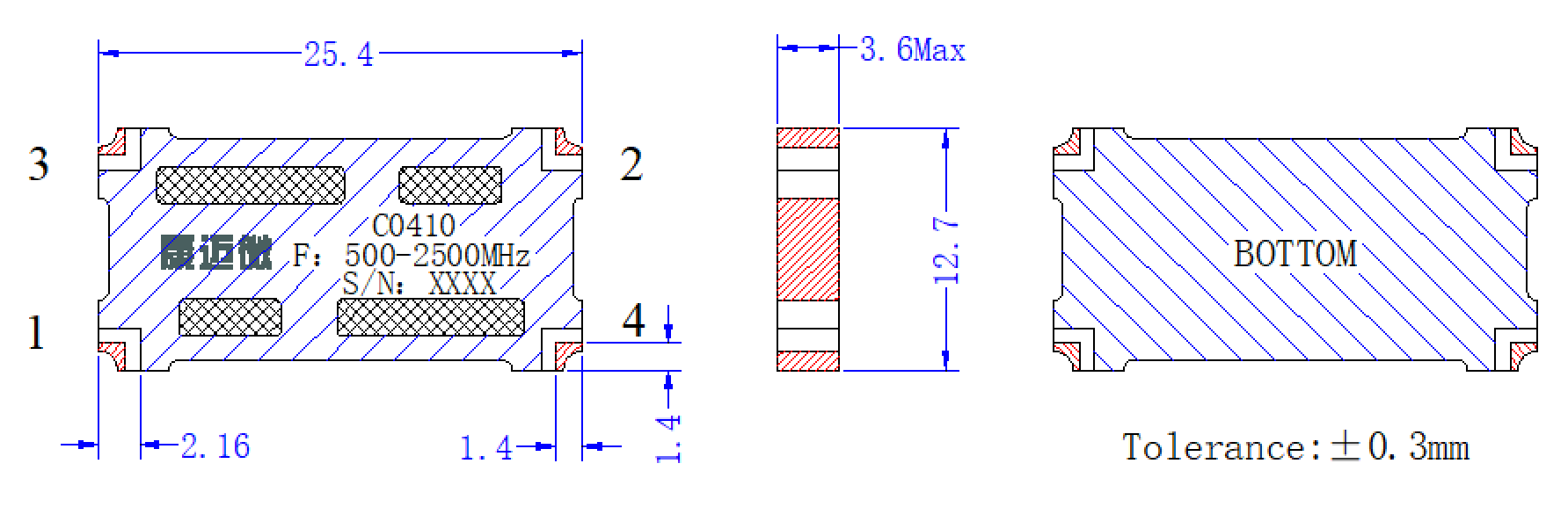

Configuration(mm)

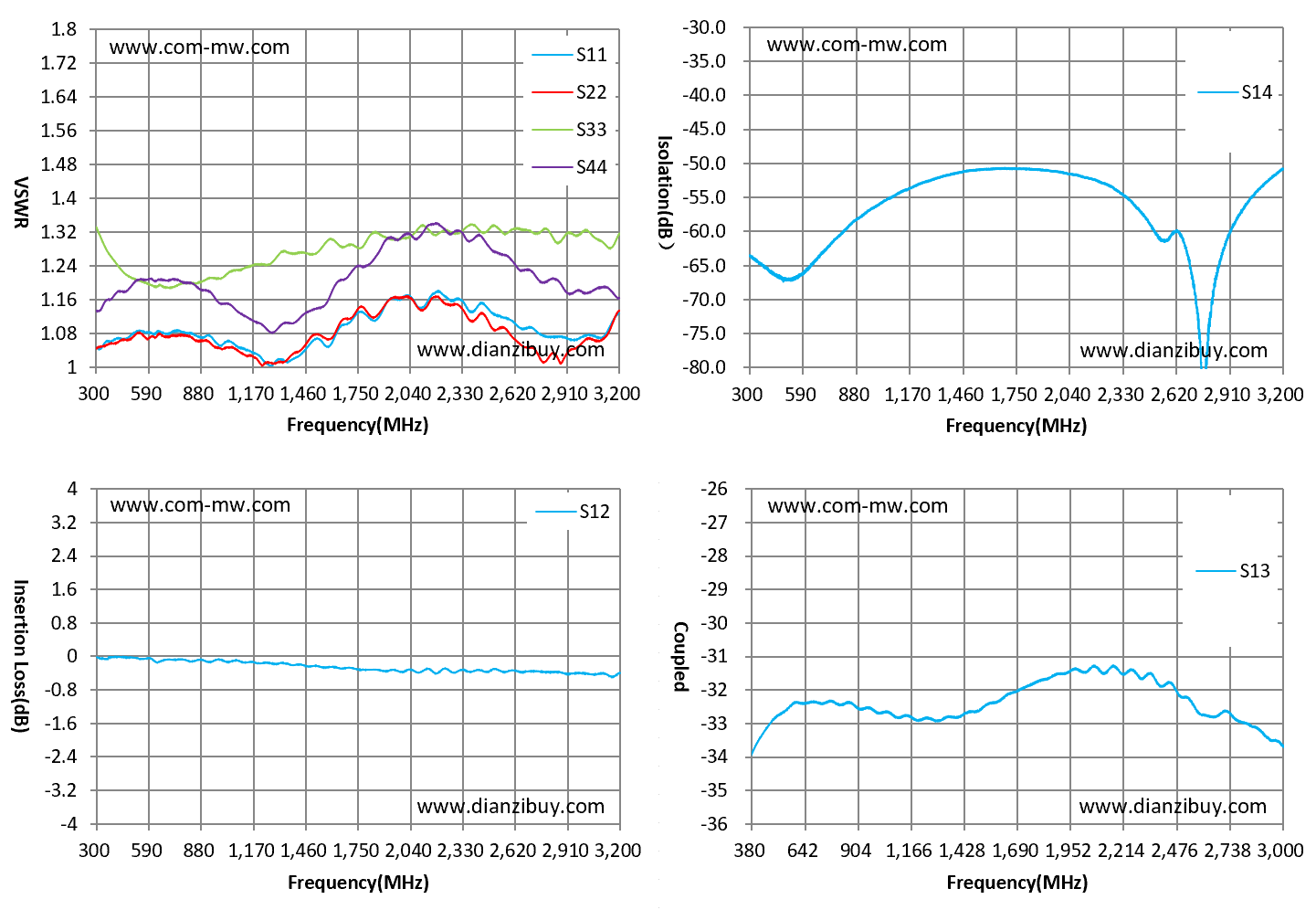

Typical test curve
Note
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | The product supports 220 ℃ reflow soldering. |
| 3 | The above figure includes the loss of the testing fixture, and the actual loss at 2500MHz can be reduced by 0.2~0.3dB. |
