Coupler C1100
In Stock 80
2000~6000MHz, Coupling20dB, SMD, 150W
$ 13.43
Delivery Time ： 1-3 Day(WorkDay)
Terms: Ex Work from Chengdu,China warehouse, minimum order amount US$200. Keeping registered and logged in, check discounts by adding to cart
MOQ : 1
Attention: The online trading belongs to commercial activities, the final transaction price might be lower than tag price, subject to automatically system calculating; The price is competitive, product fully tested and qualified, we will offer certificate of conformity, no test report.
- Contact Us
- Cynthia
- cynthia@com-mw.com
sales@com-mw.com
+86 19938031308- 23 floor, No. 1 building, P Jiuxi Plaza, No.37, Jiancai Road, Chenghua Zone, Chengdu
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 2000 | ~ | 6000 | MHz |
| IL | 0.4 | dB | ||
| Coupling | 19 | 20 | 21 | dB |
| Directivity | 20 | dB | ||
| Main line VSWR | 1.4 | |||
| Coupled line VSWR | 1.4 |
Other parameters
| Connector | SMD |
| Impedance | 50Ω |
| Power Capacity | 150W Design assurance |
| Operation Temp. | -40~+85℃ Design assurance |
| Storage Temp. | -55~+125℃ Design assurance |
| Quality Grade | Industrial grade |
Port Definition
| Input port | 1 | 2 |
| Output port | 2 | 1 |
| Coupling port | 4 | 3 |
| Isolated Port | 3 | 4 |

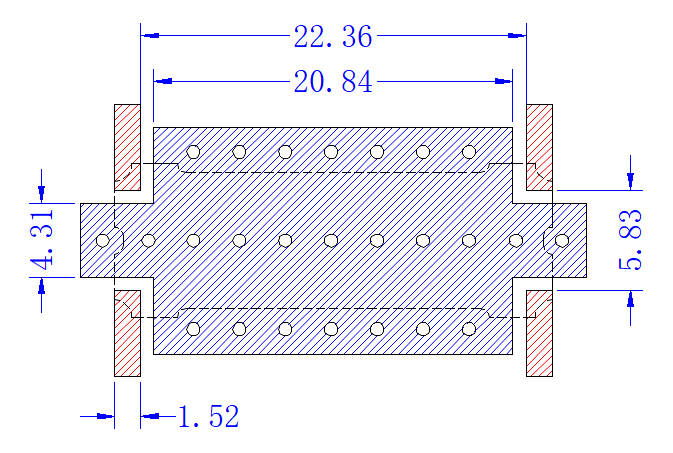

Suggested PCB Layout

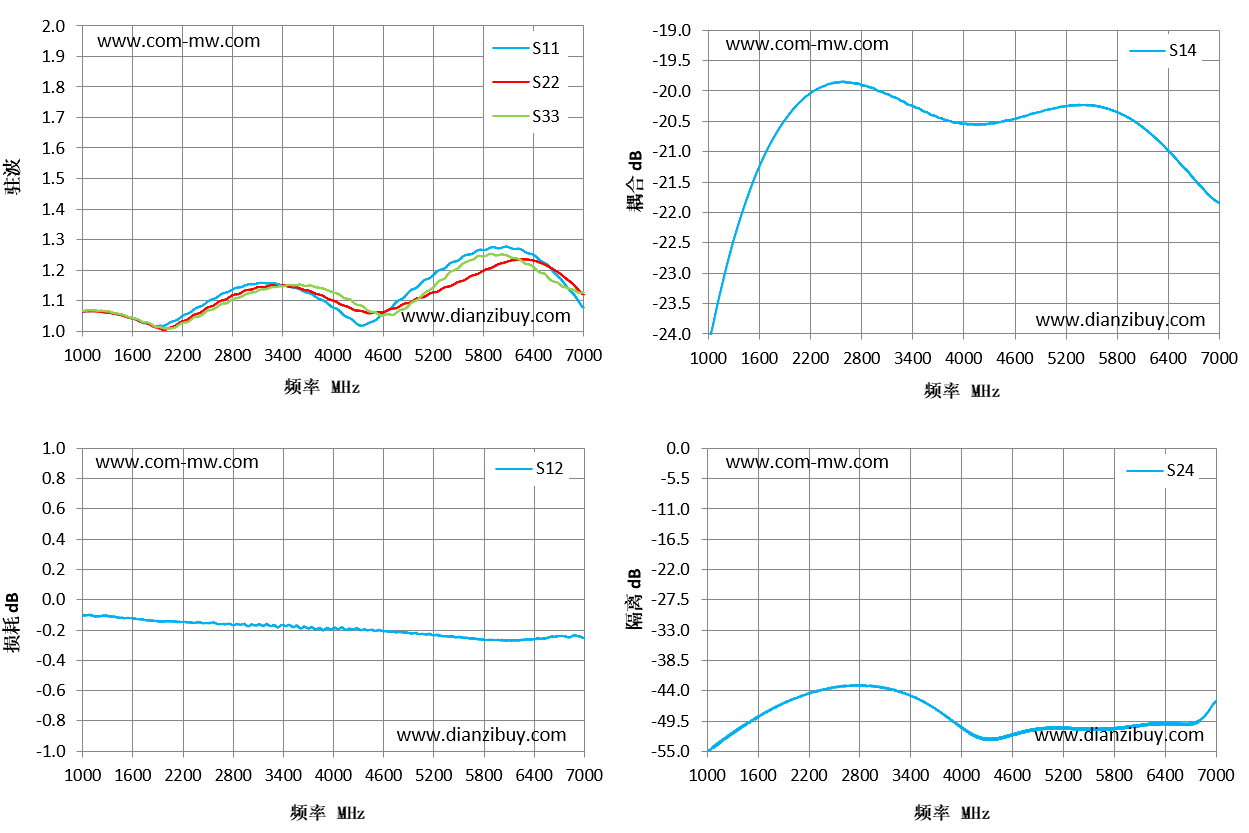

Typical test curve

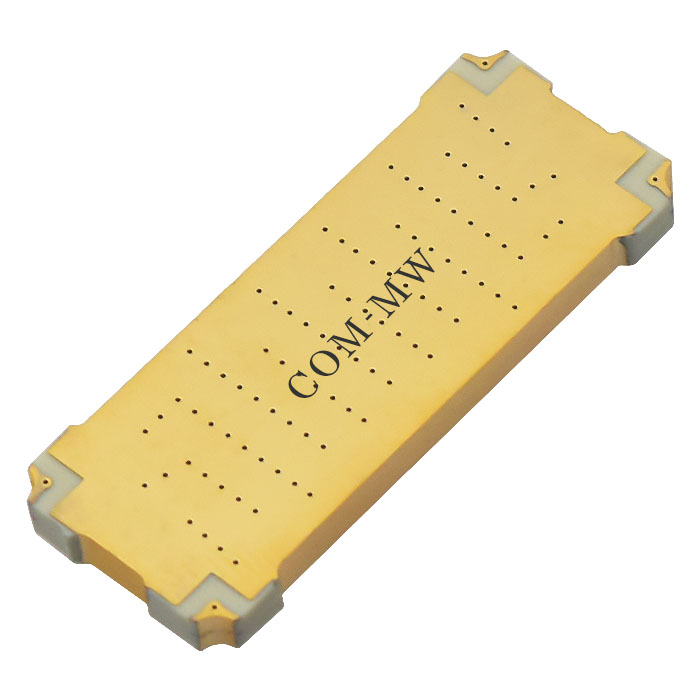

Reference picture

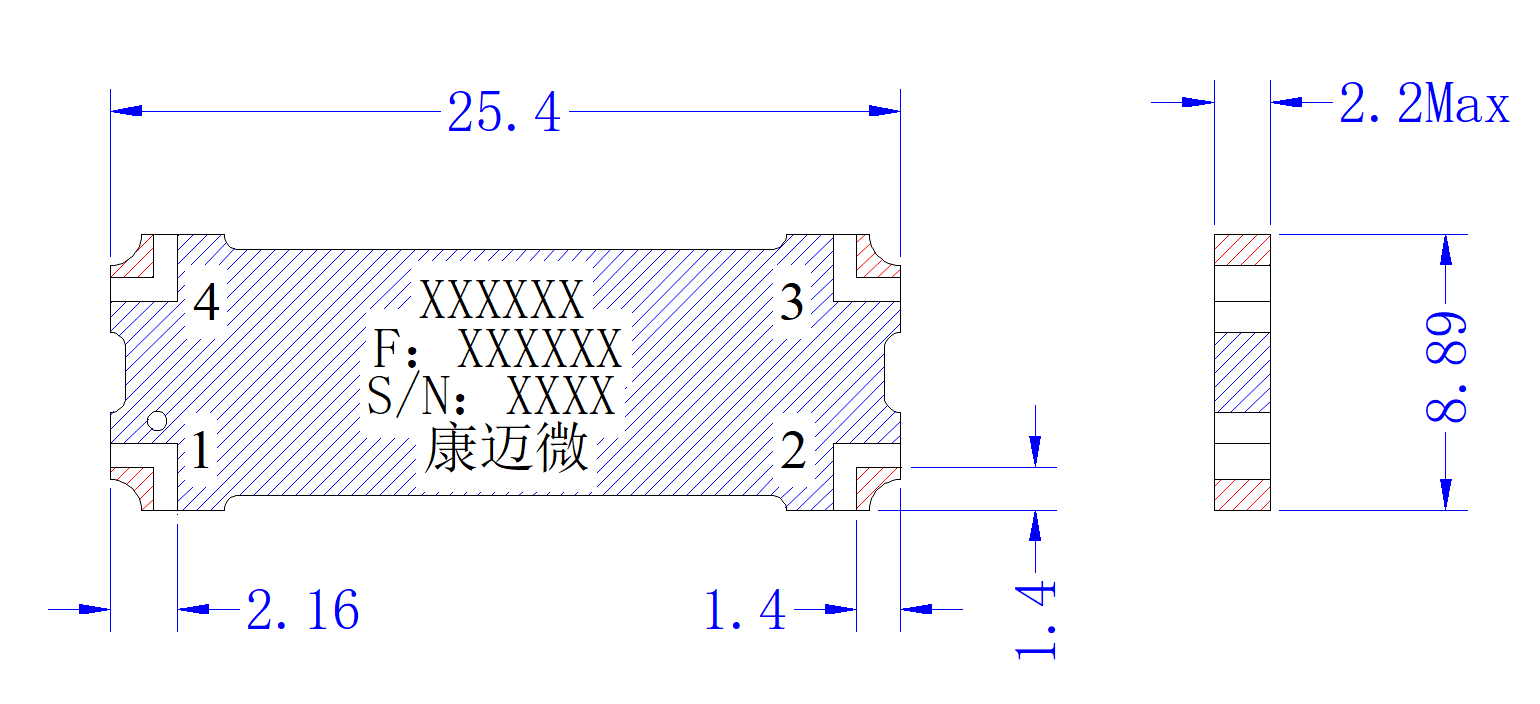

Configuration(mm)
Typical test data
| Frequency(MHz) | S11 VSWR | S22 VSWR | S12 IL dB | S14 coupling | S24 ISO dB |
| 1000 | 1.06 | 1.06 | -0.1 | -24.13 | -55.11 |
| 1429 | 1.06 | 1.05 | -0.12 | -21.87 | -50.38 |
| 1857 | 1.02 | 1.01 | -0.14 | -20.56 | -46.62 |
| 2286 | 1.06 | 1.04 | -0.15 | -19.96 | -44.14 |
| 2714 | 1.13 | 1.1 | -0.16 | -19.88 | -43.1 |
| 3143 | 1.16 | 1.14 | -0.17 | -20.08 | -43.67 |
| 3571 | 1.14 | 1.14 | -0.18 | -20.36 | -46.18 |
| 4000 | 1.08 | 1.1 | -0.19 | -20.54 | -50.71 |
| 4429 | 1.03 | 1.06 | -0.2 | -20.51 | -52.69 |
| 4857 | 1.11 | 1.09 | -0.22 | -20.36 | -51.07 |
| 5286 | 1.2 | 1.13 | -0.24 | -20.24 | -50.84 |
| 5714 | 1.26 | 1.18 | -0.26 | -20.3 | -50.95 |
| 6143 | 1.27 | 1.23 | -0.27 | -20.65 | -50.23 |
| 6571 | 1.22 | 1.21 | -0.25 | -21.25 | -50.08 |
| 7000 | 1.08 | 1.12 | -0.25 | -21.85 | -45.91 |
Note
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | The product supports 260 ℃ reflow soldering. |
