Filter ZBF13-L1500-800-1535
In Stock 24
Passband1100~1900MHz, DC-900MHz≥45dB, 2.2-5GHz≥45dB, SMD
$ 28.29
Delivery Time ： 1-3 Day(WorkDay)
Terms: Ex Work from Chengdu,China warehouse, minimum order amount US$200. Keeping registered and logged in, check discounts by adding to cart
MOQ : 1
Attention: The online trading belongs to commercial activities, the final transaction price might be lower than tag price, subject to automatically system calculating; The price is competitive, product fully tested and qualified, we will offer certificate of conformity, no test report.
- Contact Us
- Cynthia
- cynthia@com-mw.com
sales@com-mw.com
+86 19938031308- 23 floor, No. 1 building, P Jiuxi Plaza, No.37, Jiancai Road, Chenghua Zone, Chengdu
Main specifications
| Parameters | Frequency | / | Min | Typical | Max | Units |
| Passband | / | / | 1100 | ~ | 1900 | MHz |
| Passband IL | / | / | 3.0 | dB | ||
| Ripple | / | / | 1.0 | dB | ||
| Rejection | DC-900 | MHz≥ | 45 | dB | ||
| Rejection | 2.2-5 | GHz≥ | 45 | dB | ||
| Passband VSWR | / | / | 1.60 |
Other parameters
| Connector | SMD |
| Impedance | 50Ω |
| Power | 2W Design assurance |
| Work Temp. | -40~+85℃ Design assurance |
| Storage Temp. | -55~+85℃ Design assurance |
| Quality Grade | Industrial grade |
Typical test data
| Frequency MHz | S11 VSWR | S22 VSWR | S12 IL (dB) | S12 Delay (ns) |
| 900 | 68.79 | 57.45 | -53.24 | 2.15 |
| 993 | 15.23 | 21.18 | -28.37 | 3.85 |
| 1086 | 1.44 | 1.71 | -2.25 | 5.6 |
| 1179 | 1.23 | 1.26 | -1.07 | 2.89 |
| 1271 | 1.25 | 1.24 | -0.92 | 2.25 |
| 1364 | 1.47 | 1.48 | -1.01 | 1.96 |
| 1457 | 1.47 | 1.52 | -1.07 | 1.86 |
| 1550 | 1.41 | 1.46 | -1.09 | 1.87 |
| 1643 | 1.27 | 1.38 | -1.12 | 1.97 |
| 1736 | 1.25 | 1.41 | -1.29 | 2.17 |
| 1829 | 1.25 | 1.27 | -1.55 | 2.68 |
| 1921 | 1.4 | 1.44 | -2.7 | 4.11 |
| 2014 | 8.88 | 8.58 | -14.69 | 3.35 |
| 2107 | 22.93 | 21.46 | -34.05 | 1.3 |
| 2200 | 35.28 | 35.57 | -50.23 | 0.81 |
Reference picture

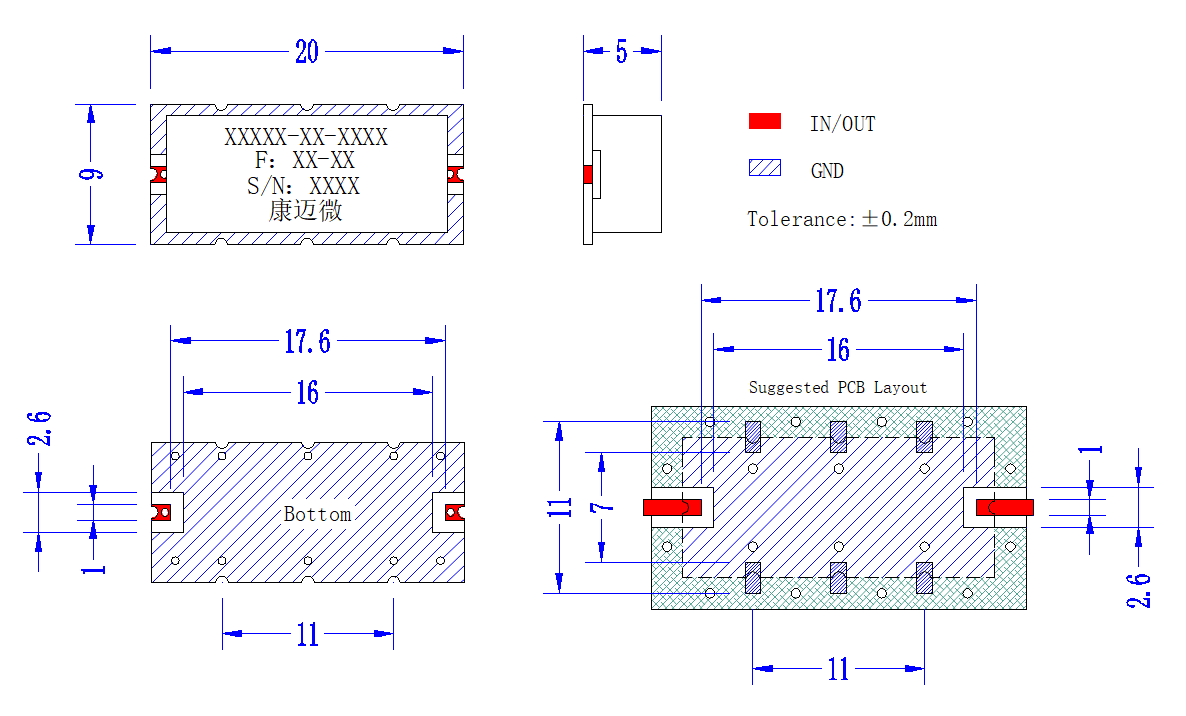

Configuration(mm)

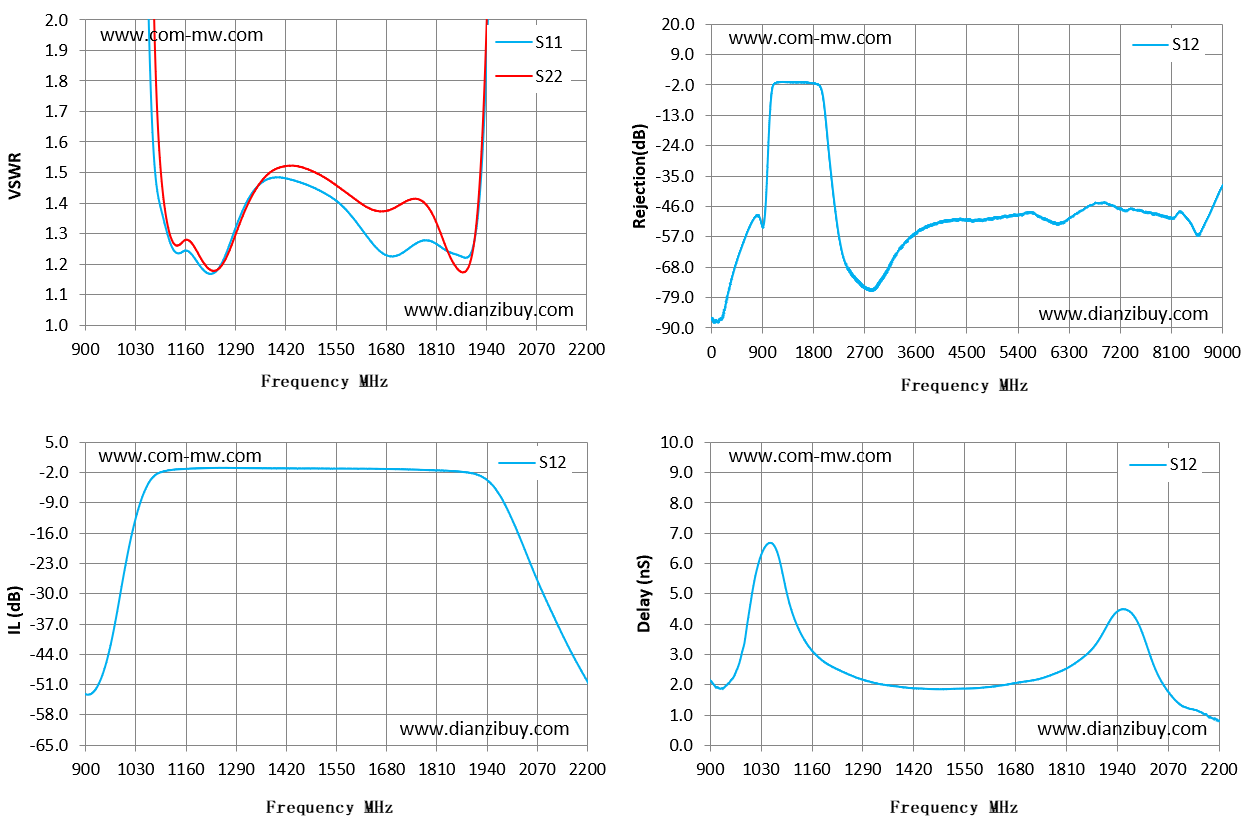

Typical test curve
Note
| 1 | Please do not wash the product in the cleaning solution.,Please do not wash the product in the cleaning solution. |
| 2 | The product supports 190 ℃ reflow soldering |
