Filter ZBF16-C8-1G-338
In Stock 12
Passband7.5~8.5GHz, DC~6.8GHz≥50dBc, 9.2~22GHz≥50dBc, SMA-KDetachable
$ 70
Delivery Time ： 1-3 Day(WorkDay)
Terms: Ex Work from Chengdu,China warehouse, minimum order amount US$200. Keeping registered and logged in, check discounts by adding to cart
MOQ : 1
Attention: The online trading belongs to commercial activities, the final transaction price might be lower than tag price, subject to automatically system calculating; The price is competitive, product fully tested and qualified, we will offer certificate of conformity, no test report.
- Contact Us
- Cynthia
- cynthia@com-mw.com
sales@com-mw.com
+86 19938031308- 23 floor, No. 1 building, P Jiuxi Plaza, No.37, Jiancai Road, Chenghua Zone, Chengdu
Main specifications
| Parameters | Frequency | / | Min | Typical | Max | Units |
| Passband | / | / | 7.5 | ~ | 8.5 | GHz |
| Passband IL | / | / | 1.2 | dB | ||
| Ripple | / | / | 0.6 | dB | ||
| Rejection | DC~6.8 | GHz≥ | 50 | dBc | ||
| Rejection | 9.2~22 | GHz≥ | 50 | dBc | ||
| Passband VSWR | / | / | 1.3 |
Other parameters
| Connector | SMA-K detachable, Pin 0.38mm |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Silver plating |
| Power | 20W Design assurance |
| Work Temp. | -40~+85℃ Design assurance |
| Storage Temp. | -55~+85℃ Design assurance |
| Quality Grade | Industrial grade |

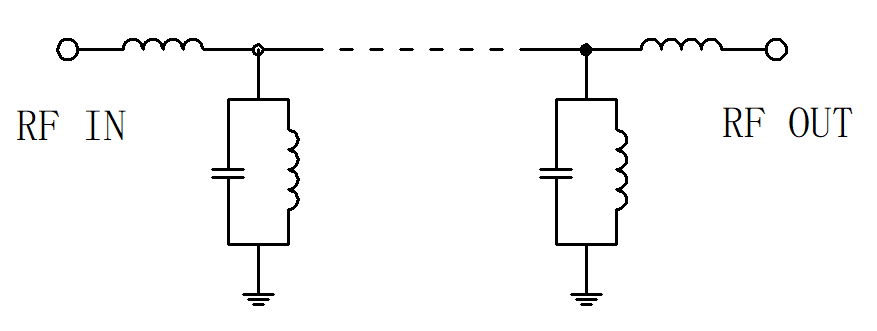

Functional diagram
Typical test data
| Frequency(GHz) | S11 VSWR | S22 VSWR | S12 IL dB | S12 Delay nS |
| 7 | 98.9 | 42.31 | -42.12 | 0.4 |
| 7.14 | 69.37 | 38 | -32.05 | 0.66 |
| 7.29 | 36.87 | 29.77 | -18.24 | 1.13 |
| 7.43 | 3.37 | 3.31 | -3.09 | 2.52 |
| 7.57 | 1.12 | 1.13 | -0.68 | 2.17 |
| 7.71 | 1.15 | 1.14 | -0.68 | 1.72 |
| 7.86 | 1.12 | 1.09 | -0.66 | 1.58 |
| 8 | 1.09 | 1.08 | -0.7 | 1.55 |
| 8.14 | 1.16 | 1.11 | -0.7 | 1.58 |
| 8.29 | 1.04 | 1.07 | -0.73 | 1.68 |
| 8.43 | 1.17 | 1.13 | -0.8 | 1.91 |
| 8.57 | 1.25 | 1.2 | -0.96 | 2.55 |
| 8.71 | 9.89 | 9.63 | -7.84 | 2.6 |
| 8.86 | 19.8 | 21.04 | -23.8 | 1.56 |
| 9 | 12.84 | 21.36 | -37.13 | 1.37 |

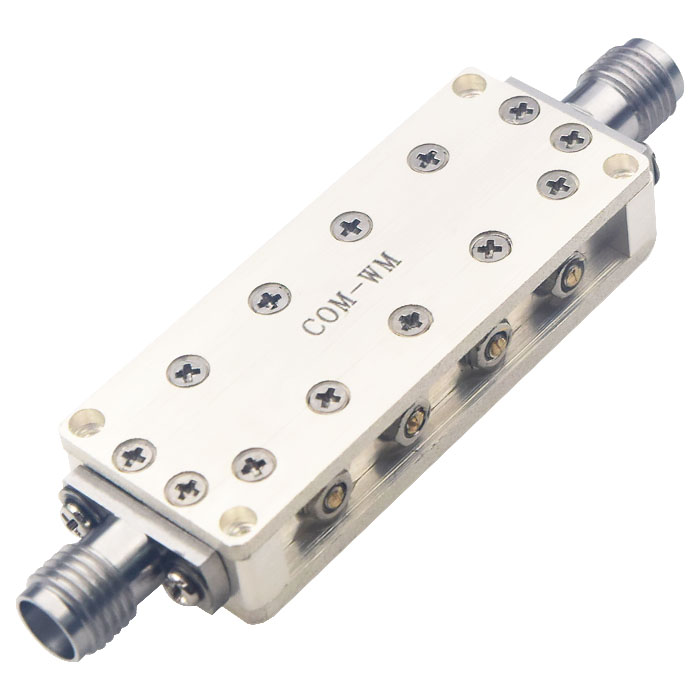

Reference picture

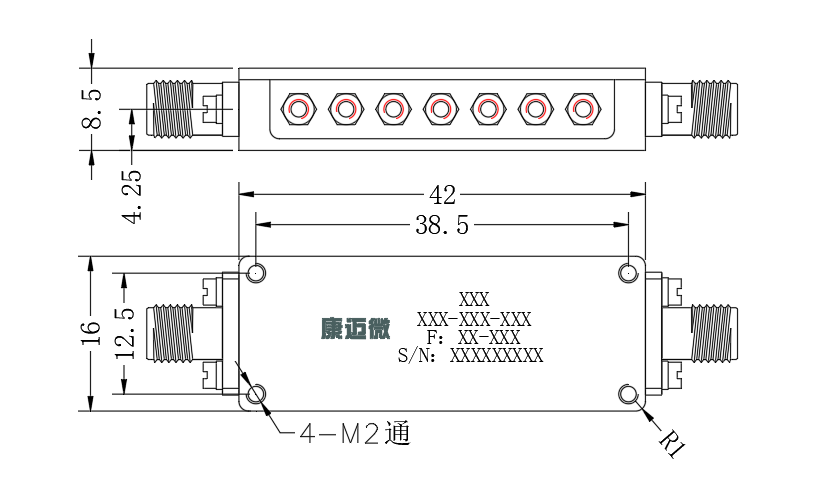

Configuration(mm)

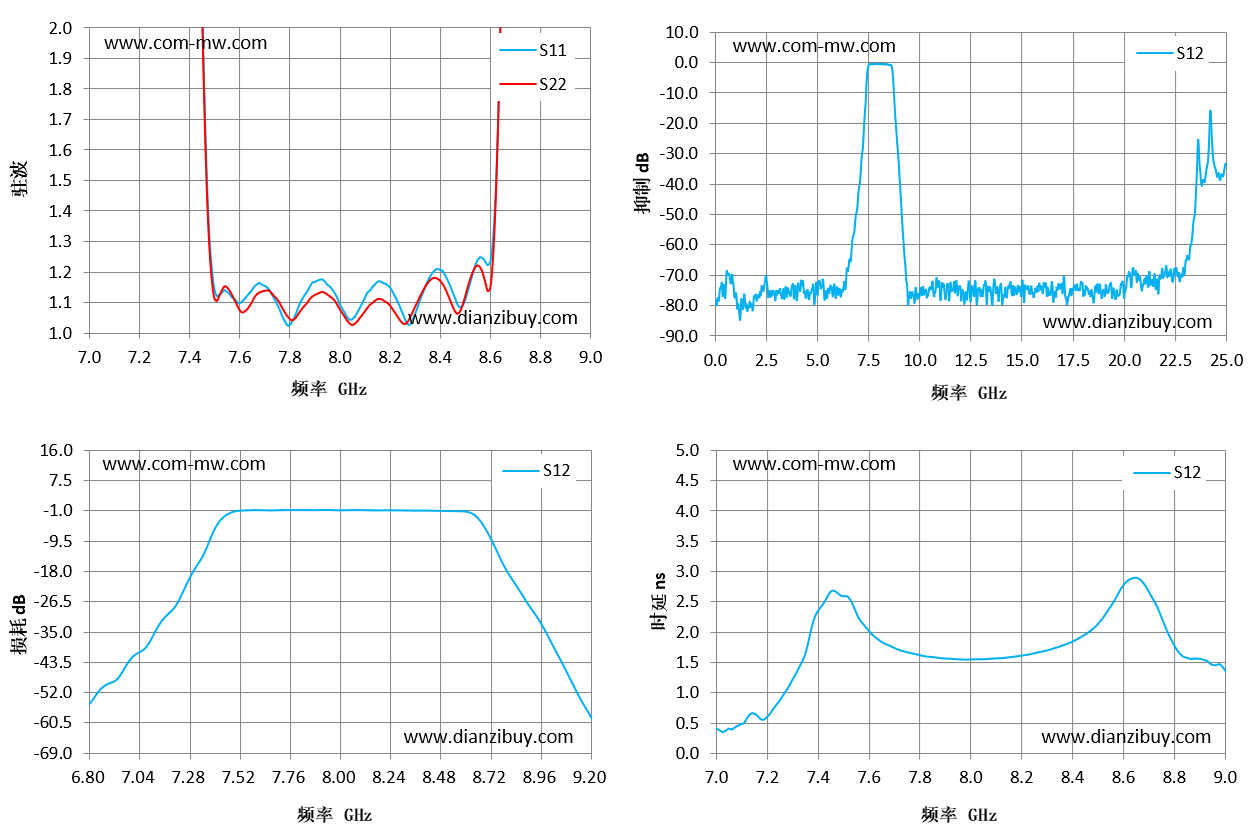

Typical test curve
Note
| 1 | Please do not wash the product in the cleaning solution.,Please do not wash the product in the cleaning solution. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
