Power divider ZPD8-2M1-1000-1257
In Stock 16
1~1000MHz, 1W, 2way, 0°, N
$ 41.86
Delivery Time ： 1-3 Day(WorkDay)
Terms: Ex Work from Chengdu,China warehouse, minimum order amount US$200. Keeping registered and logged in, check discounts by adding to cart
MOQ : 1
Attention: The online trading belongs to commercial activities, the final transaction price might be lower than tag price, subject to automatically system calculating; The price is competitive, product fully tested and qualified, we will offer certificate of conformity, no test report.
- Contact Us
- Cynthia
- cynthia@com-mw.com
sales@com-mw.com
+86 19938031308- 23 floor, No. 1 building, P Jiuxi Plaza, No.37, Jiancai Road, Chenghua Zone, Chengdu
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 1 | ~ | 1000 | MHz |
| IL | 1.2 | dB | ||
| Isolation | 18 | 21 | dB | |
| Input VSWR | 1.3 | |||
| Output VSWR | 1.3 | |||
| Amplitude balance | 0.6 | dB | ||
| Phase balance | 5 | ° |
Other parameters
| Power | 1W Design assurance |
| way | 2-way |
| Phase | 0° |
| Impedance | 50Ω |
| Connector | N-K |
| Work Temp. | -40~+70℃ Design assurance |
Port Definition
| Common port | 0 |
| Dispatch Port | 1、2 |
Typical test data
| F(MHz) | S12 IL | S23 ISO | S11 VSWR | S22 VSWR |
| 1 | -3.51 | -25.3 | 1.39 | 1.49 |
| 5 | -3.18 | -27.6 | 1.03 | 1.16 |
| 10 | -3.22 | -29.2 | 1.02 | 1.14 |
| 50 | -3.19 | -28.5 | 1.03 | 1.12 |
| 100 | -3.23 | -27.3 | 1.04 | 1.11 |
| 200 | -3.29 | -25.3 | 1.06 | 1.11 |
| 400 | -3.43 | -22.8 | 1.07 | 1.07 |
| 600 | -3.54 | -21.8 | 1.11 | 1.05 |
| 800 | -3.61 | -22.2 | 1.16 | 1.08 |
| 1000 | -3.78 | -23.6 | 1.25 | 1.16 |

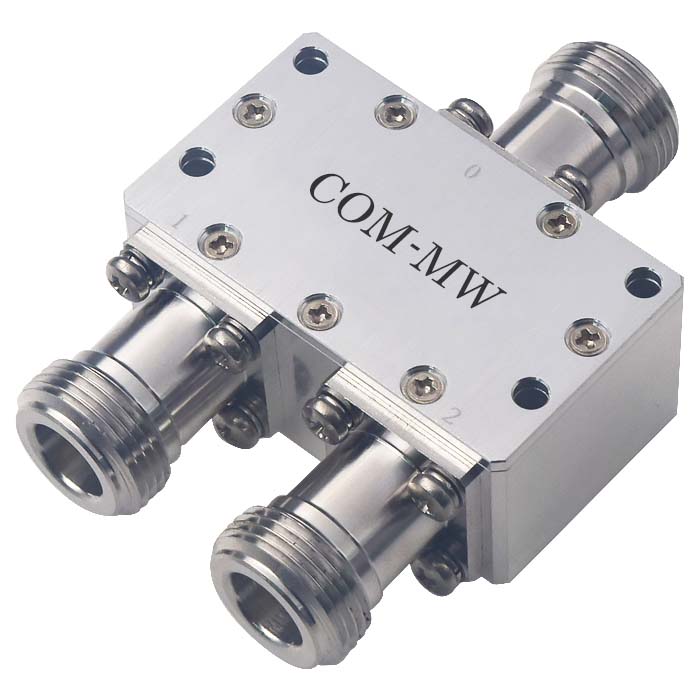

Reference picture

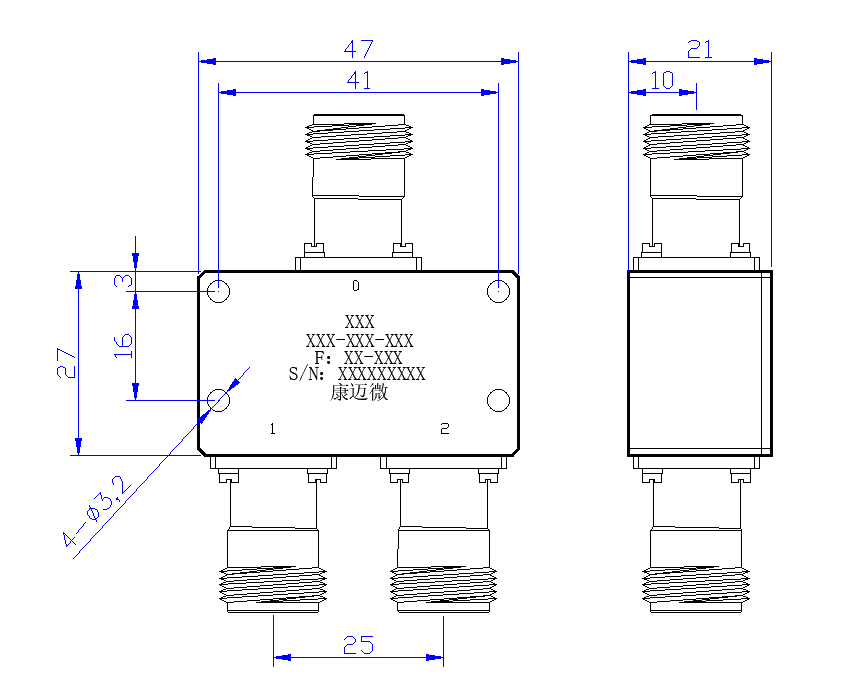

Configuration(mm)
Typical test curve
Note
| 1 | Please do not wash the product in the cleaning solution.,Please do not wash the product in the cleaning solution. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
