Diplexer ZCB8-2C0.8-5G-2003
In Stock 2
Passband F10.8~1GHz, Passband F21.7~5GHz, SMA
$ 280
Delivery Time ： 1-3 Day(WorkDay)
Terms: Ex Work from Chengdu,China warehouse, minimum order amount US$200. Keeping registered and logged in, check discounts by adding to cart
MOQ : 1
Attention: The online trading belongs to commercial activities, the final transaction price might be lower than tag price, subject to automatically system calculating.
- Contact Us
- Cynthia
- cynthia@com-mw.com
sales@com-mw.com
+86 19938031308- 23 floor, No. 1 building, P Jiuxi Plaza, No.37, Jiancai Road, Chenghua Zone, Chengdu
Main specifications
| Parameters | Frequency | / | Min | Typical | Max | Units |
| Passband F1 | / | / | 0.8 | ~ | 1 | GHz |
| Passband F2 | / | / | 1.7 | ~ | 5 | GHz |
| band 1 IL | / | / | 1.0 | dB | ||
| band 2 IL | / | / | 1.0 | dB | ||
| Passband VSWR | / | / | 1.5 | |||
| ISO | 55 | dB | ||||
| band 1 Rejection | 1.7-5 | GHz≥ | 55 | dB | ||
| band 2 Rejection | 0.8-1 | GHz≥ | 55 | dB |
Other parameters
| Connector | SMA-K |
| Impedance | 50Ω |
| Surface | Black baking paint |
| Power Capacity | 30W |
| Operation Temp. | -40~+70℃ Design assurance |

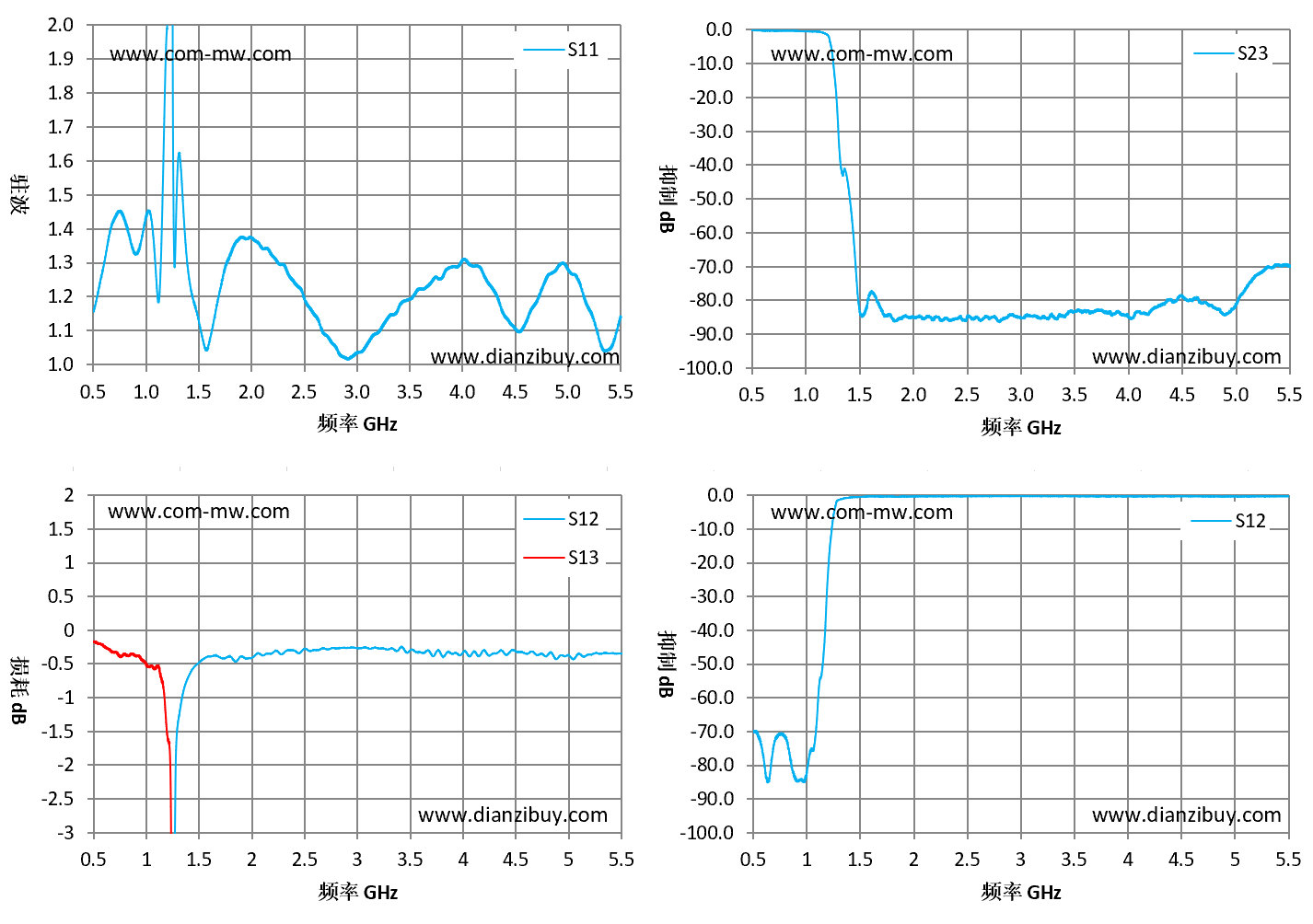

Typical test curve

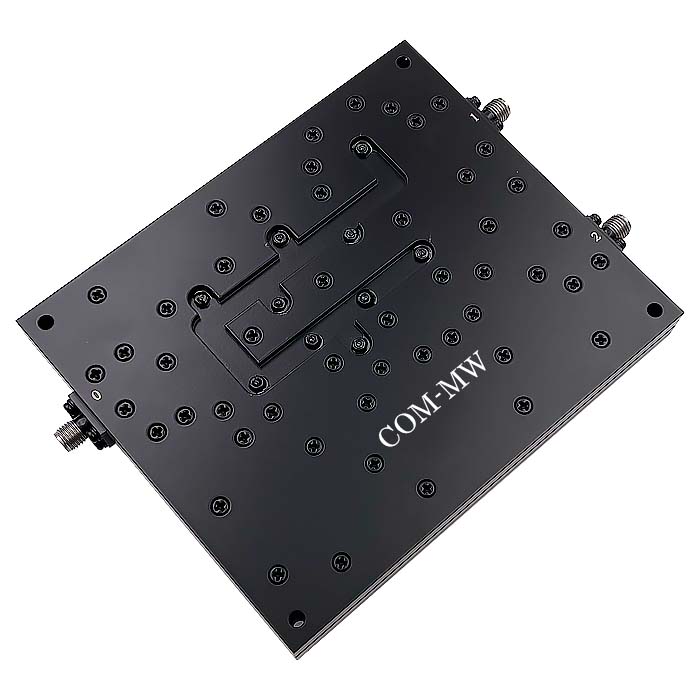

Reference picture

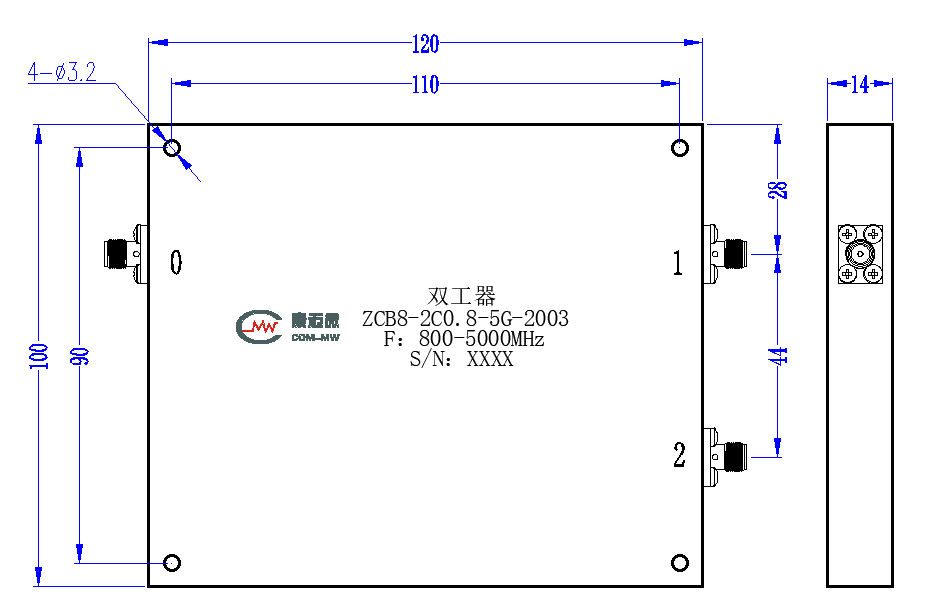

Configuration(mm)
Note
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 1 | If the temperature is higher than 125℃, consult with us before ordering. |
