Power divider ZPD9-4C0.5-26.5G-1774
In Stock 4
500~26500MHz, 20W, 4way, 0°, SMA
$ 284.29
Delivery Time ： 1-3 Day(WorkDay)
Terms: Ex Work from Chengdu,China warehouse, minimum order amount US$200. Keeping registered and logged in, check discounts by adding to cart
MOQ : 1
Attention: The online trading belongs to commercial activities, the final transaction price might be lower than tag price, subject to automatically system calculating.
- Contact Us
- Cynthia
- cynthia@com-mw.com
sales@com-mw.com
+86 19938031308- 23 floor, No. 1 building, P Jiuxi Plaza, No.37, Jiancai Road, Chenghua Zone, Chengdu
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 500 | ~ | 26500 | MHz |
| IL | 5.8 | dB | ||
| Isolation | 16 | dB | ||
| Input VSWR | 1.9 | |||
| Output VSWR | 1.8 | |||
| Amplitude balance | ±1 | dB | ||
| Phase balance | ±10 | ° |
Other parameters
| Power | 20W |
| way | 4-way |
| Phase | 0° |
| Impedance | 50Ω |
| Connector | SMA-K |
| Work Temp. | -40~+85℃ Design assurance |
| Quality Grade | Industrial grade |
Port Definition
| Common port | 0 |
| Dispatch Port | 1 2 3 4 |
Typical test data
| Frequency(GHz) | S11 VSWR | S12 IL dB | S13 IL dB | S15 Phase (°) | S23 ISO dB |
| 0.5 | 1.59 | -6.69 | -6.67 | -0.34 | -17.38 |
| 2.39 | 1.13 | -6.65 | -6.64 | -0.52 | -30.36 |
| 4.29 | 1.16 | -7.17 | -7.17 | -0.92 | -27.15 |
| 6.18 | 1.17 | -7.47 | -7.5 | -1.33 | -31.51 |
| 8.07 | 1.15 | -7.73 | -7.75 | -1.08 | -31.37 |
| 9.96 | 1.14 | -8.07 | -8.1 | -1.16 | -34.17 |
| 11.86 | 1.18 | -8.33 | -8.34 | -1.31 | -33.07 |
| 13.75 | 1.18 | -8.63 | -8.55 | -1.8 | -28.88 |
| 15.64 | 1.36 | -8.81 | -8.87 | -2.06 | -33.7 |
| 17.54 | 1.35 | -8.95 | -9.06 | -0.57 | -22.63 |
| 19.43 | 1.3 | -9.16 | -9.2 | 0.01 | -21.79 |
| 21.32 | 1.22 | -9.21 | -9.35 | -0.56 | -24.14 |
| 23.21 | 1.12 | -9.47 | -9.66 | -0.13 | -22.92 |
| 25.11 | 1.18 | -9.7 | -9.83 | 1.26 | -25.22 |
| 27 | 1.32 | -10.22 | -10.35 | 2.45 | -29.4 |

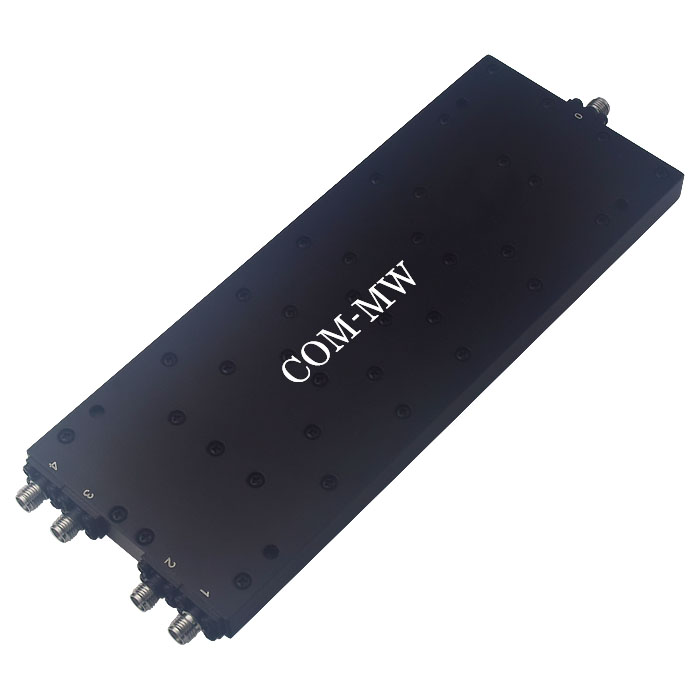

Reference picture

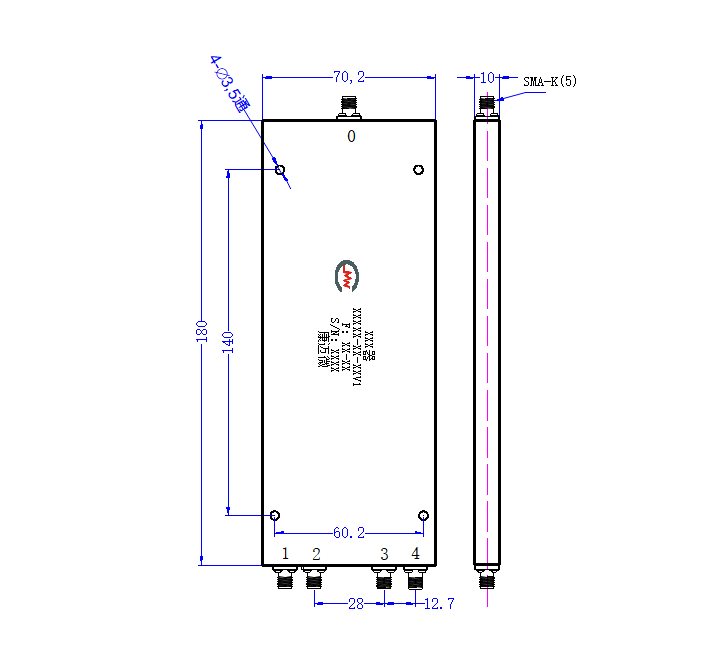

Configuration(mm)

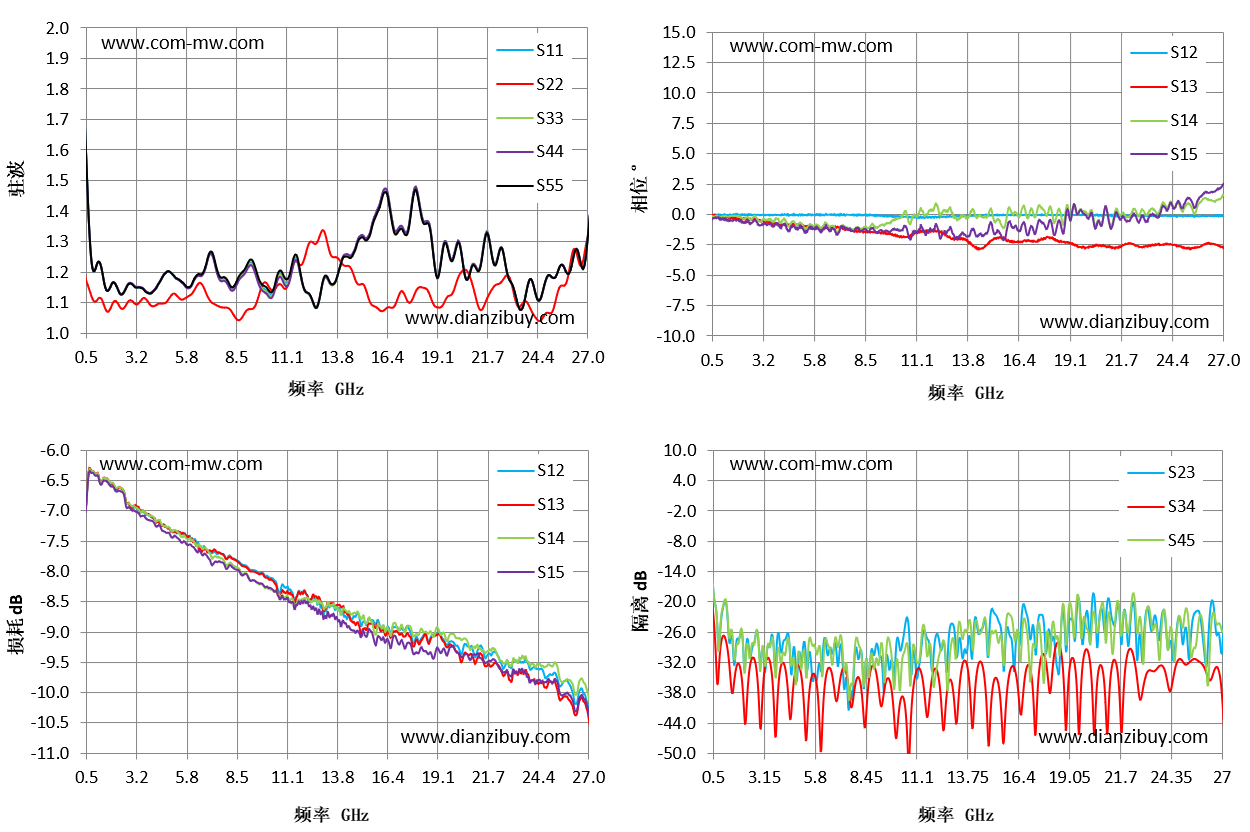

Typical test curve
Note
| 1 | Please do not wash the product in the cleaning solution.,Please do not wash the product in the cleaning solution. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
