Detector DD8-1-40G-2946
In Stock 11
Frequency1~40GHz, Dynamic range-20~+20dBm, 2.92
$ 247.29
Delivery Time ： 1-3 Day(WorkDay)
Terms: Ex Work from Chengdu,China warehouse, minimum order amount US$200. Keeping registered and logged in, check discounts by adding to cart
MOQ : 1
Attention: The online trading belongs to commercial activities, the final transaction price might be lower than tag price, subject to automatically system calculating.
- Contact Us
- Cynthia
- cynthia@com-mw.com
sales@com-mw.com
+86 19938031308- 23 floor, No. 1 building, P Jiuxi Plaza, No.37, Jiancai Road, Chenghua Zone, Chengdu
Product features
Broadband, small volume.
Main specifications
| Parameters | Min | Typical | Max | Units |
| Frequency | 1 | ~ | 40 | GHz |
| Dynamic range | -20 | ~ | +20 | dBm |
| VSWR | 2.5 | |||
| Rising edge | 30 | ns | ||
| Falling edge | 300 | ns |
Other parameters
| Connector | 2.92-K |
| Connector material | Stainless steel |
| Surface | Gold-plating |
| Working voltage | +5V |
| Operation Temp. | -40~+70℃ Design assurance |
Typical test data
| F | 1GHz | 5GHz | 10GHz | 15GHz | 20GHz | 30GHz | 40GHz |
| RF:dBm | Vout:mV | Vout:mV | Vout:mV | Vout:mV | Vout:mV | Vout:mV | Vout:mV |
| -20 | 26.5 | 27.7 | 27.6 | 27.2 | 28.1 | 26.5 | 26.4 |
| -15 | 33.2 | 35.6 | 35.9 | 34.9 | 37.3 | 33.1 | 33.4 |
| -10 | 50.9 | 57.1 | 58.1 | 55 | 61.1 | 50.8 | 51.9 |
| -5 | 95.5 | 107.4 | 110.3 | 102 | 116 | 92.4 | 95.9 |
| 0 | 197.9 | 213 | 218.5 | 201.1 | 229.6 | 183.3 | 193 |
| 5 | 389.4 | 420 | 435 | 394 | 453 | 365 | 386 |
| 10 | 742 | 703 | 829 | 759 | 860 | 701 | 735 |
| 15 | 1376 | 1489 | 1529 | 1396 | 1560 | \ | \ |
| 20 | 2449 | 2601 | 2636 | 2463 | 2639 | \ | \ |
Reference picture

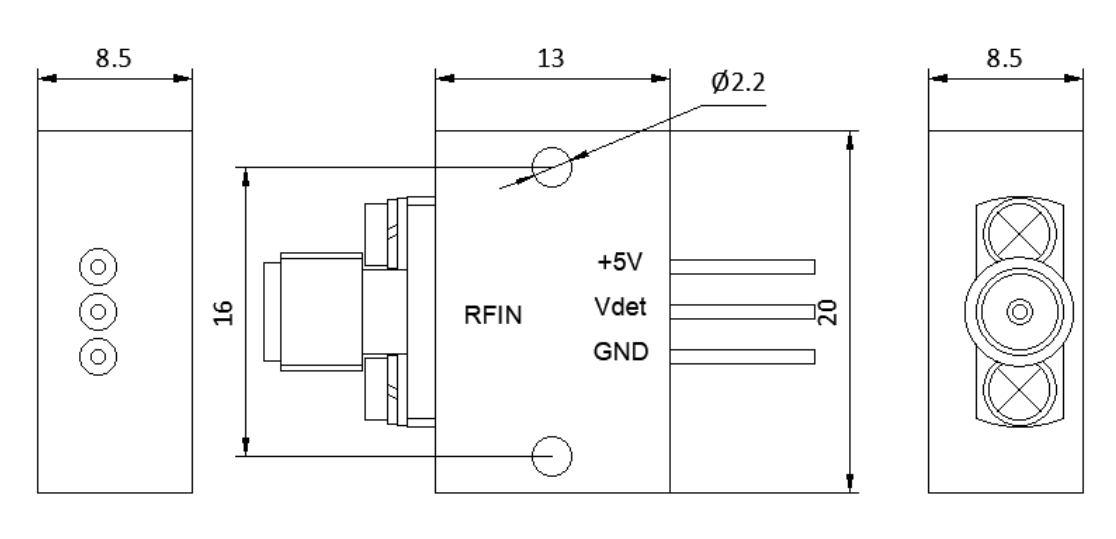

Configuration(mm)

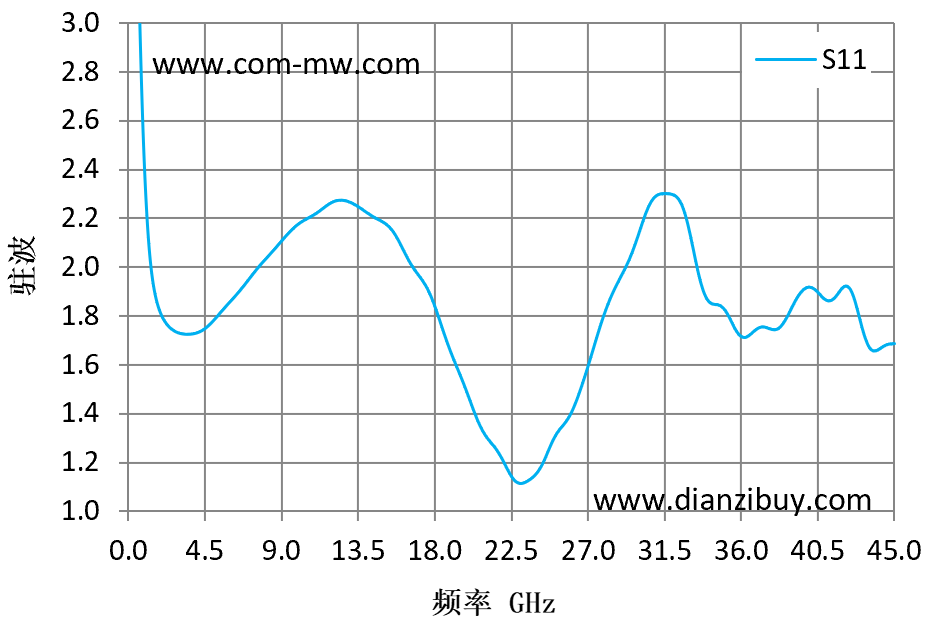

Typical test curve
Note
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
| 3 | 本器件为静电敏感器件，使用时注意静电防护 |
| 4 | 请按规格书要求输入电压，最大输入电压5.3V |
